Home >> Saab >> 2007 >> 9-3 (9440) L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Control Module, Trionic, Switch A (589A)

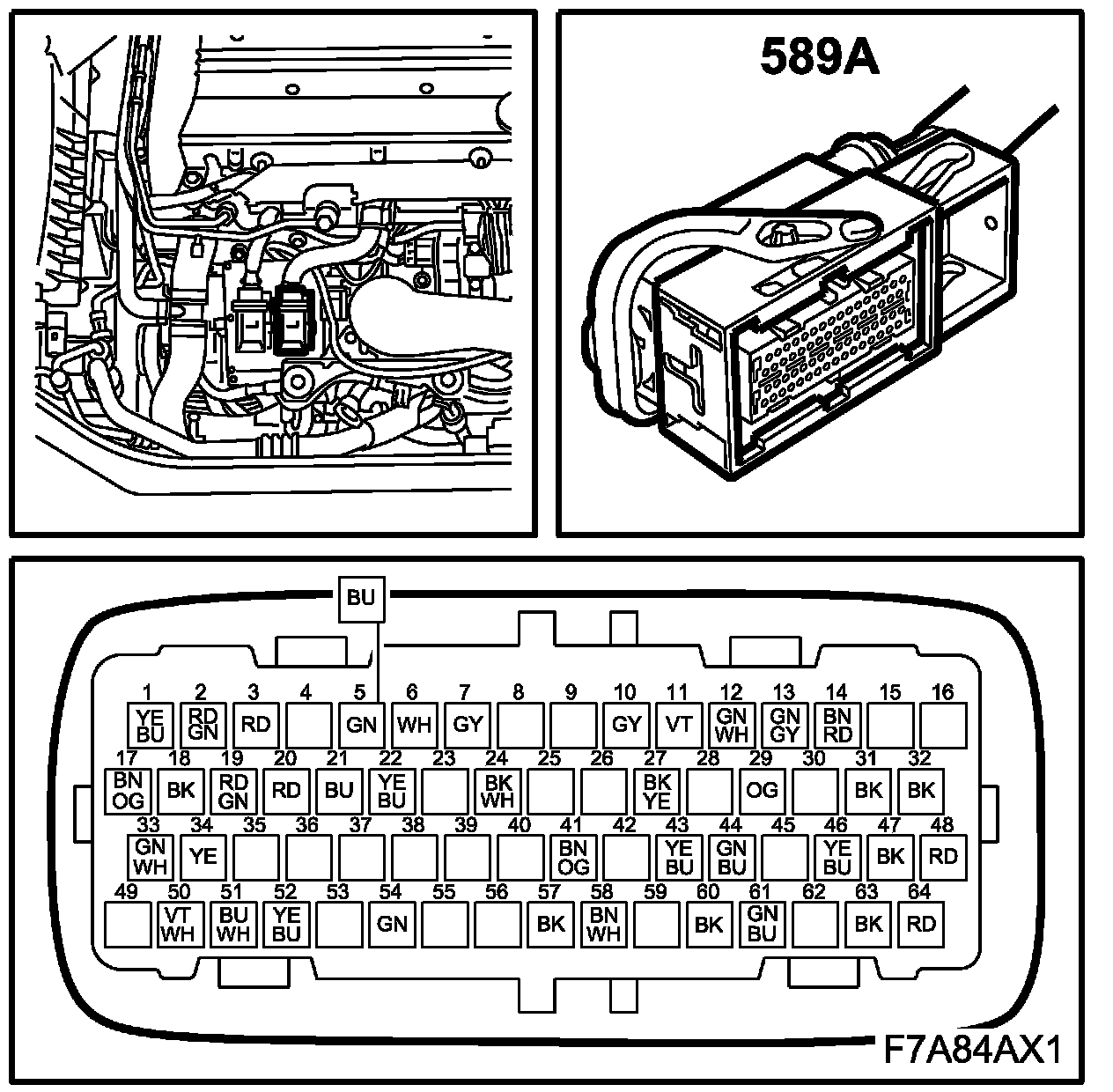

Control Module, Trionic, Switch A (589A)




Location: engine front

Control Module, Trionic, B207, Switch A (589A):
