Home >> Saab >> 2007 >> 9-3 (9440) L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Flow Meter/Sensor

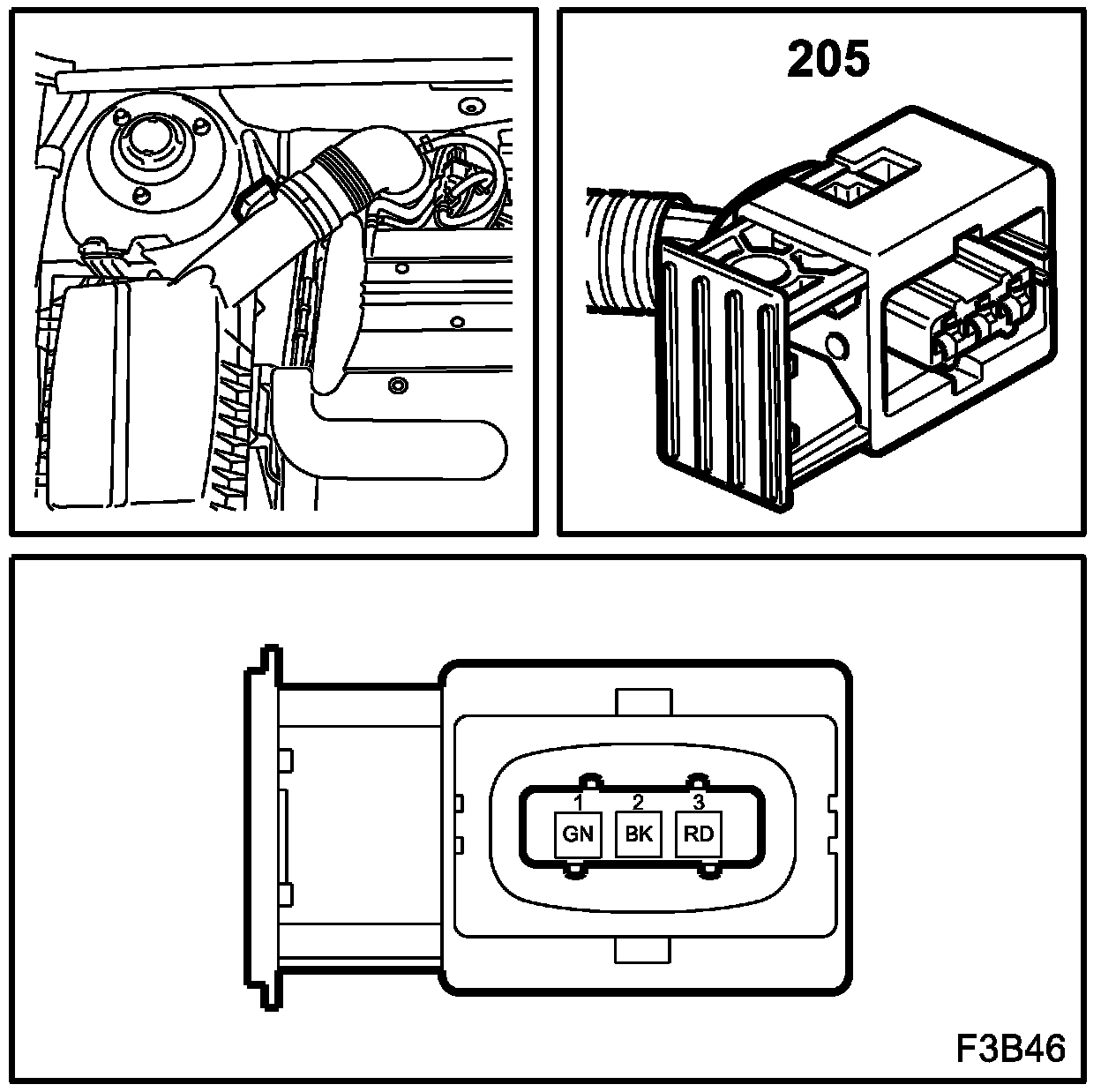

Air Flow Meter/Sensor



Location: On right-hand MacPherson strut tower

Mass Air Flow Sensor (205):
