Home >> Saab >> 2006 >> 9-7X V8-5.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block >> Fuse Block - Rear C2

Fuse Block - Rear C2

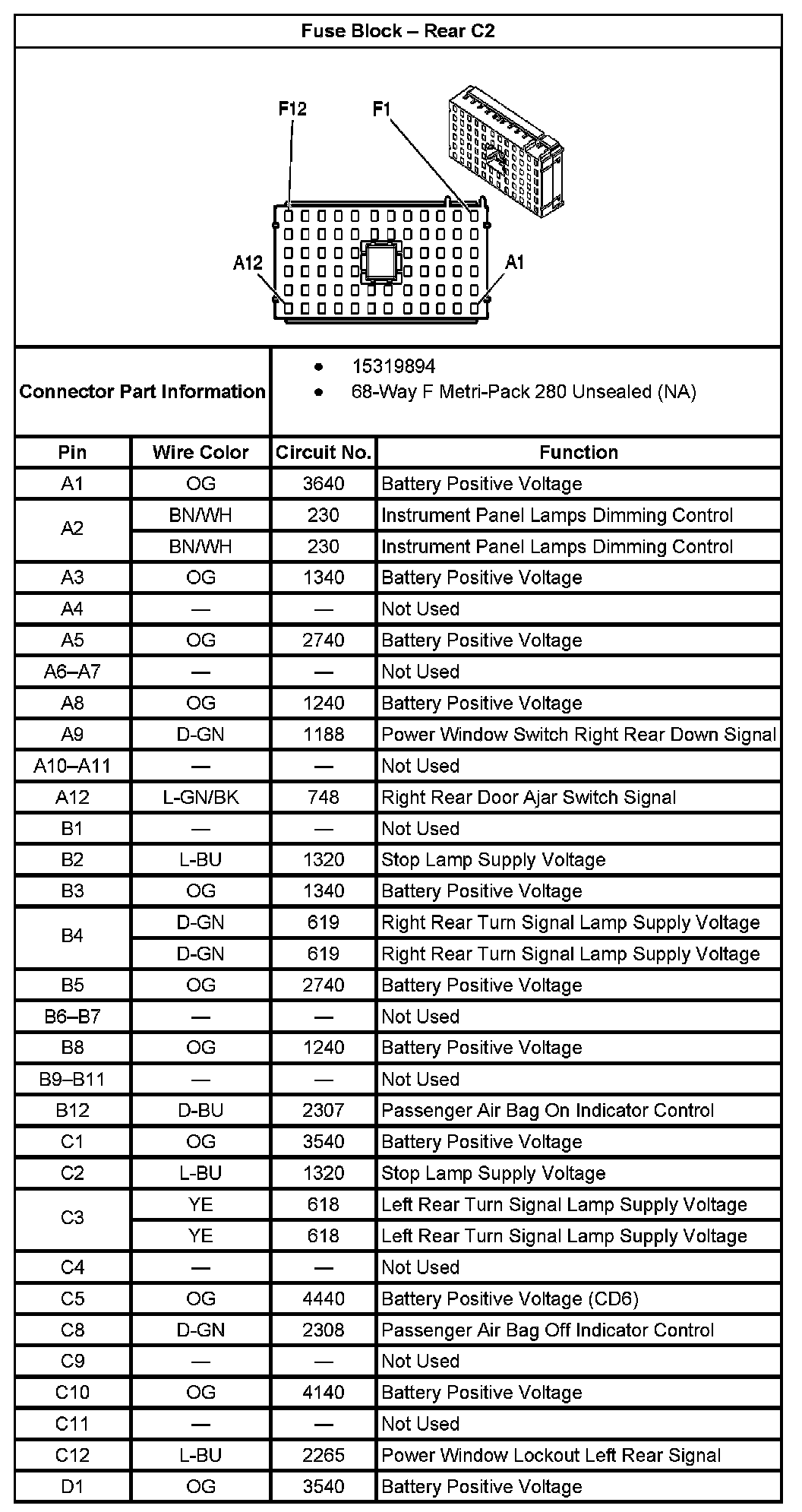

Fuse Block - Rear C2 (part 1):

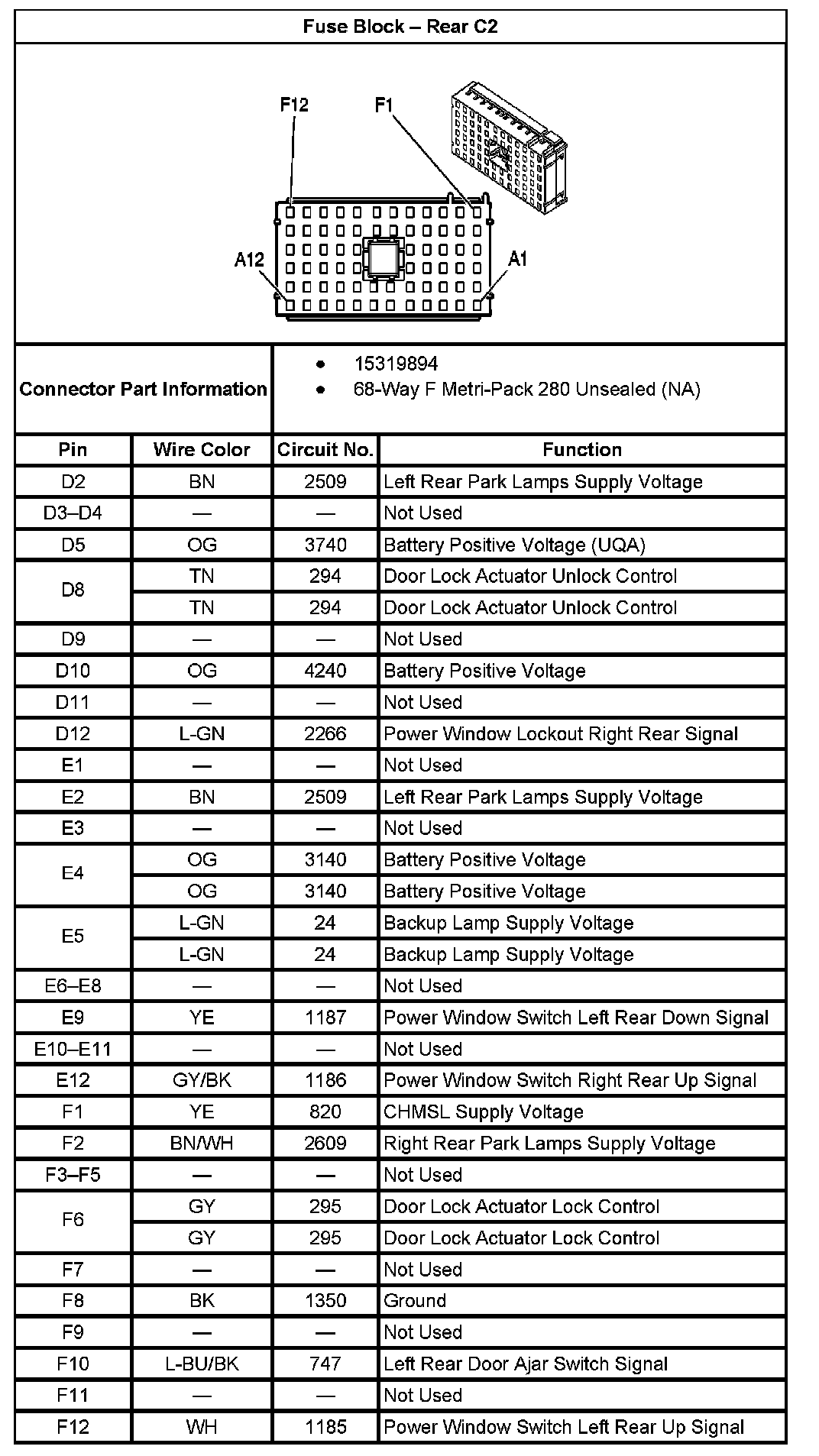

Fuse Block - Rear C1 (part 2):
