Saab
>>
2006
>>
9-2X F4-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>
Transmission Case and Control Device
Transmission Case and Control Device

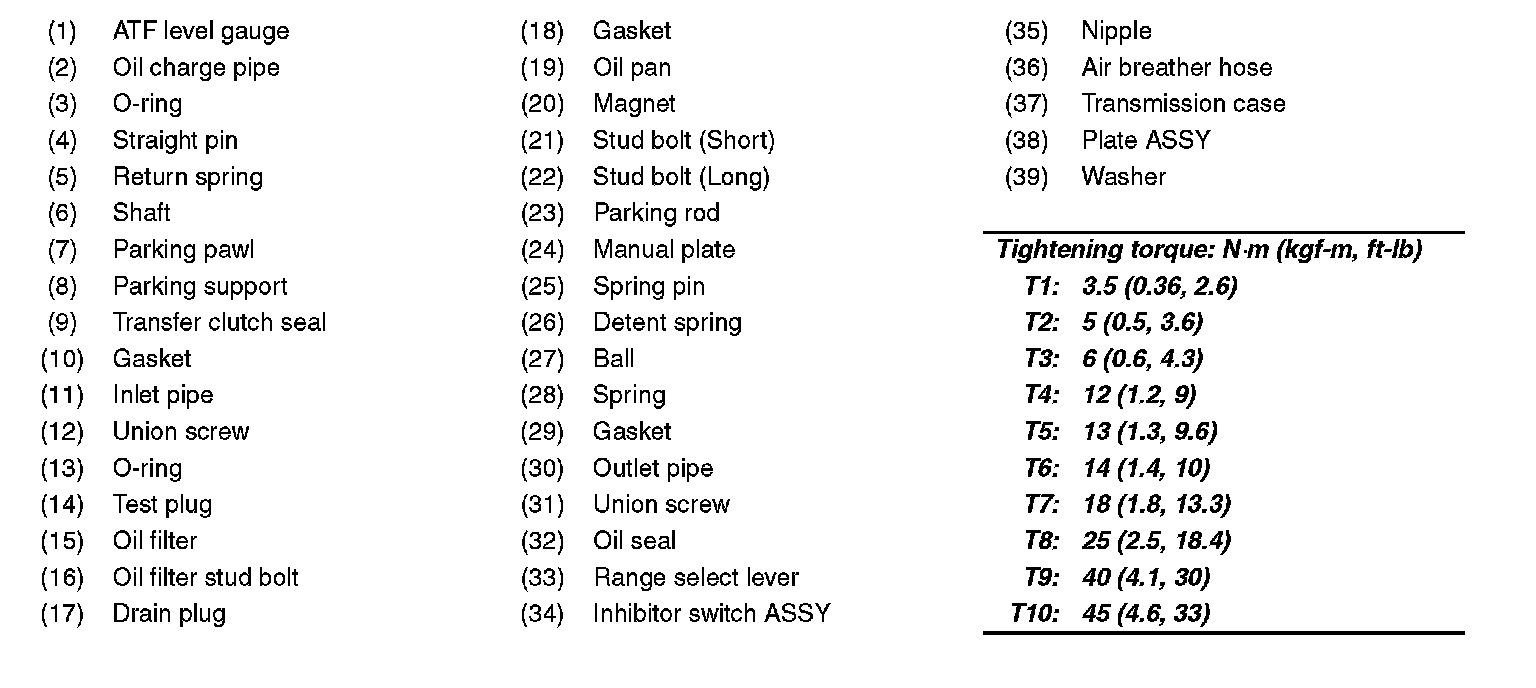

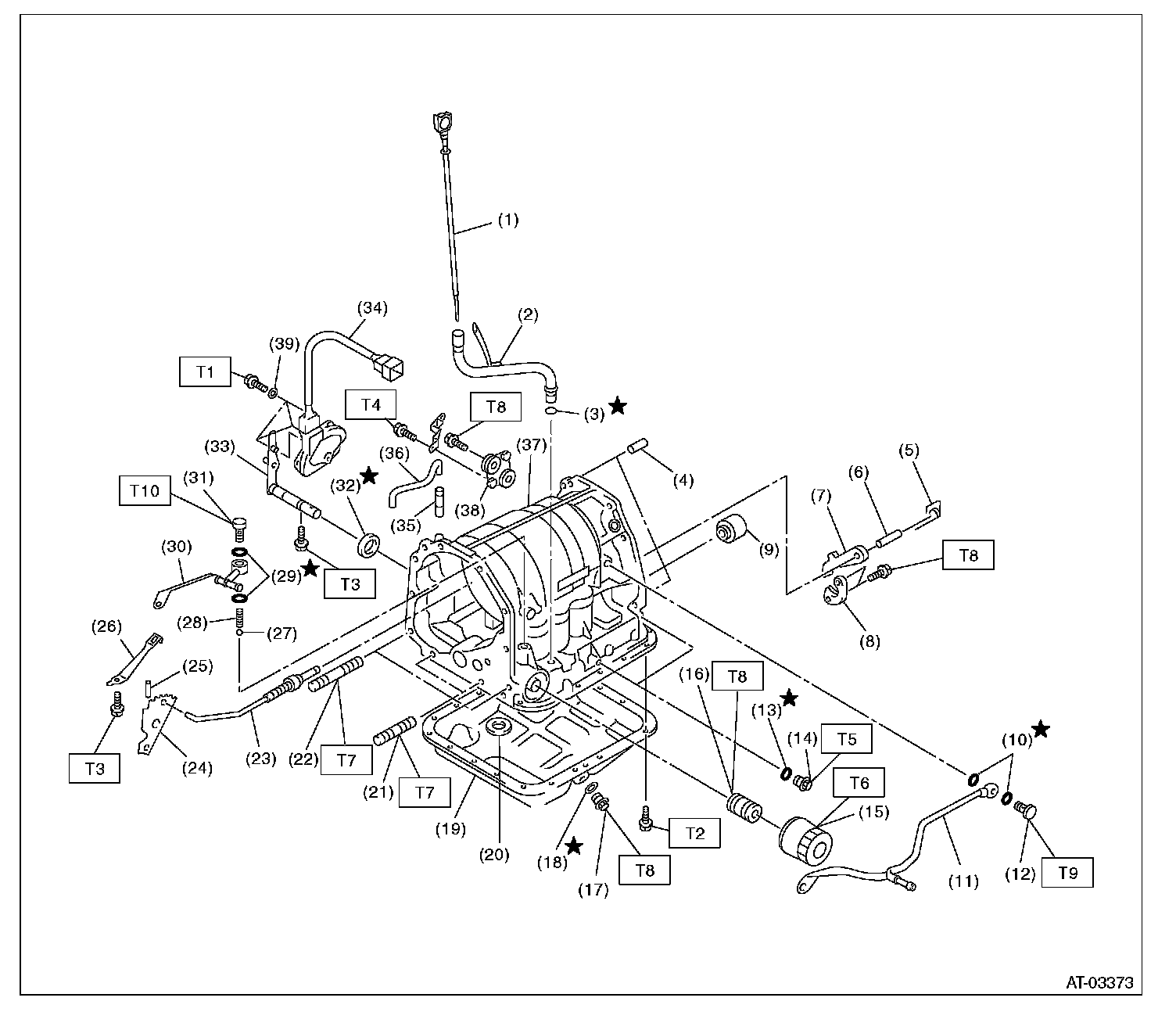

TRANSMISSION CASE AND CONTROL DEVICE 1:
TRANSMISSION CASE AND CONTROL DEVICE 2:
