Home >> Saab >> 2006 >> 9-2X F4-2.5L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> System Diagram >> Reduction Gear With MPT

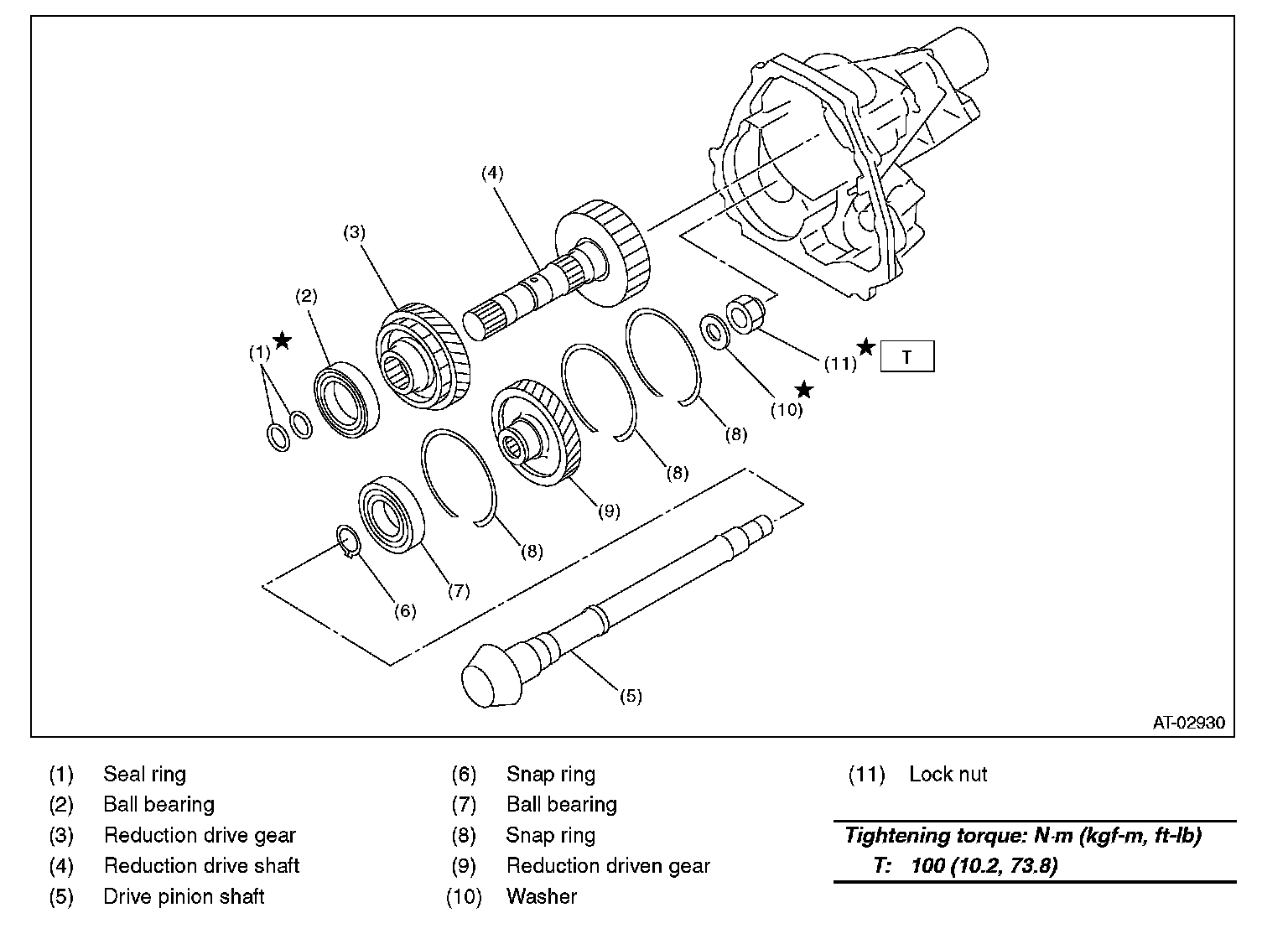

Reduction Gear With MPT

REDUCTION GEAR WITH MP-T:
