Automatic Transmission/Transaxle
>>
System Diagram
>>
Control Valve and Harness Routing
Control Valve and Harness Routing

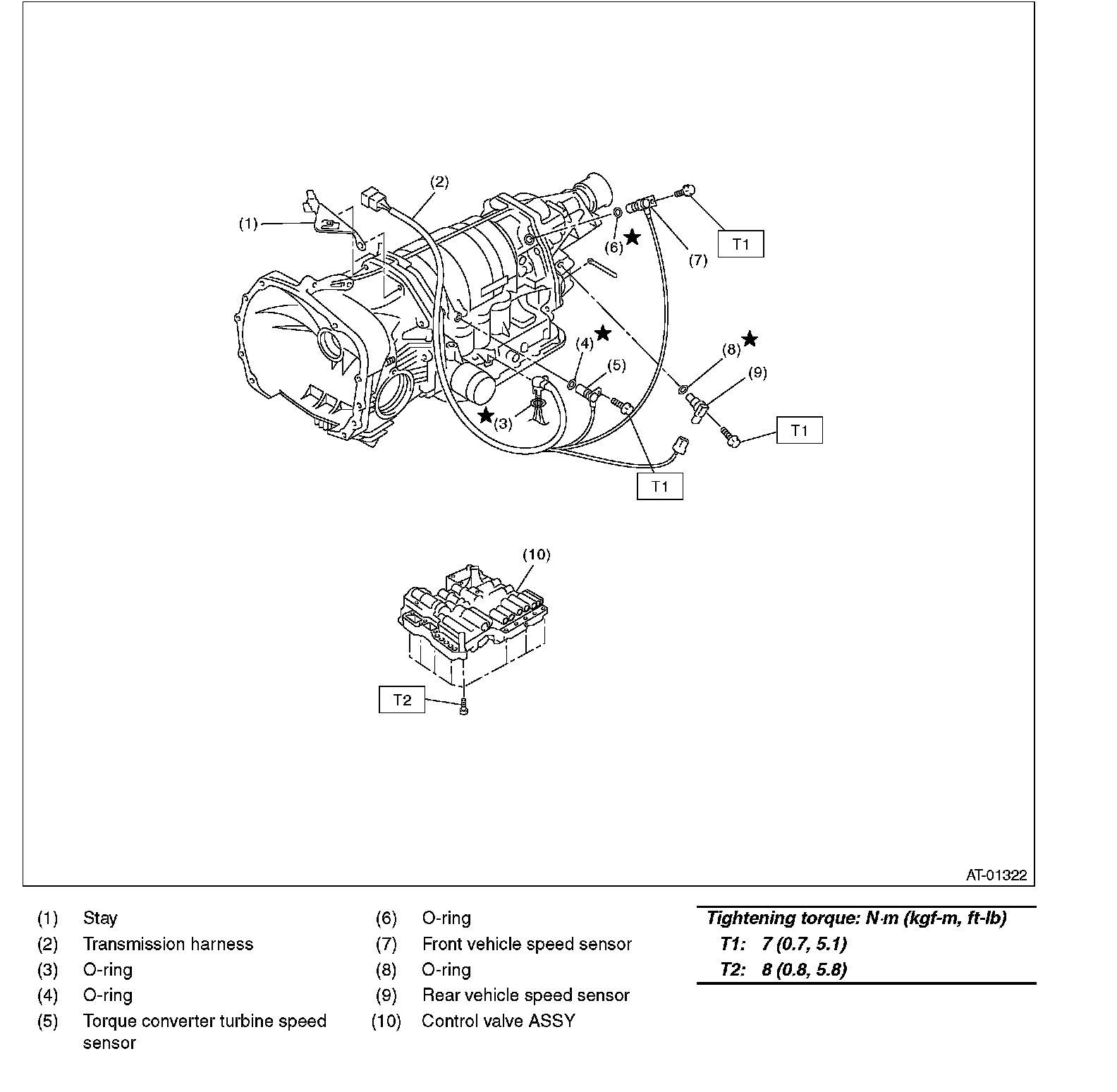

CONTROL VALVE AND HARNESS ROUTING:
