Electrical Diagrams

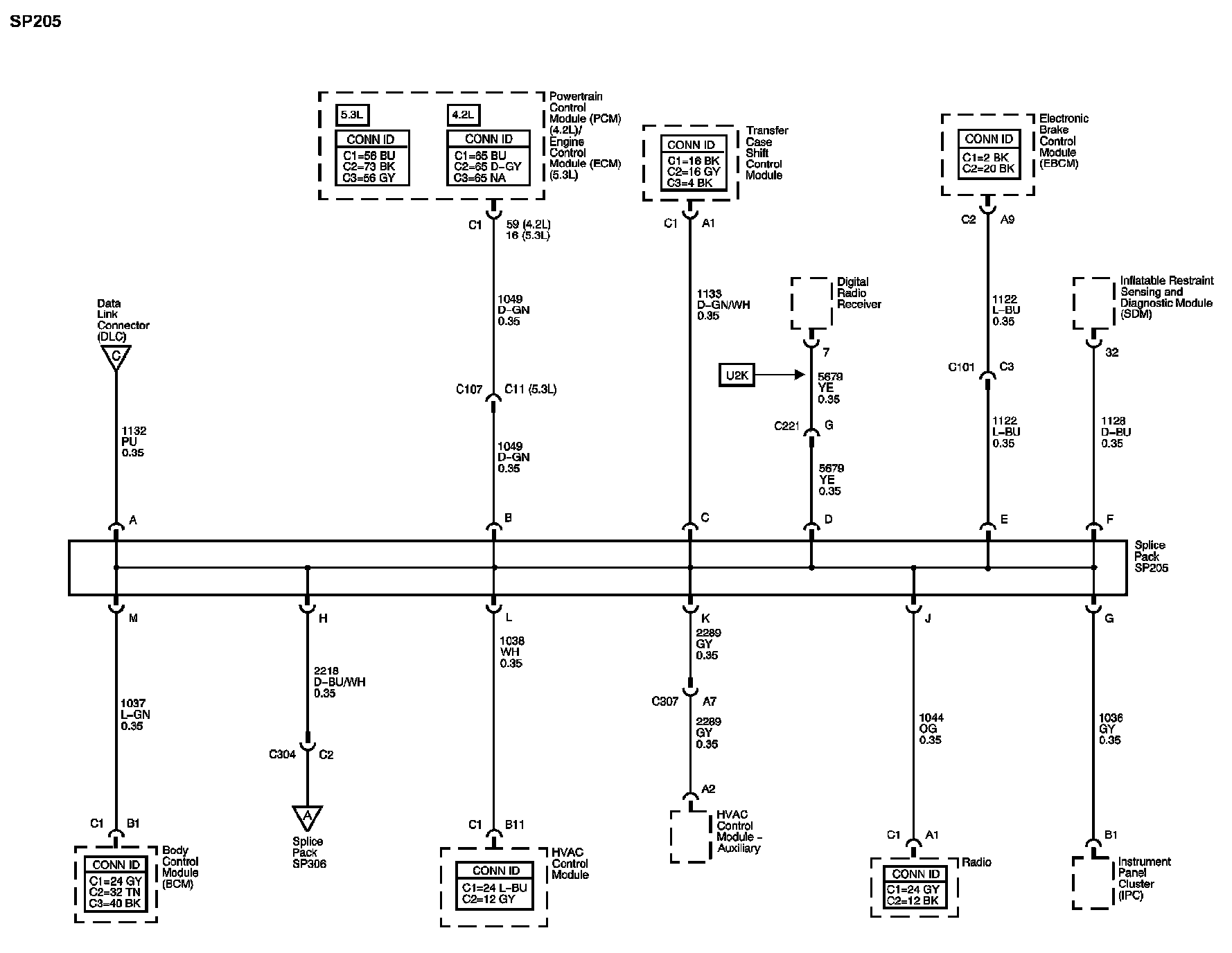

Data Link Connector (DLC) Diagram 1:

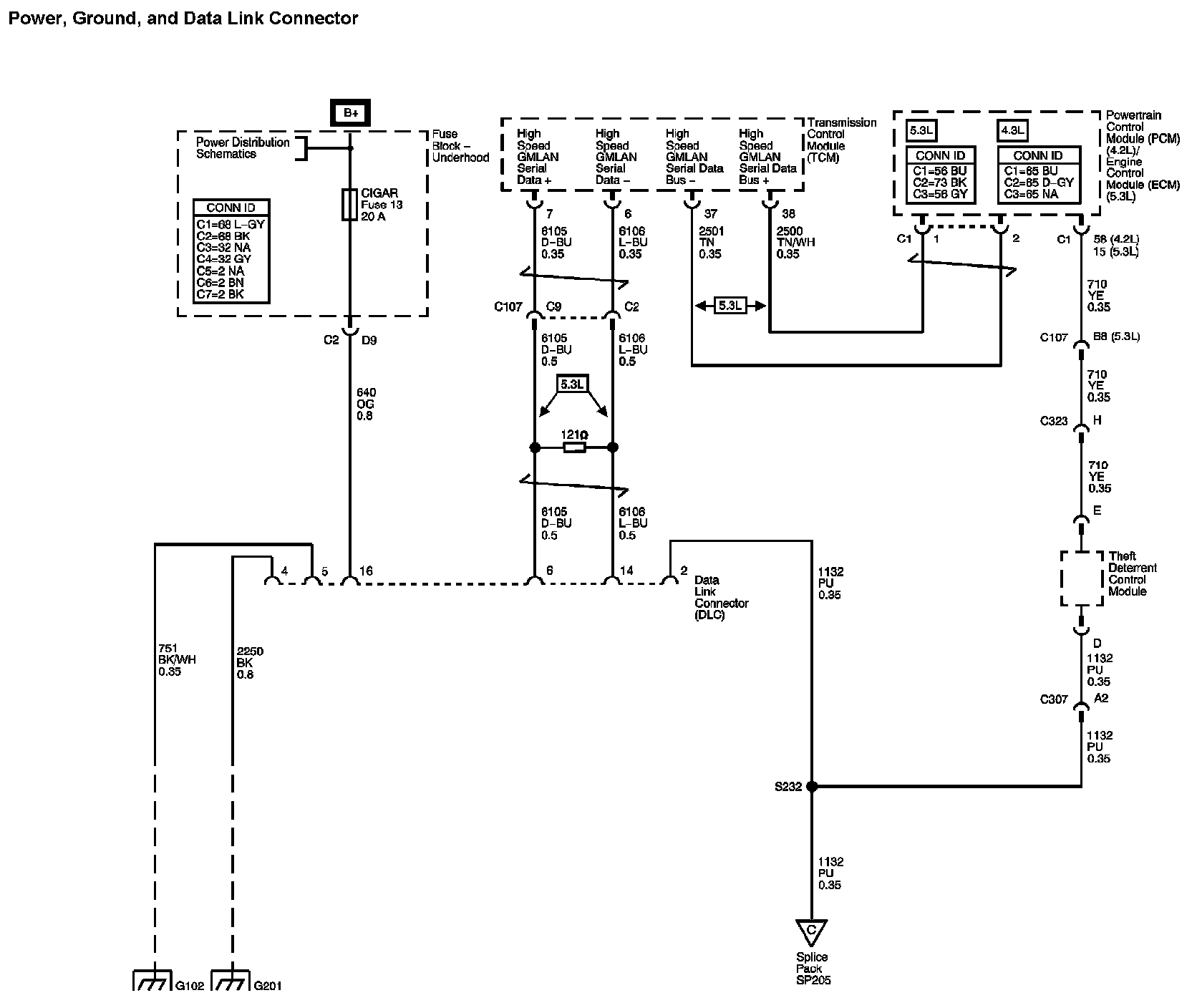

Data Link Connector (DLC) Diagram 2:




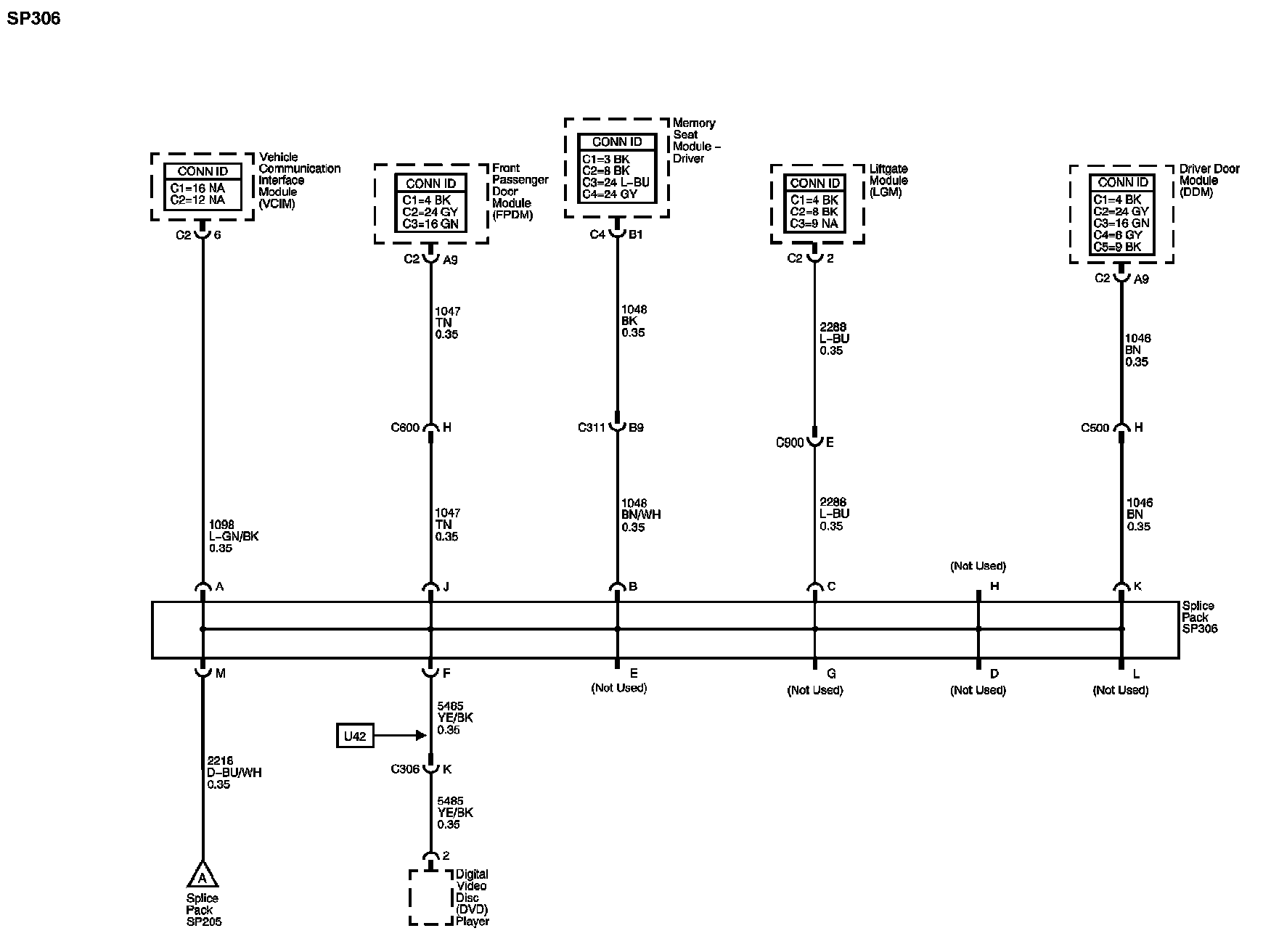

Data Link Connector (DLC) Diagram 3:






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
