Home >> Saab >> 2005 >> 9-7X L6-4.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio/Stereo

Radio/Stereo



Component Connector End Views

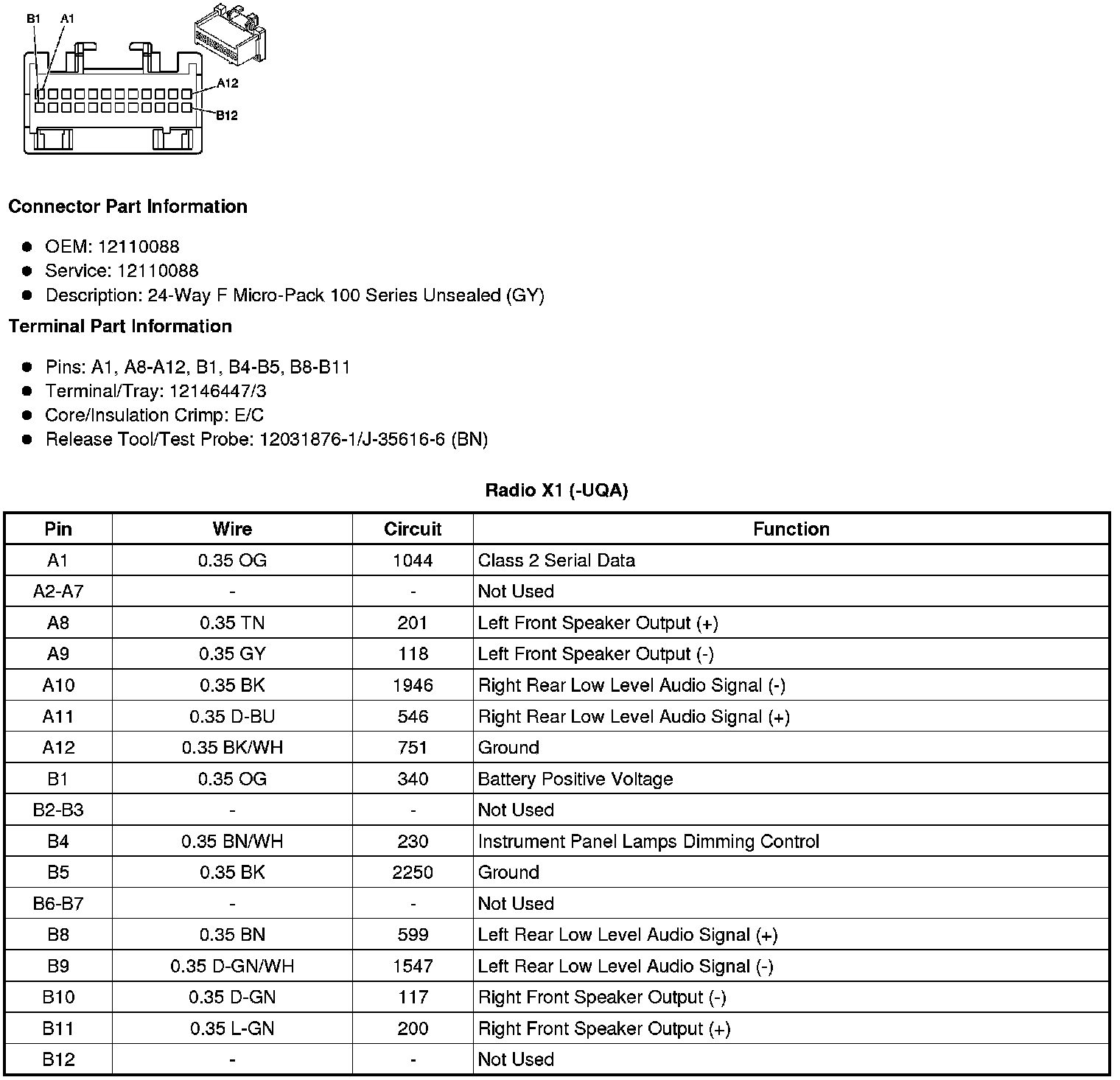

Radio X1 (-UQA)

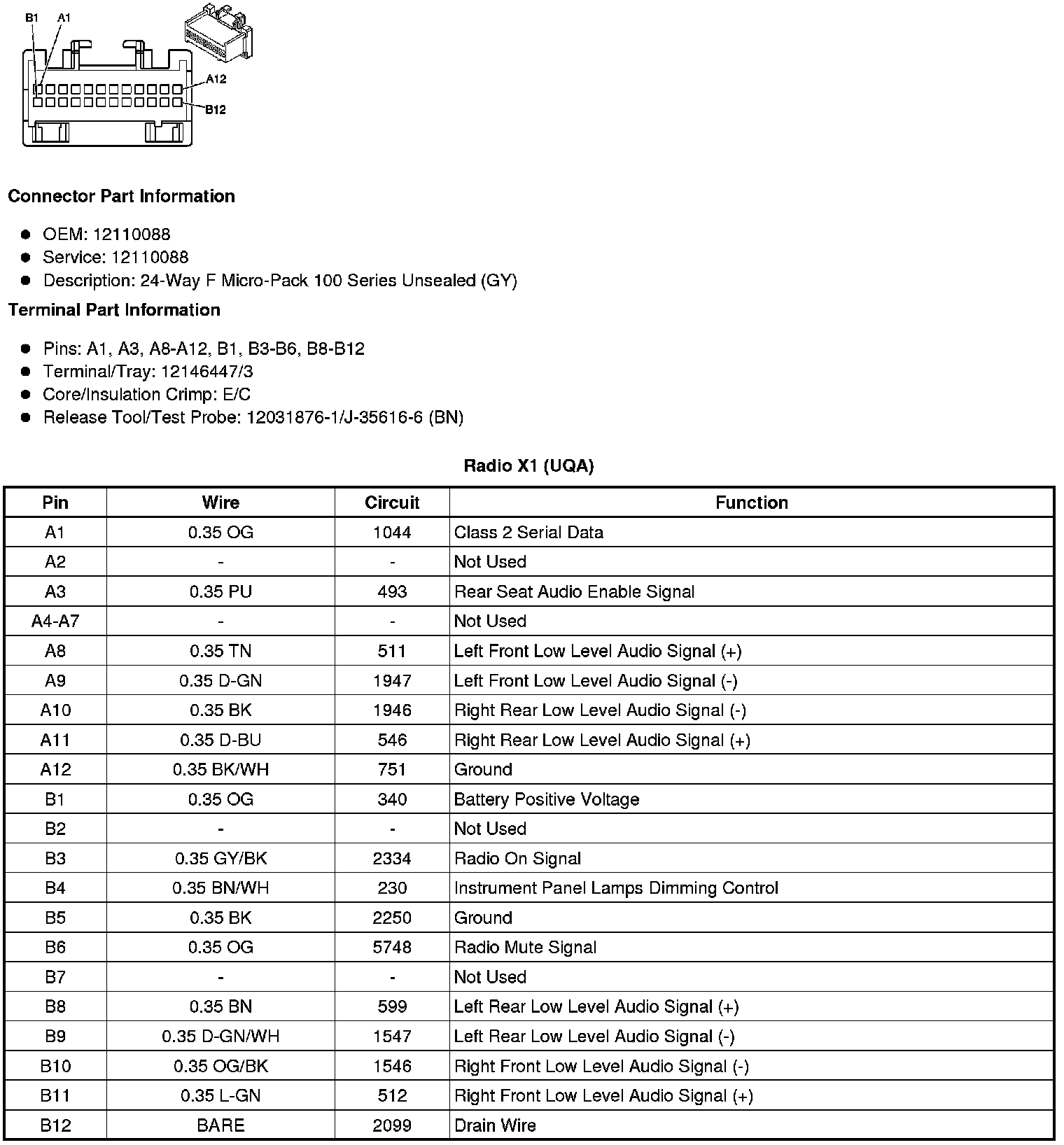

Radio X1 (UQA)

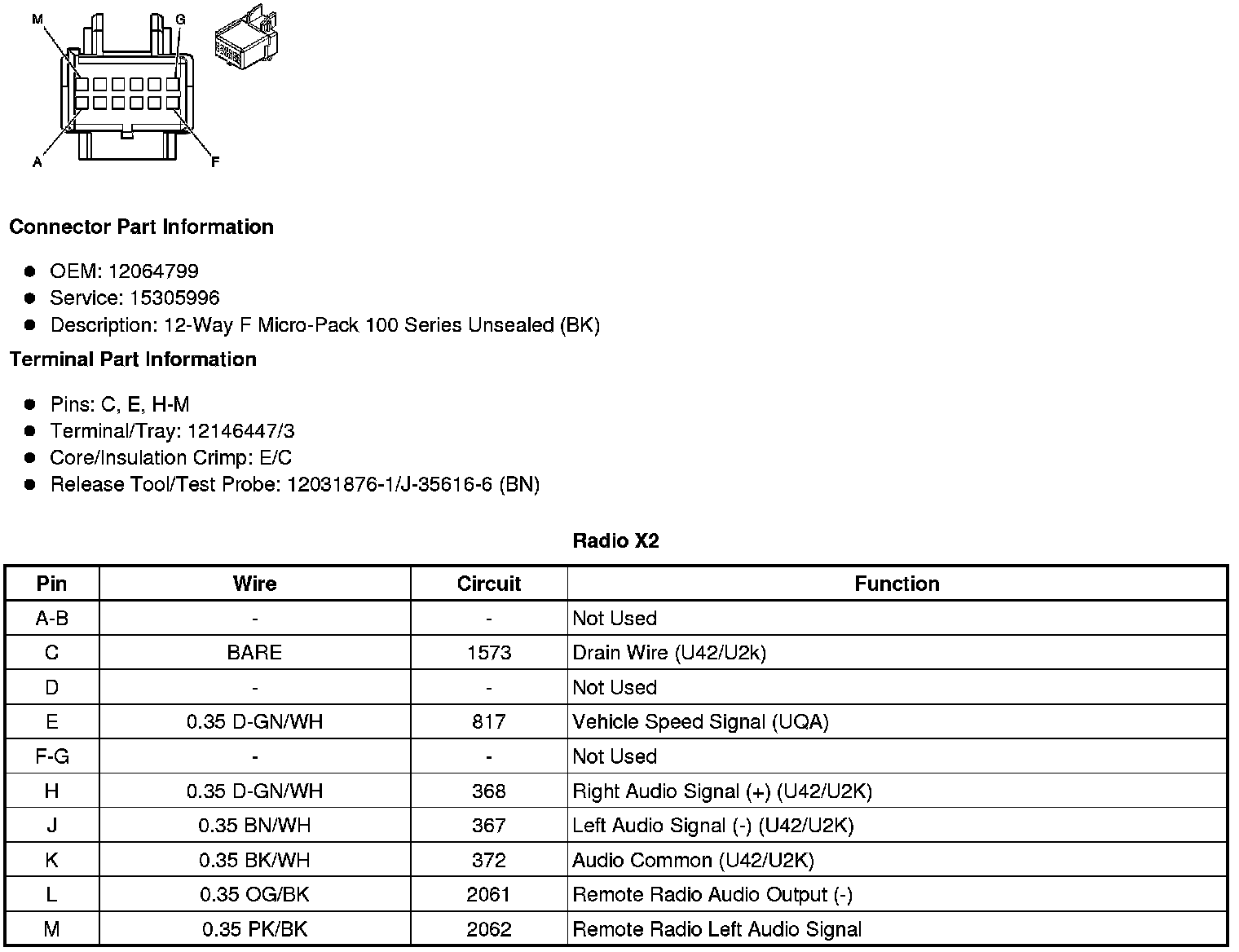

Radio X2
