Home >> Saab >> 2005 >> 9-7X L6-4.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block >> Fuse Block - Rear C3

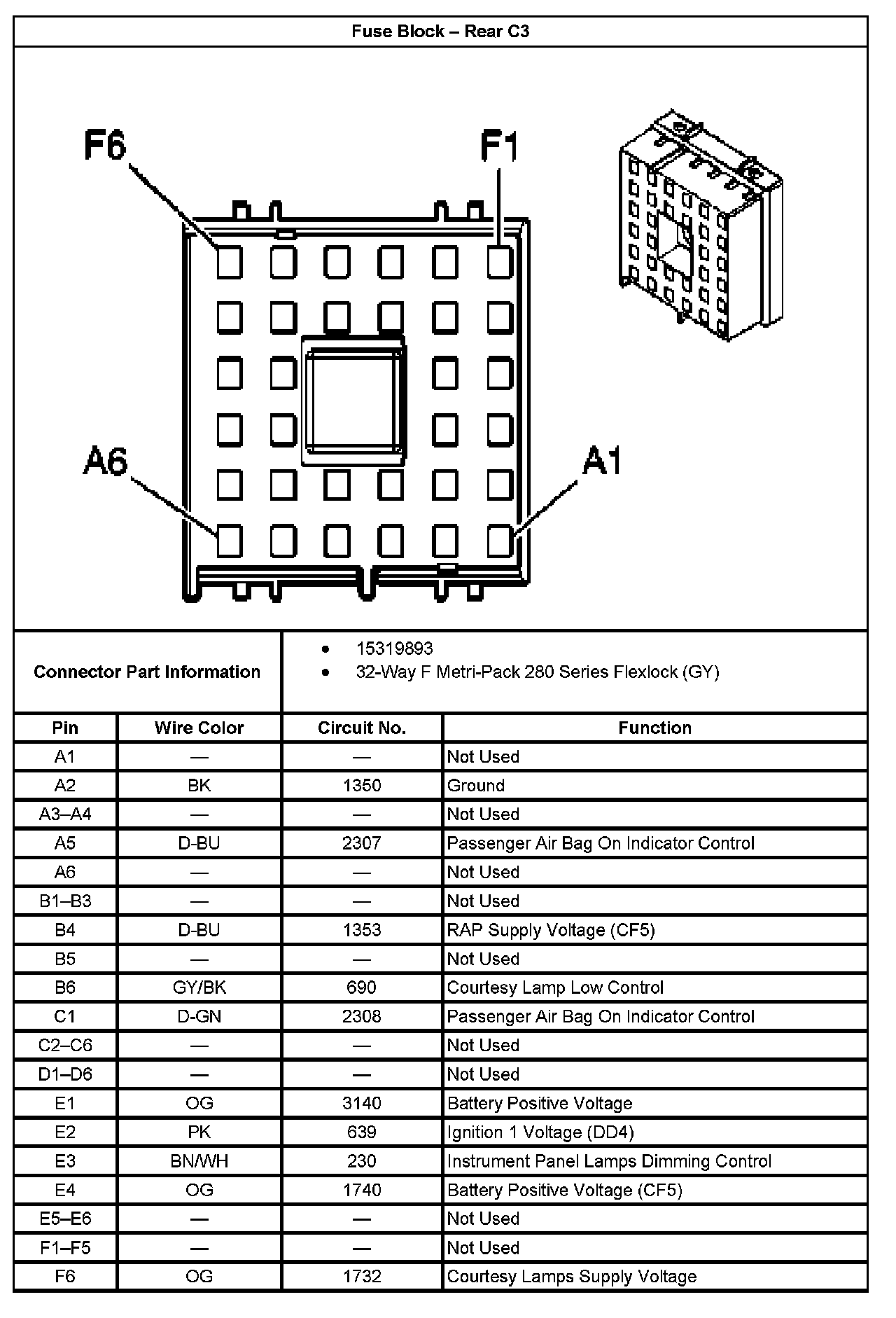

Fuse Block - Rear C3

Fuse Block - Rear C3:
