Fuel Tank

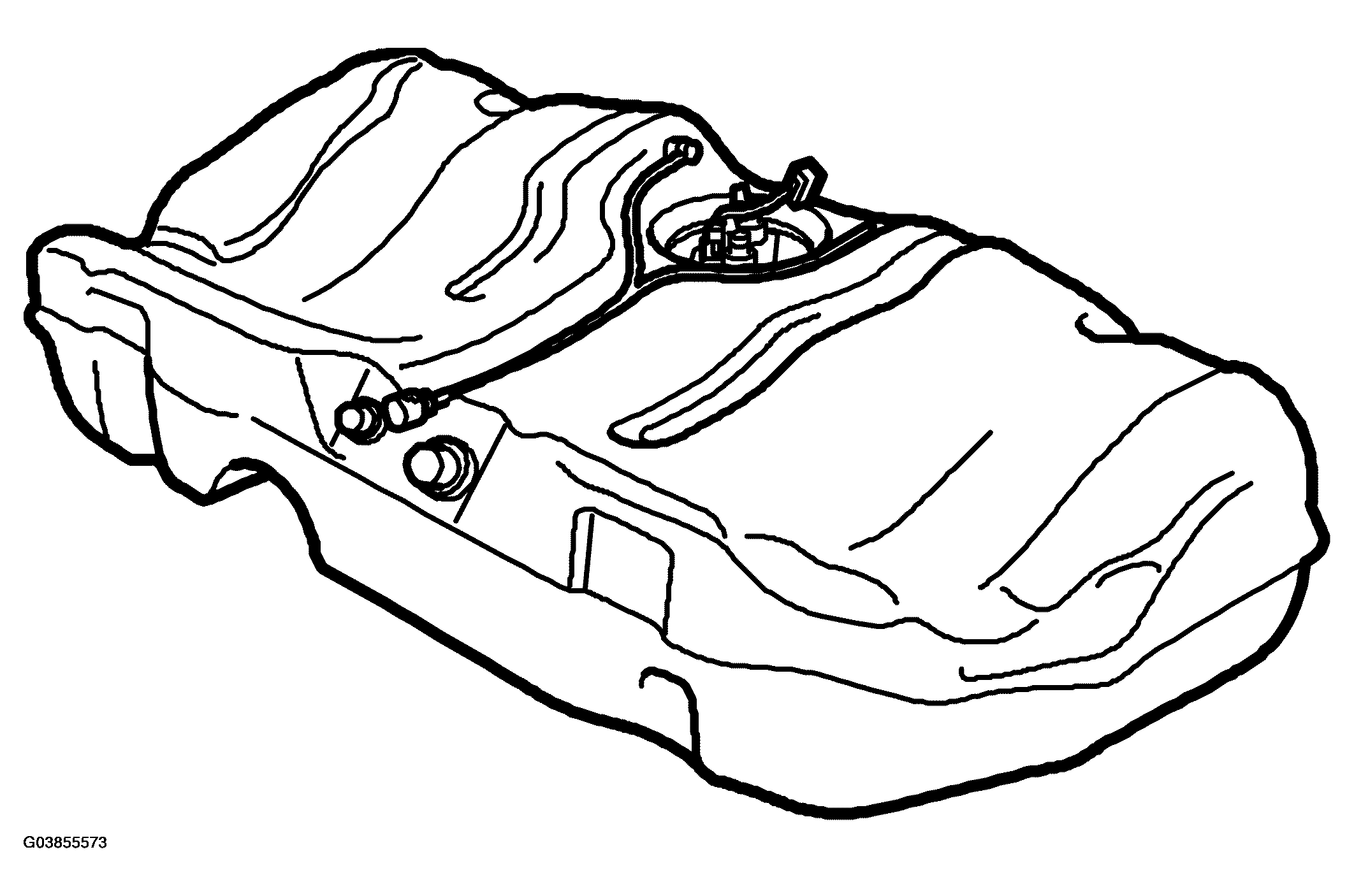

Fig 1: Identifying Fuel Tank
G03855573Courtesy of SAAB-SCANIA OF AMERICA, INC.
FUEL TANK SPECIFICATION CHART

Application B205E B235E/R
Total capacity 75 litres 70 litres
Fuel remaining when low fuel warning lamp comes on 10 litres 10 litres
