Evaporator Temperature Sensor / Switch: Testing and Inspection



Evaporator Sensor


Wiring Diagram:

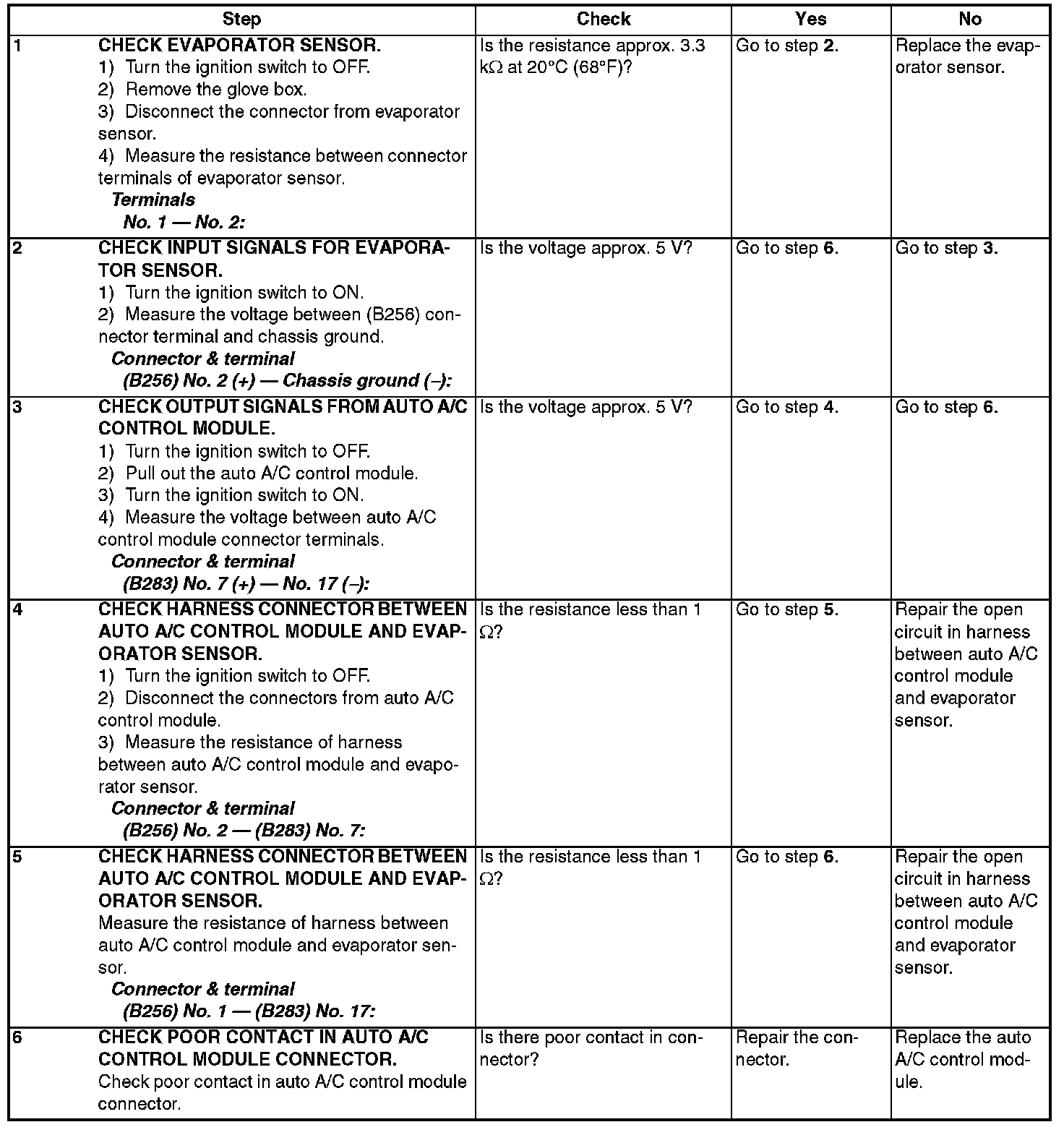

Step 1 - 6:
