Transfer Case and Extension

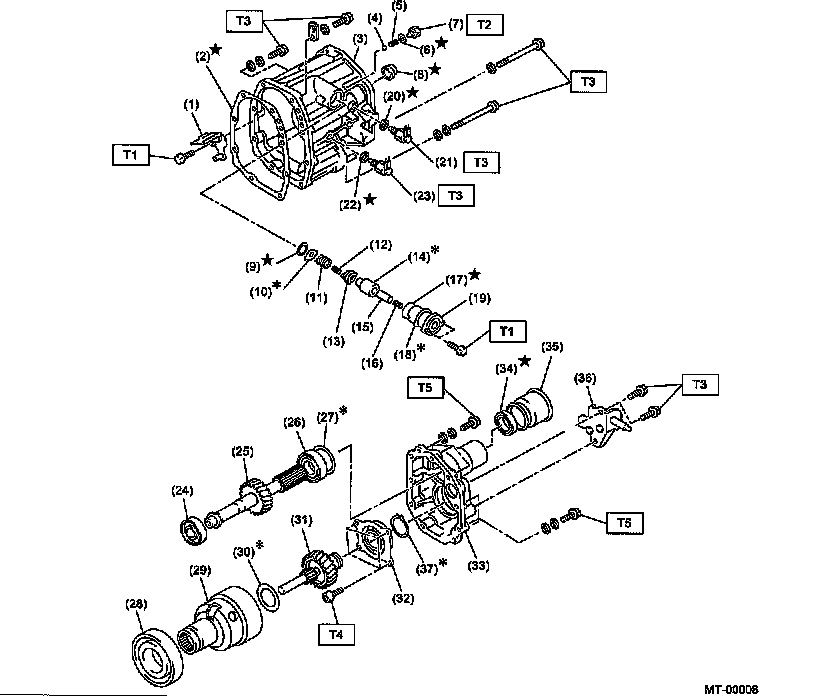

Transfer Case and Extension (Part 1):

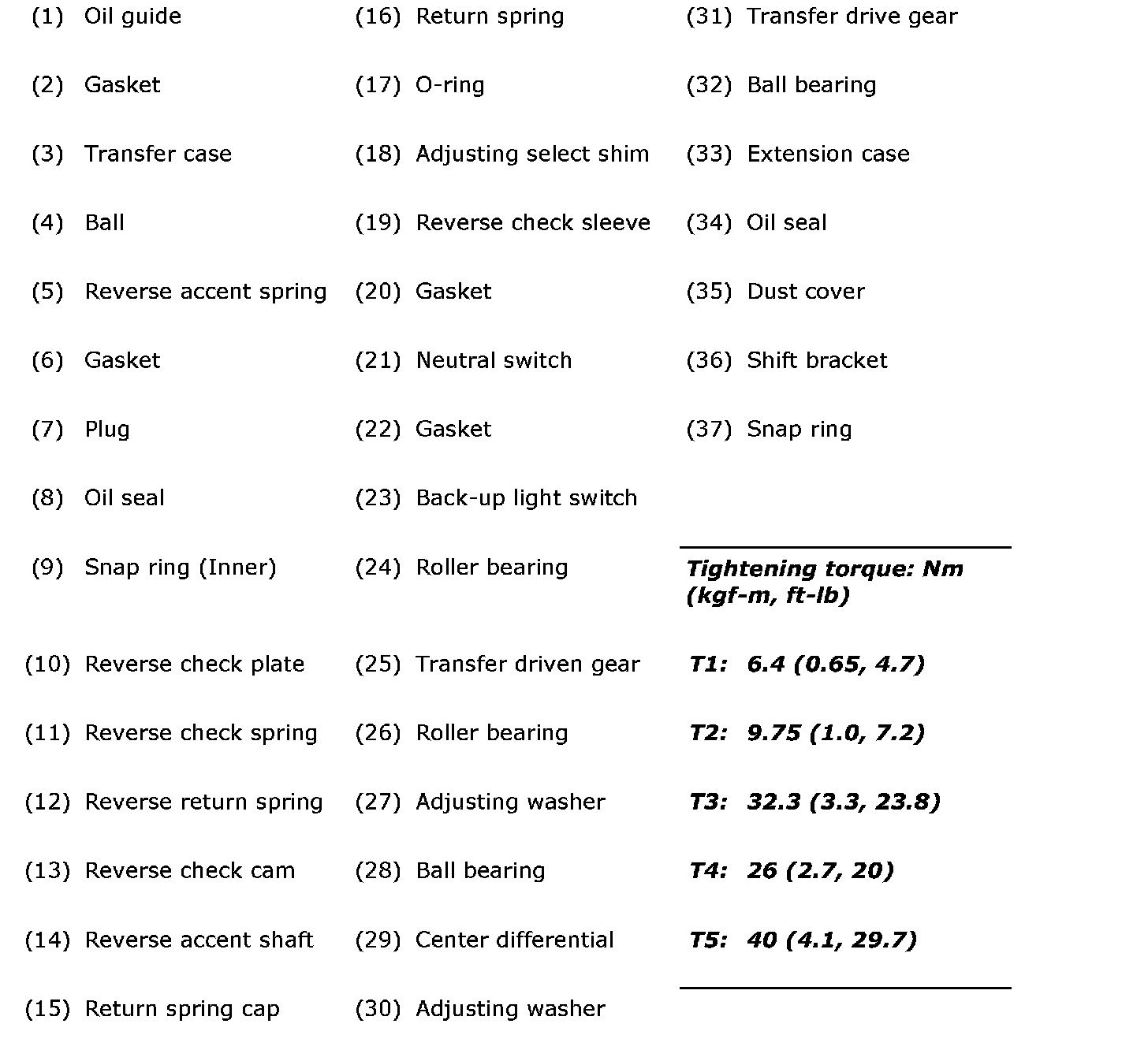

Transfer Case and Extension (Part 2):
