Manual Transmission/Transaxle
>>
System Diagram
>>
Main Shaft Assembly
Main Shaft Assembly

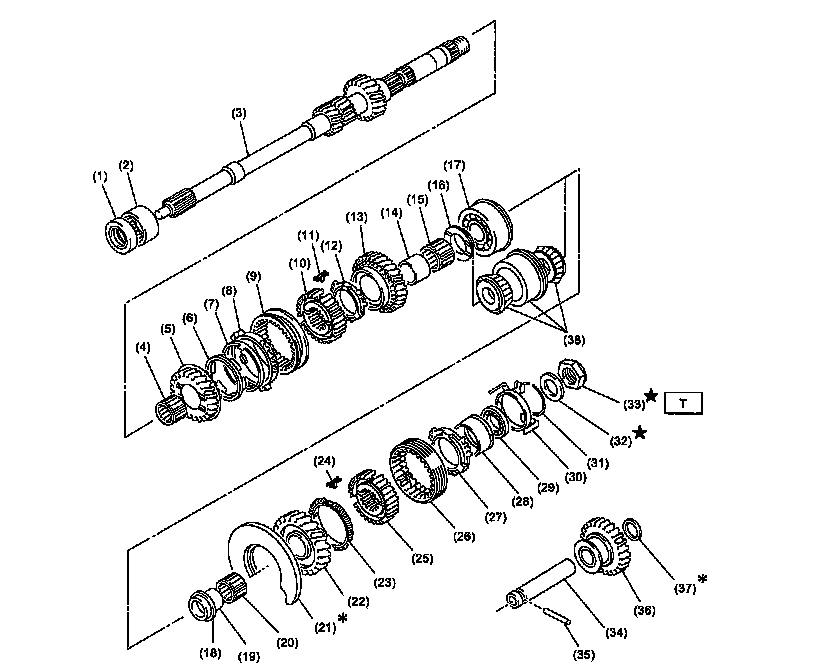

Main Shaft Assembly (Part 1):

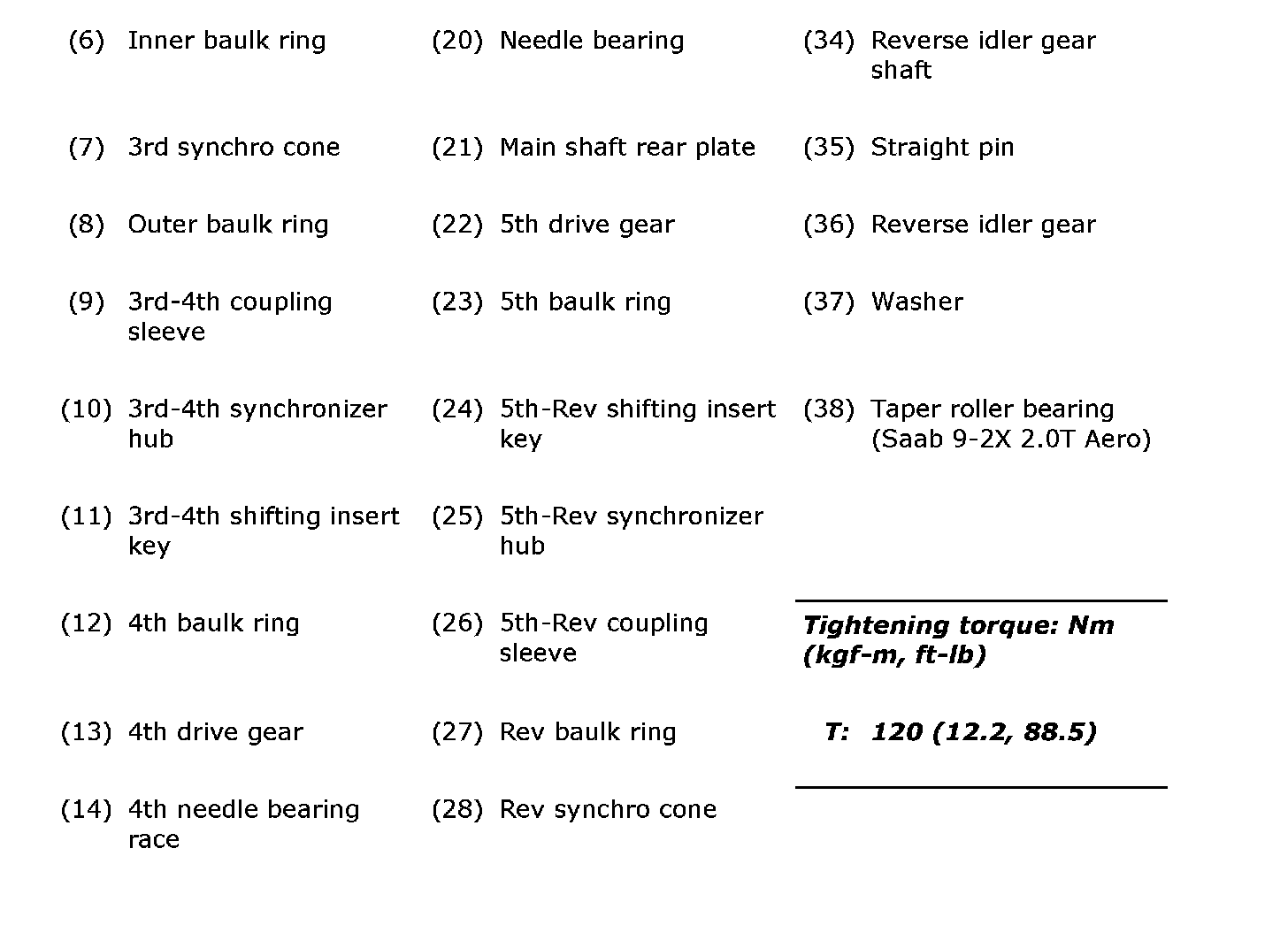

Main Shaft Assembly (Part 2):
Main Shaft Assembly (Part 3):
