Home >> Saab >> 2005 >> 9-2X F4-2.5L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Differential Assembly >> System Diagram >> Rear Differential With LSD

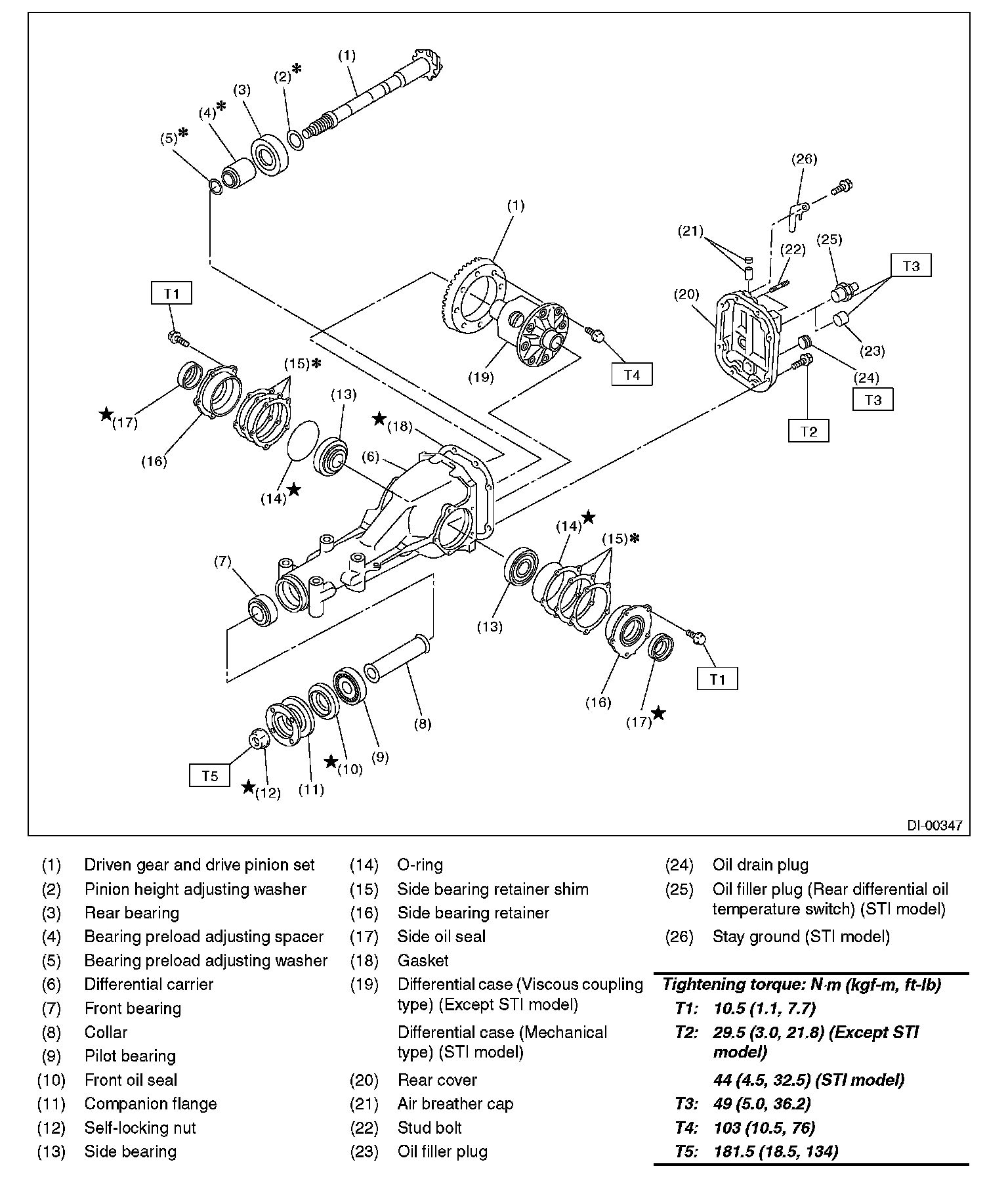

Rear Differential With LSD

Rear Differential With LSD:
