Automatic Transmission/Transaxle
>>
System Diagram
>>
Control Valve and Harness Routing
Control Valve and Harness Routing

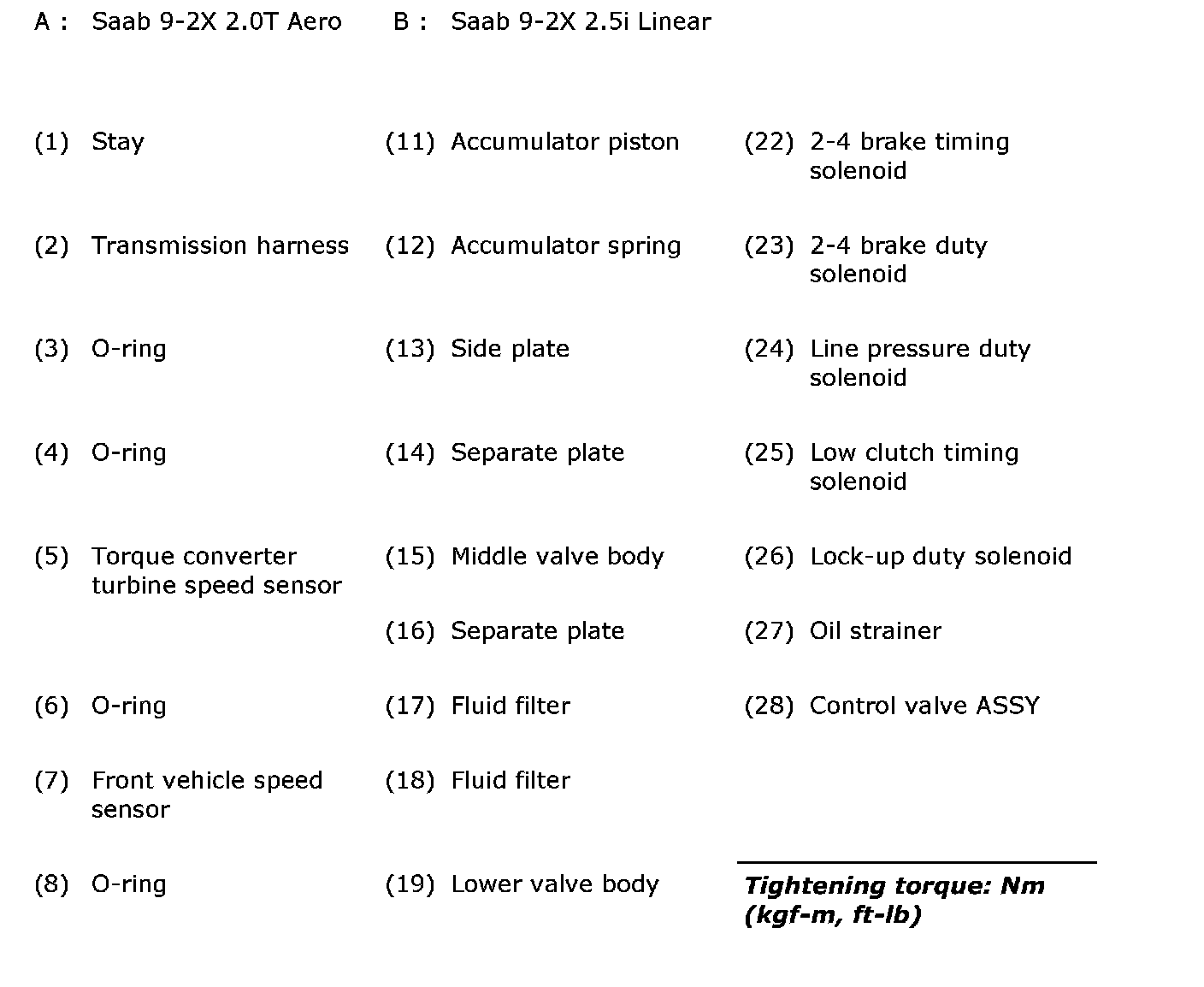

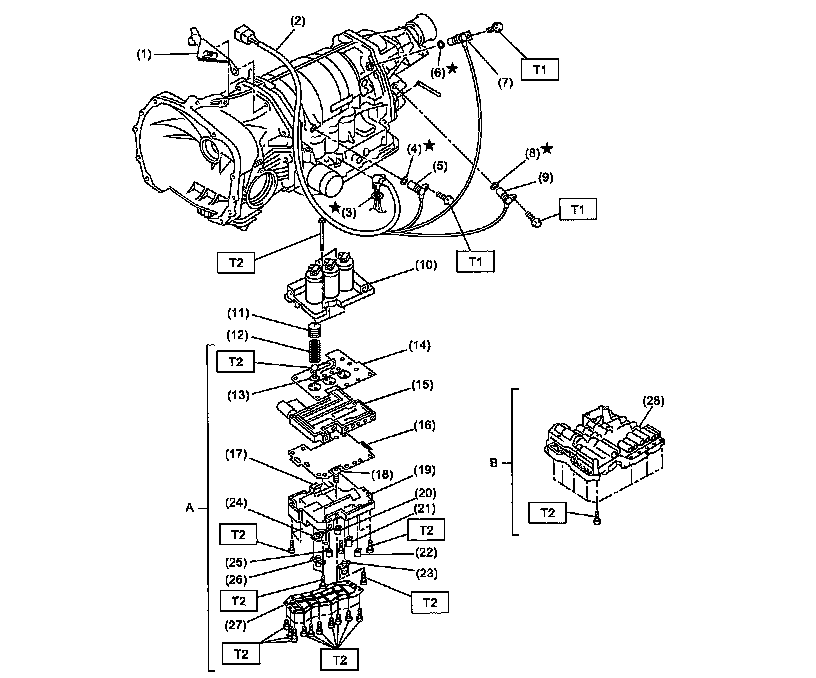

Control Valve and Harness Routing (Part 1):
Control Valve and Harness Routing (Part 2):
Control Valve and Harness Routing (Part 3):
