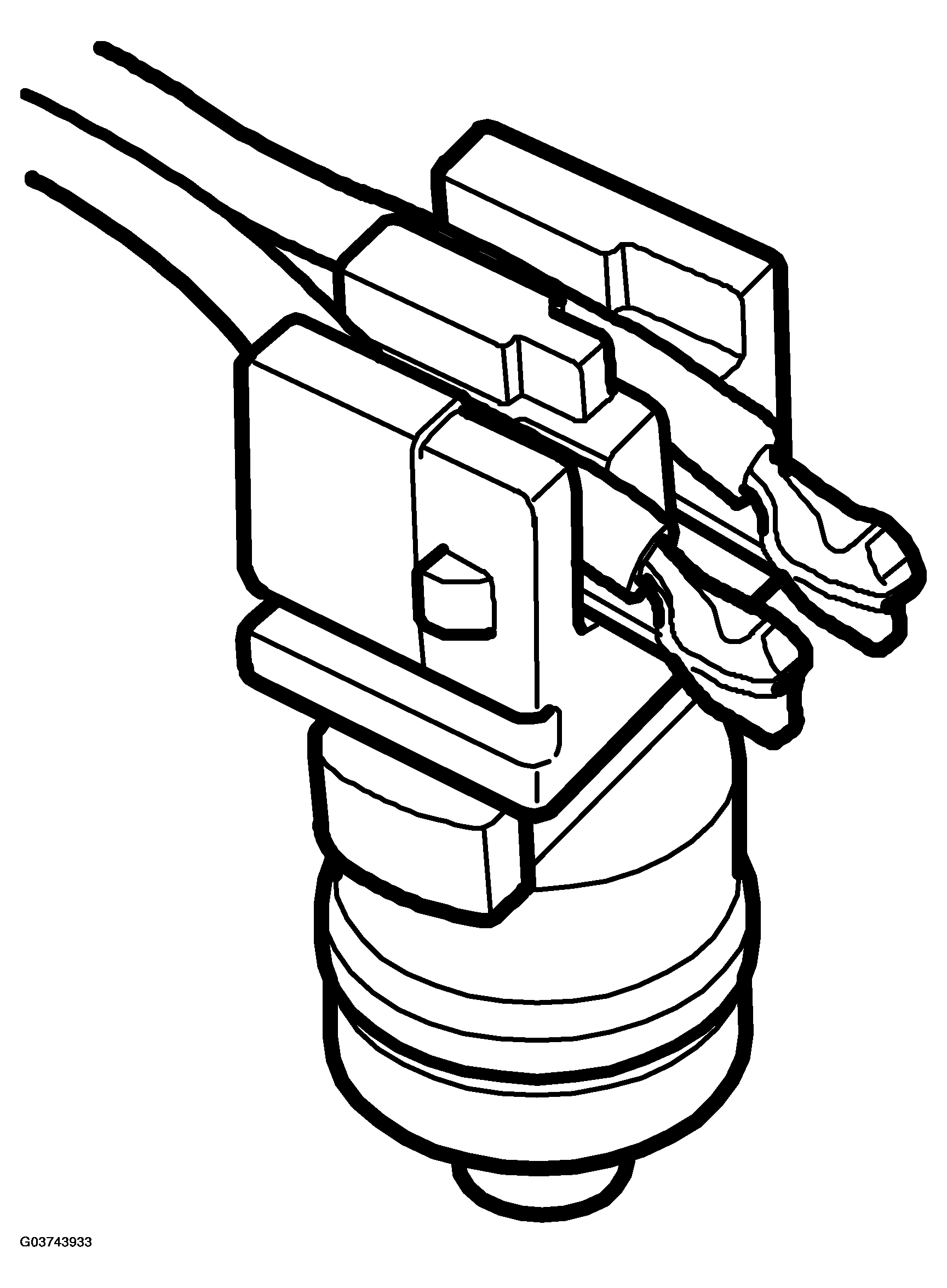

Transmission fluid temperature sensor

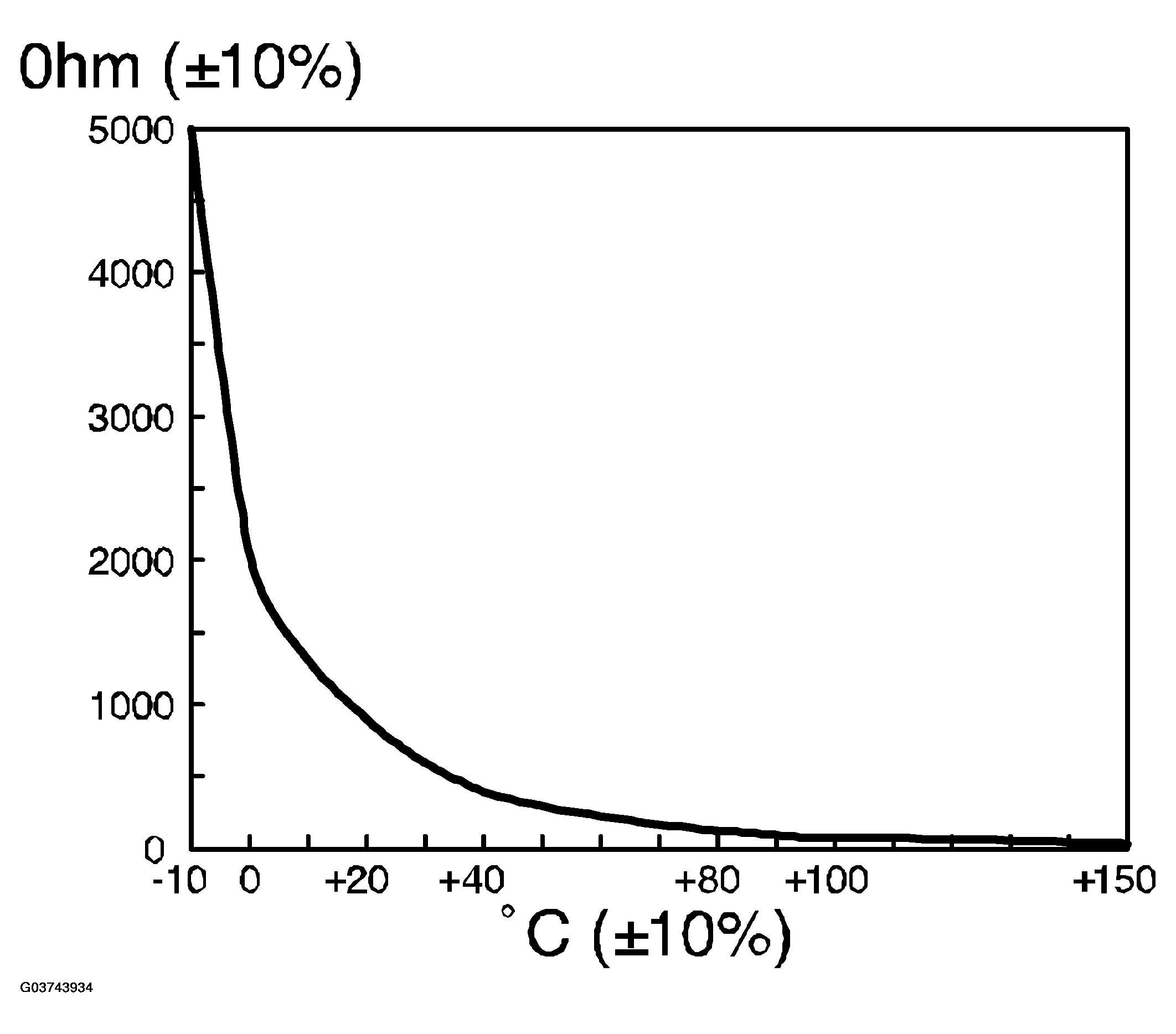

Courtesy of SAAB-SCANIA OF AMERICA, INC. FLUID TEMPERATURE SENSOR SPECIFICATION
| °C (+/-10%) |
Ohm (+/-10%) |
V +/-10% |
| -10 |
5000 |
4.6 |
| 0 |
2000 |
4.1 |
| +20 |
900 |
3.4 |
| +40 |
400 |
2.4 |
| +80 |
125 |
1.1 |
| +100 |
75 |
0.7 |
| +150 |
27 |
0.3 |
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Power supply 5 V through 1 kohm resistor in the control module.
