Heating element, oxygen sensor (271)

front

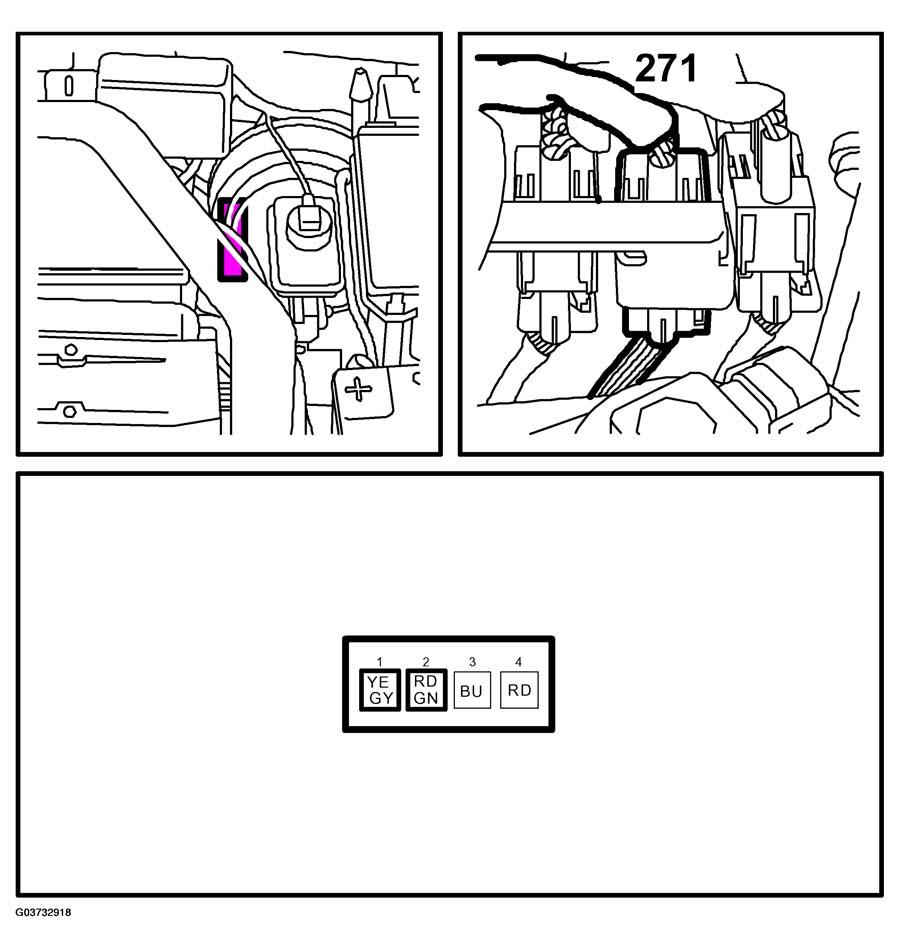

Fig 1: Identifying Heating Element Oxygen Sensor (Front) Connector Pinout
G03732918Courtesy of SAAB-SCANIA OF AMERICA, INC.

rear

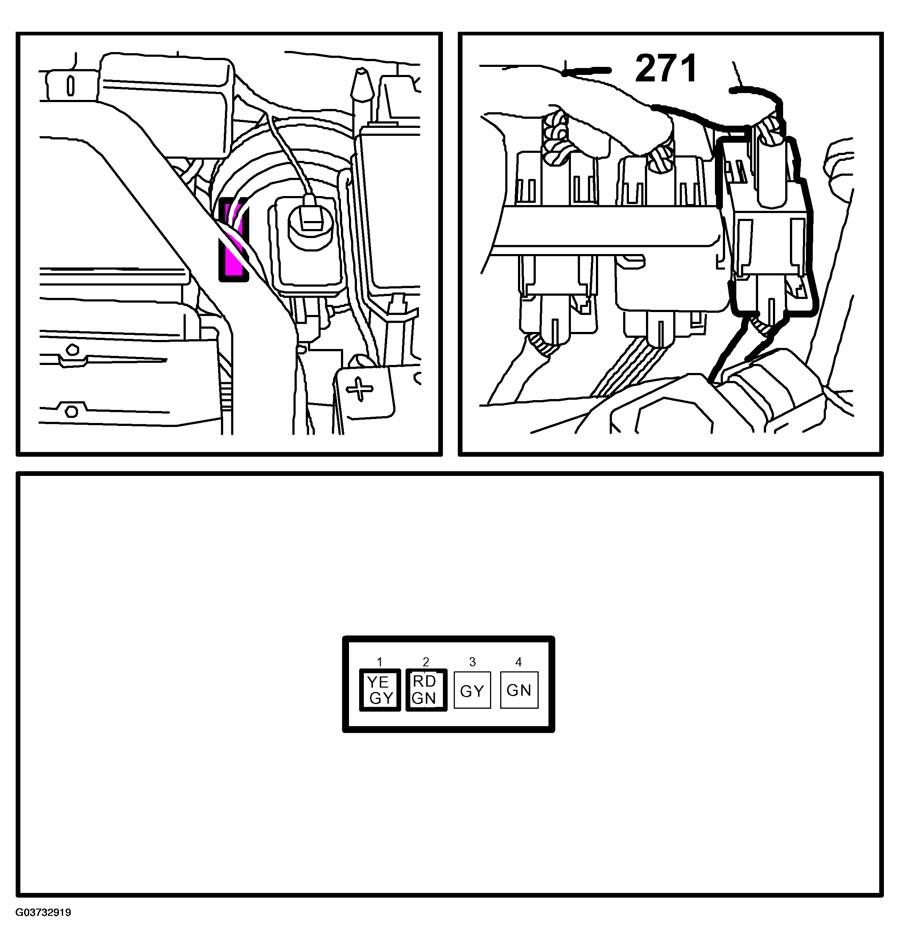

Fig 2: Identifying Heating Element Oxygen Sensor (Rear) Connector Pinout
G03732919Courtesy of SAAB-SCANIA OF AMERICA, INC.
