Control module, passenger door (702P): Location: J1

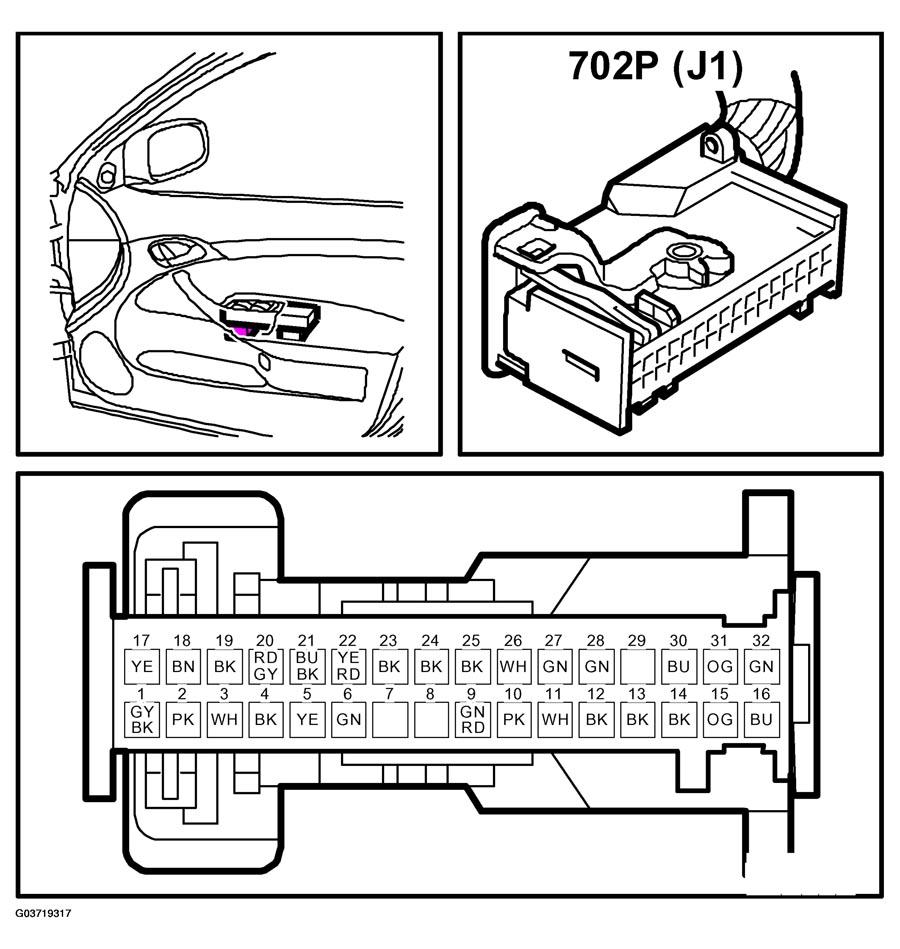

Fig 1: Identifying Control Module Passenger Door (702P) Connector Pinouts

G03719317

Courtesy of SAAB-SCANIA OF AMERICA, INC.
