Connectors, Handling And Inspection: Handling

When unplugging a connector that has a catch, the catch must be undone first before parting the connector. Make sure the connector catch engages properly when plugging in the connector.
Examples of some of the different types of connector in the car:

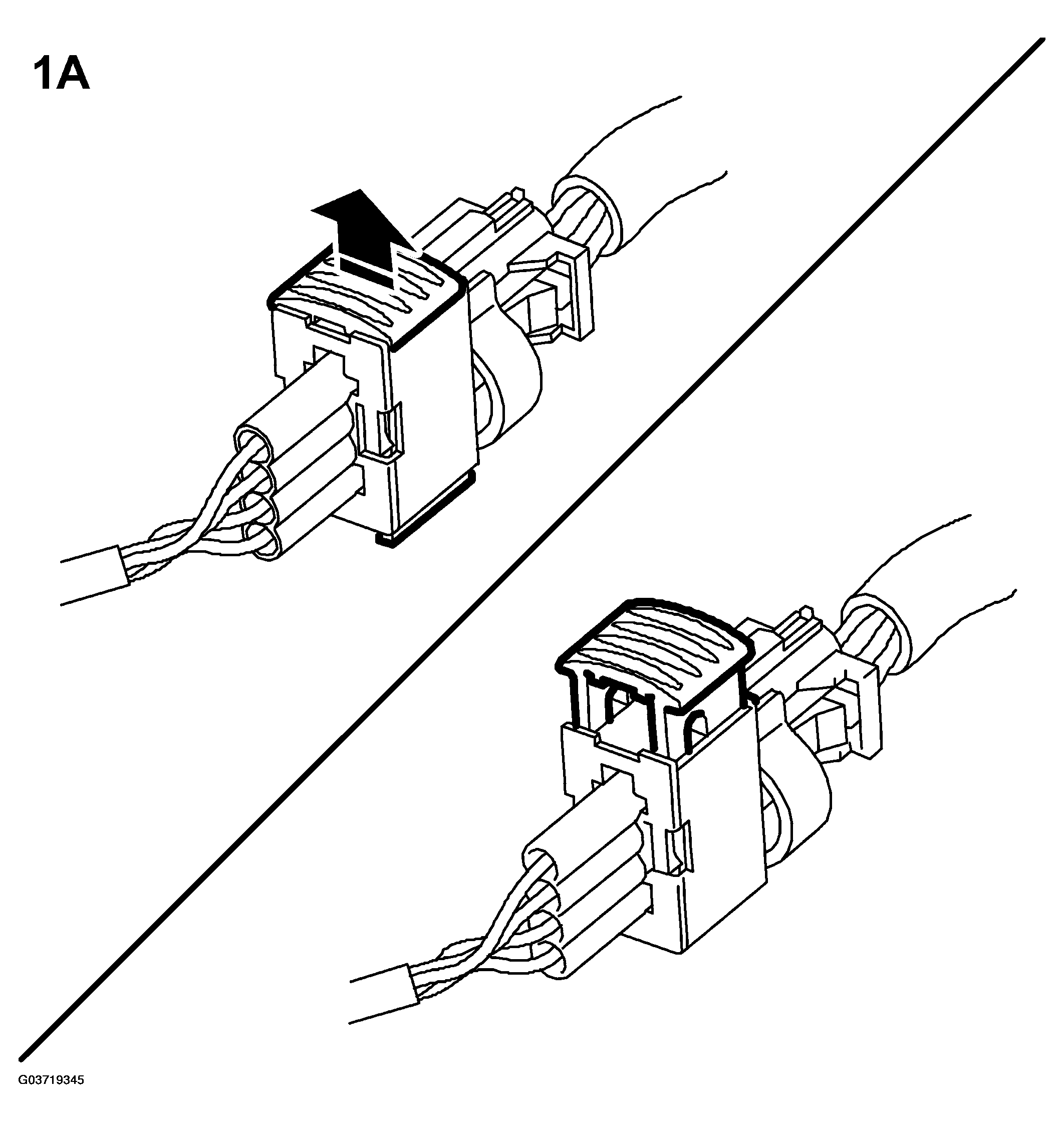

1. 1.A. Pull out the sheath to undo the connector catch.
  After plugging the connector in, press in the sheath to lock the connector.

  NOTE: Use a small screwdriver to help undo the catch on the connector.

  Fig 1: Removing Sheath To Lock Connector
  Courtesy of SAAB-SCANIA OF AMERICA, INC.

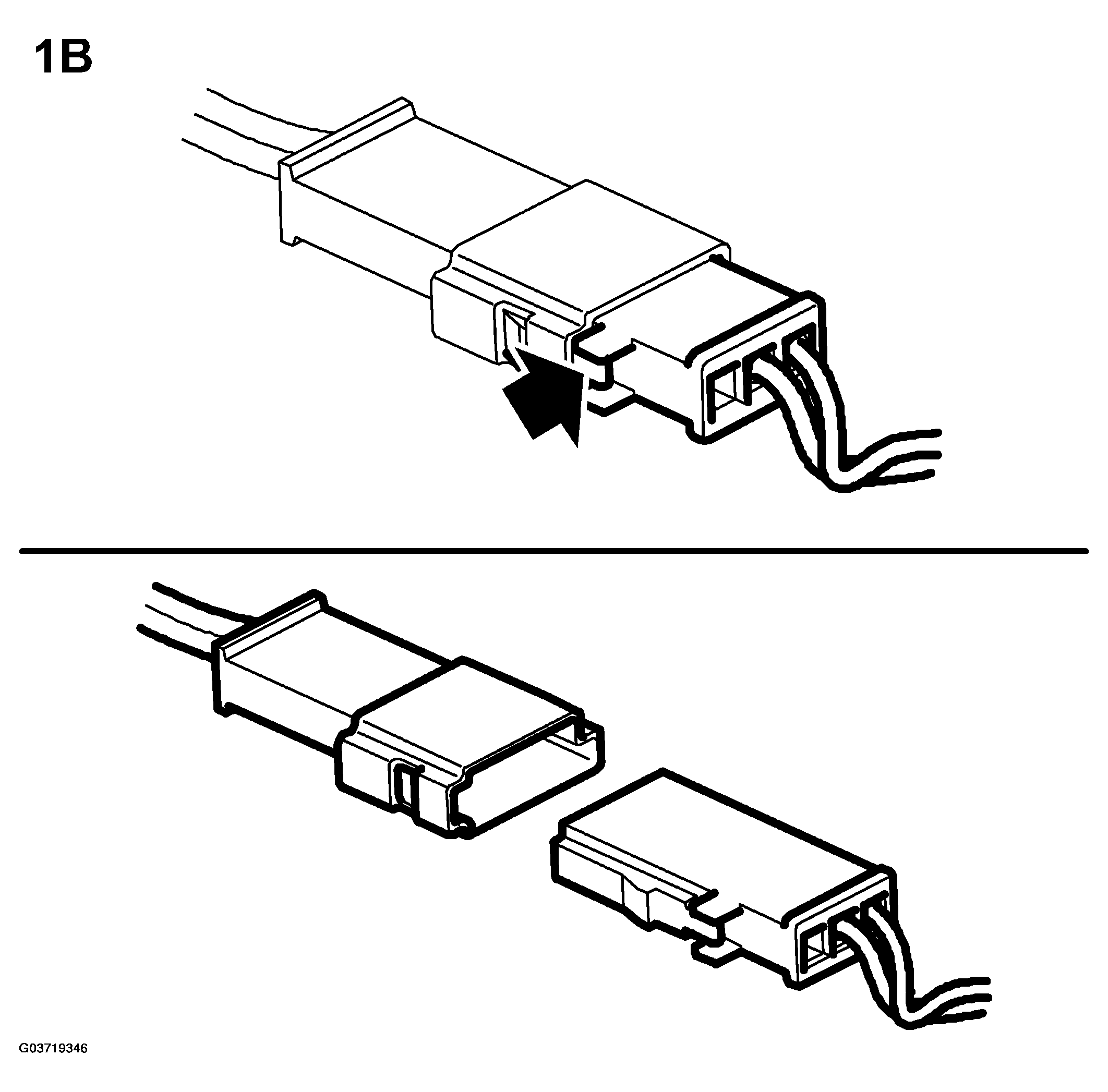

2. 1.B. Press in the catch to release the connector.
  Make sure the connector is securely locked when plugged back in.

  Fig 2: Releasing Connector
  Courtesy of SAAB-SCANIA OF AMERICA, INC.

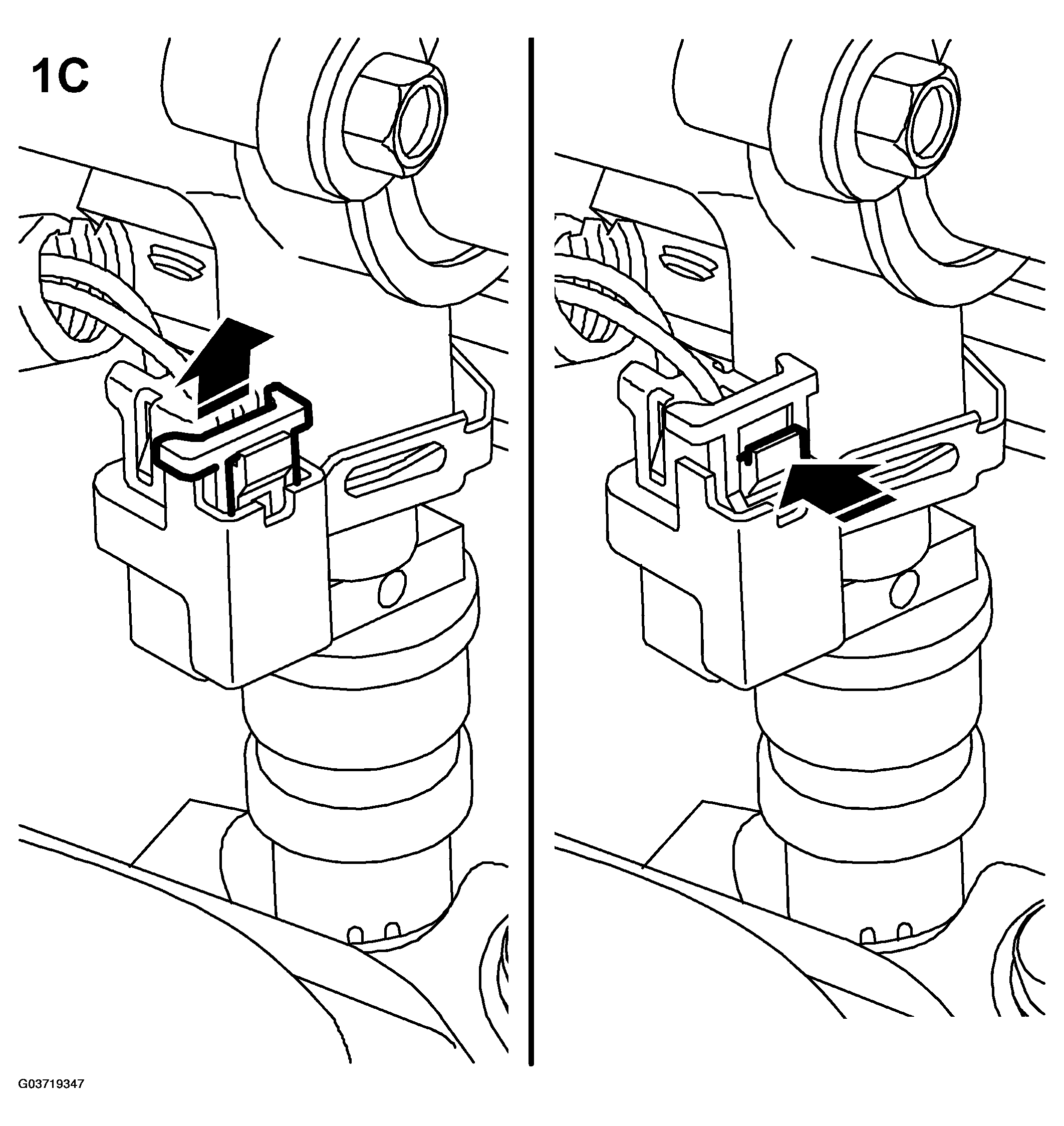

3. 1.C. Pull out the sheath to undo the connector catch.
  After plugging the connector in, press in the sheath to lock the connector.

  Fig 3: Pulling Out Sheath To Undo Connector Catch
  Courtesy of SAAB-SCANIA OF AMERICA, INC.

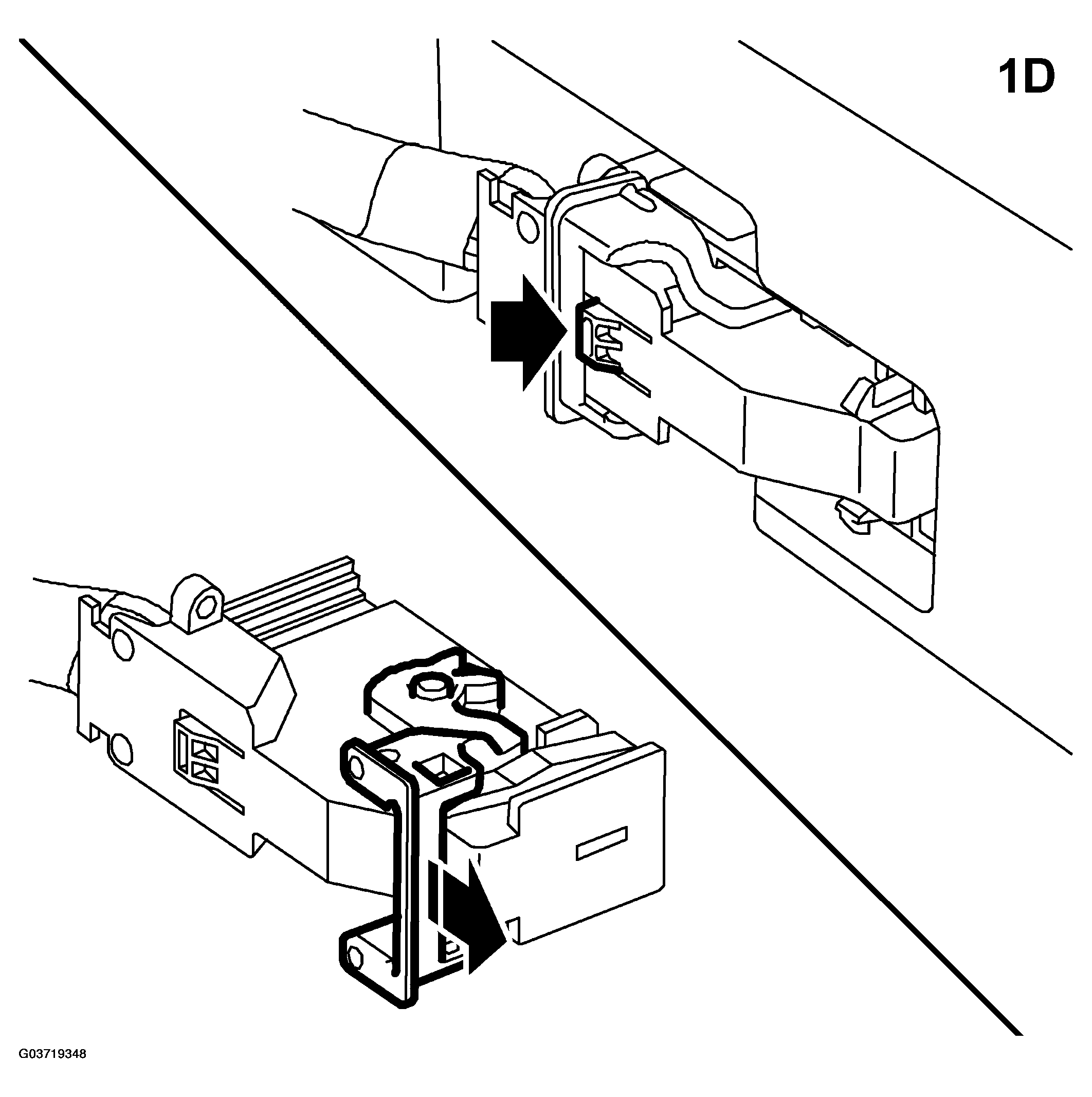

4. 1.D. Press in the catch on the wire clamp and tip the wire forward.
  Plug in the connector and lock it by raising the wire clamp.

  NOTE: Make sure the wire clamp is locked in the correct position, to ensure good contact in the connector.

  Fig 4: Pressing In Catch On Wire Clamp And Tip Wire Forward
  Courtesy of SAAB-SCANIA OF AMERICA, INC.

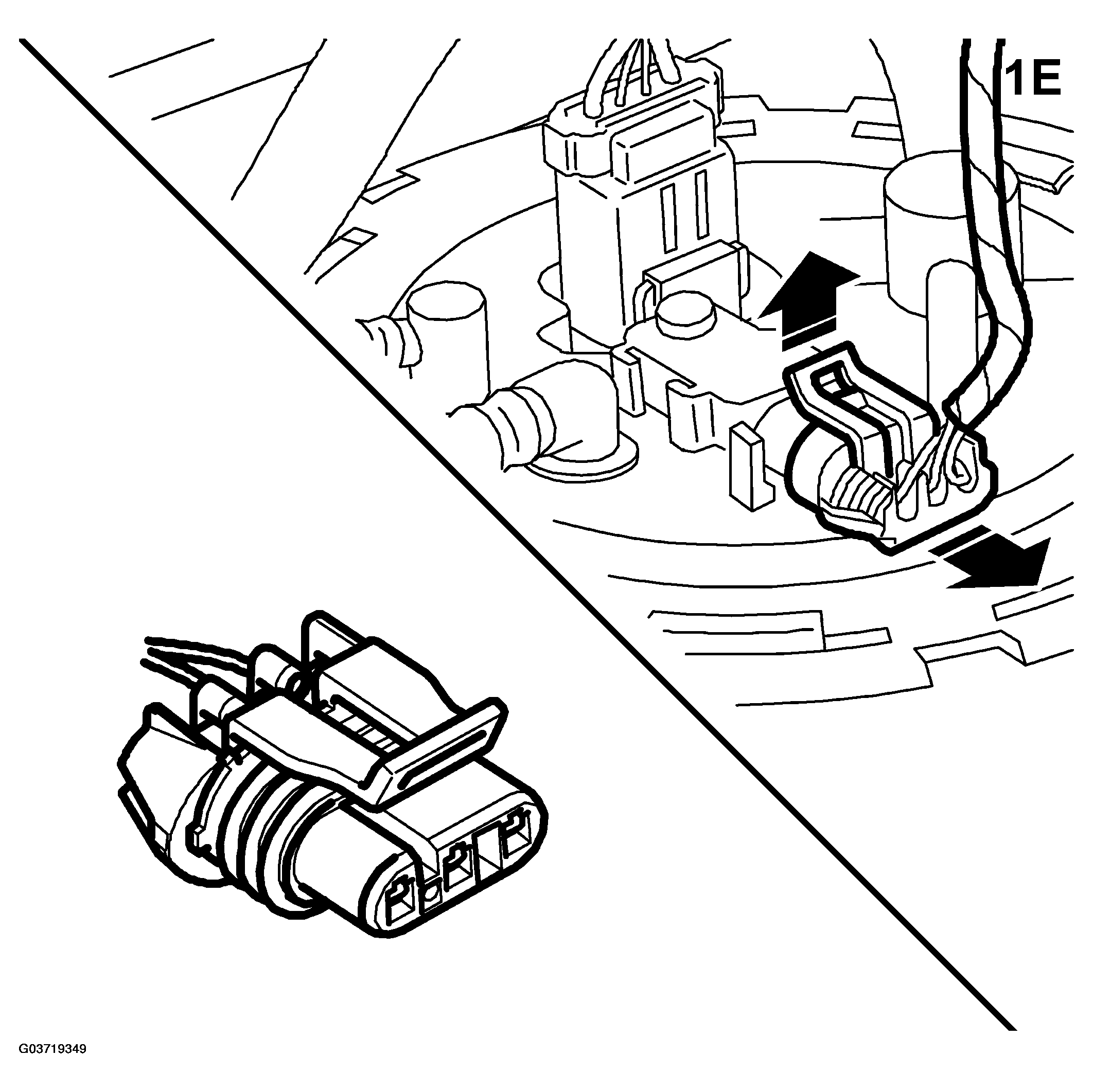

5. 1.E. Raise the catch to release the connector.
  Make sure the connector is securely locked when plugged back in.

  Fig 5: Raising Catch To Release Connector
  Courtesy of SAAB-SCANIA OF AMERICA, INC.

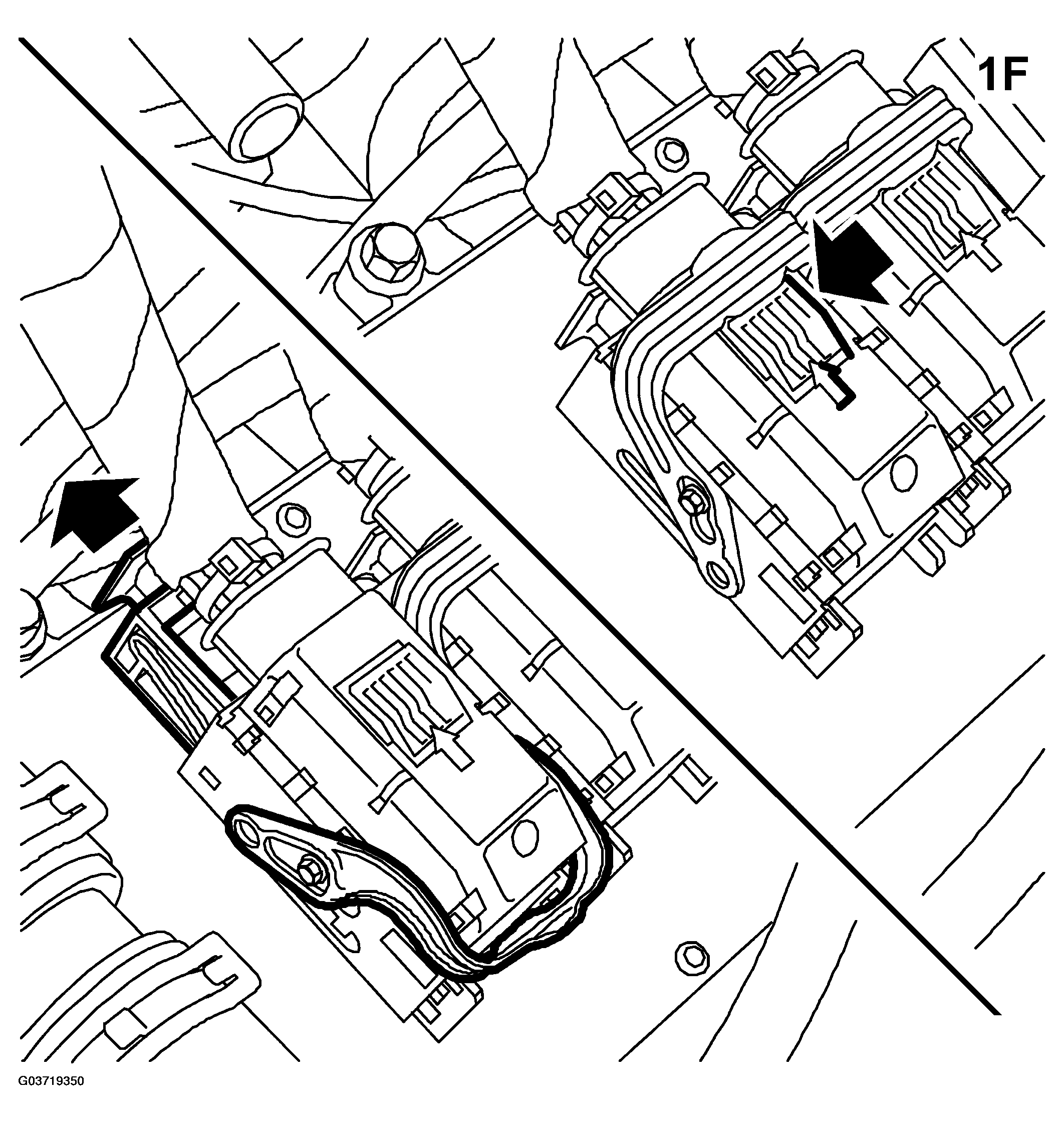

6. 1.F. Press in the catch on the connector to release the wire clamp. Release the connector sheath and fold forward the wire clamp.
  NOTE: Using greater force than necessary attempting to fold the wire clamp forward before the sheath has been released can damage the connector.

  Plug in the connector and lock it by raising the wire clamp.

  Fig 6: Plugging In Connector And Lock Raising Wire Clamp
  Courtesy of SAAB-SCANIA OF AMERICA, INC.
Ground yourself, by touching the car's body or engine, when unplugging or plugging in the connectors on the car's control modules.

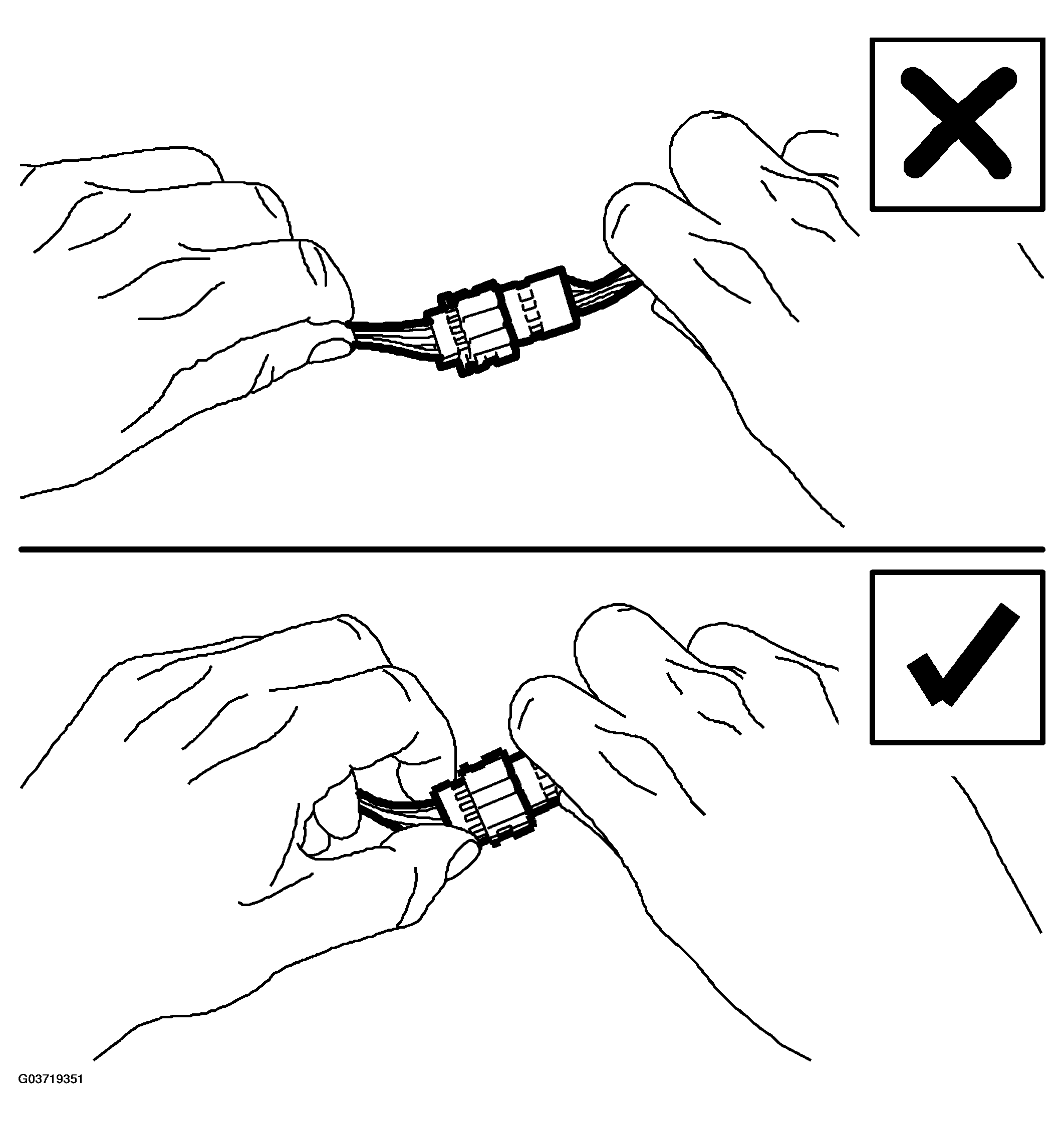

Never unplug a connector by pulling the wiring.

Fig 7: Pulling Wiring
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Never touch the pins on a control module with your hands or clothes.
IMPORTANT: Incorrect handing or the use of the wrong tool can damage the sleeves in the connector.

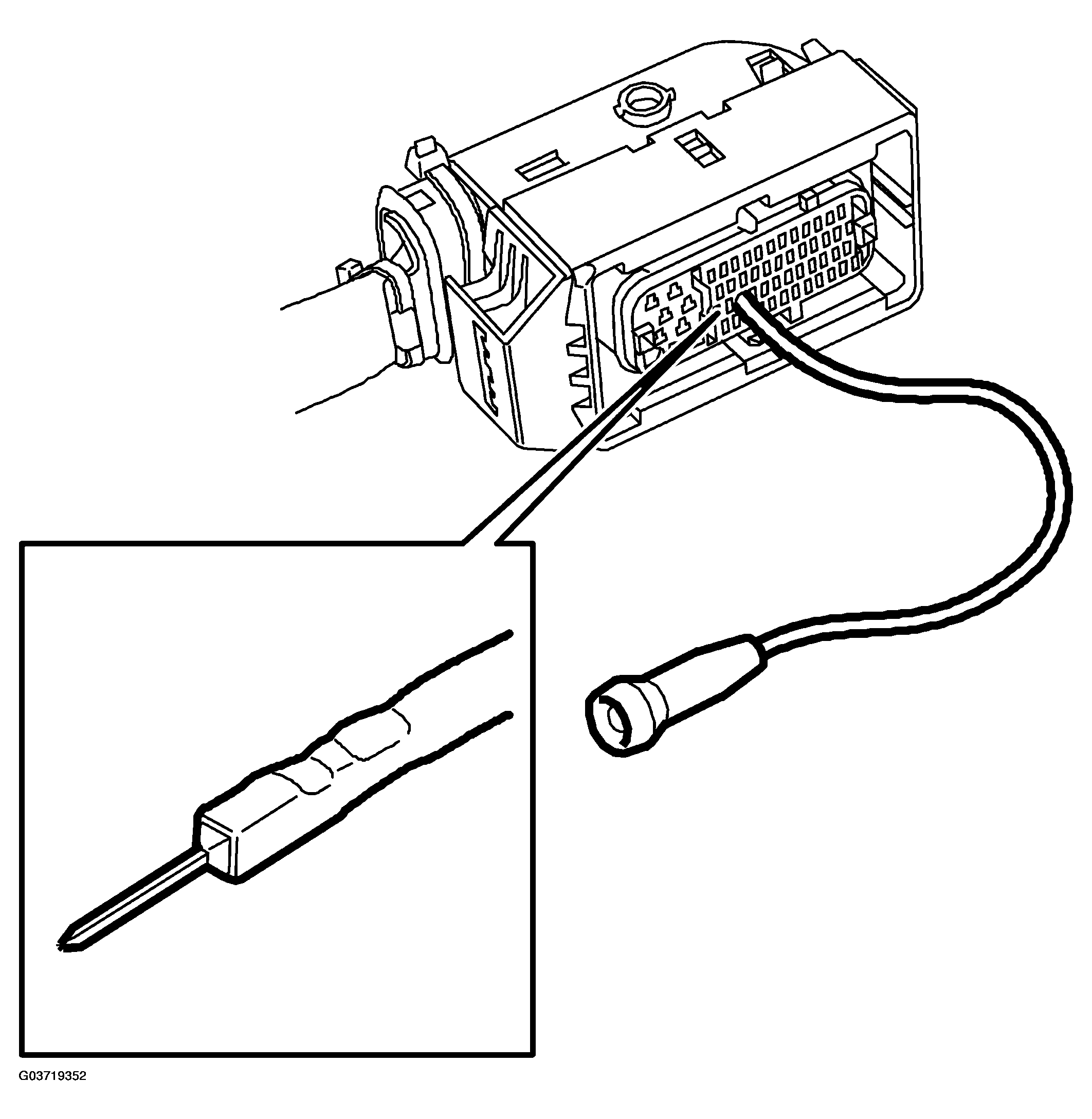

Use a test cable (part no. 86 12 731) of the correct size to avoid damaging the sleeves in the connector.
When taking measurements, use only probes designed for this purpose to avoid damaging the contacts. Use a test cable (part. no. 86 12 731) of the correct size.

Fig 8: Identifying Connector Pinouts
Courtesy of SAAB-SCANIA OF AMERICA, INC.
For repairs to connectors, the correct special tools and spare parts must be used.
The following connectors may not be repaired:
- Screened cables/coaxial cable (e.g. ABS sensor cable)
- Airbag system and pyrotechnic belt pretensioner system
- High-tension cables (e.g. ignition system, xenon headlamps).
