To fit

  1. Fit the control module at an upward angle so the clips engage.

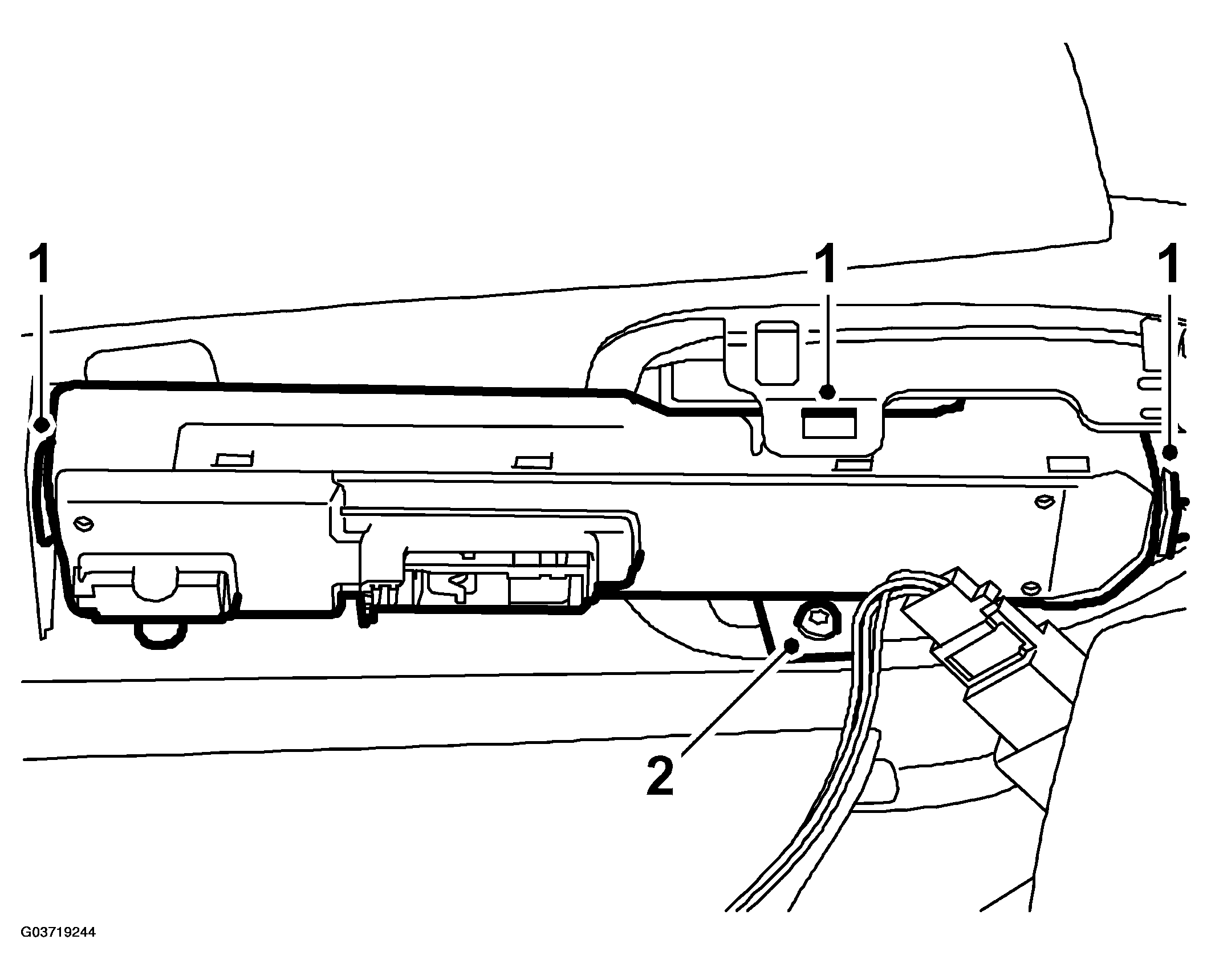

    Fig 1: Illustration For Steps 1-2
    G03719244Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. When replacing the passenger door module: Remove the door trim bolt.
  3. Plug in the connector for the bootlid switch.
  4. Fit the door trim.
  5. Cars with pinch protection:  Perform Programming of the pinch protection. See ELECTRIC MOTOR FOR SUNROOF (WITH PINCH PROTECTION)  .
  6. Perform the procedure for After fitting a control module. See PROCEDURE AFTER CHANGING CONTROL MODULE  .
