To fit

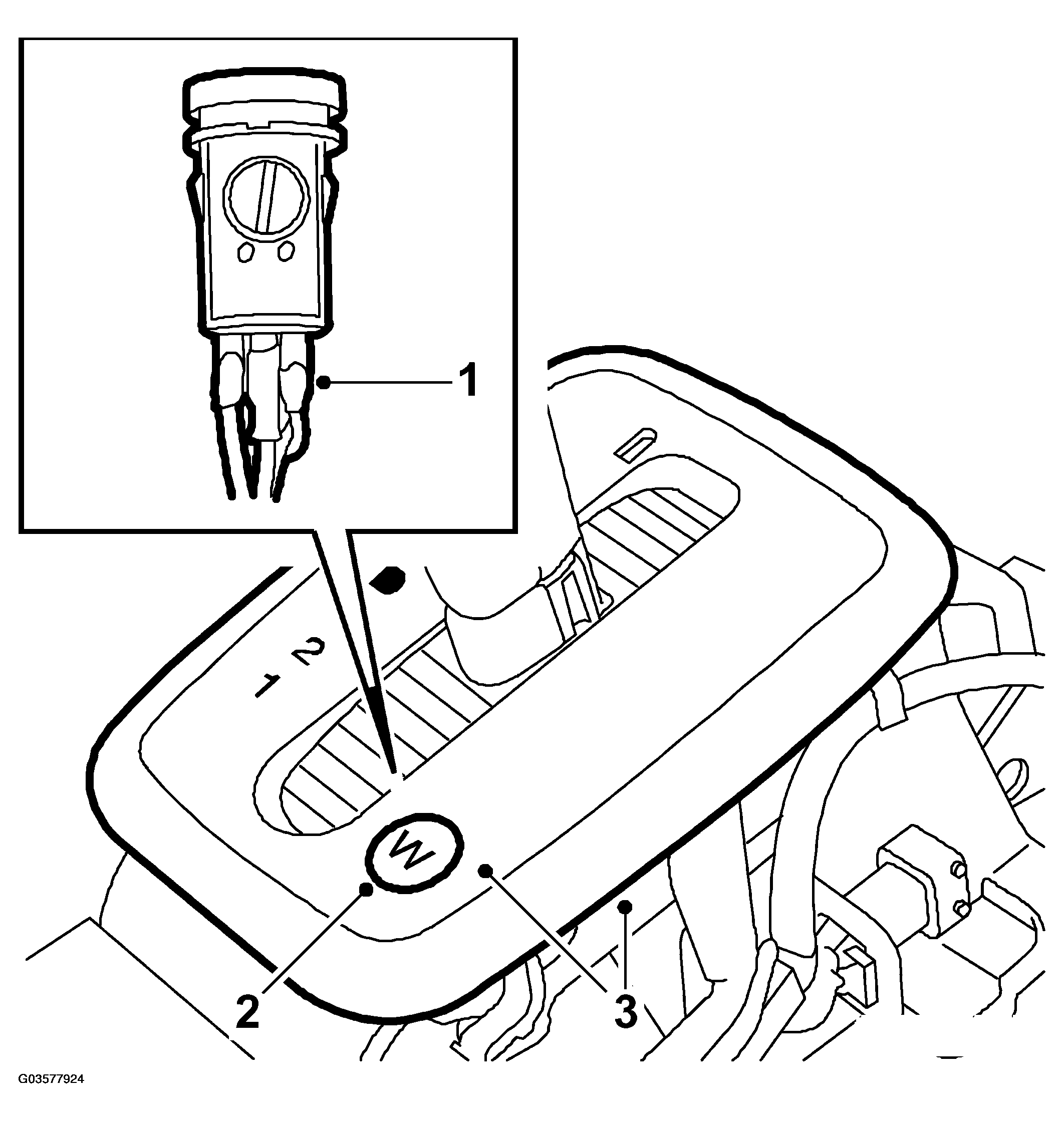

Fig 1: Illustration For Steps 1-3
G03577924Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Solder on the wiring and thread the protective tubing over the soldered joint.
  2. Press the WINTER button into the indicator display.
  3. Fit the indicator display and the rim.
