To remove

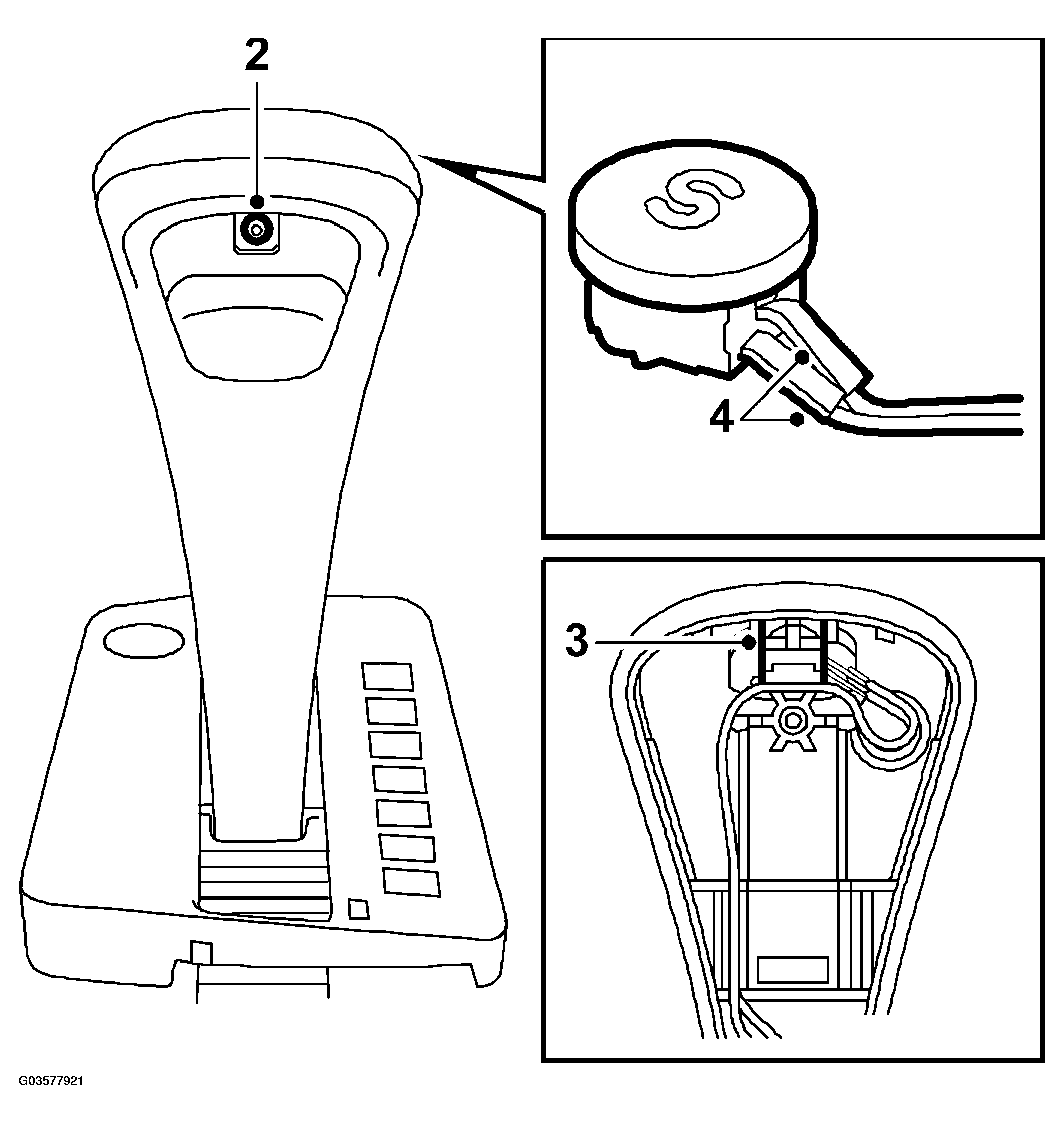

Fig 1: Illustration For Steps 2-4
G03577921Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Move the selector lever to position N or D.
  2. Remove the front part of the selector lever casing.
  3. Press up the SPORT button from below.
  4. Unsolder the SPORT button. Place some form of protection under it so that drops of solder do not fall onto the center console.
