To remove

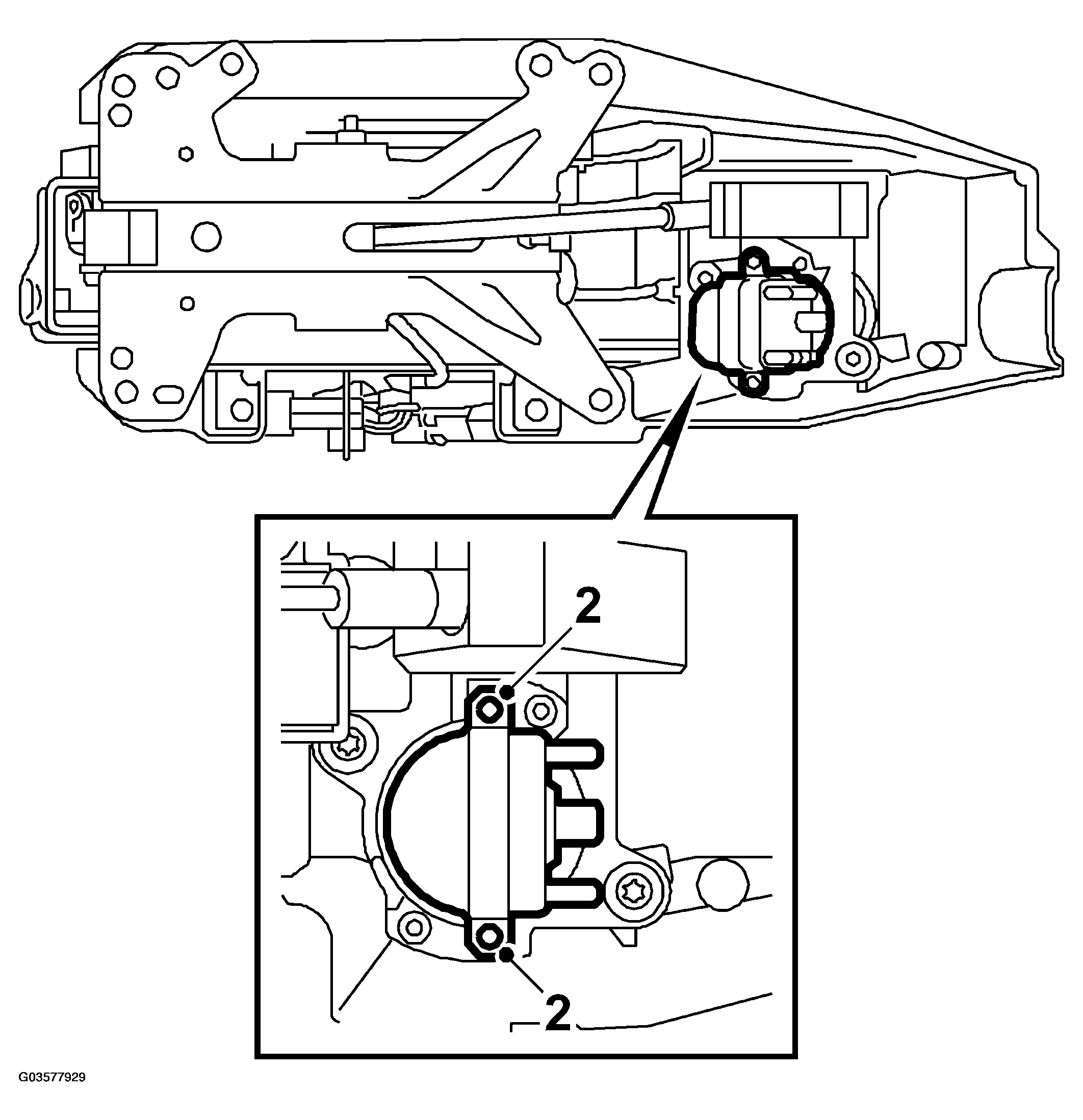

Fig 1: Illustration For Step 2
G03577929Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the selector lever housing, see SELECTOR LEVER HOUSING .
    IMPORTANT: When working on a dismantled selector lever housing, the selector lever should be protected with foam rubber or the like.
  2. Remove the ignition switch connector.
