Control module: Removing

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the soft top and position the soft top cover straight up.
  2. Remove the side trim. See REMOVING .
  3. Note the number of soft top cycles before changing the control module.
    IMPORTANT: ESD-SENSITIVE COMPONENT
    Ground yourself by touching the car body or engine before unplugging or plugging in the component. Never touch the connector pins  . Prior to changing a control module refer to BEFORE CHANGING A CONTROL MODULE .
  4. Remove the control module.

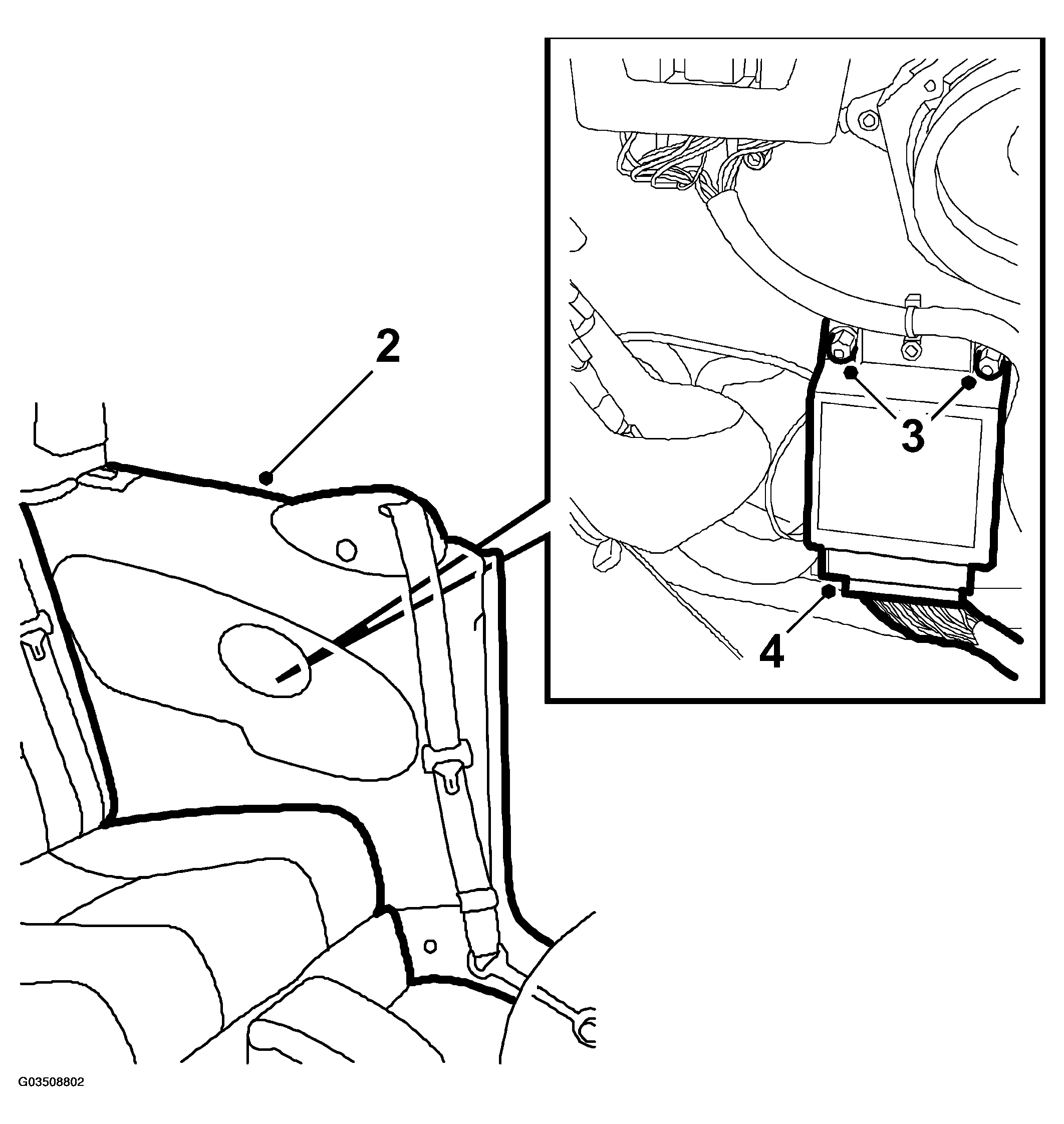

    5. Fig 1: Illustration For Steps 2-4
    G03508802Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Unplug the connector.
