Position sensor, crankshaft (345): T7

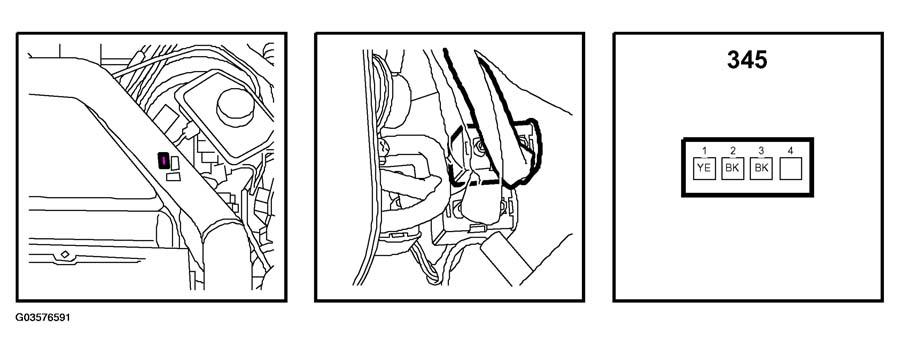

Fig 1: Identifying Crankshaft Position Sensor Connector Pinouts - T7
G03576591Courtesy of SAAB-SCANIA OF AMERICA, INC.
