Home >> Saab >> 2003 >> 9-3 Vector, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> TRIONIC T7 Fuel Control System >> Adjustment-Replacement >> Pressure/temperature sensor, charge air >> To fit

To fit

  1. Apply petroleum jelly (part no. 30 04 520) or the equivalent sparingly to the sensor O-rings. Fit the sensor.

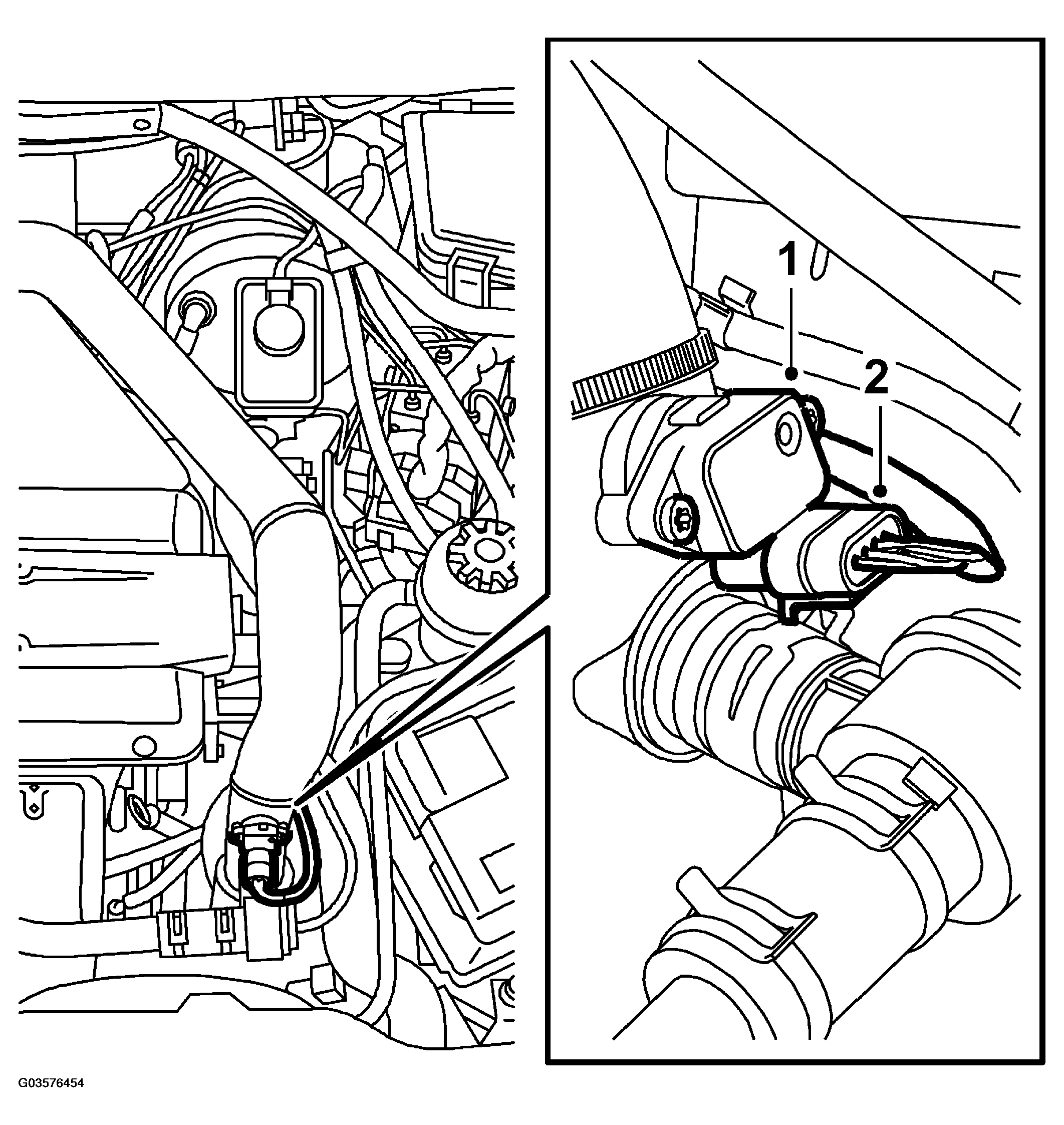

    Fig 1: Illustration For Steps 1-2
    G03576454Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Spray the connector with Kontakt 61 (part no. 30 04 520). Plug in the connector.
