Component Locations

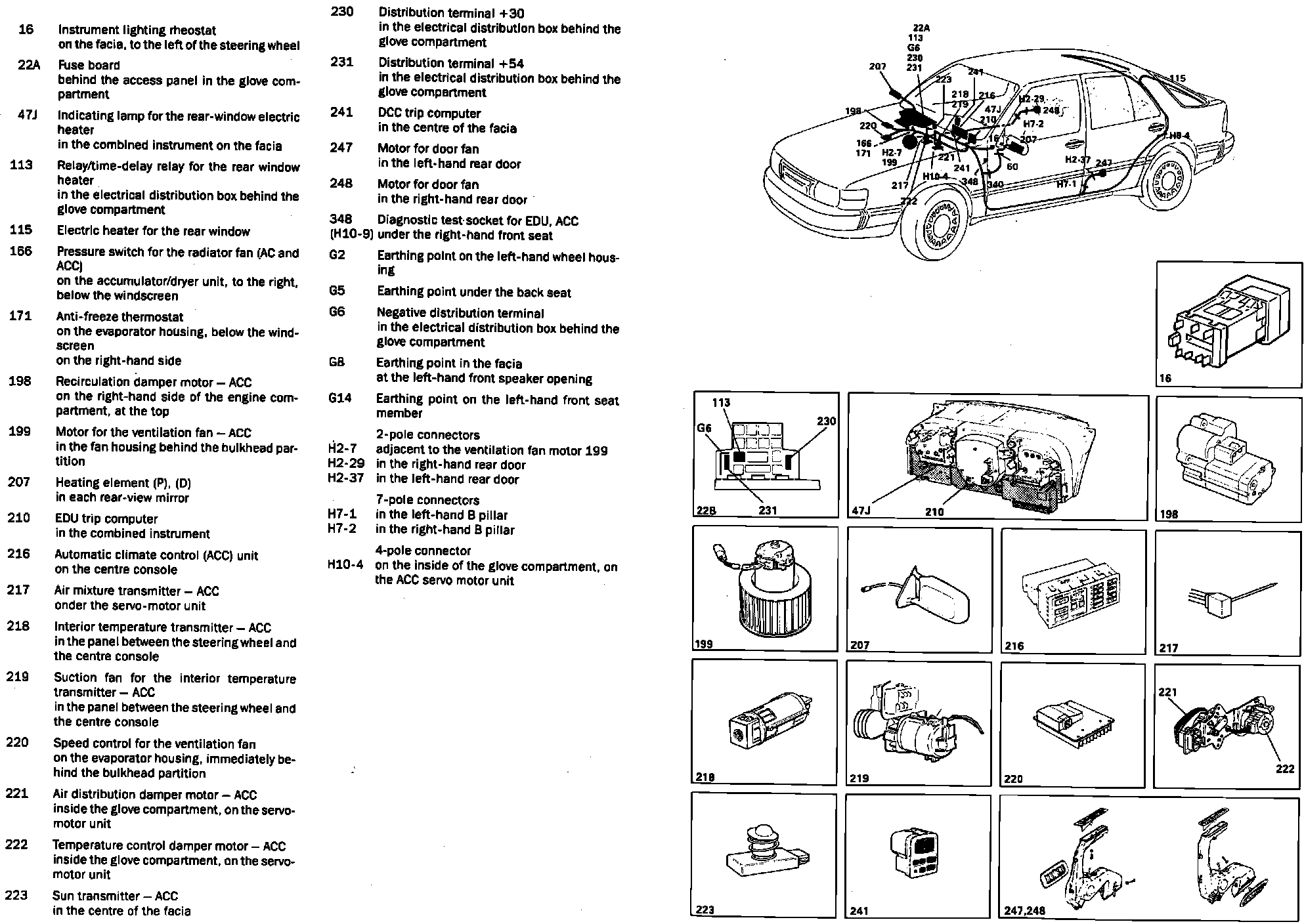

Automatic climate control (transmitters, actuating motors & rear door fan) component locations:




Automatic climate control (compressor & radiator fans) component locations:




Electronic Throttle Control (ETS) system component locations:






On Center Console
