Home >> SRT >> 2013 >> Viper V10-8.4L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations

Fuse: Locations

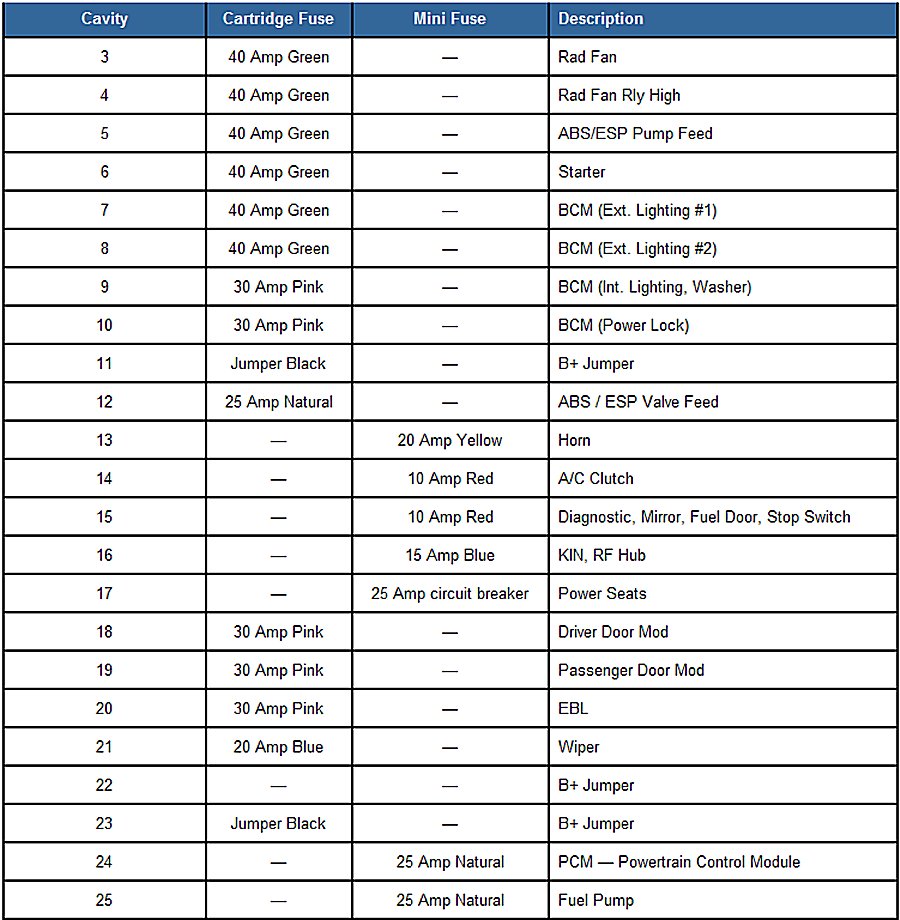

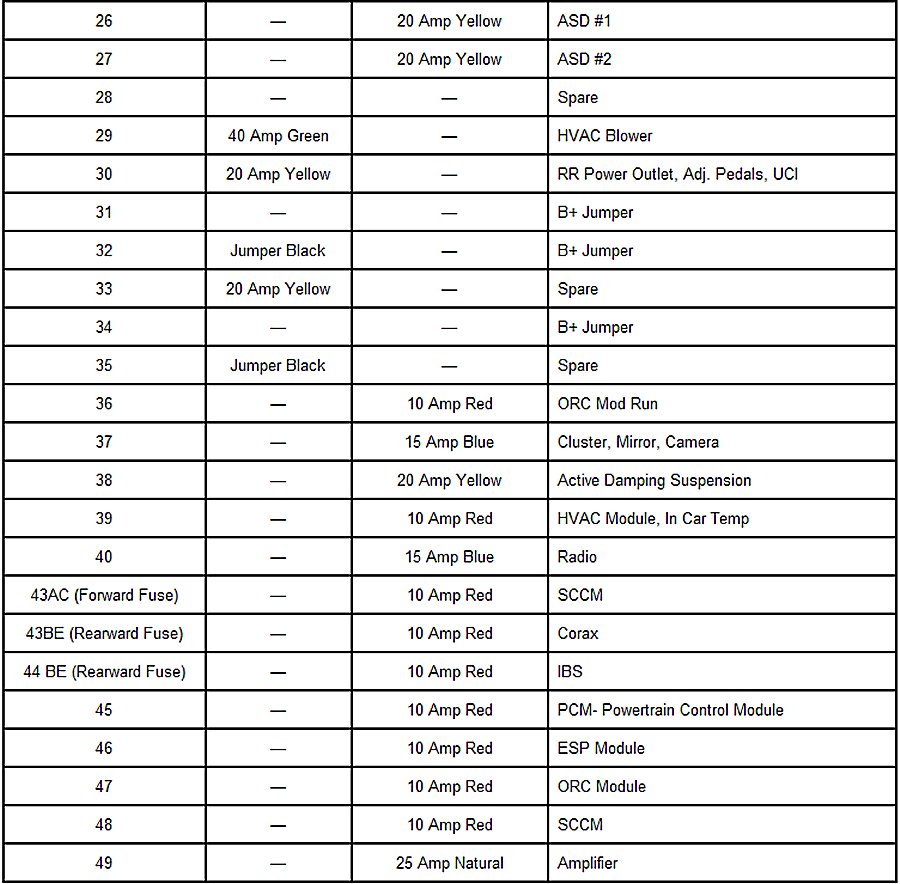

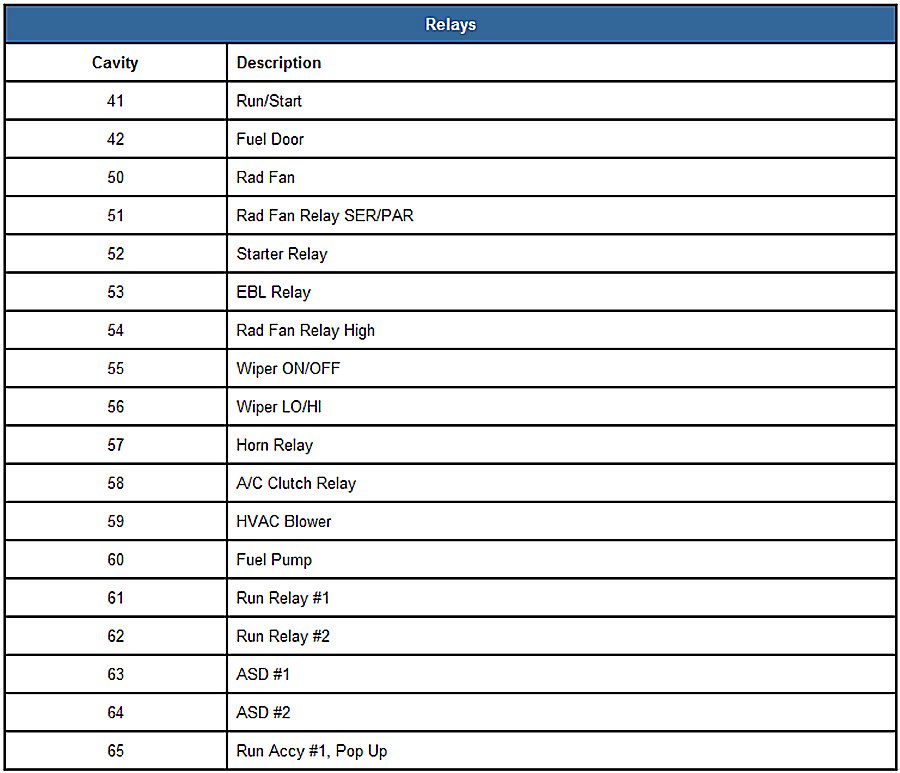

Power Distribution Center (PDC) is located in the engine compartment.
