Home >> Renault >> 1987 >> Fuego L4-2165cc 2.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Coolant Temperature Sensor/Switch (For Computer) >> Locations >> Fuel Injection System Components. Fuego Turbo

Fuel Injection System Components. Fuego Turbo

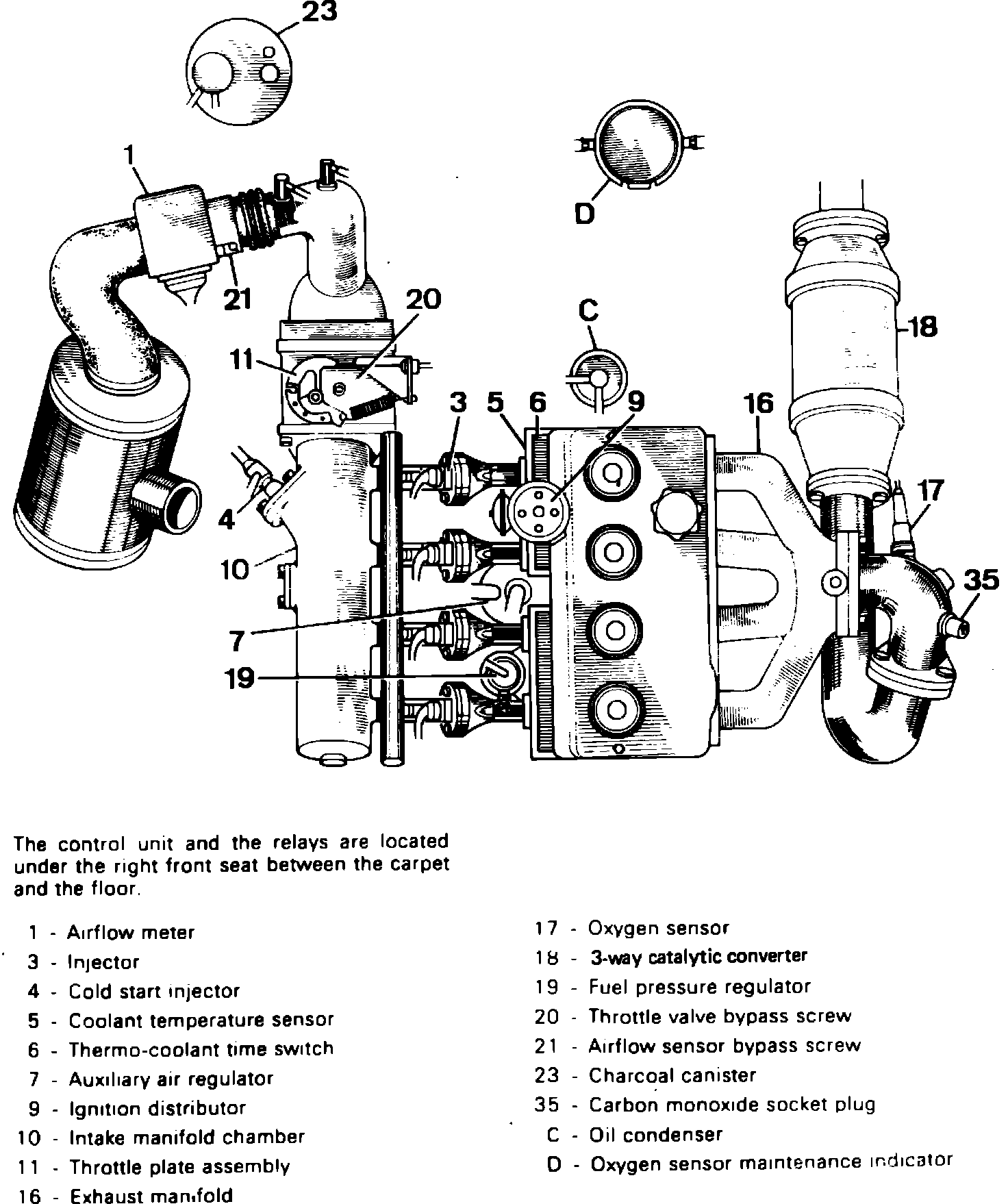

Fig. 1 Fuel injection system components.:
