Diagnostic Connectors W/Multi-Point Fuel Injection System
Diagnostic Connectors W/Multi-Point Fuel Injection System

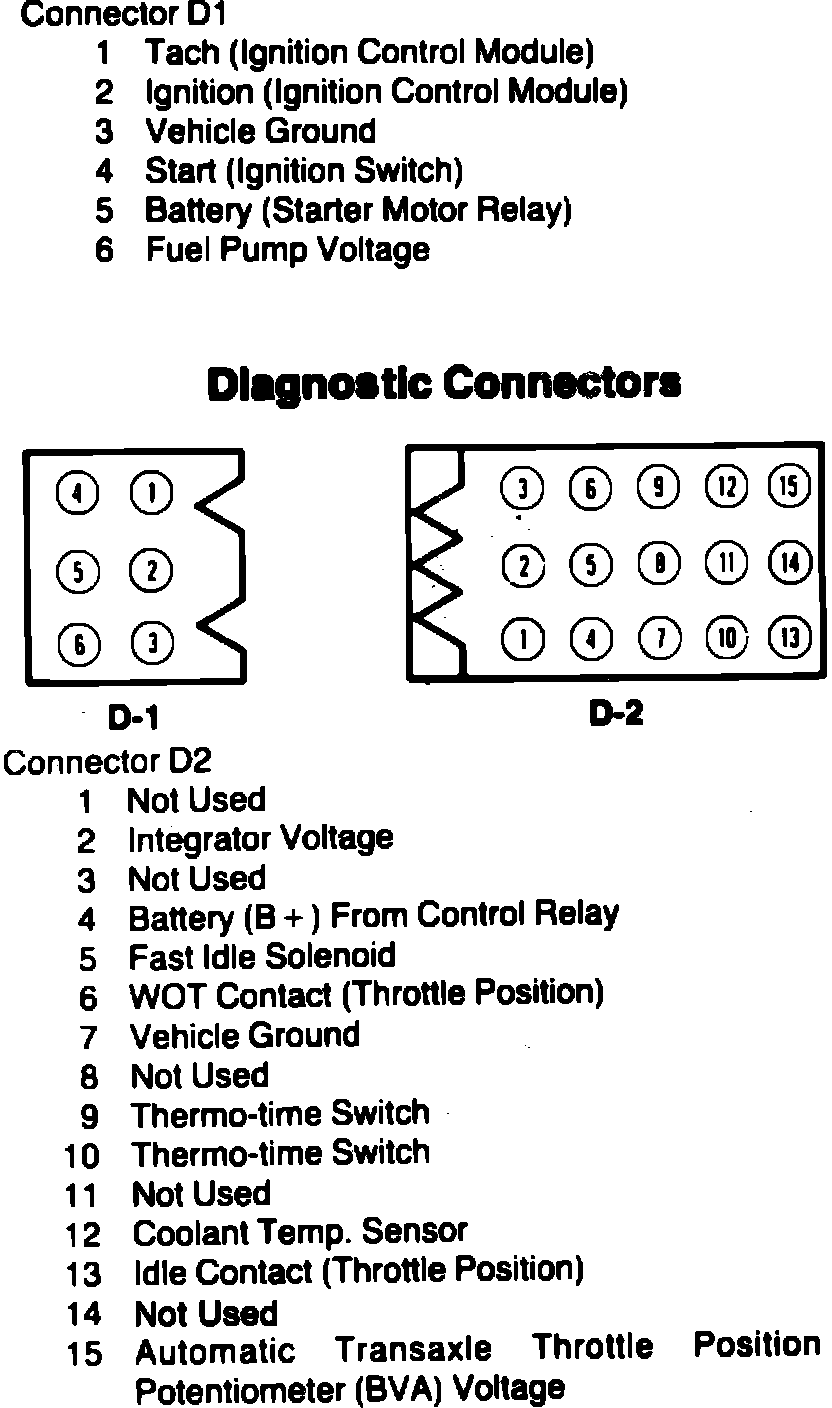

Fig. 3 Diagnostic connectors.:
