Home >> Porsche >> 2012 >> Boxster (987) F6-2.9L >> Repair and Diagnosis >> Power and Ground Distribution >> Multiple Junction Connector >> Locations

Multiple Junction Connector: Locations

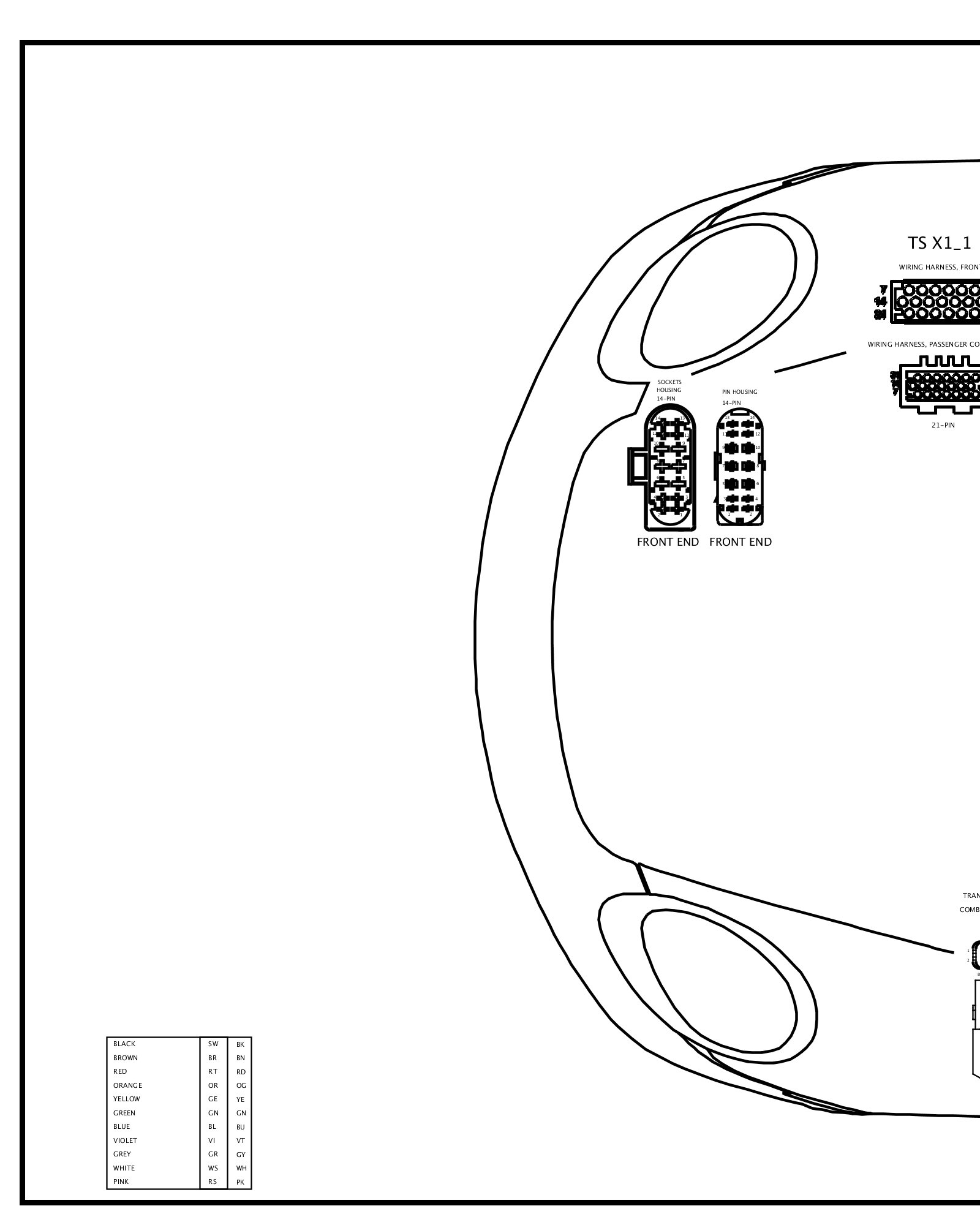

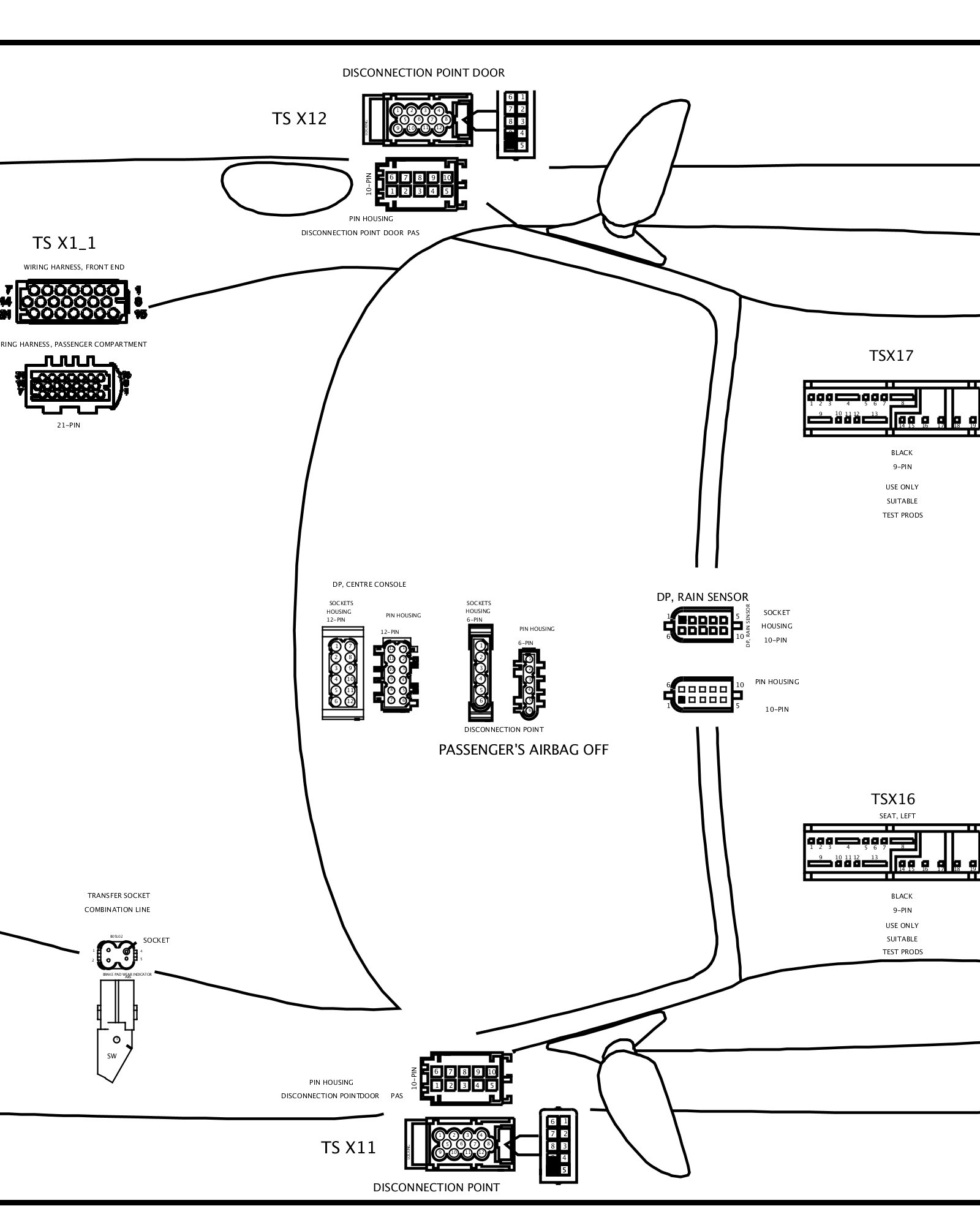

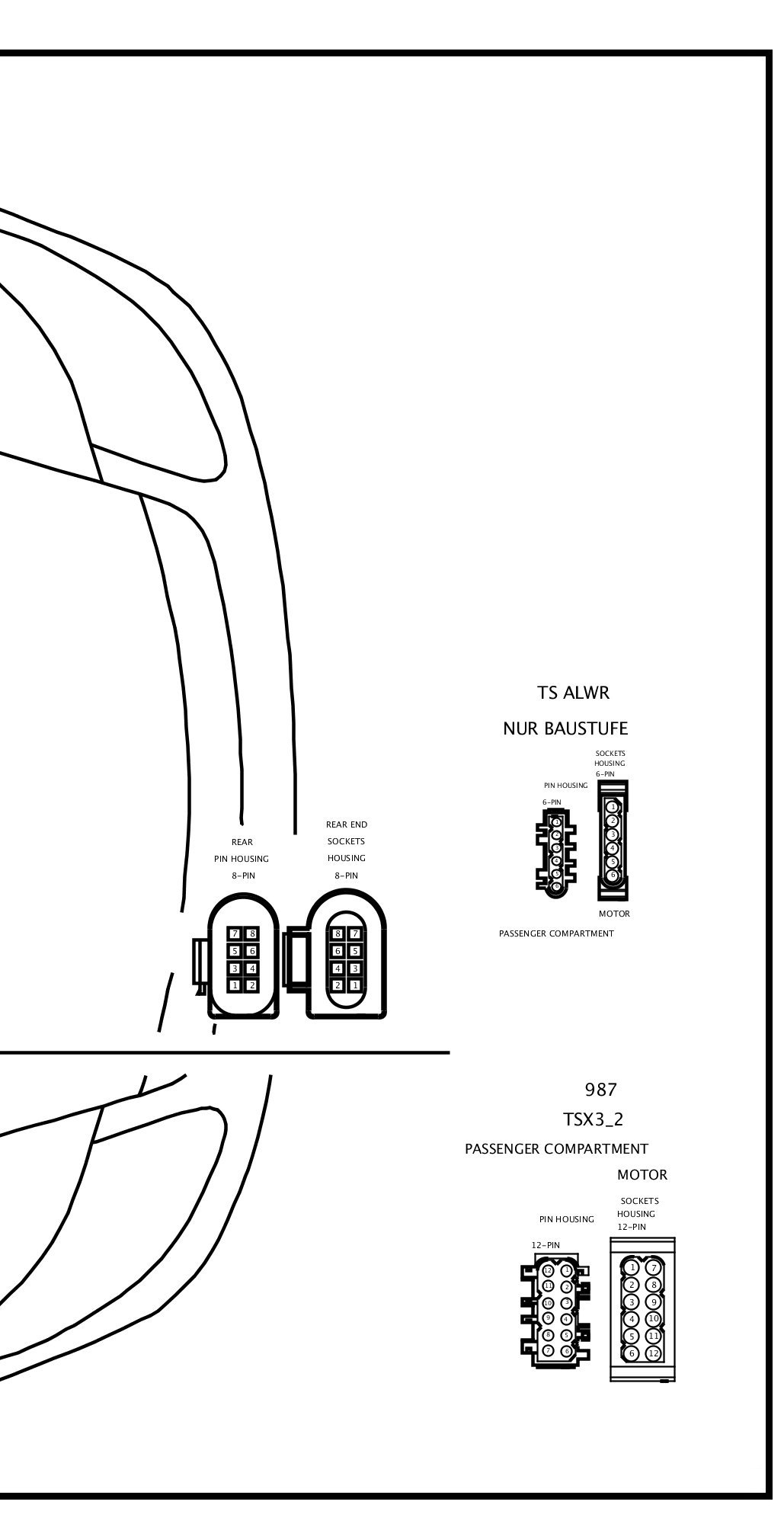

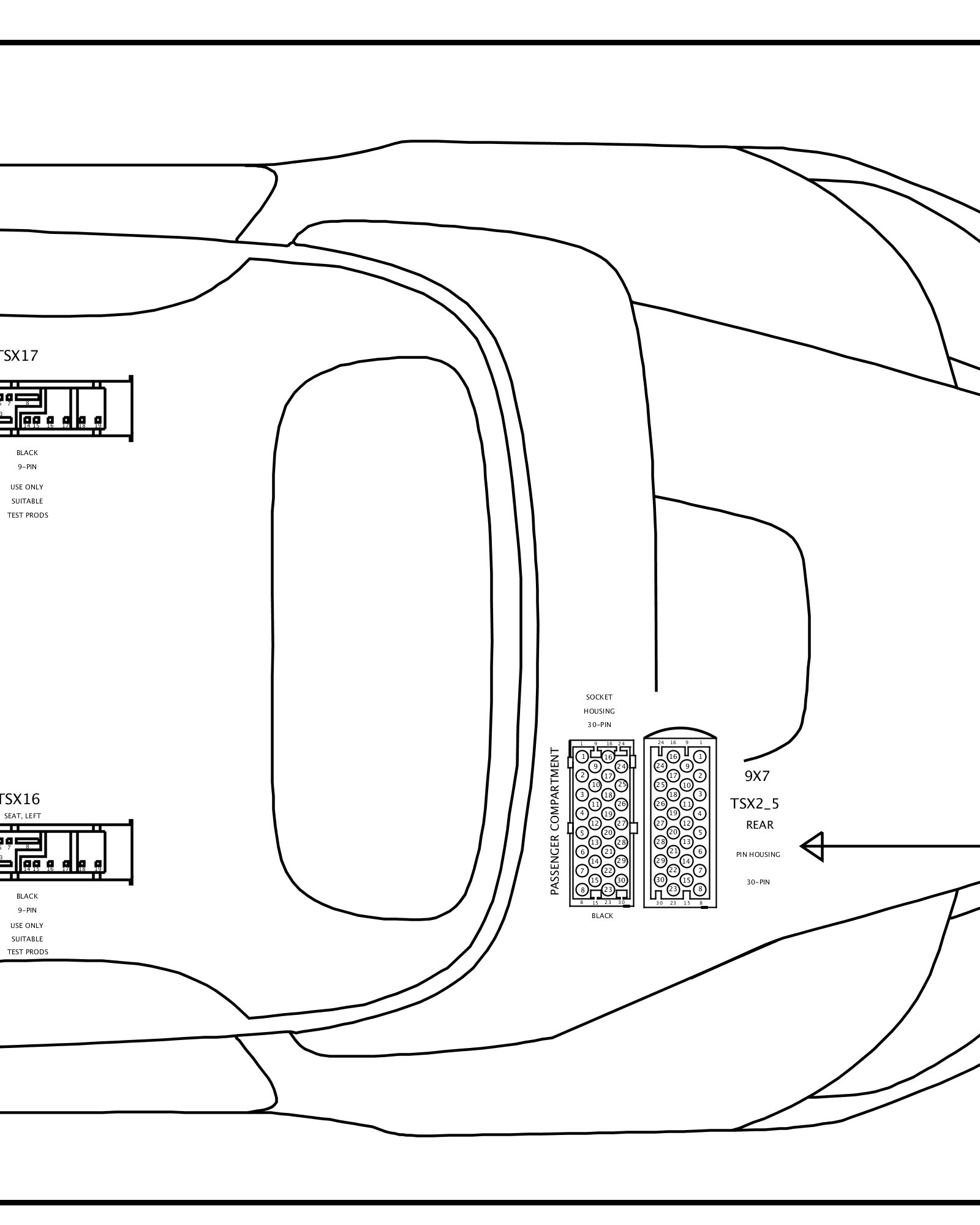

(94B) Disconnection Point Overview
