Fuses

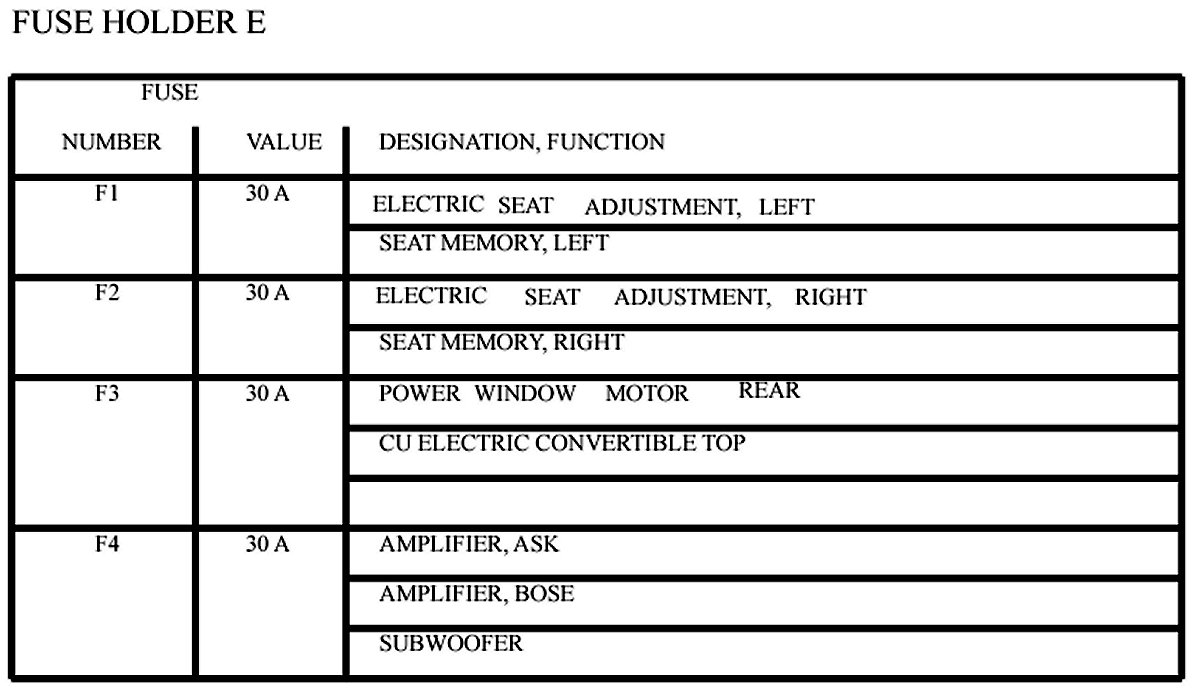

Fuse Location and Assignments

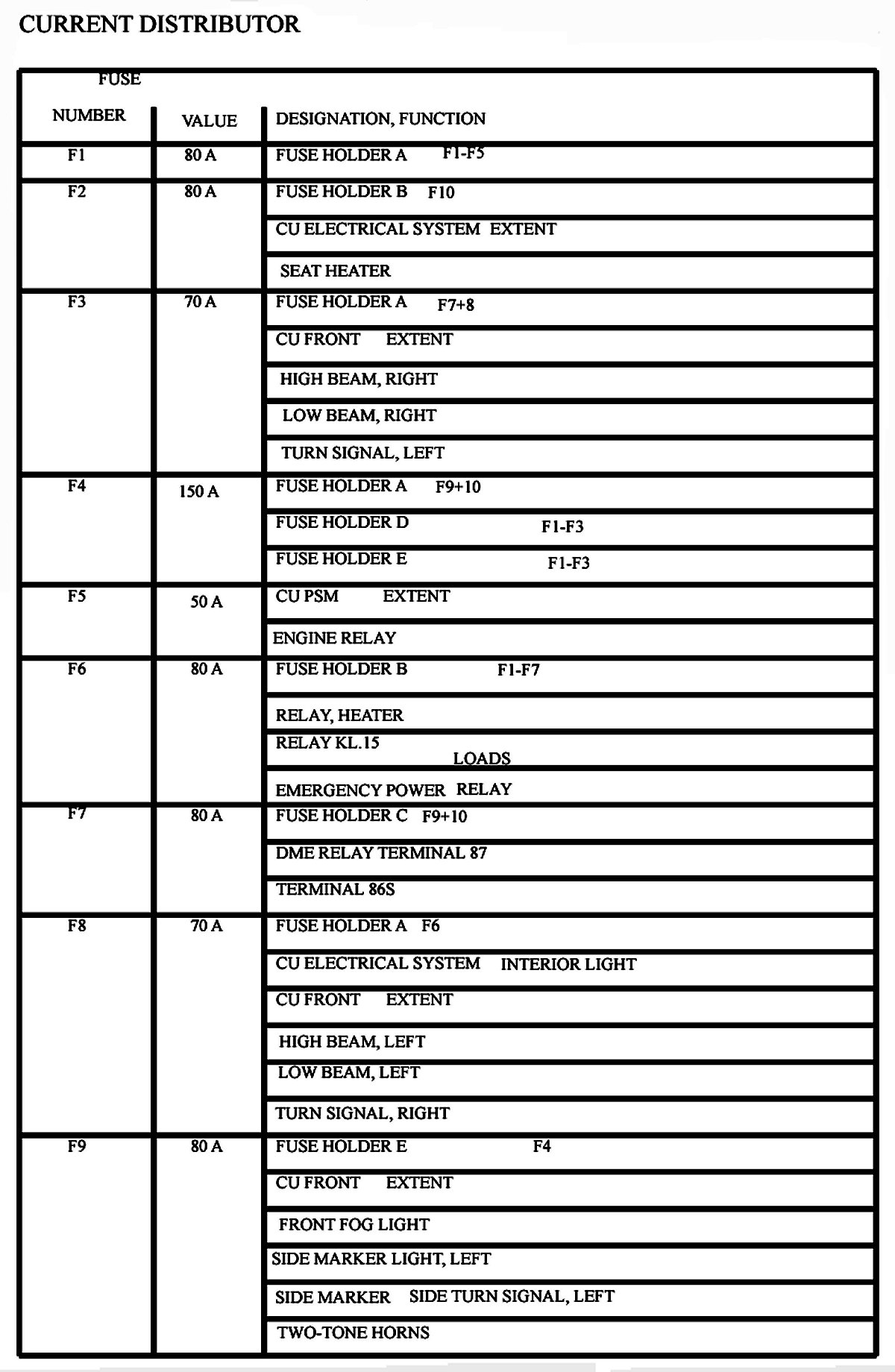

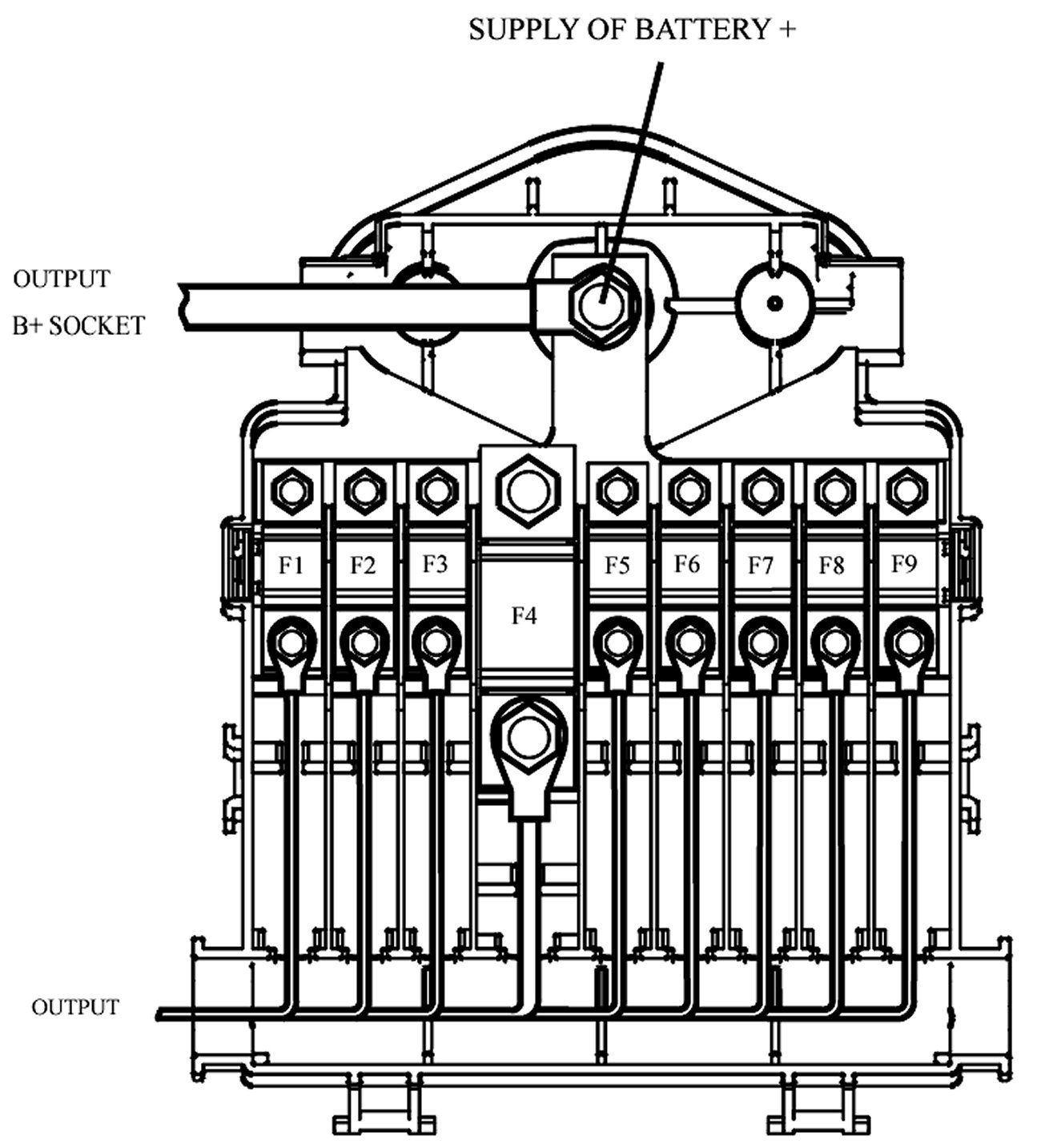

Current Distributor

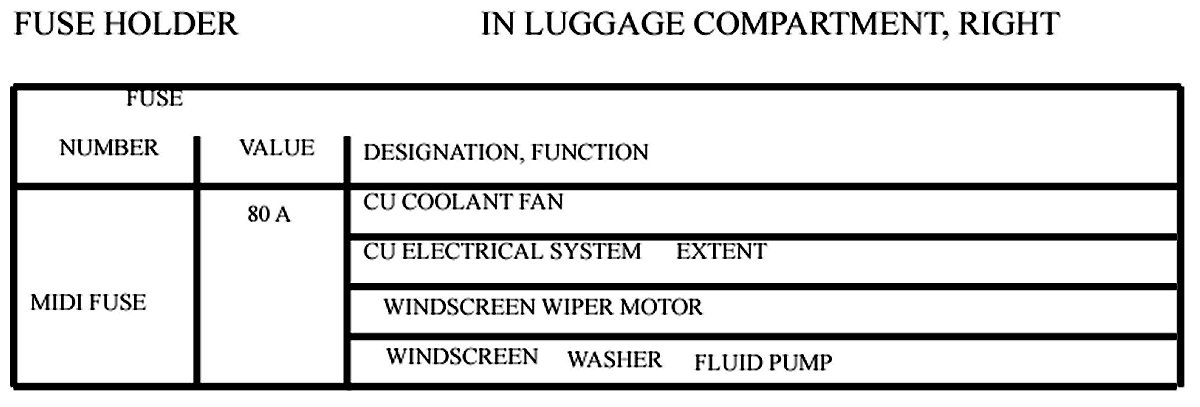

The current distributor is located in the luggage compartment to the right.

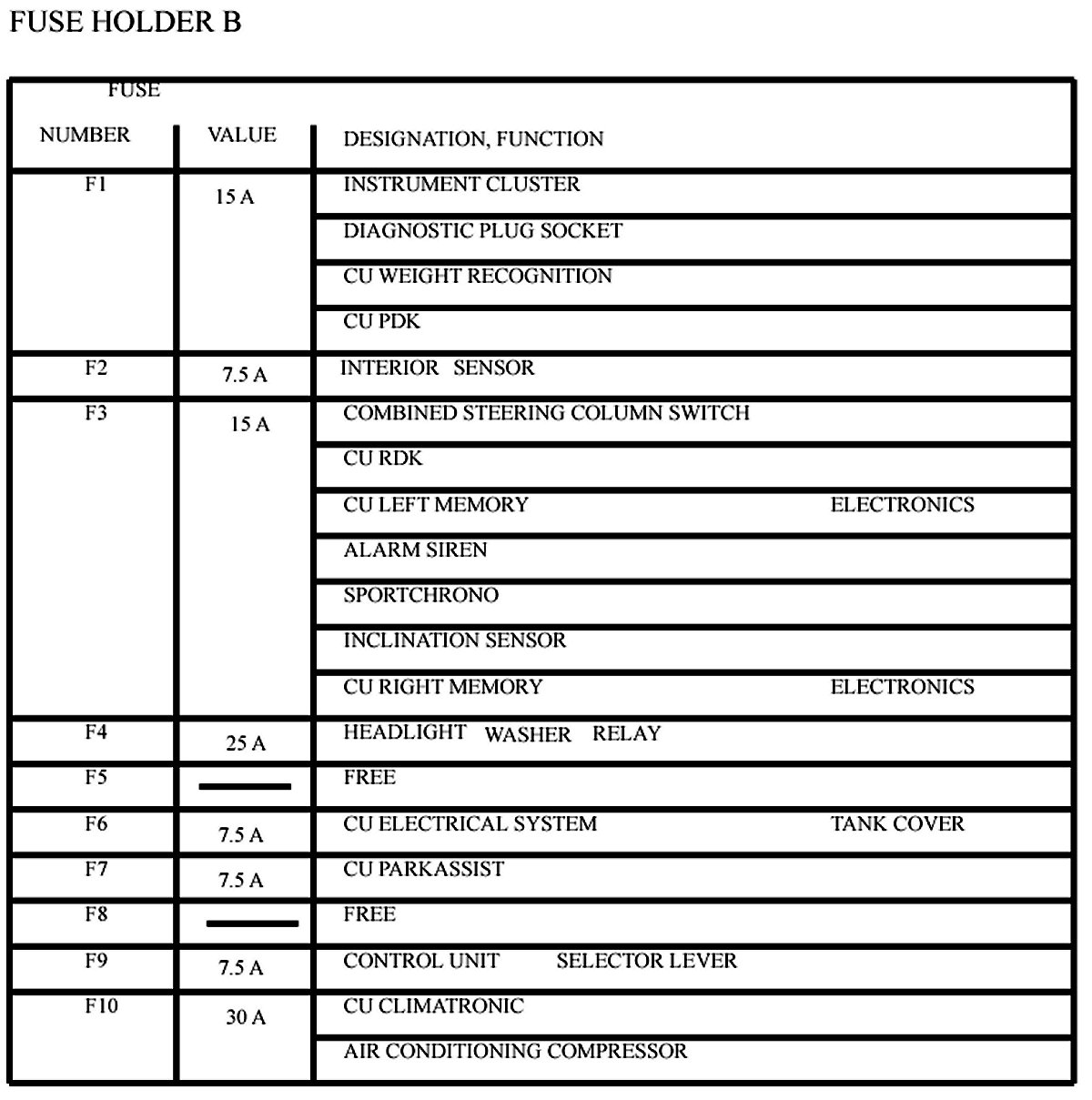

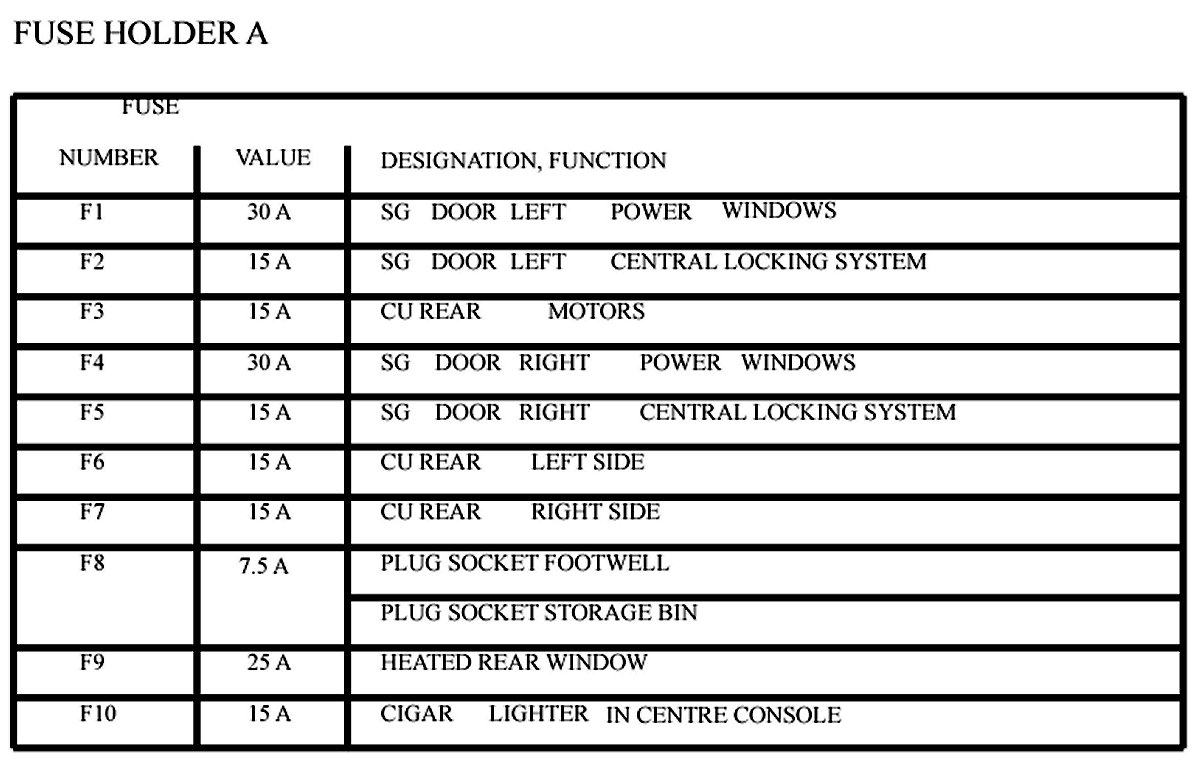

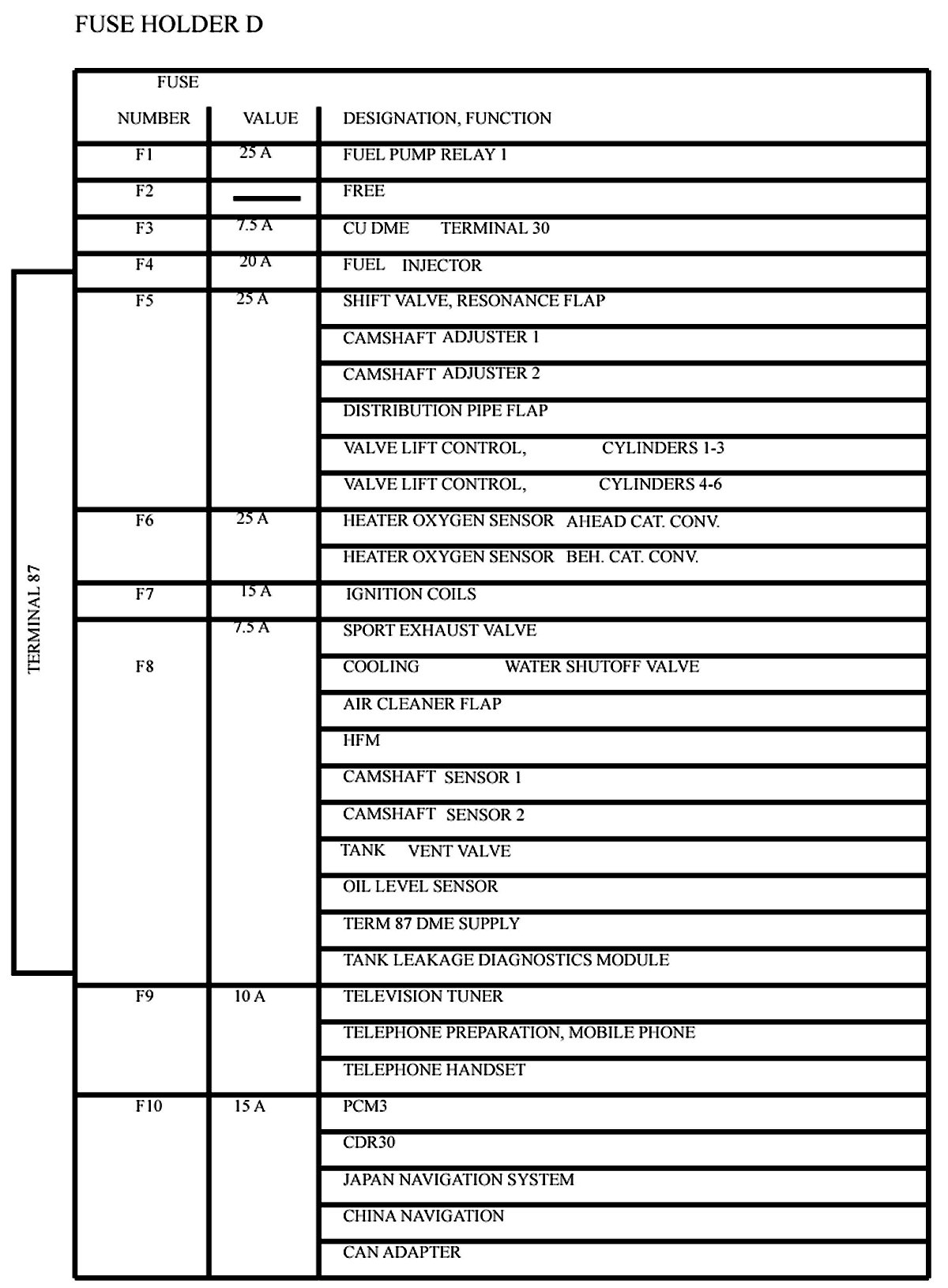

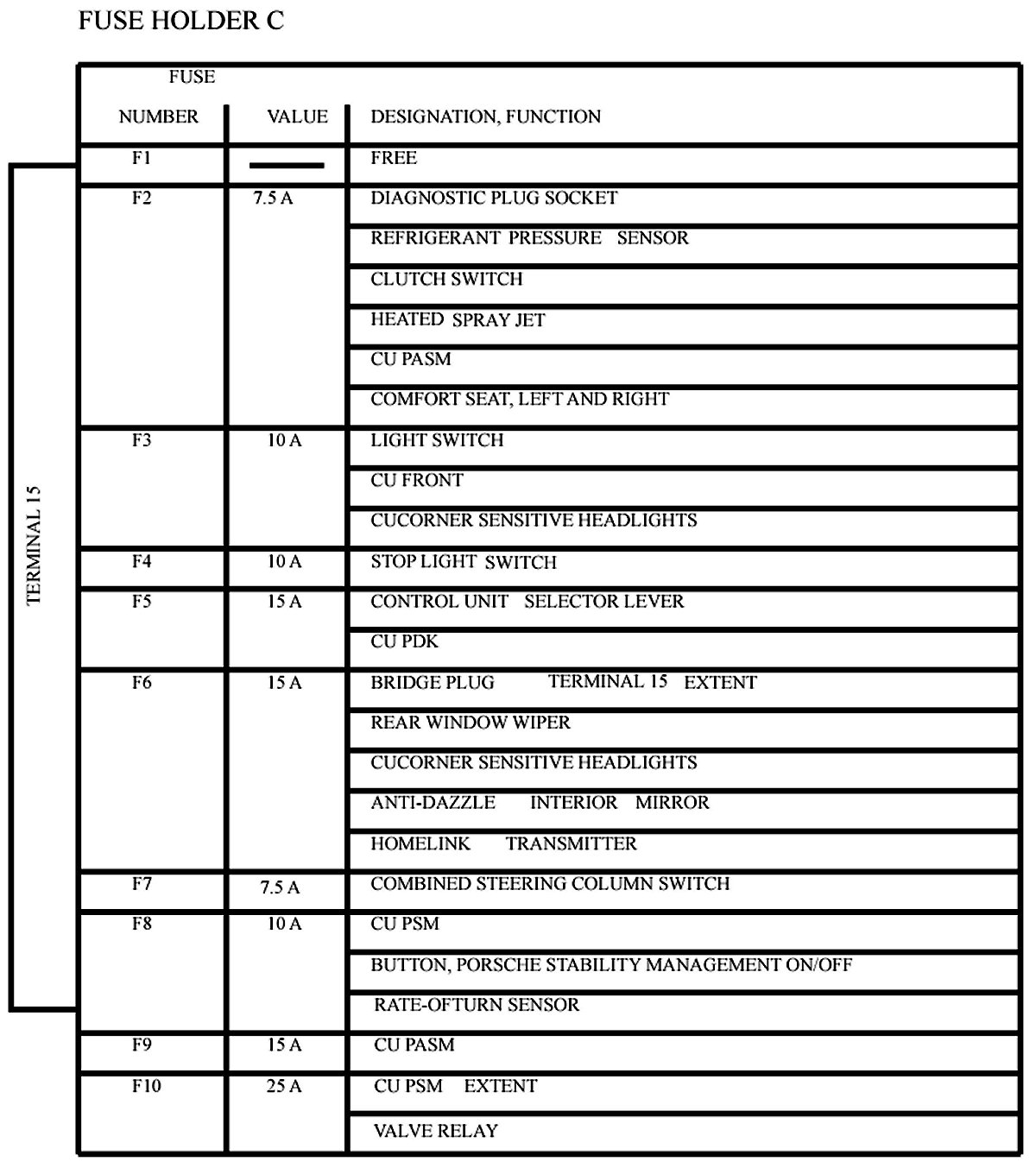

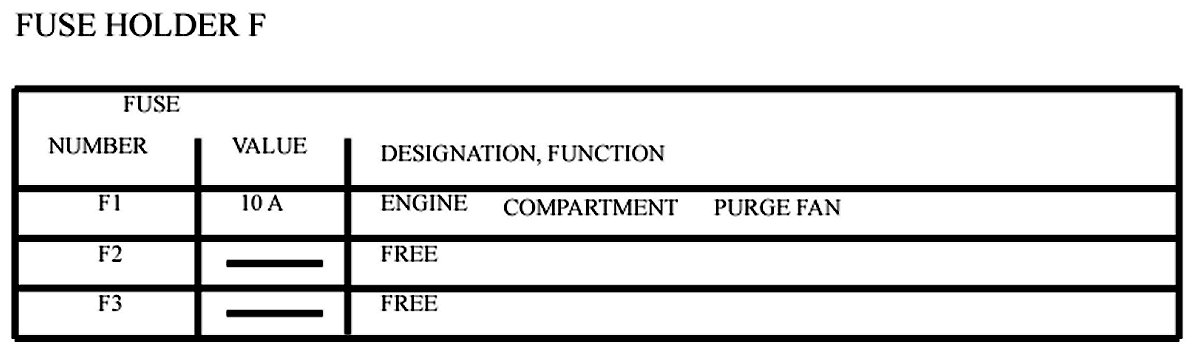

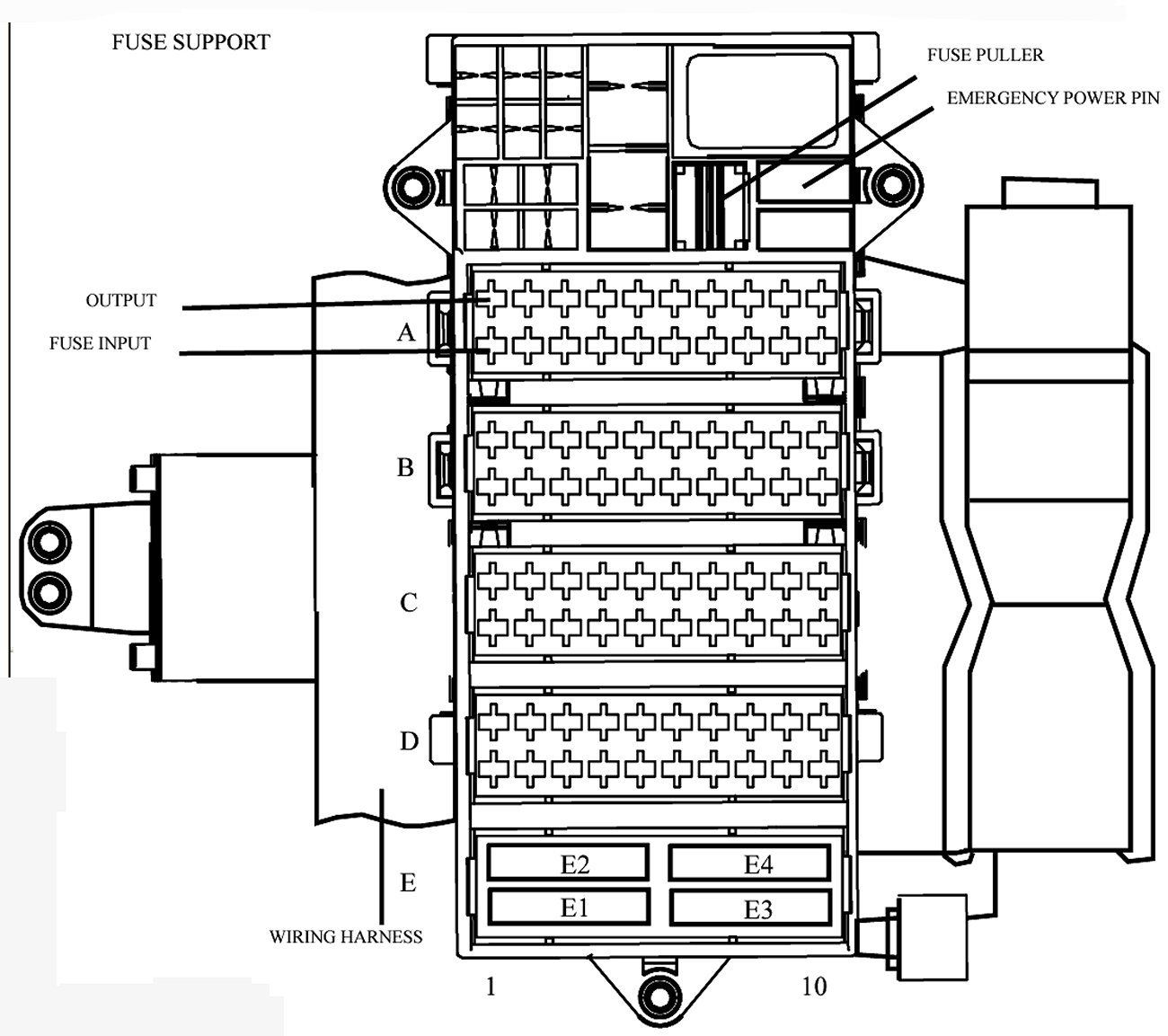

Fuse Support



































The fuse support is located in the passenger compartment.
