Porsche
>>
2011
>>
Boxster (987) F6-2.9L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Main Relay (Computer/Fuel System)
>>

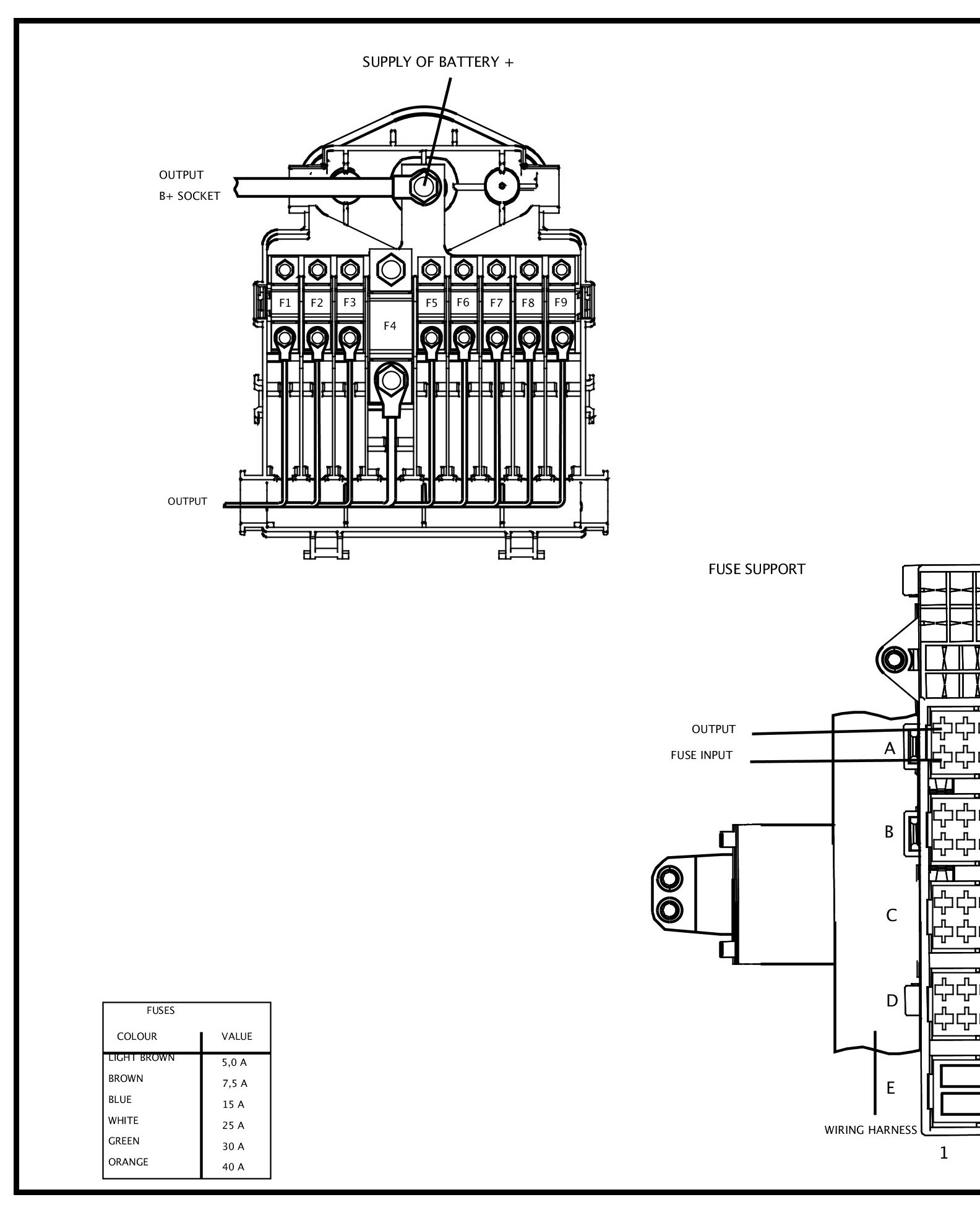

Locations
>>
DME Relay Terminal 87
DME Relay Terminal 87

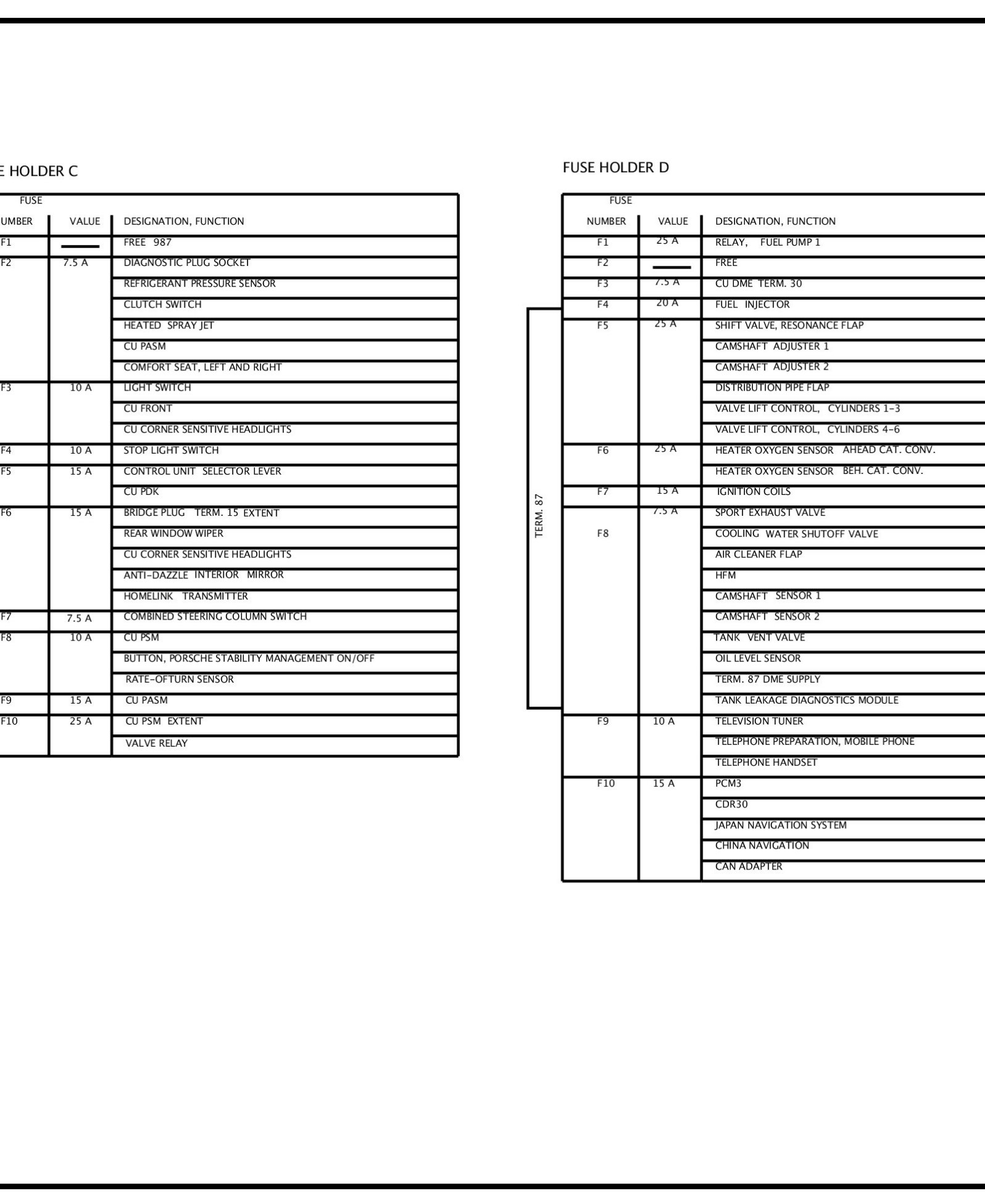

Fuse Assignment - Sheet 92
DME Relay Terminal 87 - F7, F8
Fuse Assignment - Sheet 92 (Part 1):
Fuse Assignment - Sheet 92 (Part 2):
Fuse Assignment - Sheet 92 (Part 4):
