System Specifications

Cylinder Head





Tightening sequence for cylinder head screws








Camshaft Bearing Cap

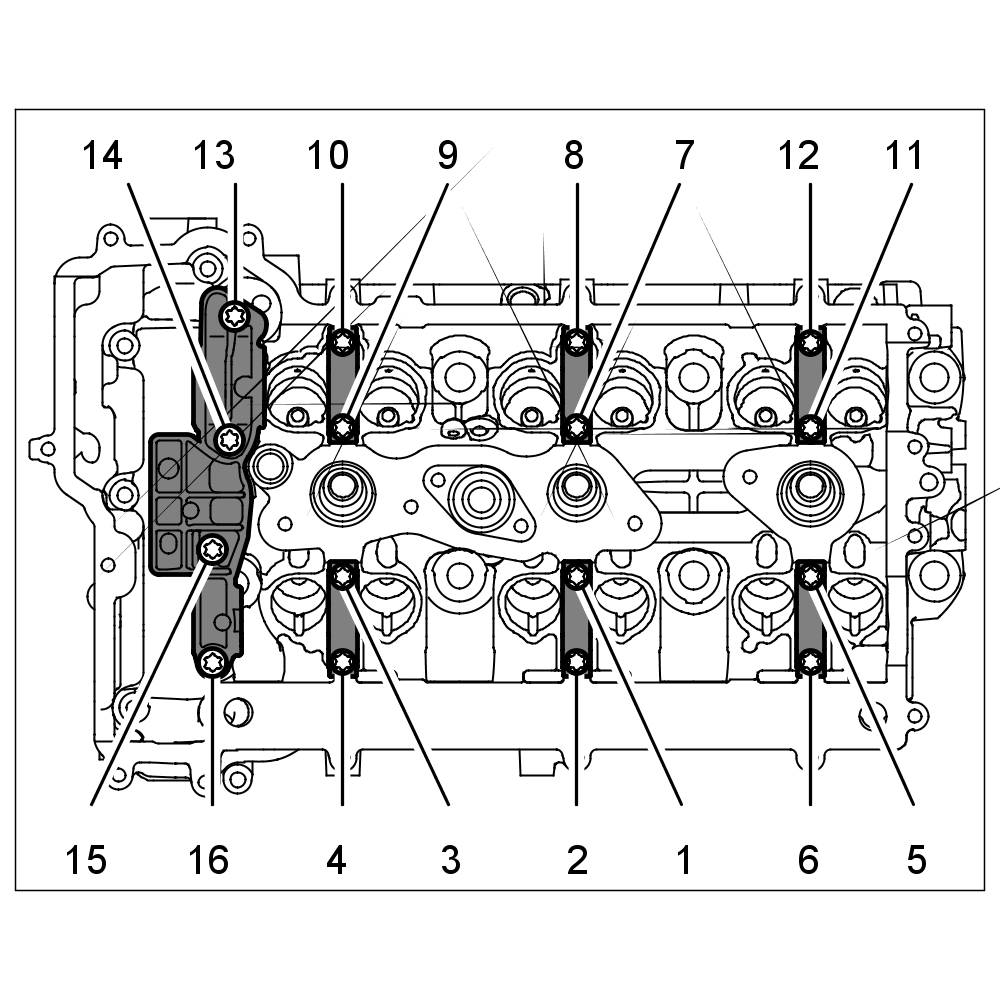

Fit and tighten screws according to the specified tightening sequence -1 to 16-.
Initial tightening: 5 Nm (3.5 ftlb.)
Torque angle: 50°





Tightening sequence for mounting camshafts 4-6





Tightening sequence for mounting camshafts 1-3


Intake Manifold Specifications

Exhaust Manifold Specifications

Camshaft Gear/Sprocket Specifications
