Removal and Replacement

WM 283920 Removing and installing hall sender

Technical values





Preliminary work for removing hall sender

1. If the hall sender for cylinder bank 1 -3 is removed, the rear wall cover must be removed -> 555919 Removing and installing rear wall cover 555919 Removing and Installing Rear Wall Cover.

Removing hall sender

DANGER

Vehicle raised incorrectly.

- Danger of fatal injury or material damage should the vehicle fall down.

-> Raise the vehicle at the prescribed jacking points.

1. Release and disconnect cable plug -1-.
2. Remove hall sender -3- by unscrewing the Torx screw (M6 x 16) -2-.

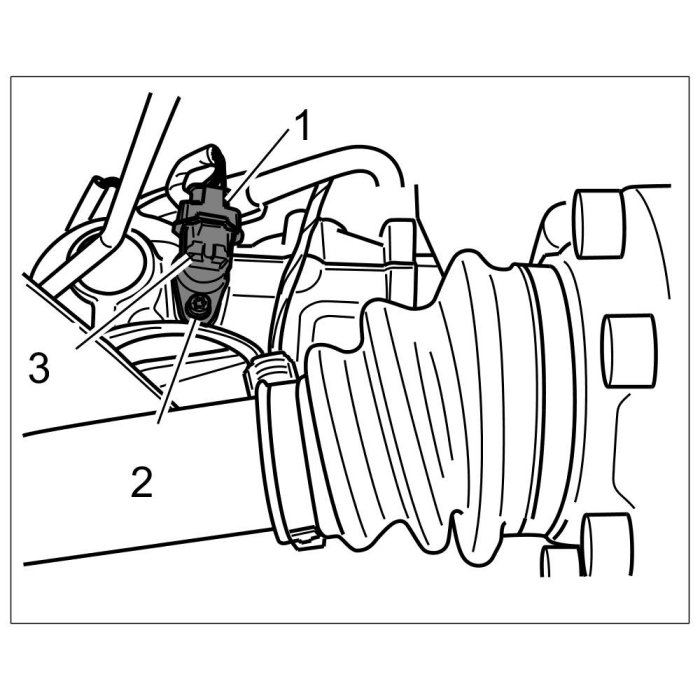

View of hall sender for cyl.1-3

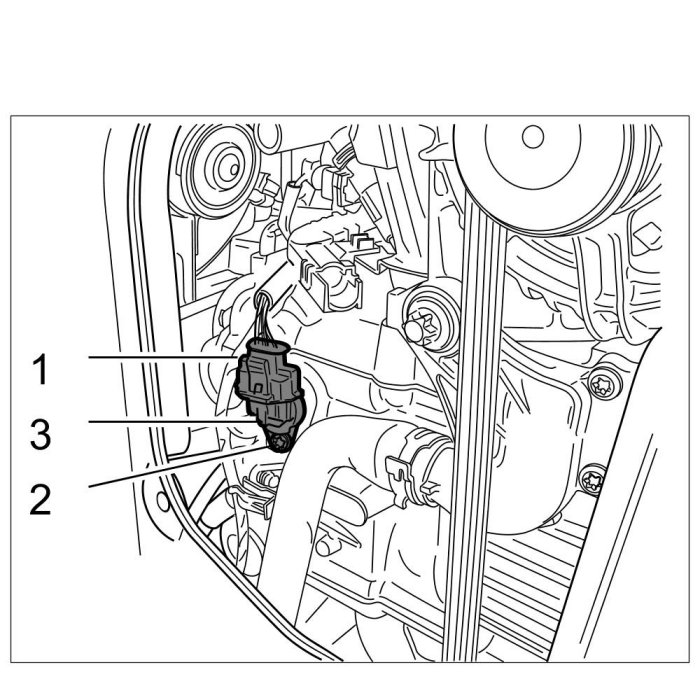

View of hall sender for cyl. 4-6

Installing hall sender

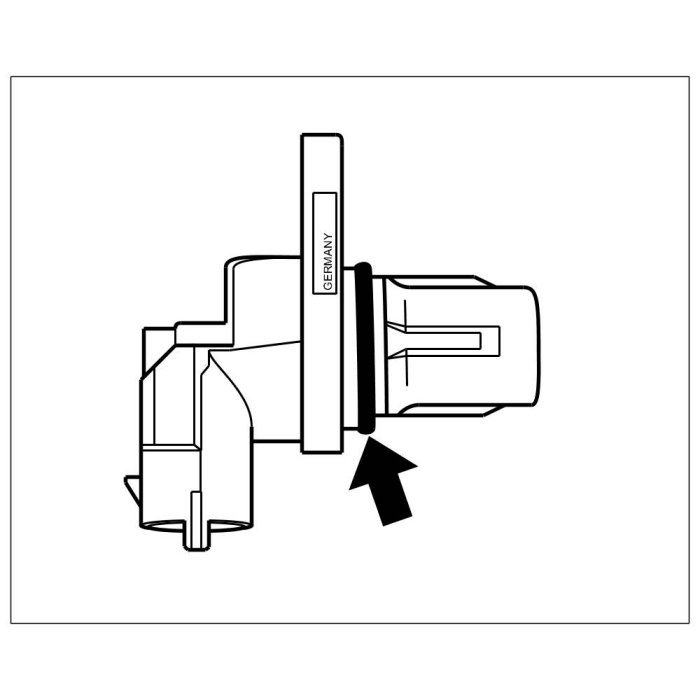

1. Replace O-ring. Lightly grease O-ring -arrow- with Optimol MP3.





O-ring for hall sender

2. Fit hall sender -3- by screwing in and tightening the Torx screw (M6 x 16) -2-. => Tightening torque: 7.5 ftlb.
3. Push on cable plug -1-.





View of hall sender for cyl.1-3





View of hall sender for cyl. 4-6

Subsequent work for installing hall sender

1. If the hall sender for cylinder bank 1-3 has been removed, the rear wall cover must be installed -> 555919 Removing and installing rear wall cover 555919 Removing and Installing Rear Wall Cover.
