Multiple Junction Connector

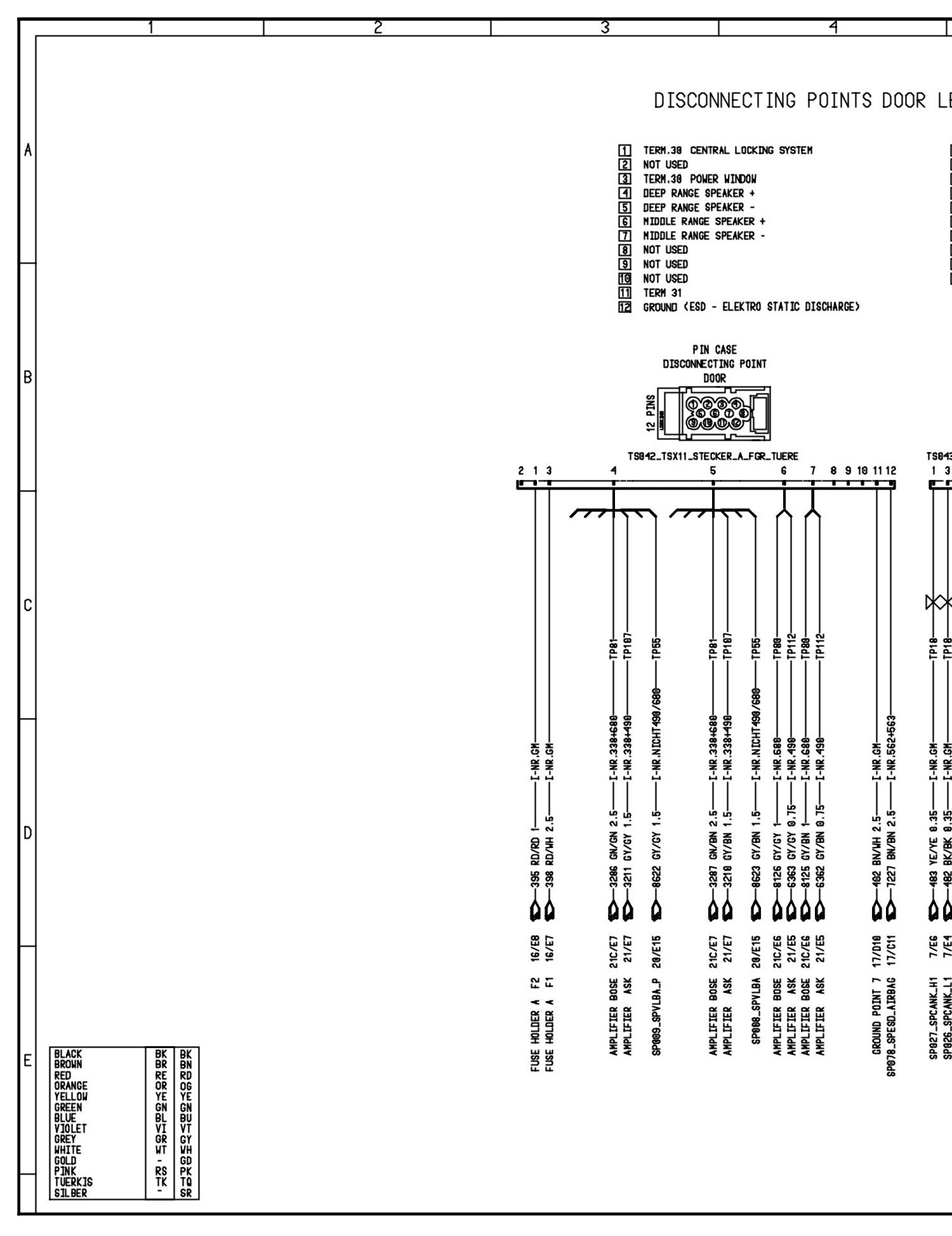

Disconnecting Points Doors Left/Right - Sheet 9A (Part 1):

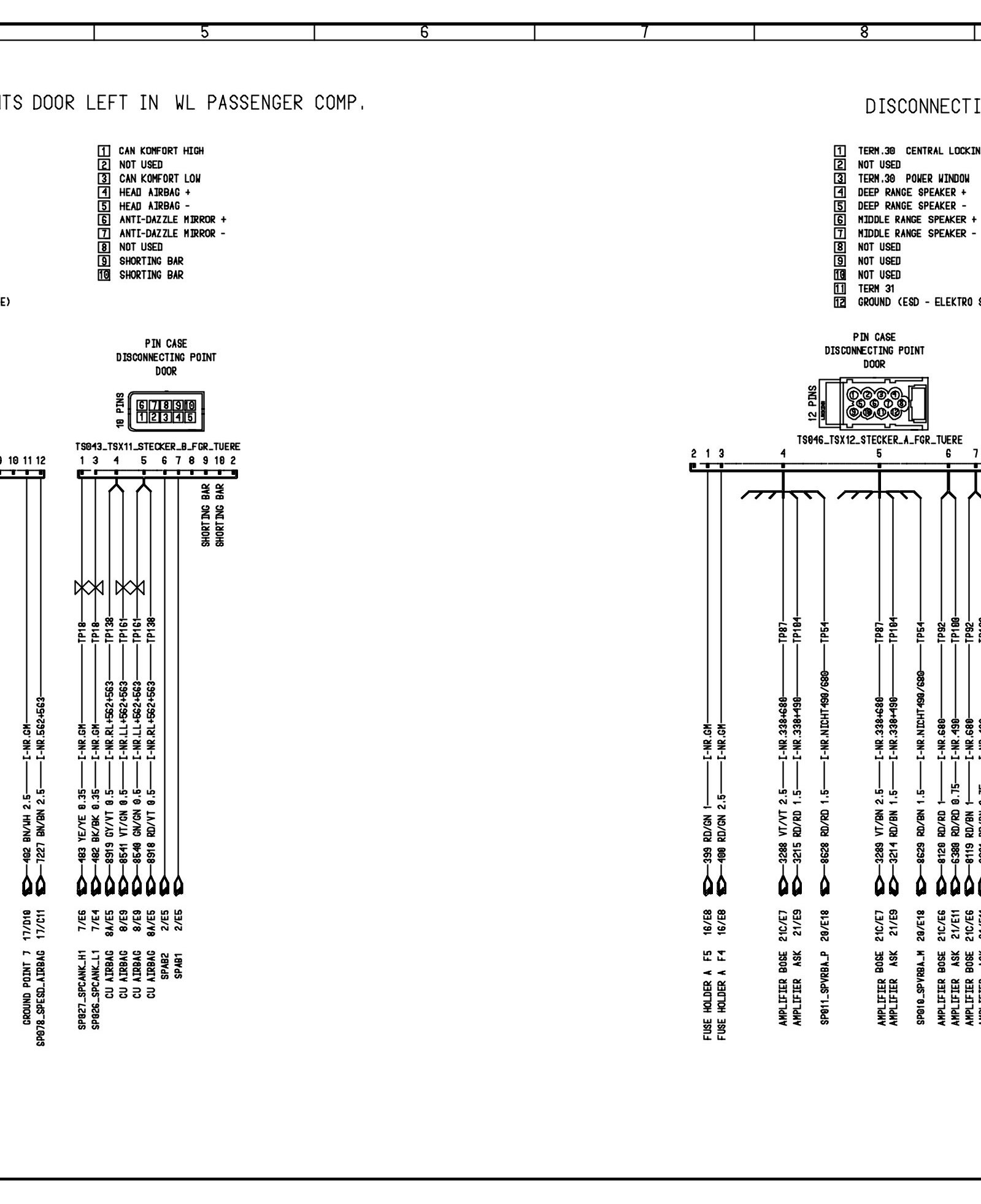

Disconnecting Points Doors Left/Right - Sheet 9A (Part 2):

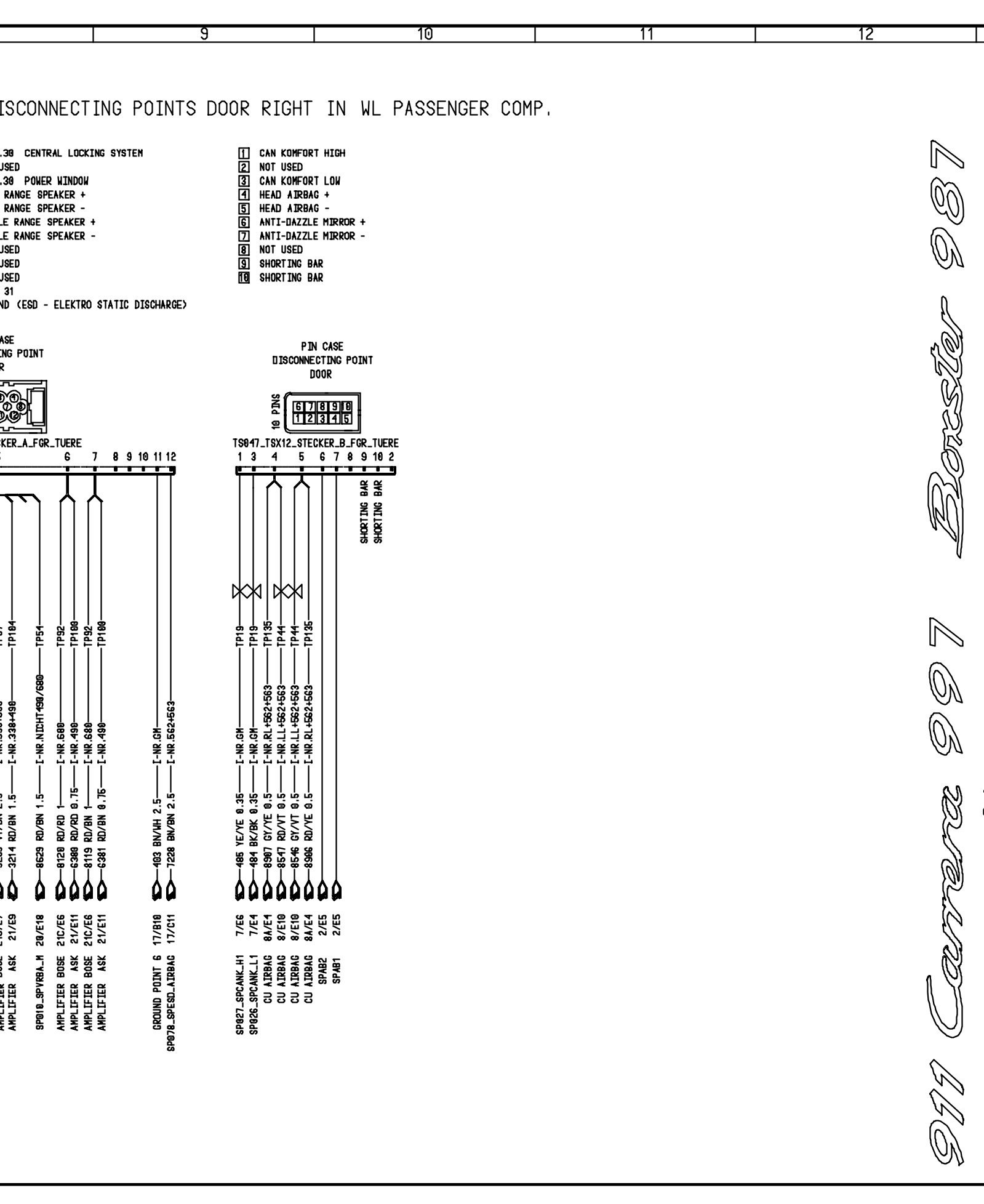

Disconnecting Points Doors Left/Right - Sheet 9A (Part 3):

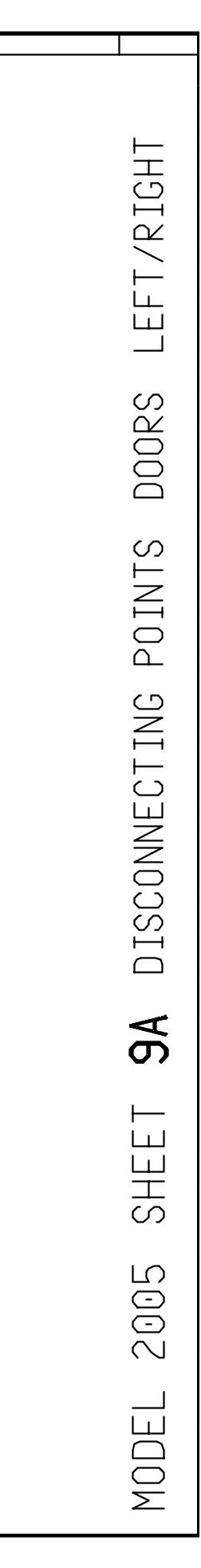

Disconnecting Points Doors Left/Right - Sheet 9A (Part 4):
