Connector Locations



Connector Assignment-Transfer Box Control Unit

Plug 47-pin





Pin 1 - 18:

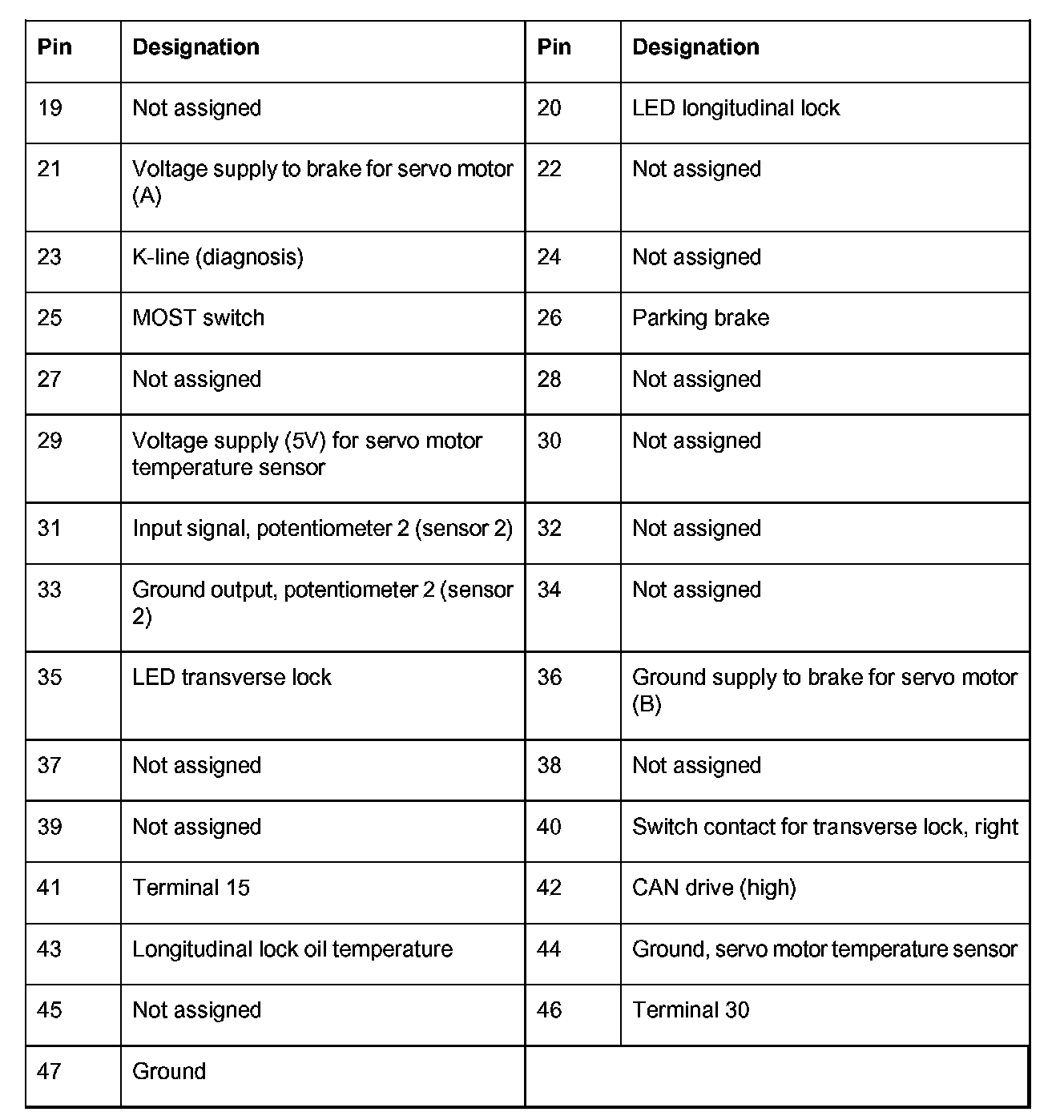

Pin 19 - 47:






Gear selection switch connector assignment (running gear control module), 16-pin





Pin 1 - 16:
