Tire Pressure Module

Connector Assignment

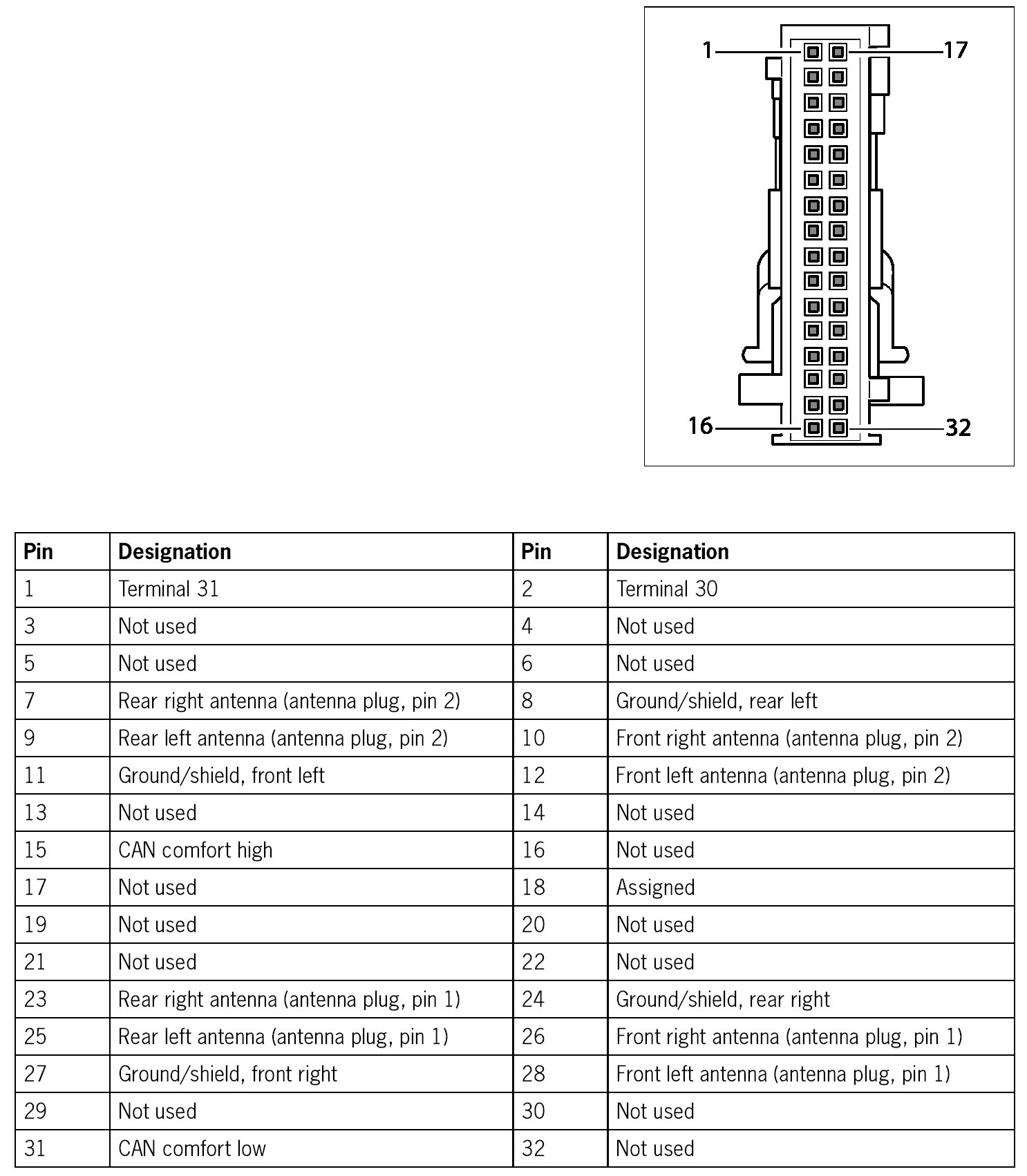

Connector assignment for monitoring tire pressure

Plug for tire pressure monitoring control module, 32-pin
