Connector Pin Assignment - Telephone/Telematics



Connector Pin Assignment - Telephone/Telematics

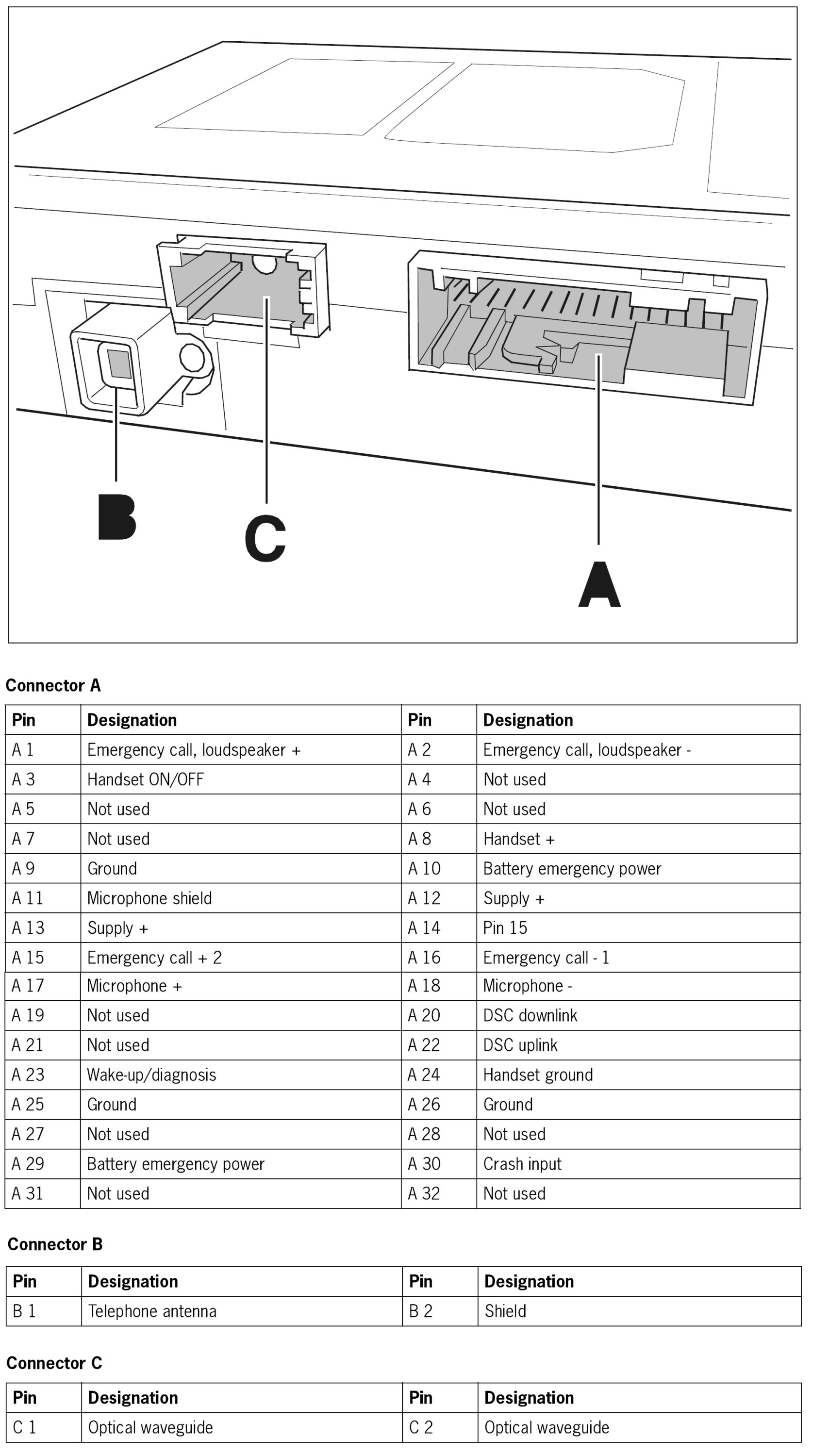

Connector pin assignment
