Home >> Porsche >> 2004 >> Cayenne (9PA) V6-3.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> General Module >> Gateway

Gateway

Connector Assignment

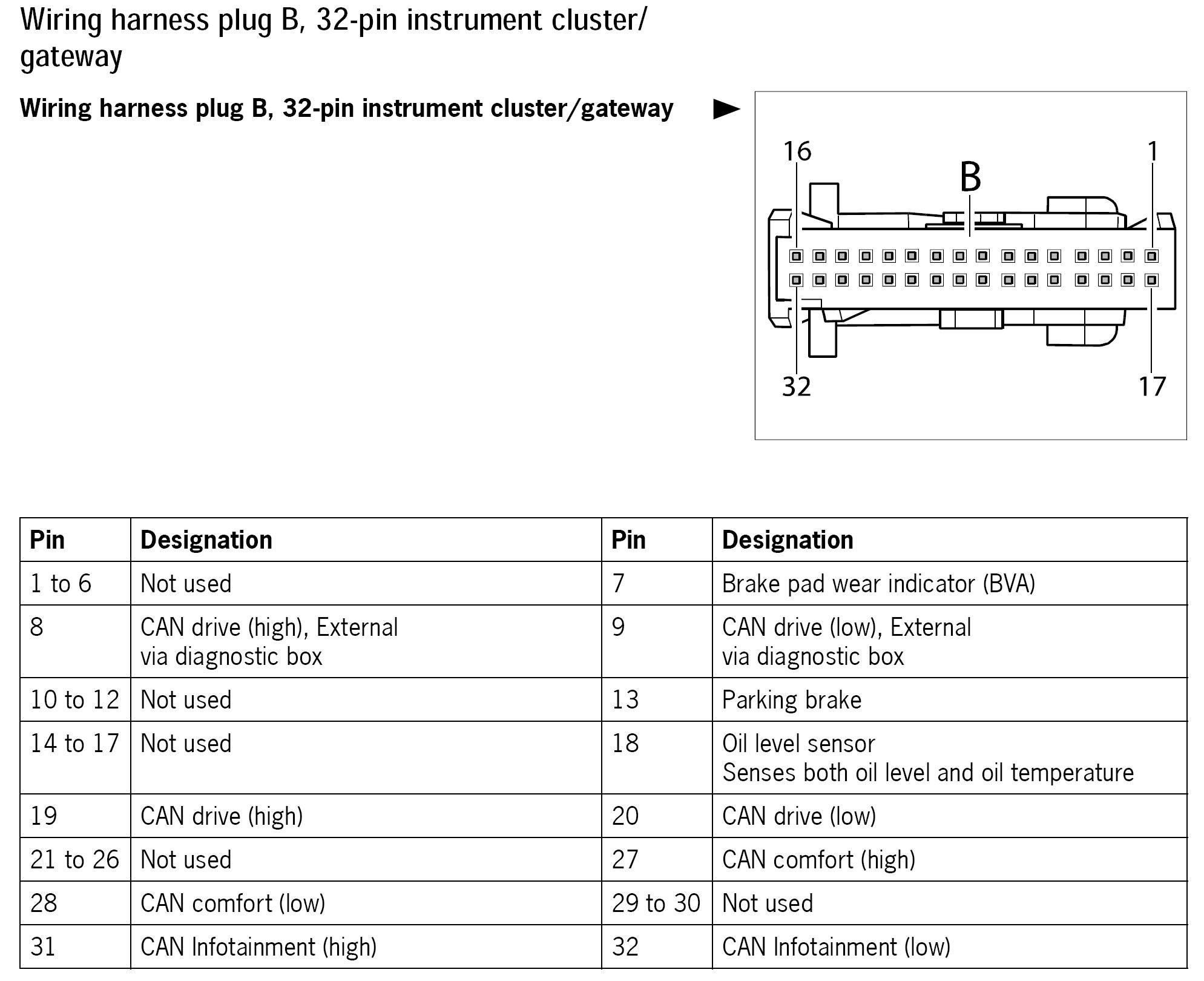

Part 1:

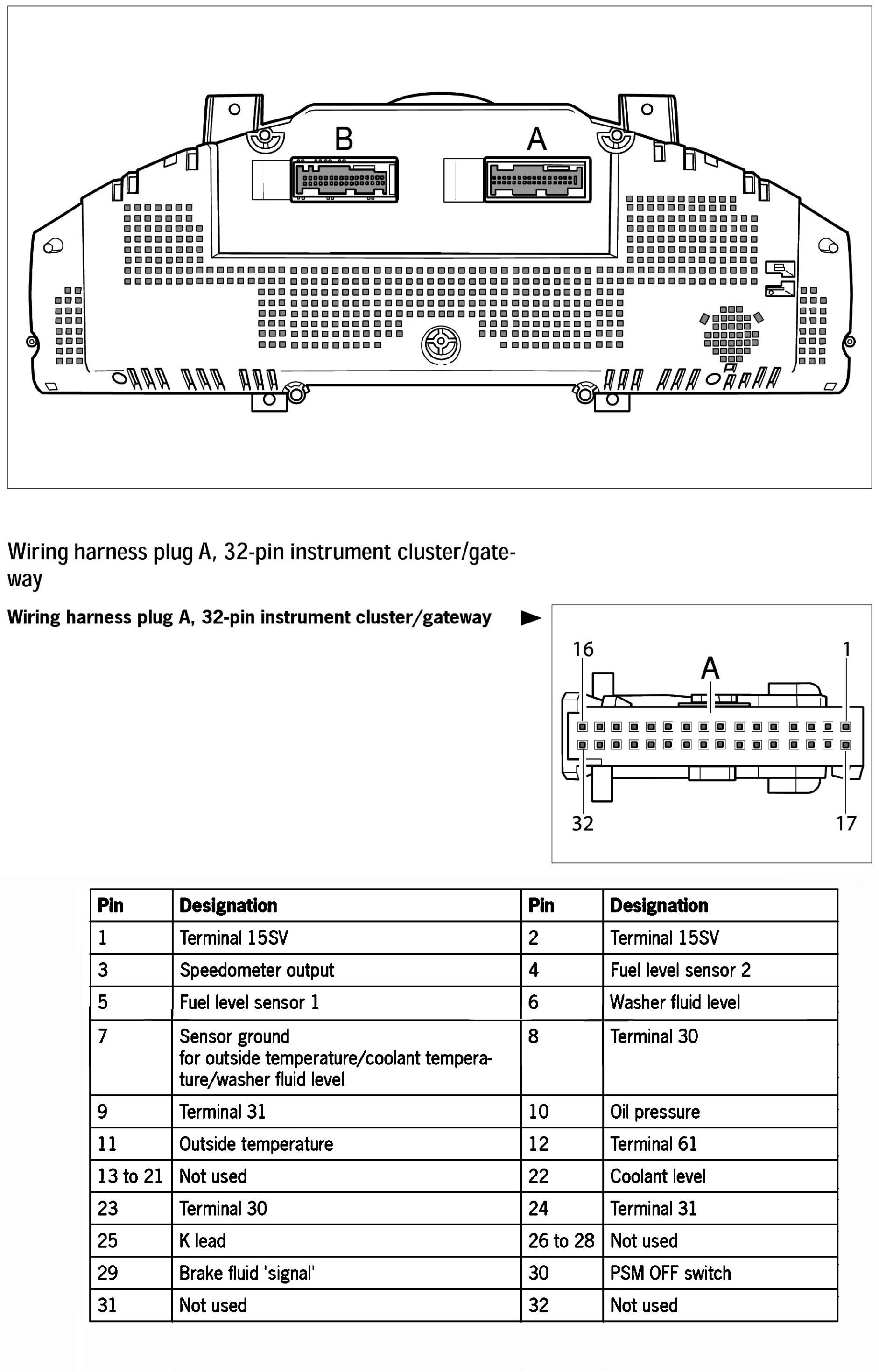

Part 2:
