Home >> Porsche >> 2004 >> Cayenne (9PA) V6-3.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Module >> Connector Assignment, Passenger's Door Control Module

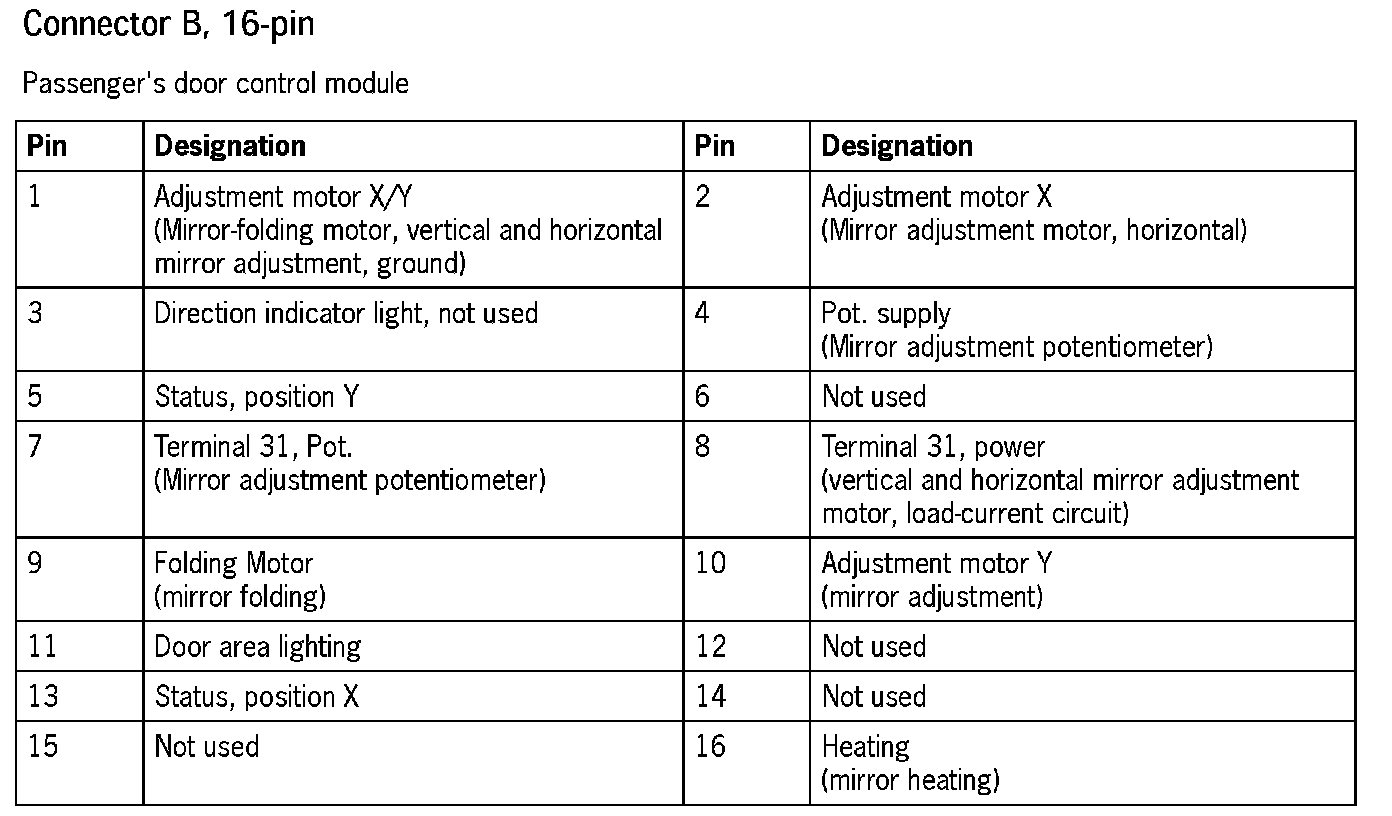

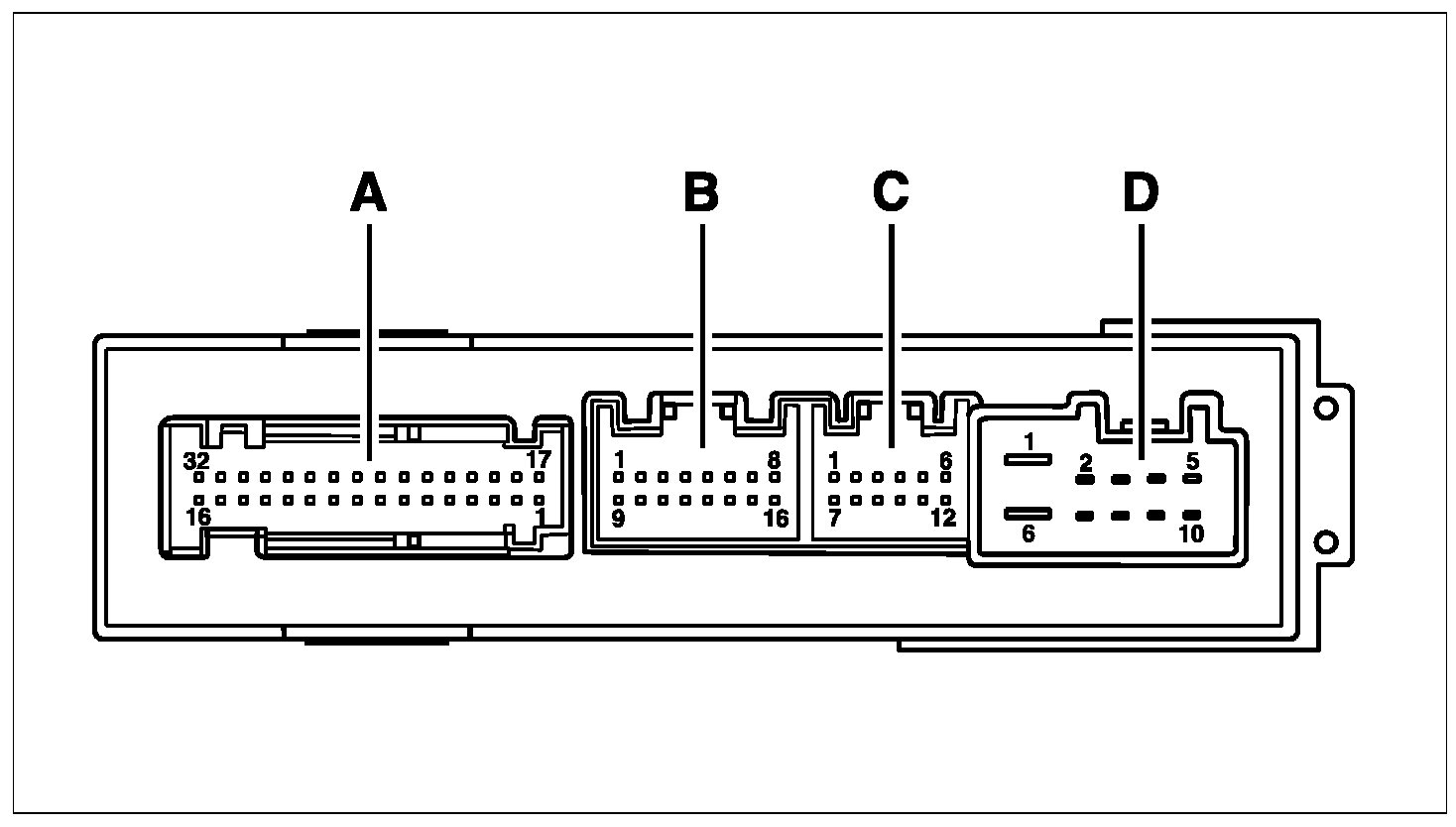

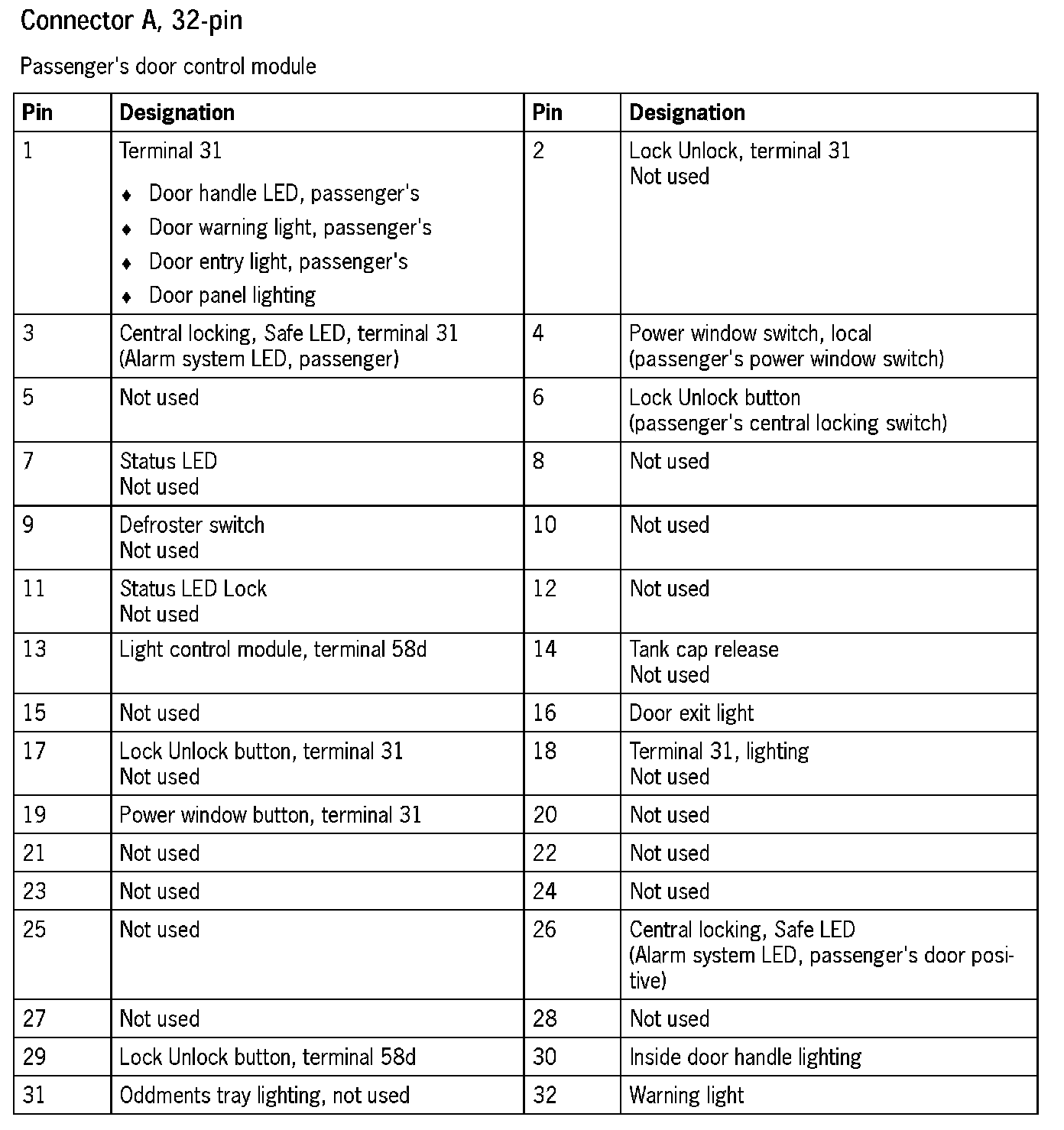

Connector Assignment, Passenger's Door Control Module
