Components

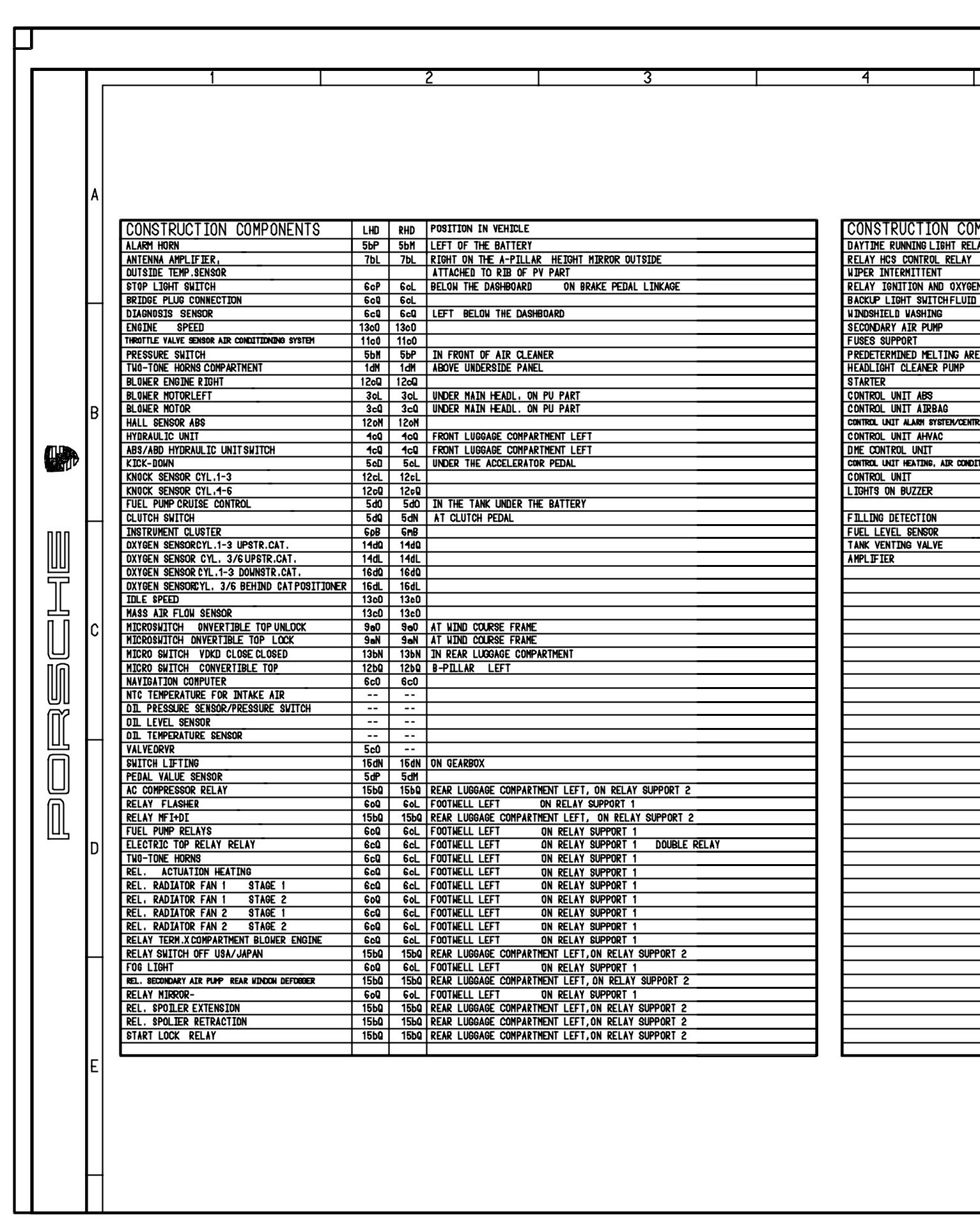

Construction Components - Sheet 22 (Part 1):

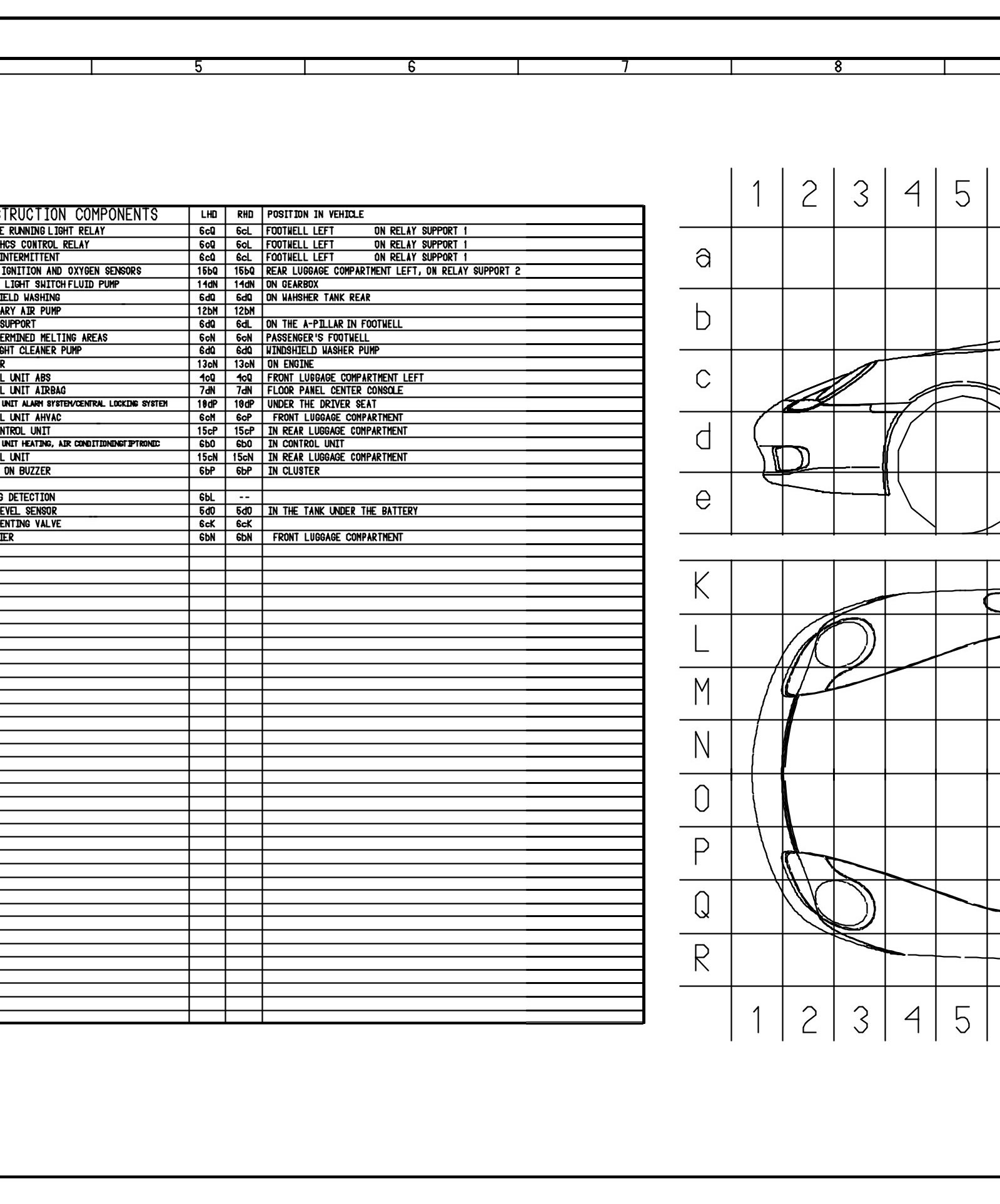

Construction Components - Sheet 22 (Part 2):

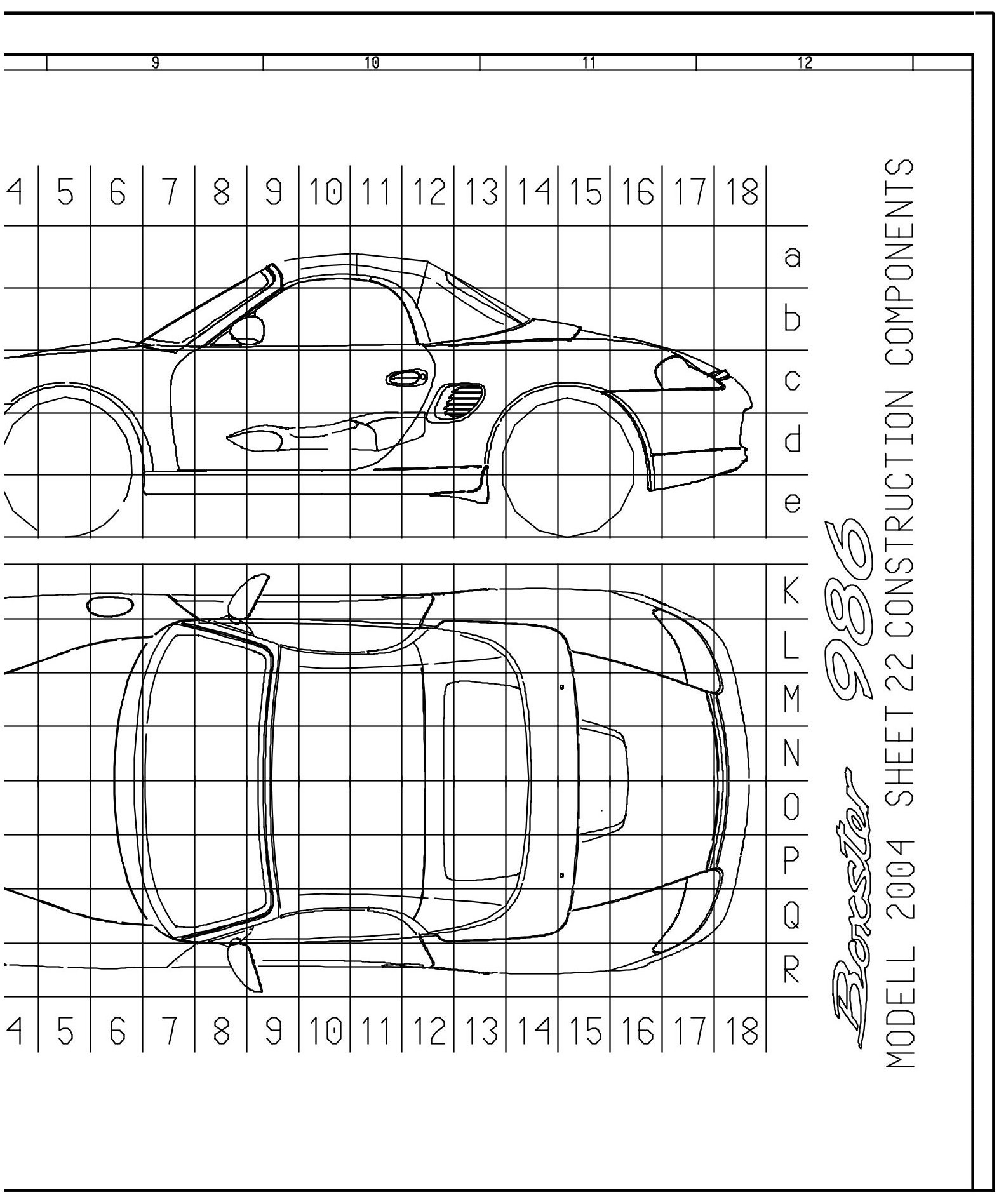

Construction Components - Sheet 22 (Part 3):
