Connector Views
Connector Views

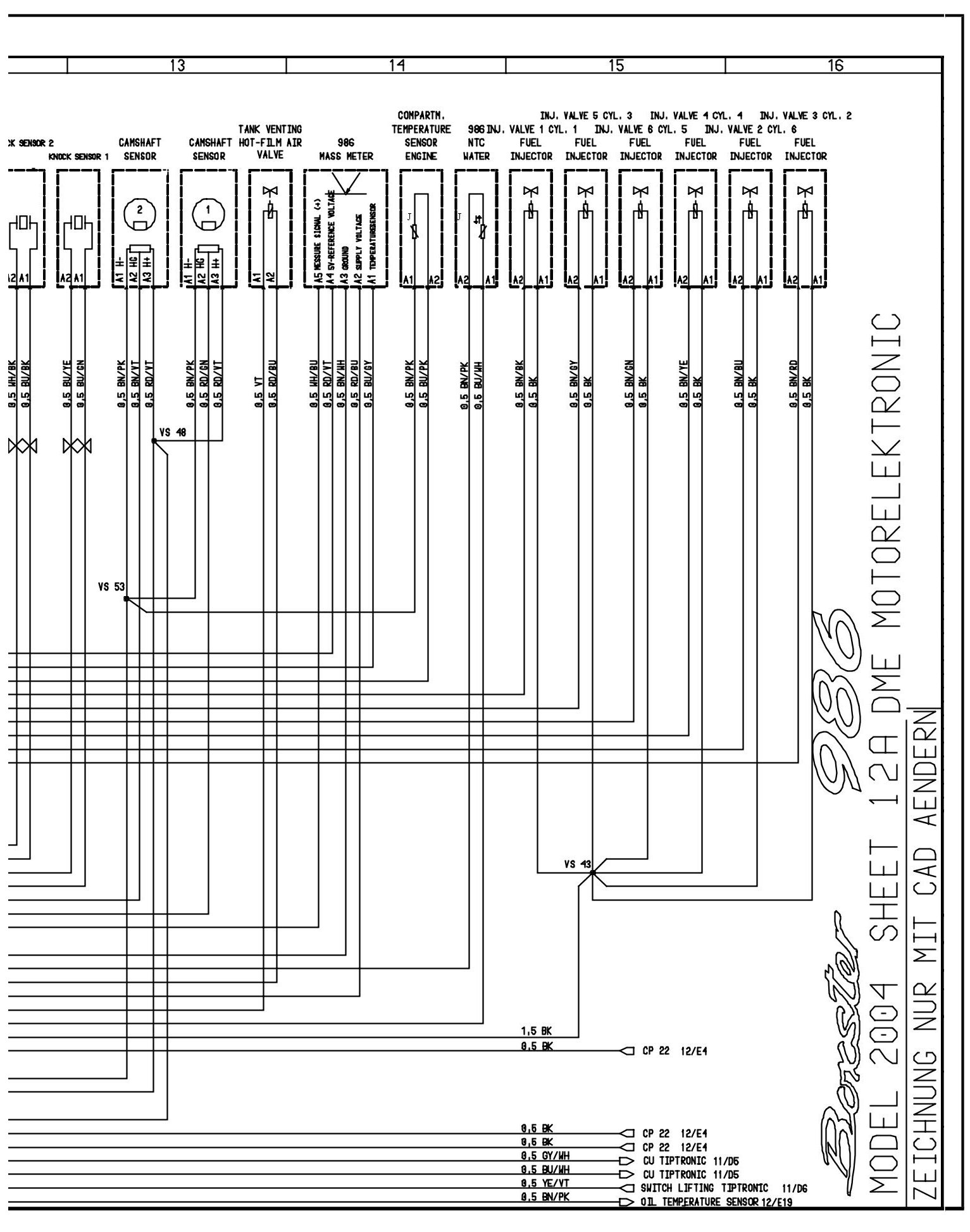

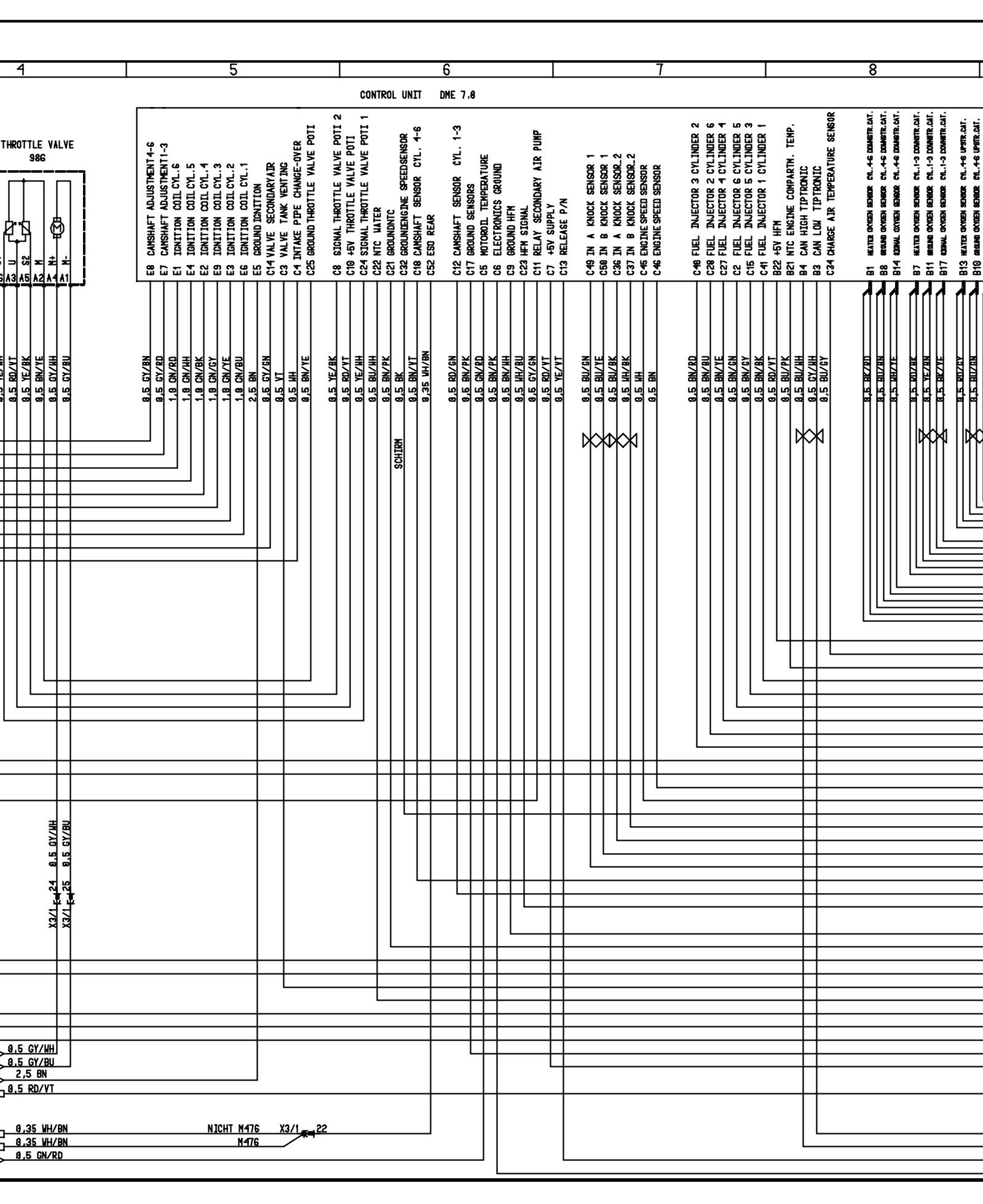

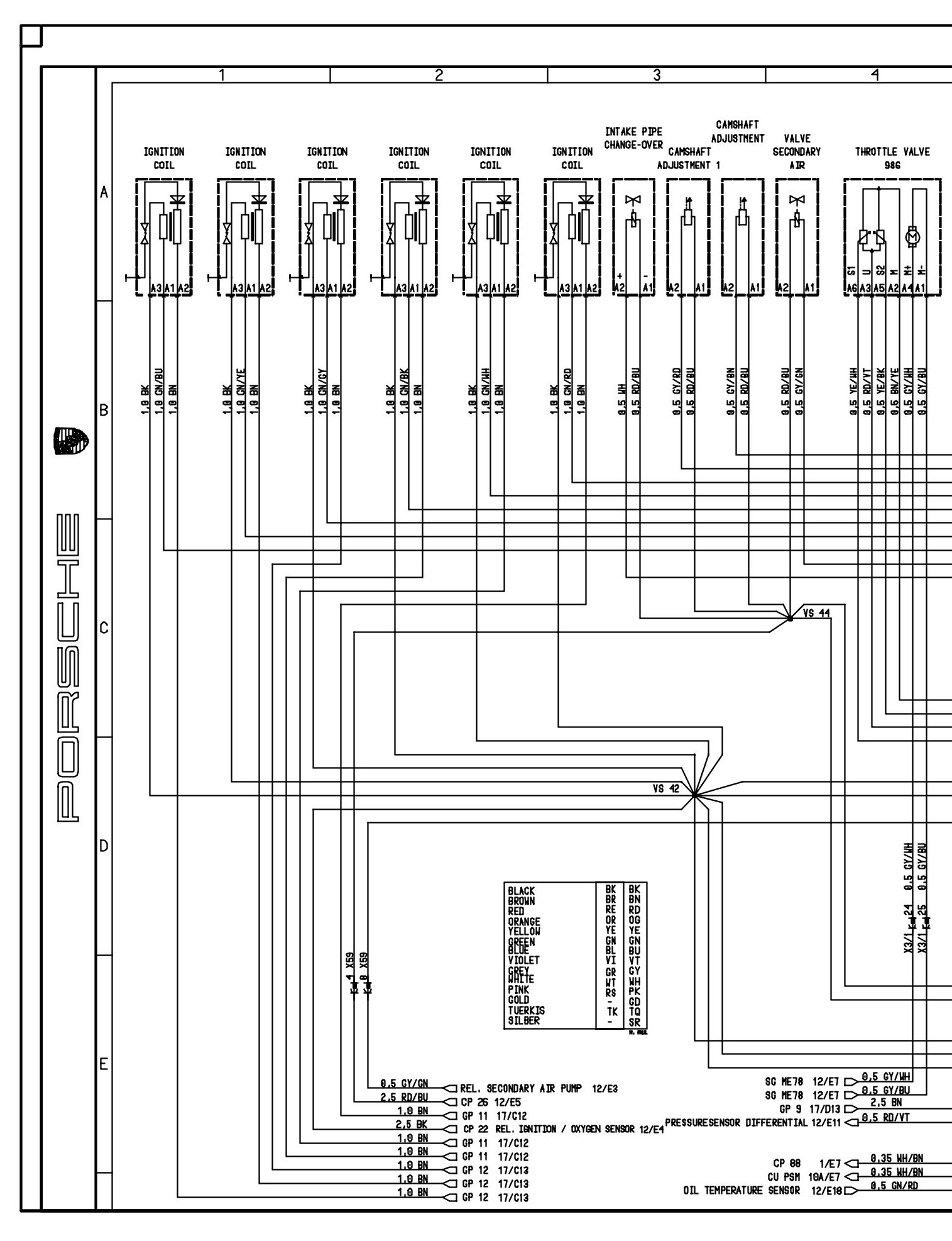

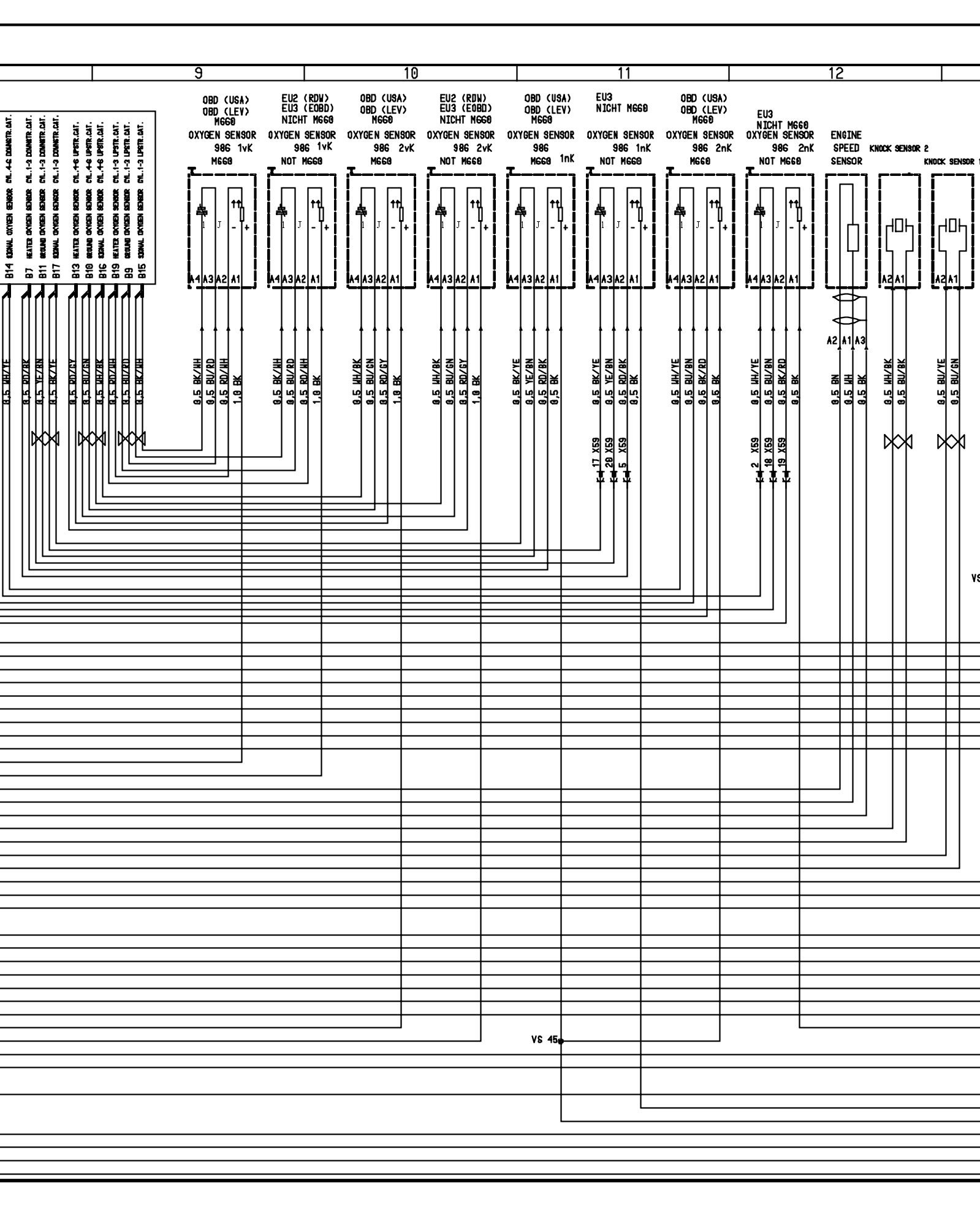

DME Motorelektronic - Sheet 12A (Part 1):
DME Motorelektronic - Sheet 12A (Part 2):
DME Motorelektronic - Sheet 12A (Part 3):
DME Motorelektronic - Sheet 12A (Part 4):
