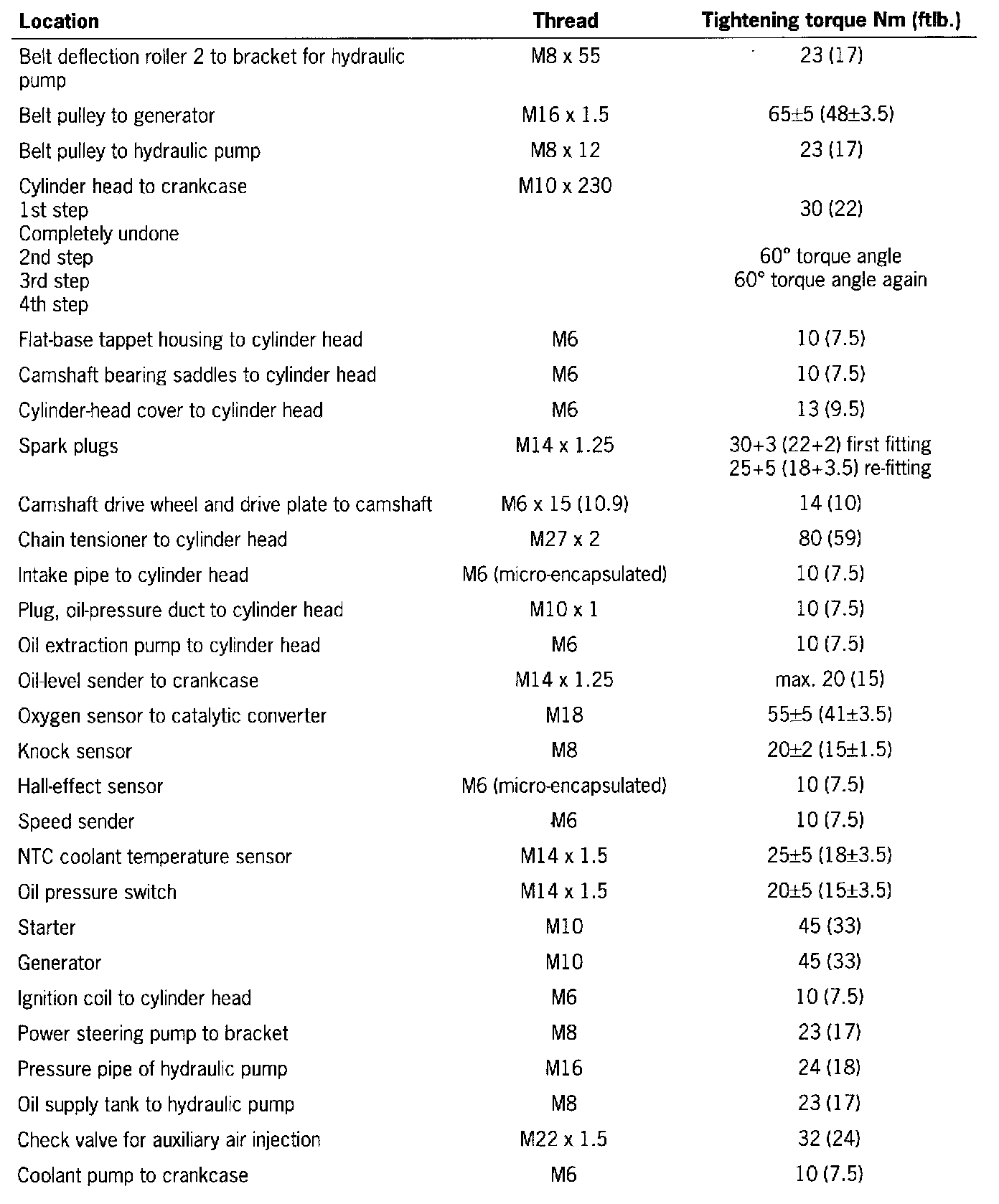

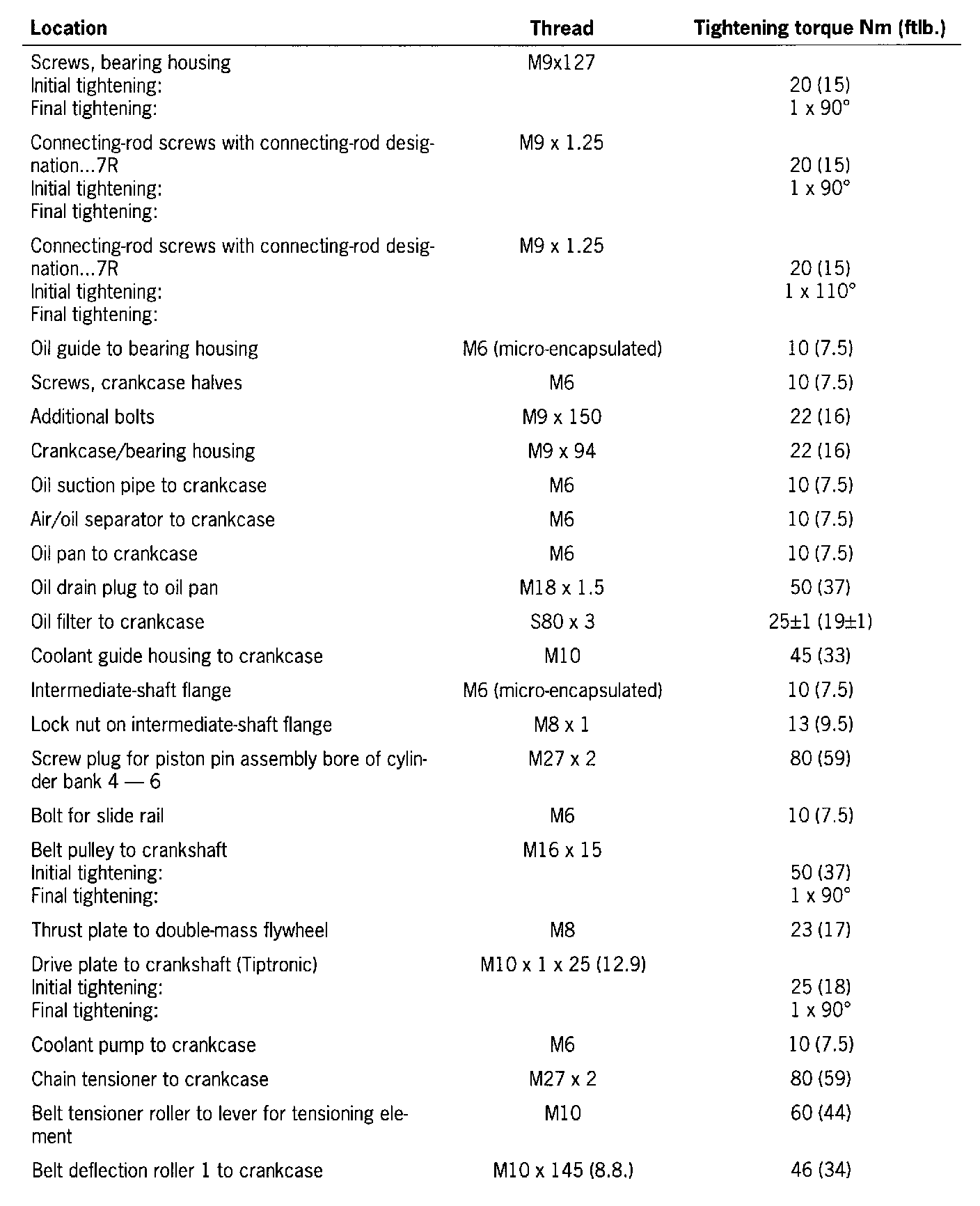

Tightening Torques












For engine M96/20 (2.5L), M96/21 (3.2L), M96/22 (2.7L)







Cylinder head




Sensors, sending units, switches and ancilaries




Intake air distributor
Tighten To 10 Nm (7 ft. lbs.)
