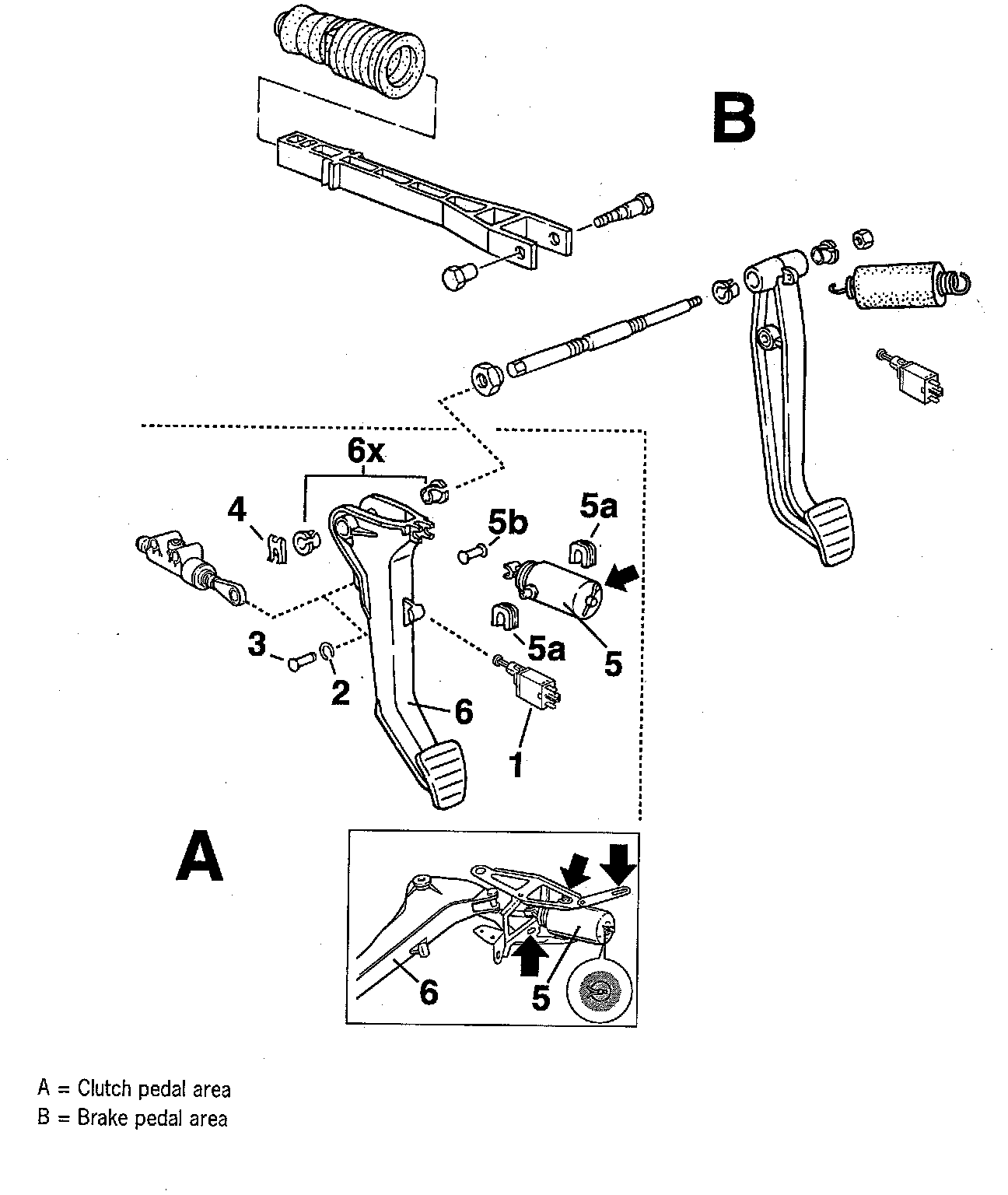

Clutch Pedal Assembly
Clutch Pedal Assembly
LEGEND
1
Switch
2
Retaining Clip
3
Pin
4
Clamp
5a
Boost Spring Bearing
5b
Pin
6
Clutch Pedal Lever
6x
Bushing
