LEMON Manuals: Even more car manuals for everyone
Home >> Porsche >> 2000 >> Boxster (986) F6-2.7L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Brake Pedal Assy

Brake Pedal Assy

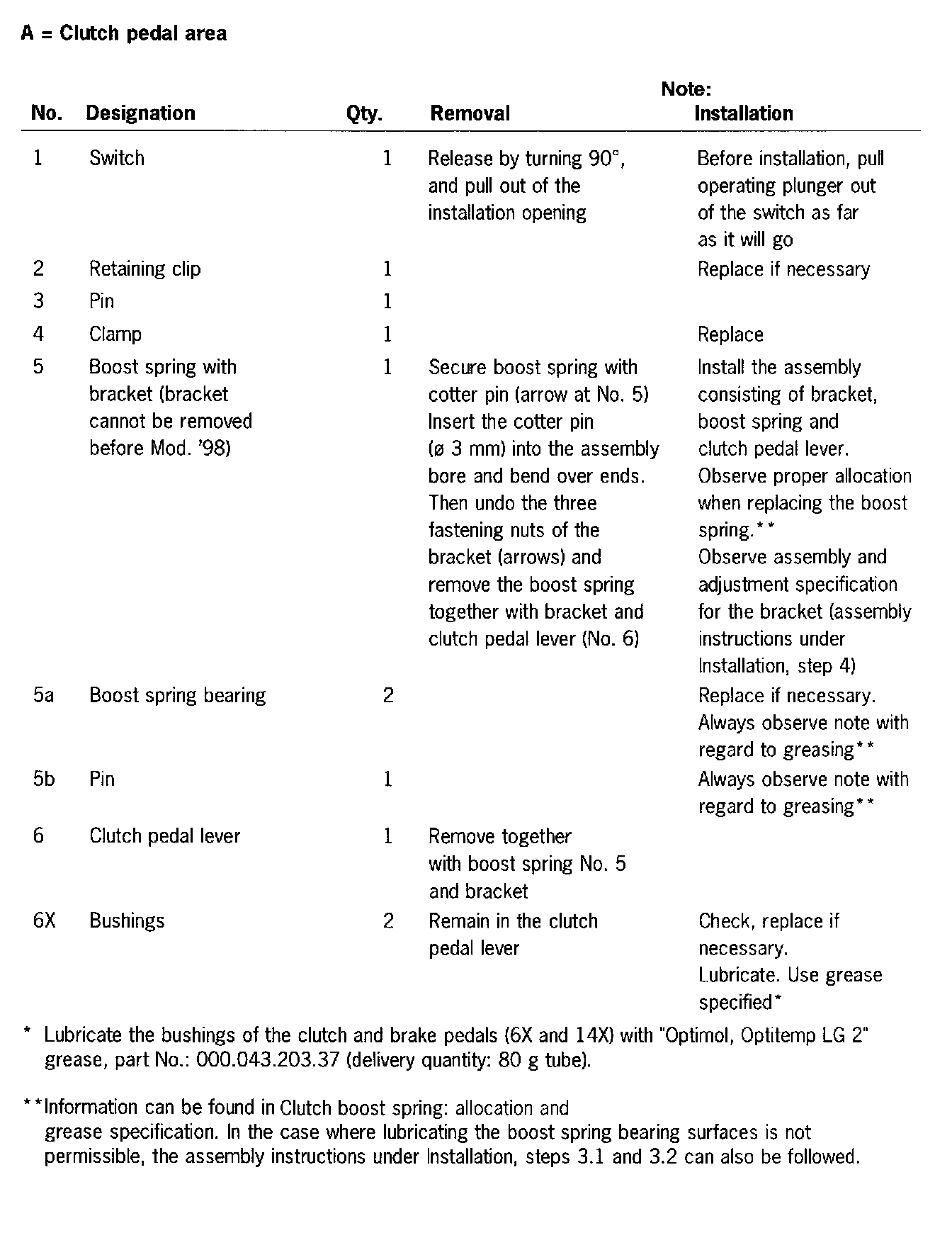

Part 1 Of 3:

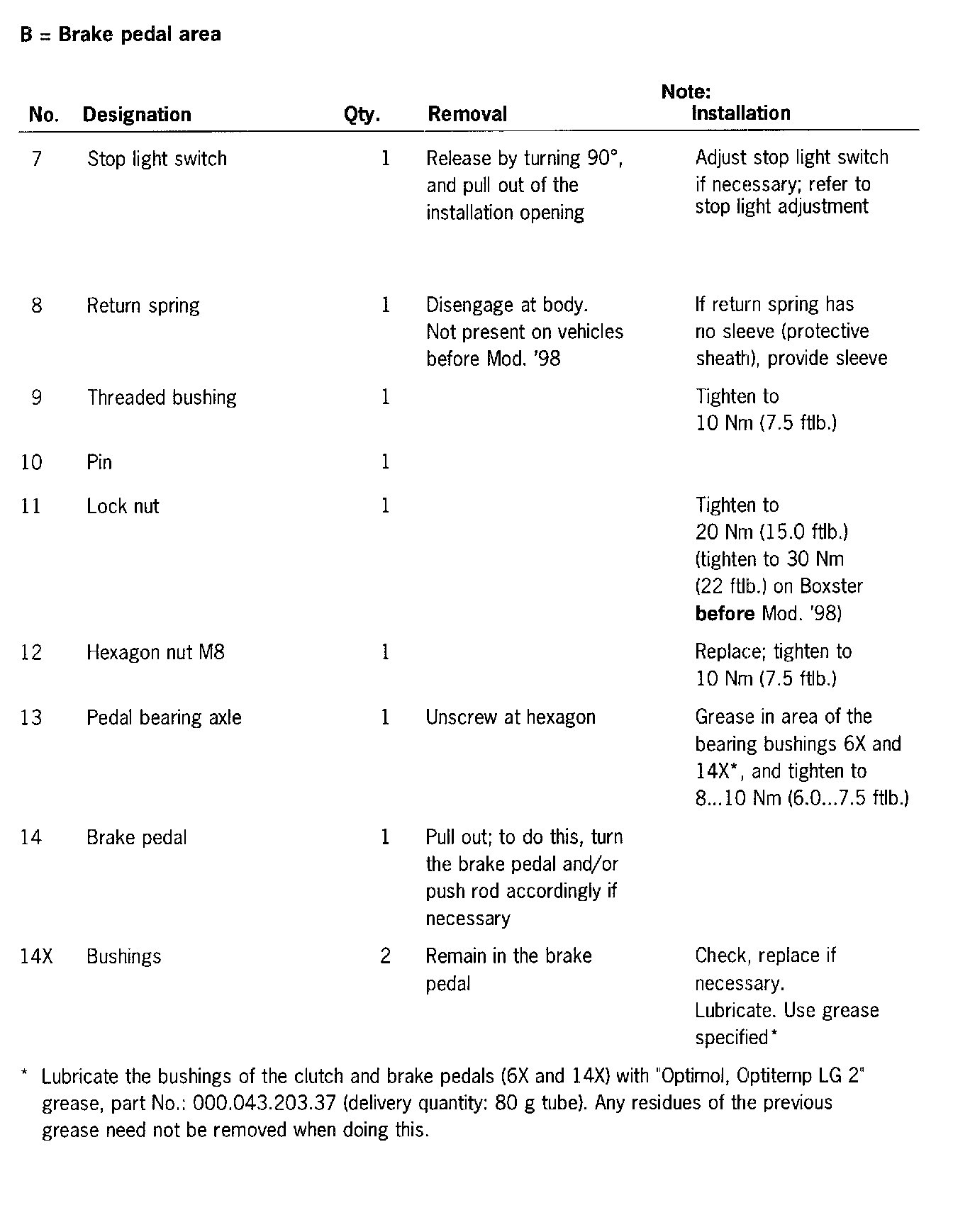

Part 2 Of 3:

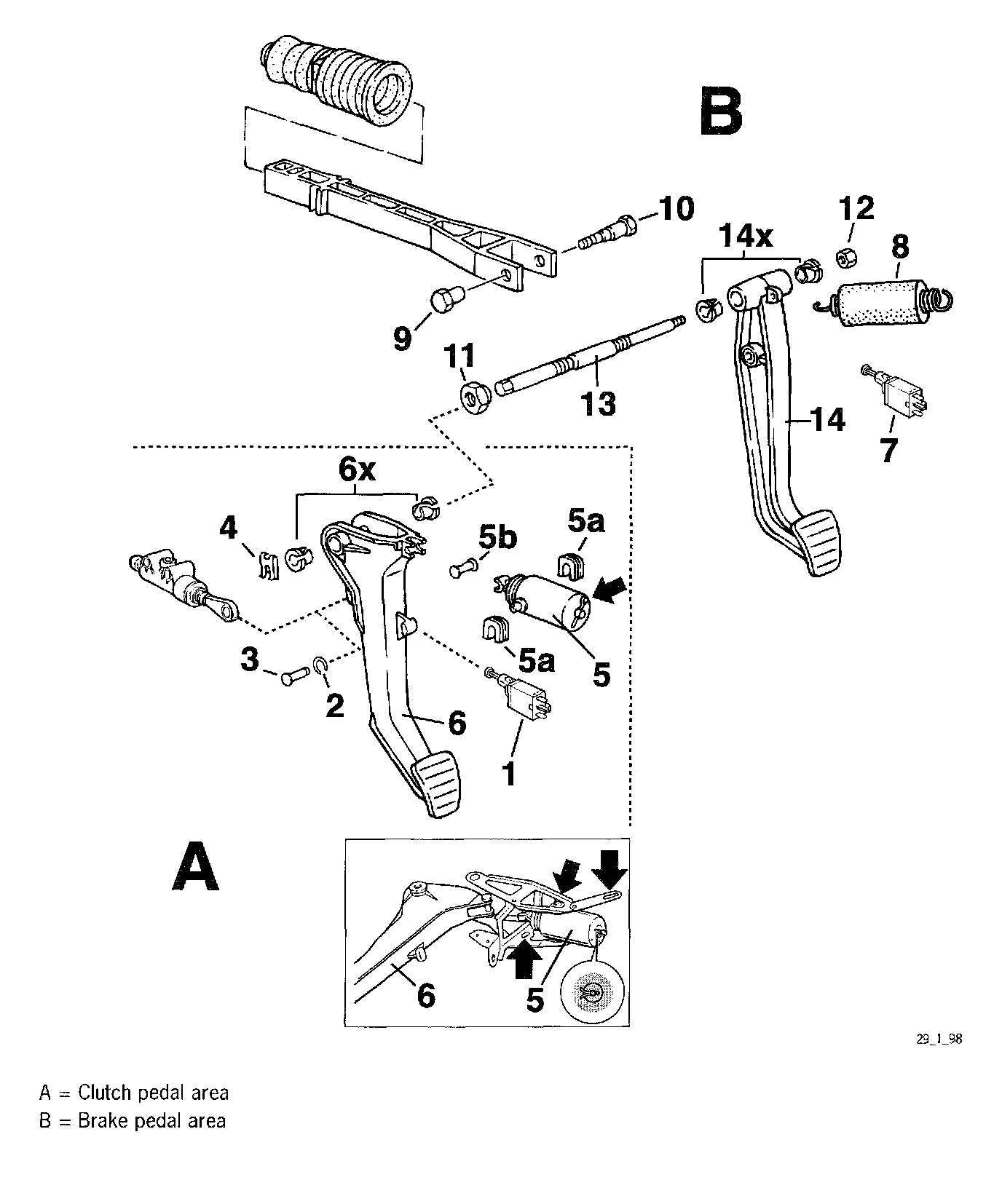

Part 3 Of 3:





Brake pedal replacement w/ related components
