System Specifications

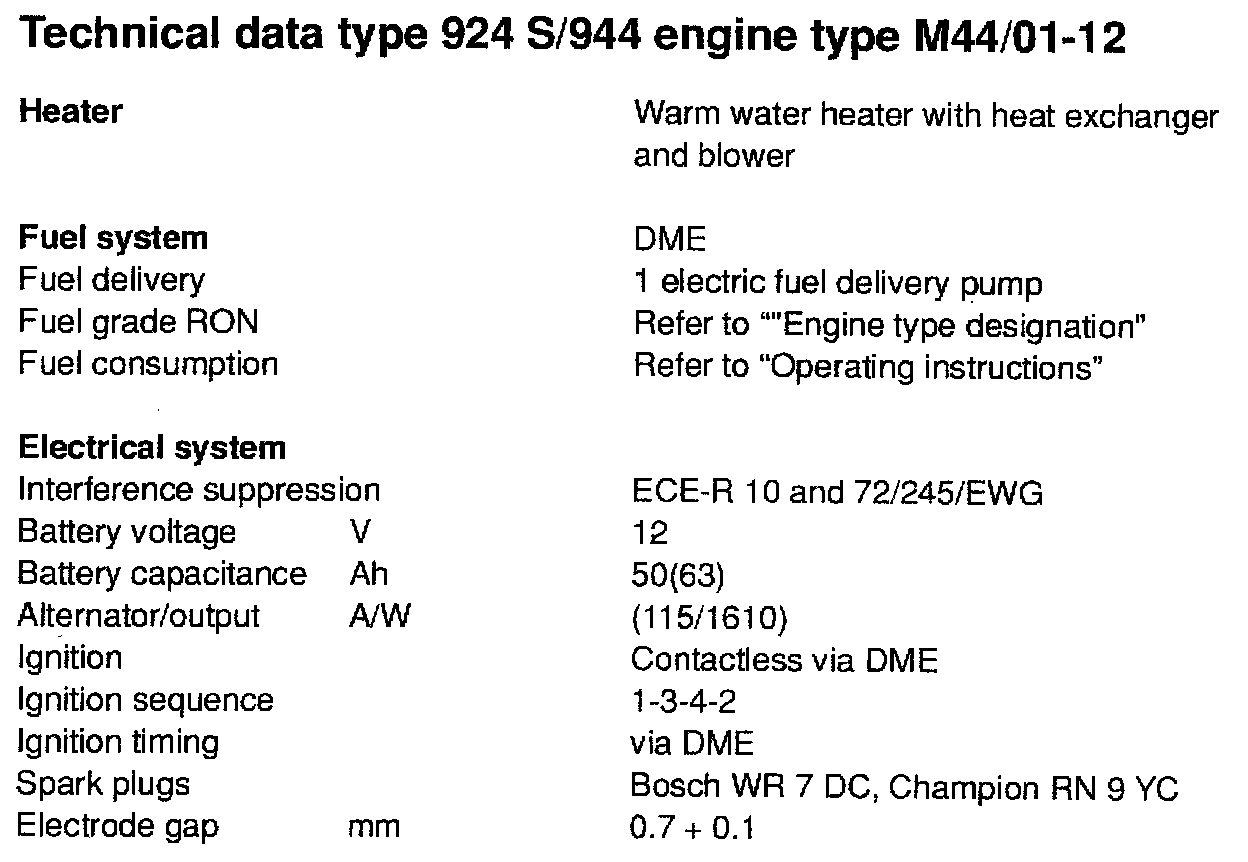

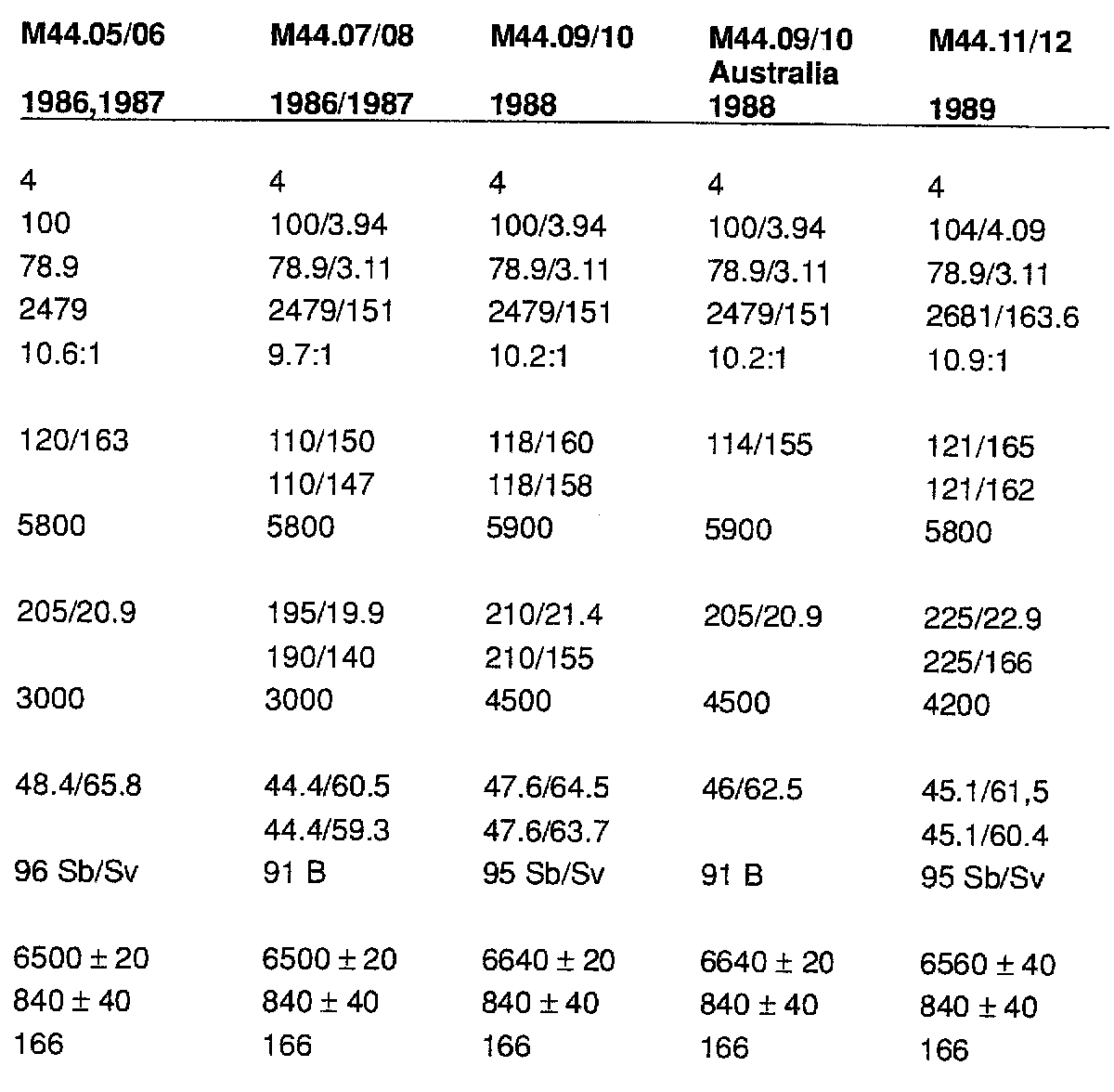

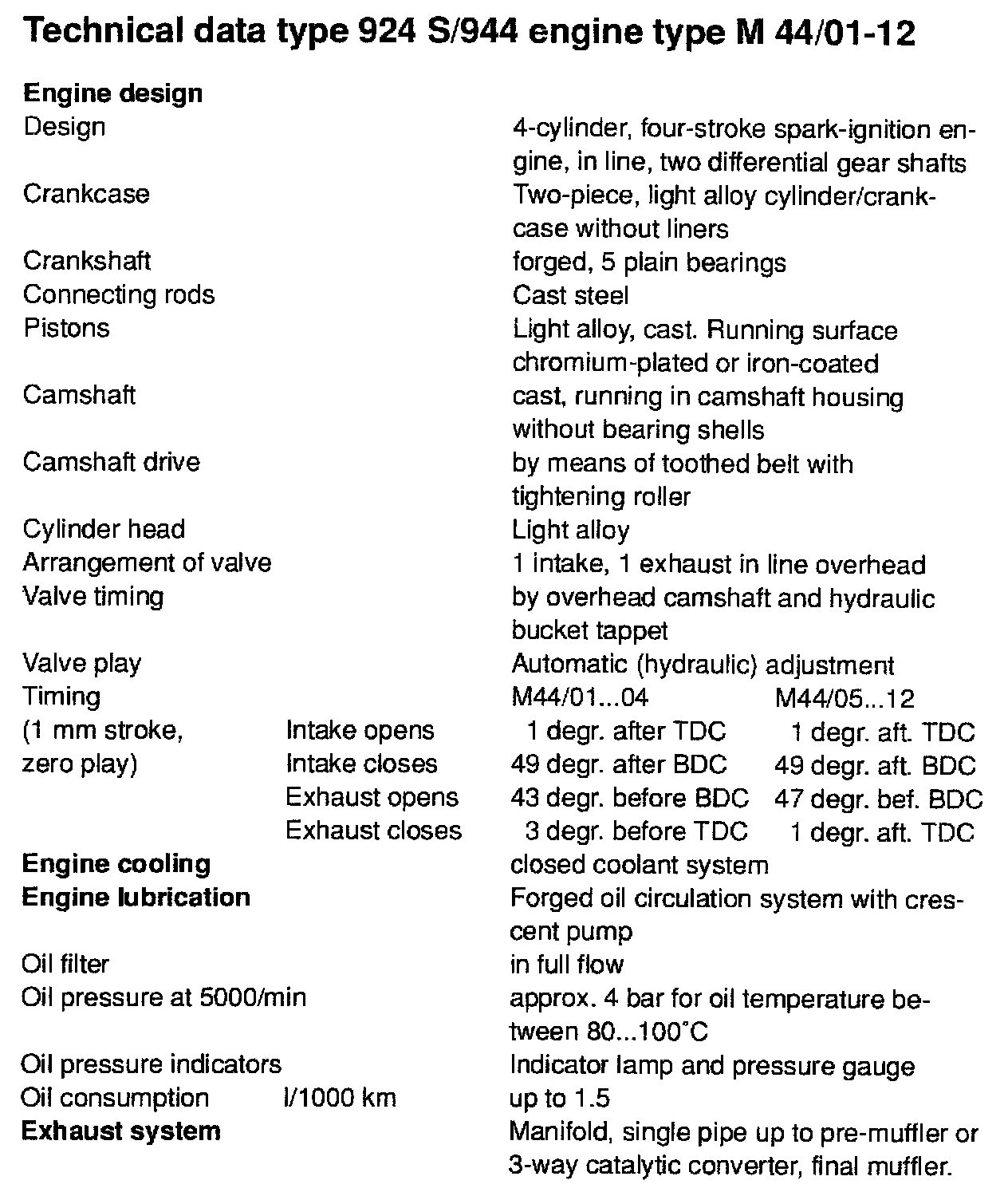

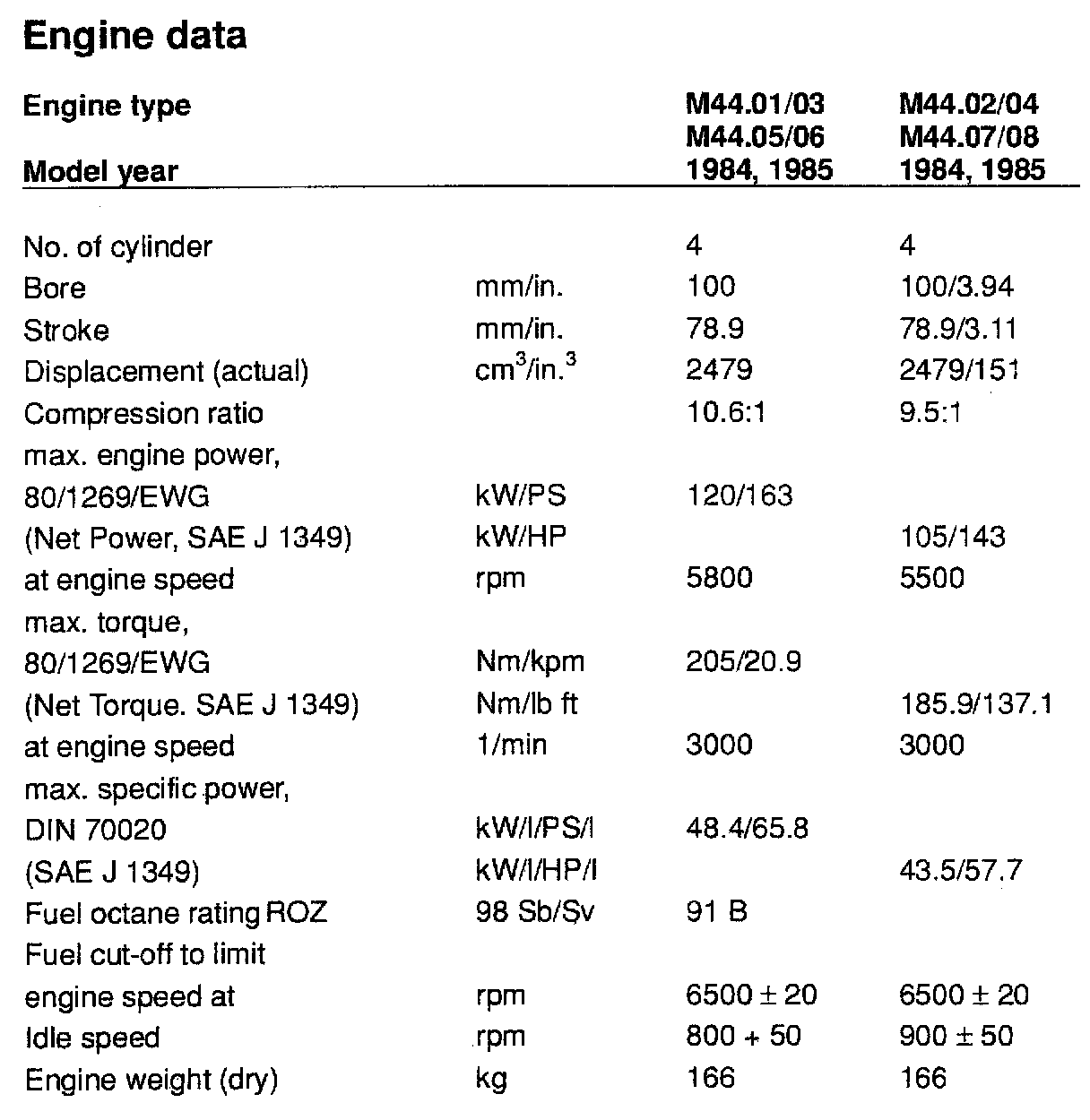

GENERAL SPECIFICATIONS

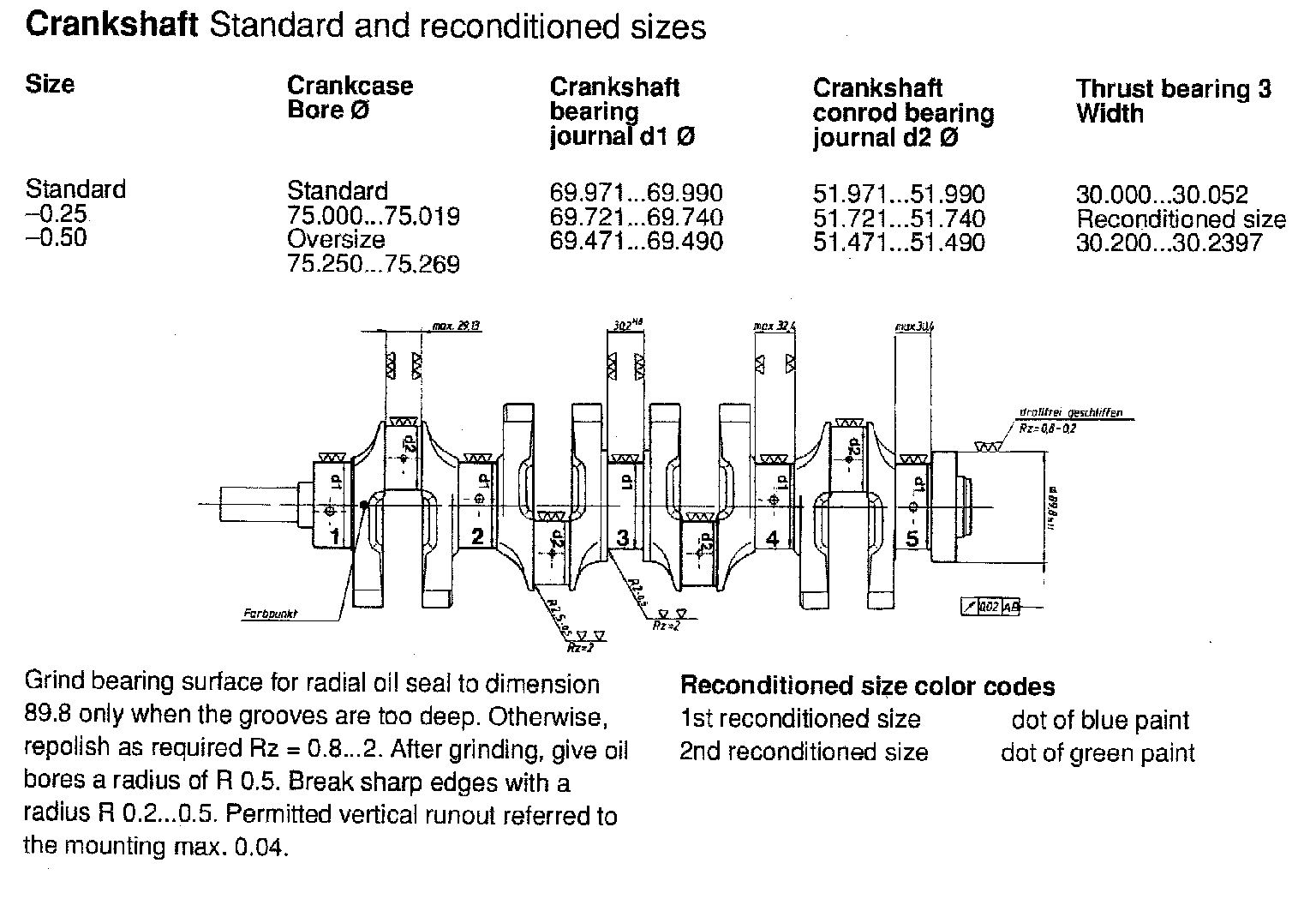

CRANKSHAFT SPECIFICATION

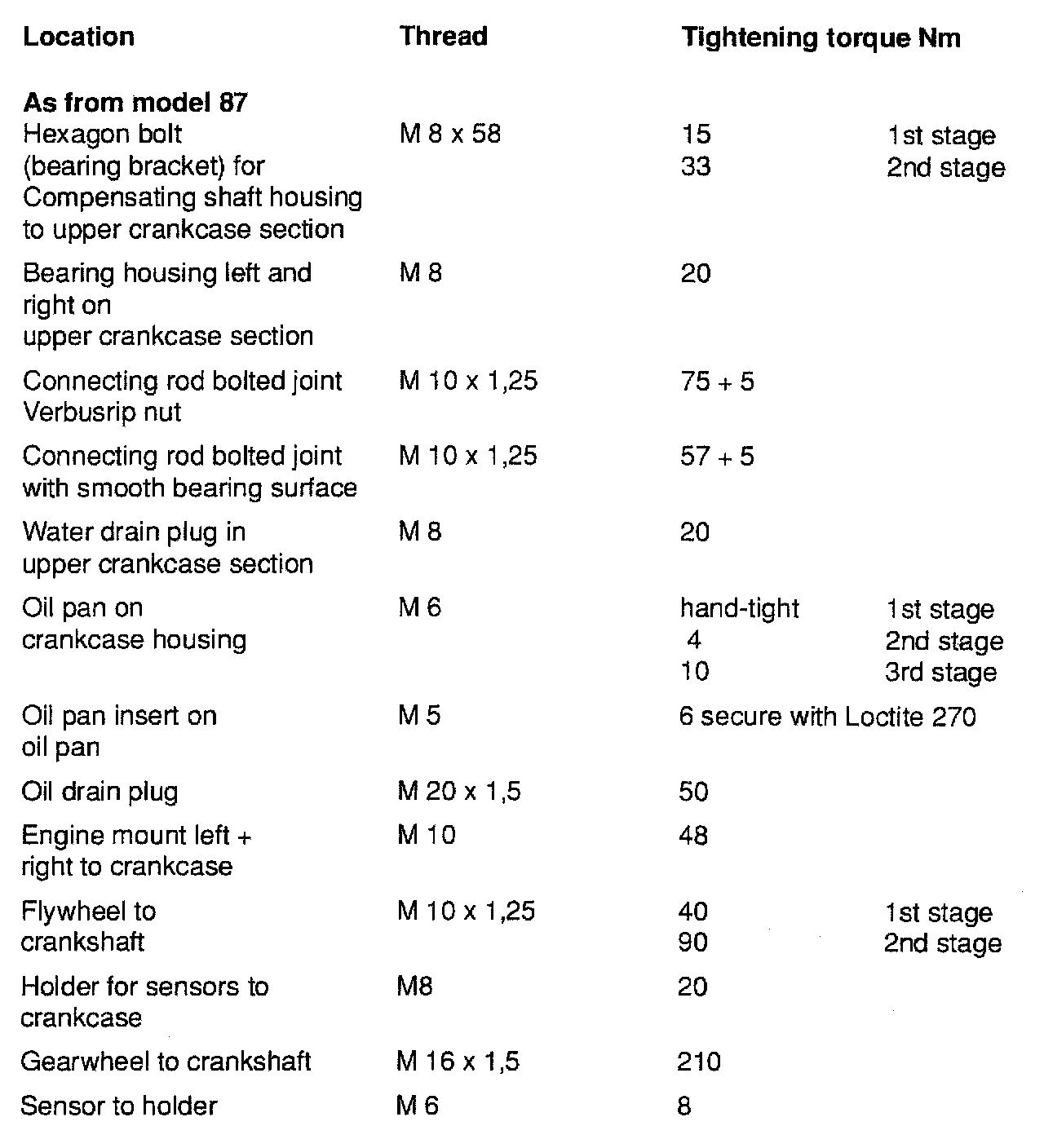

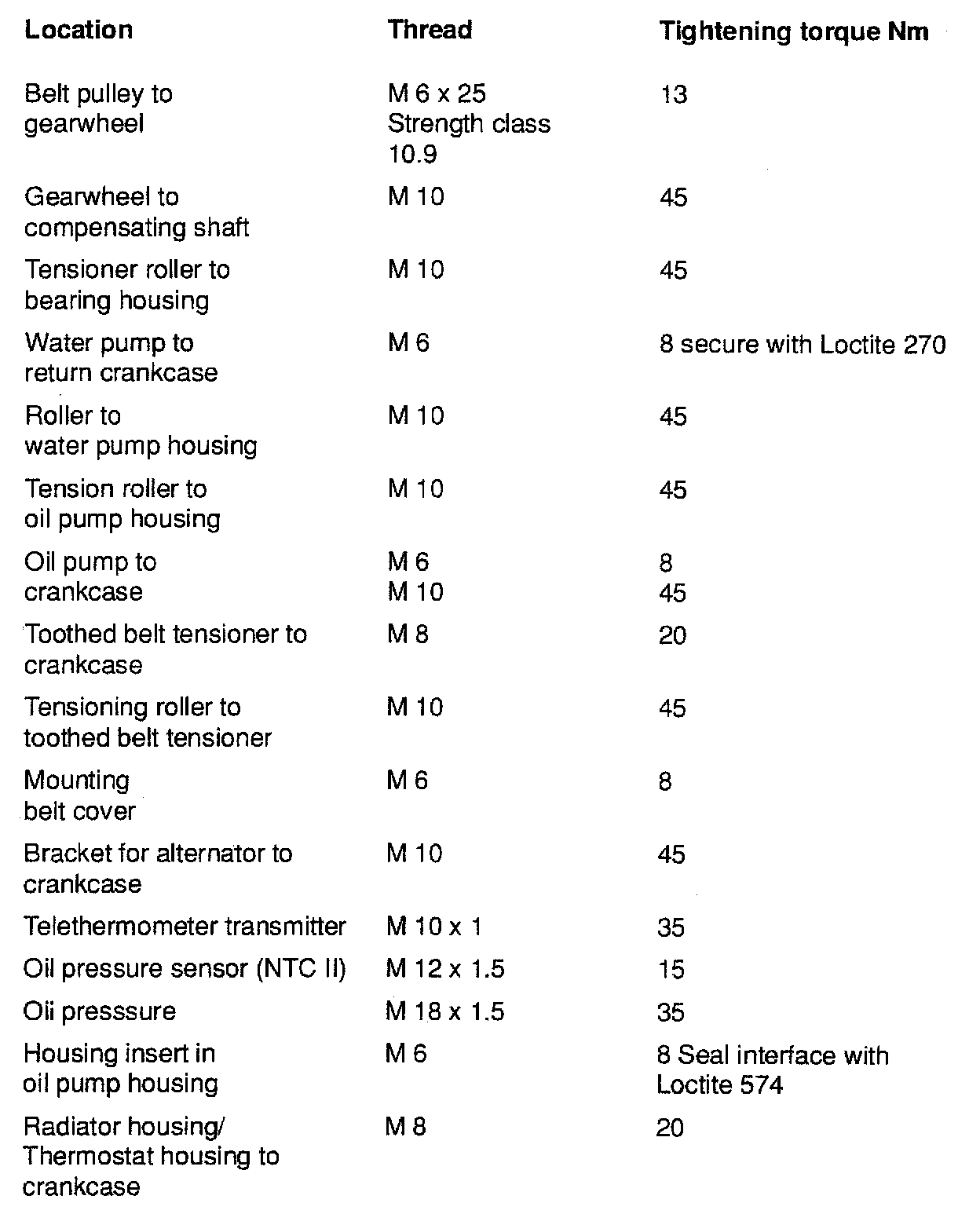

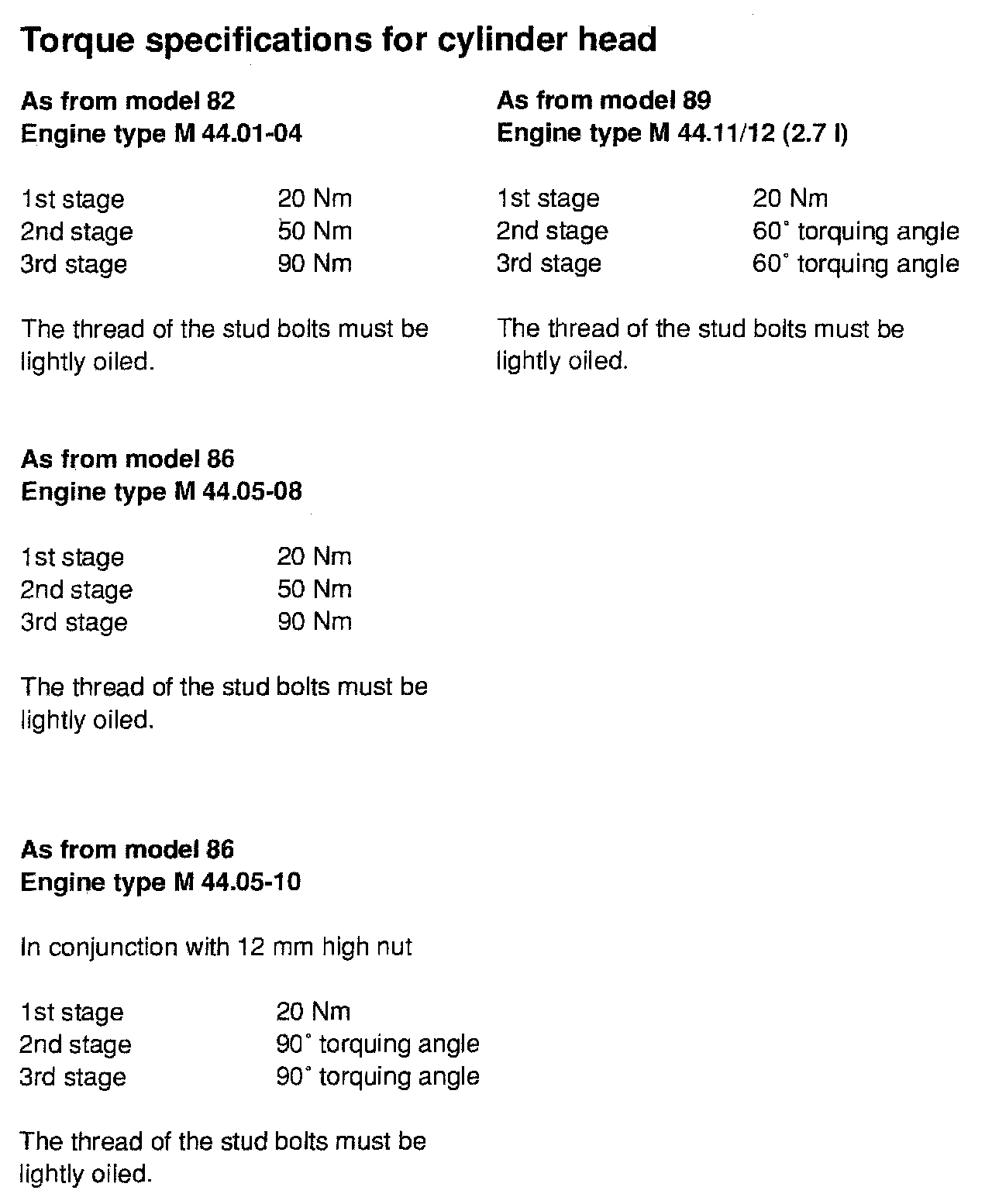

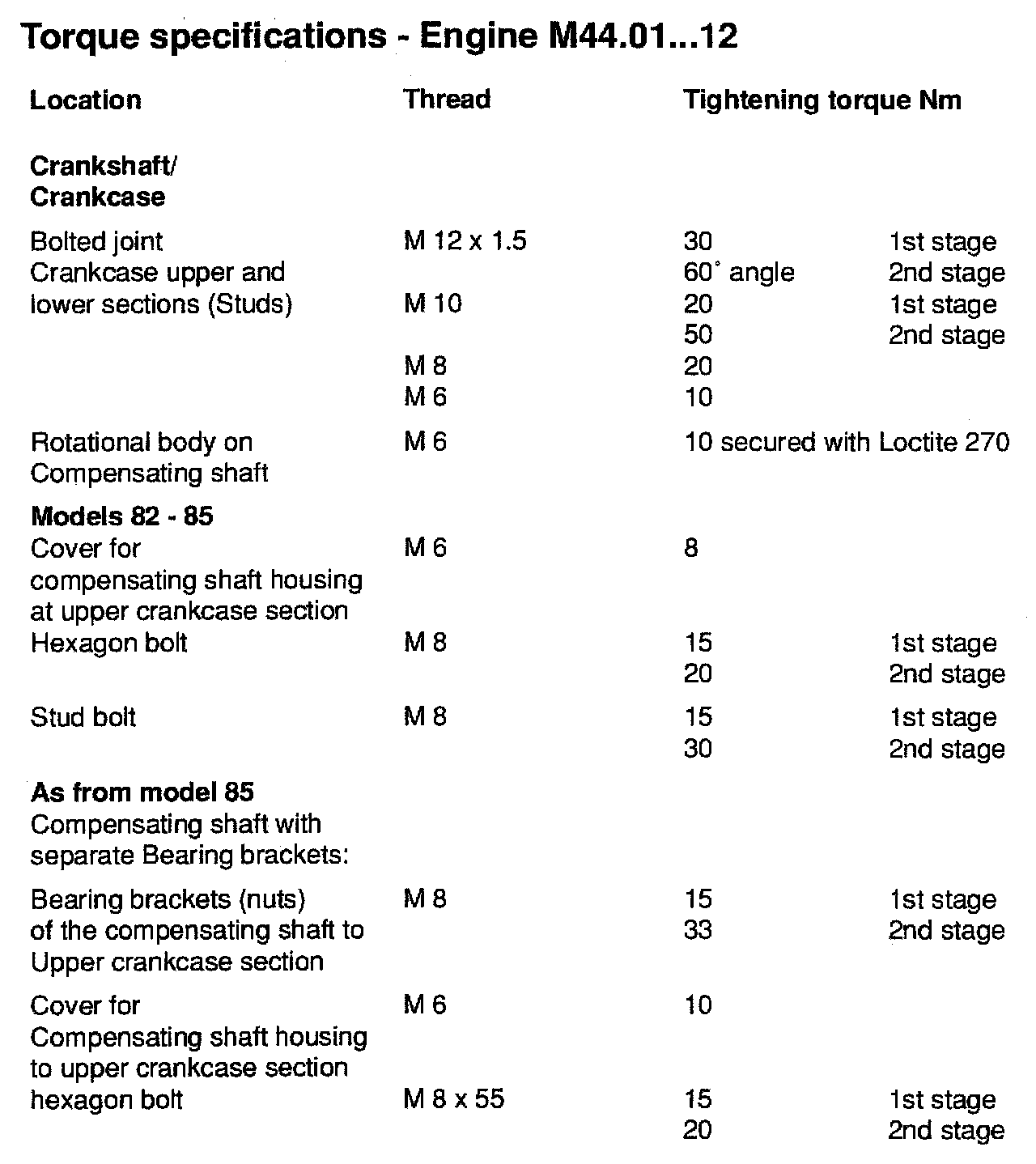

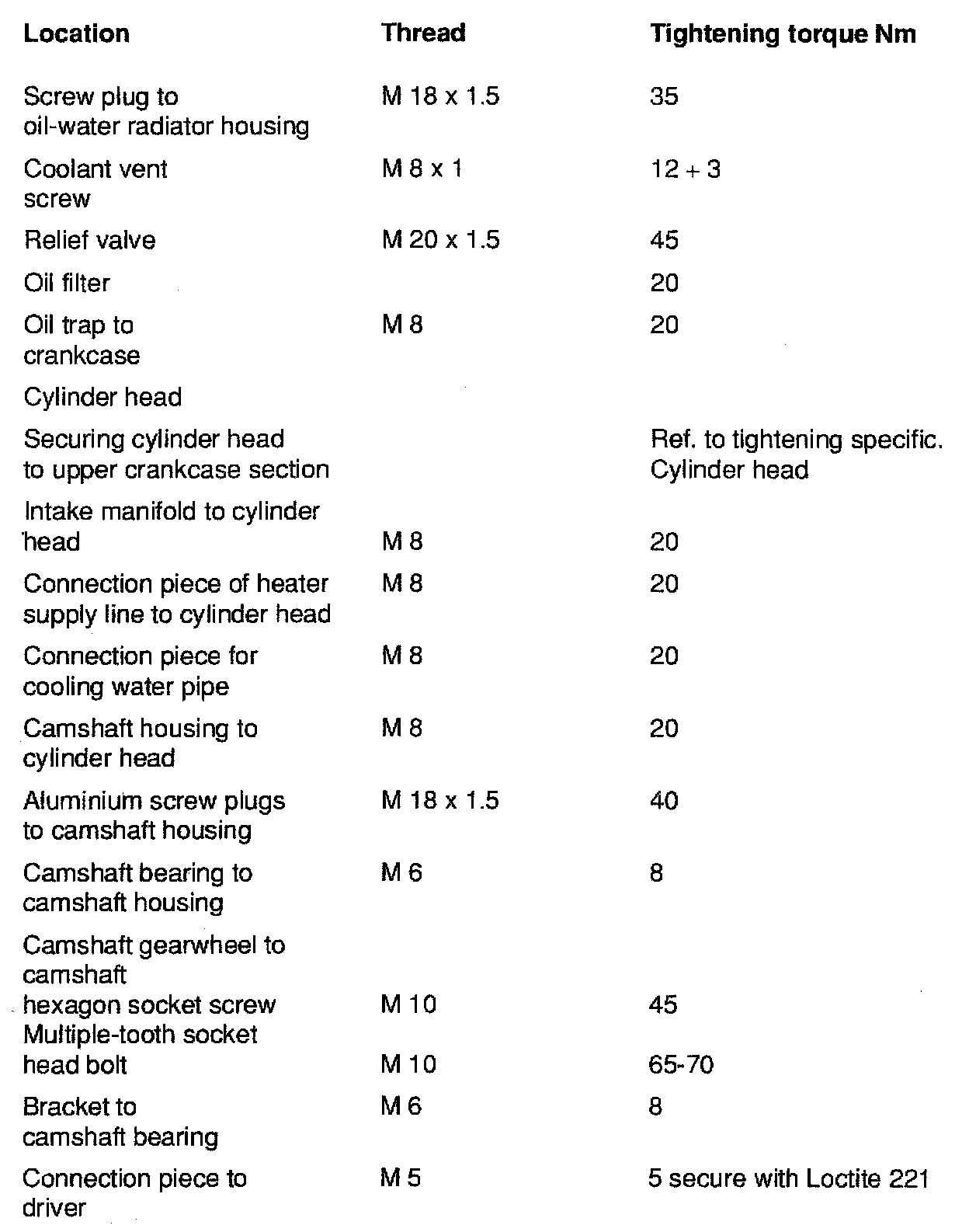

TIGHTENING SPECIFICATIONS

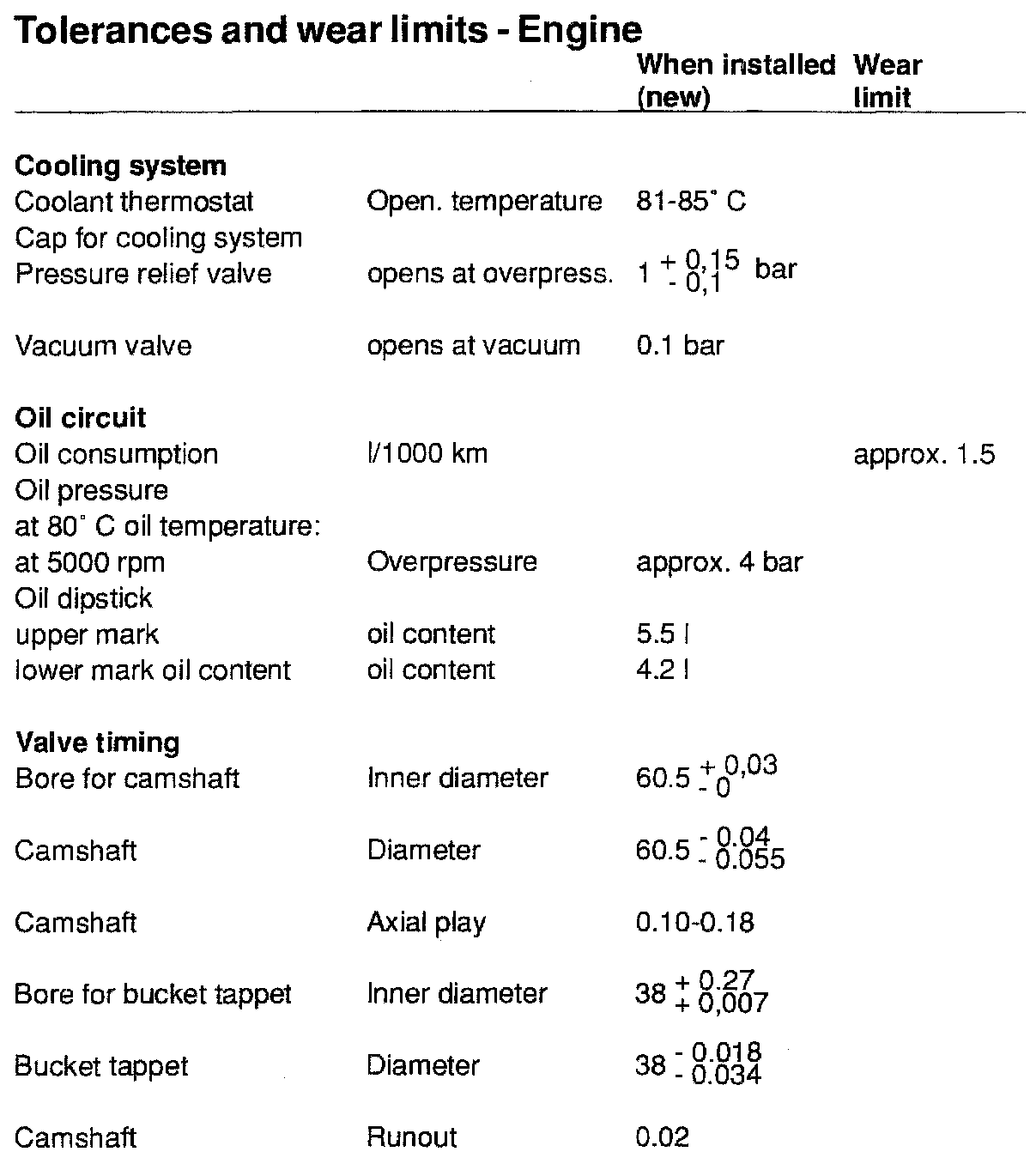

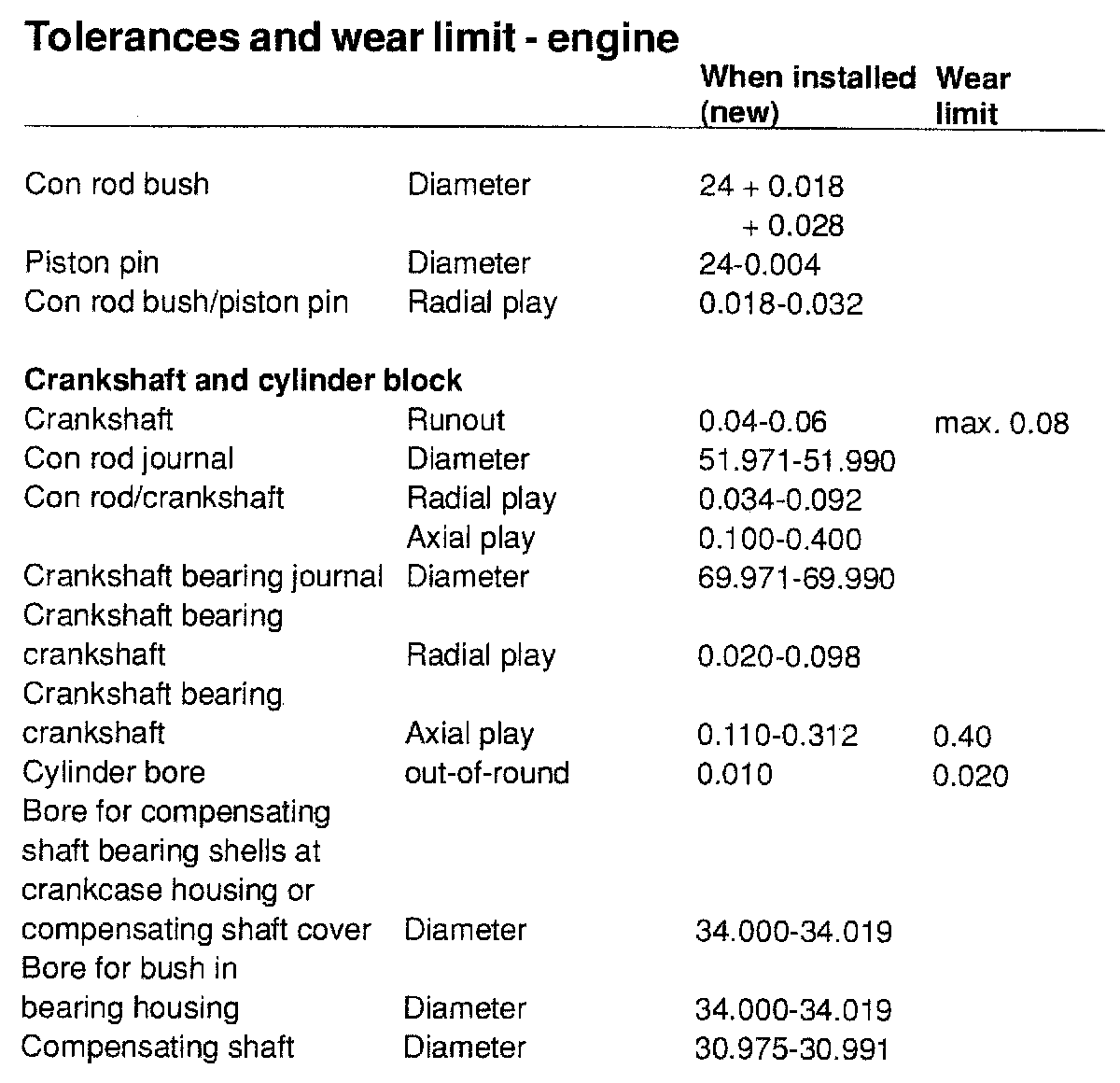

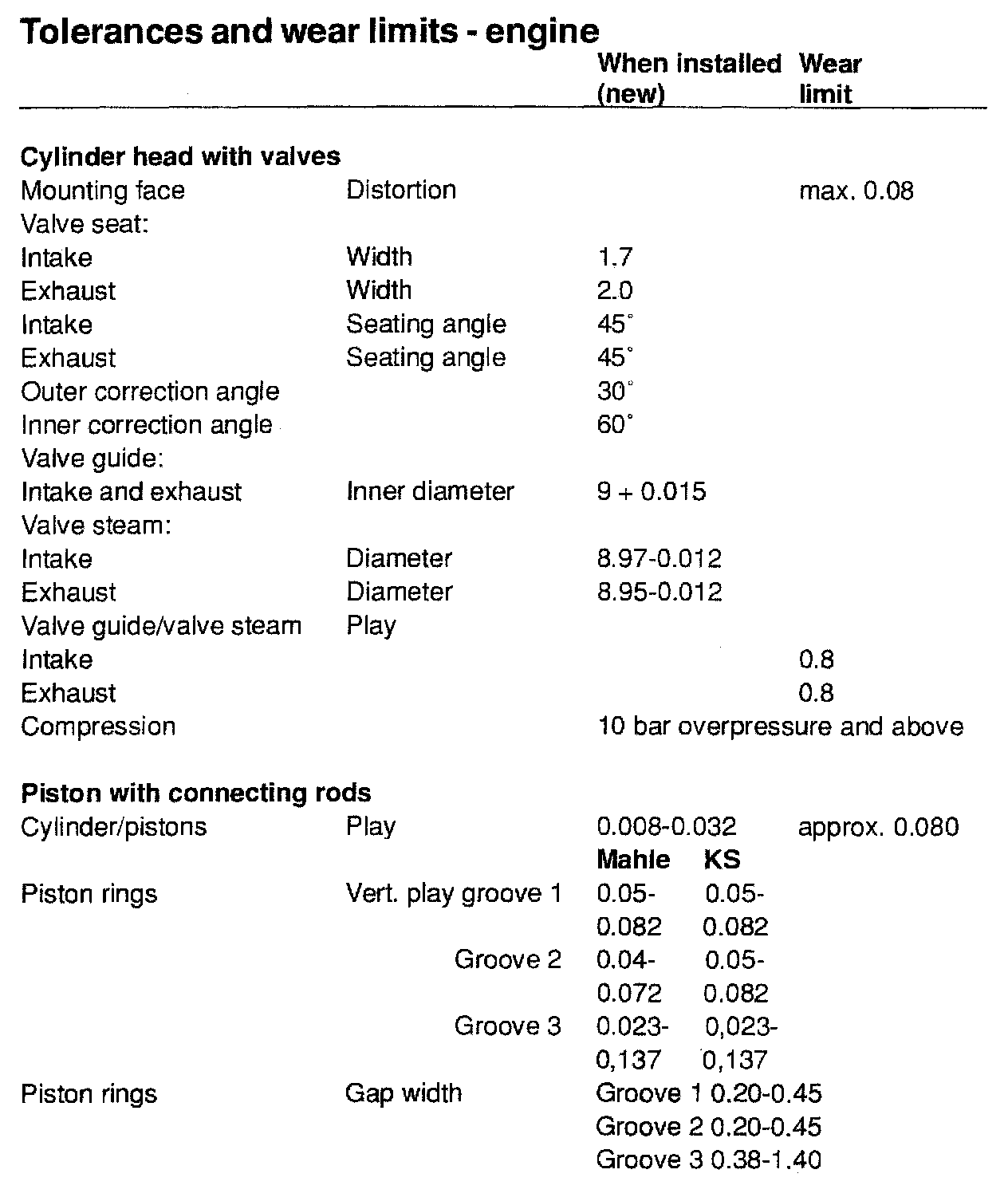

TOLERANCES AND WEAR SPECIFICATIONS

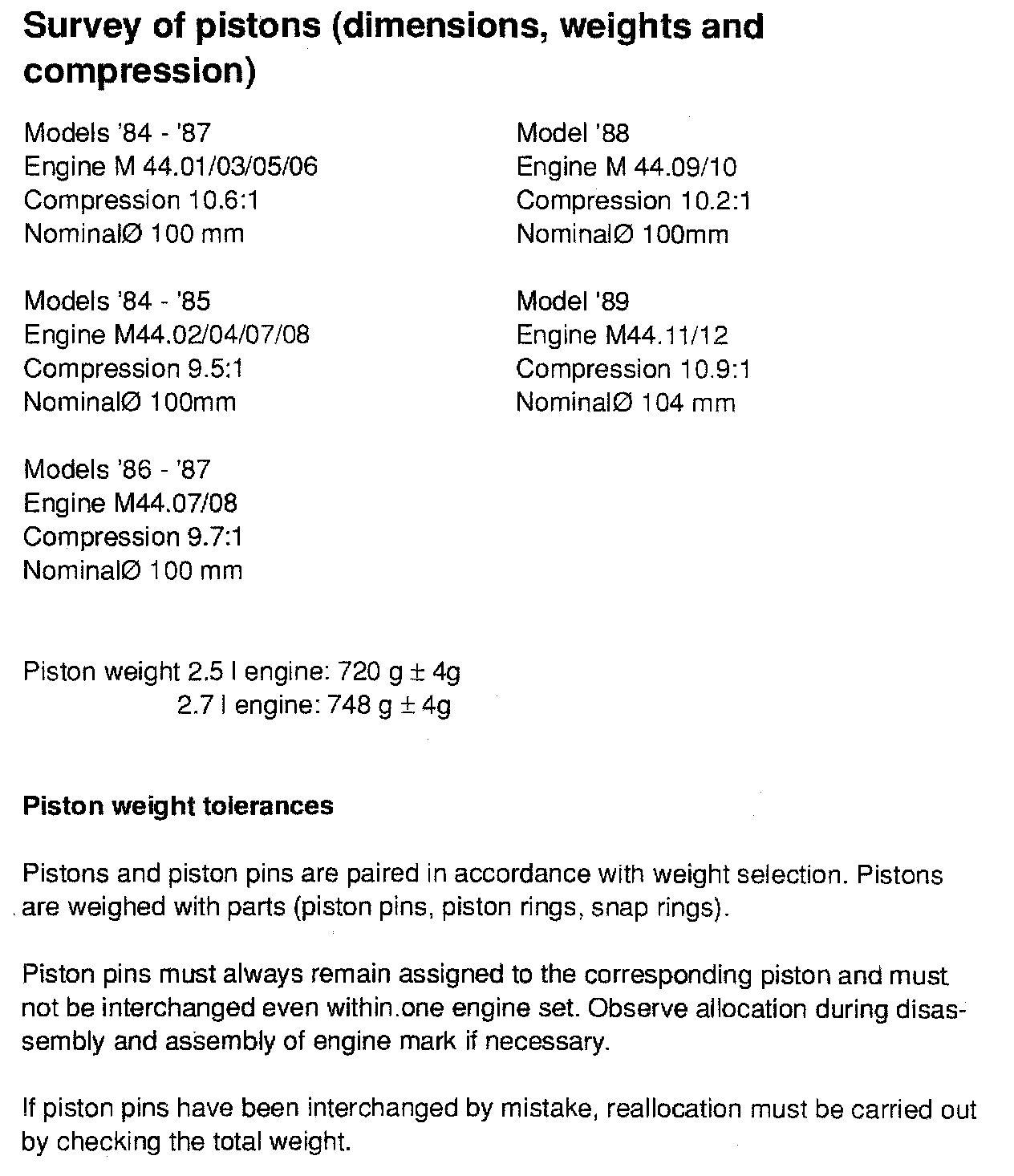

PISTON SPECIFICATIONS

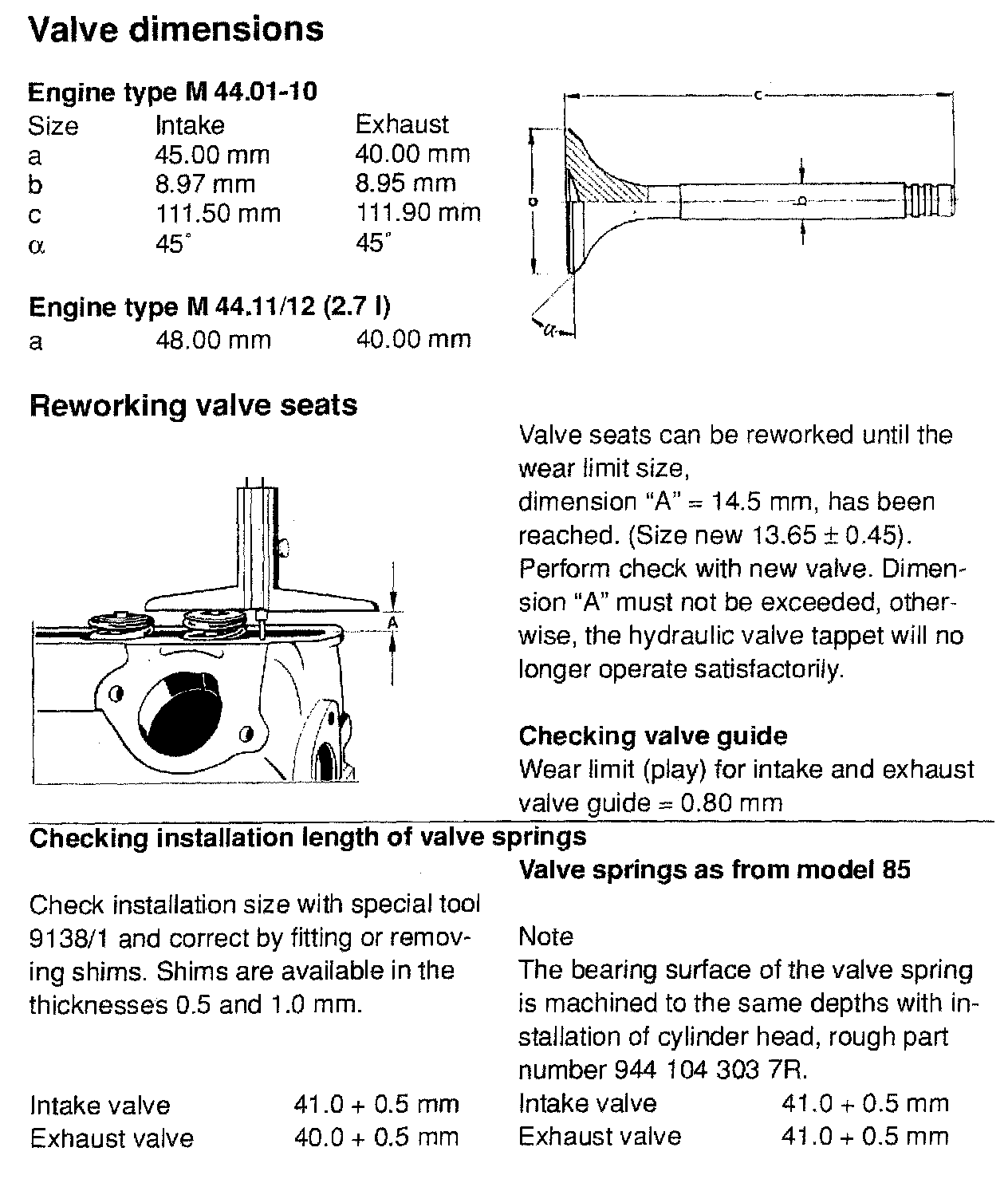

VALVE SPECIFICATIONS
