Trailing Arm
Trailing Arm

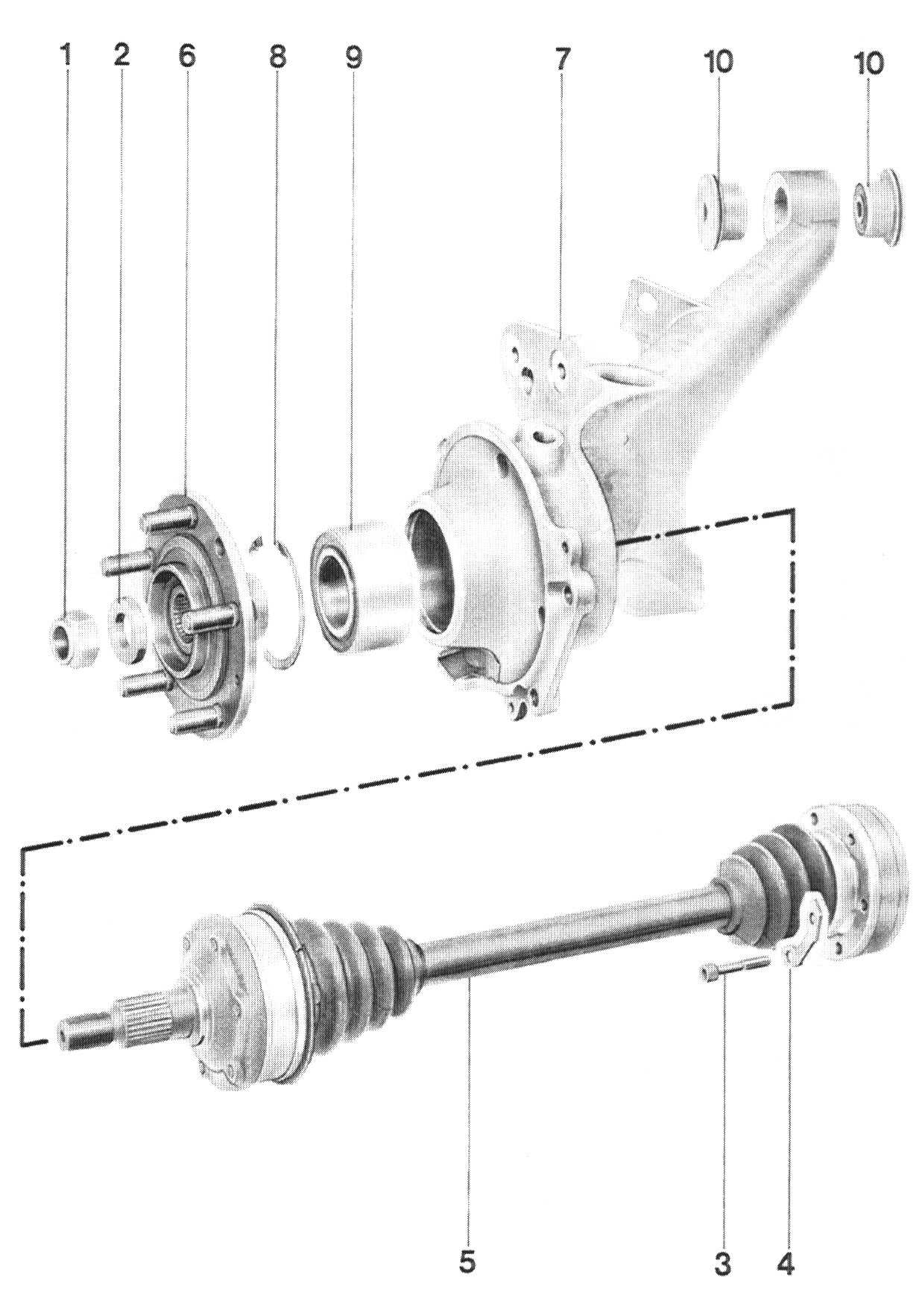

TRAILING ARM EXPLODED VIEWS
Aluminum Trailing Arm:

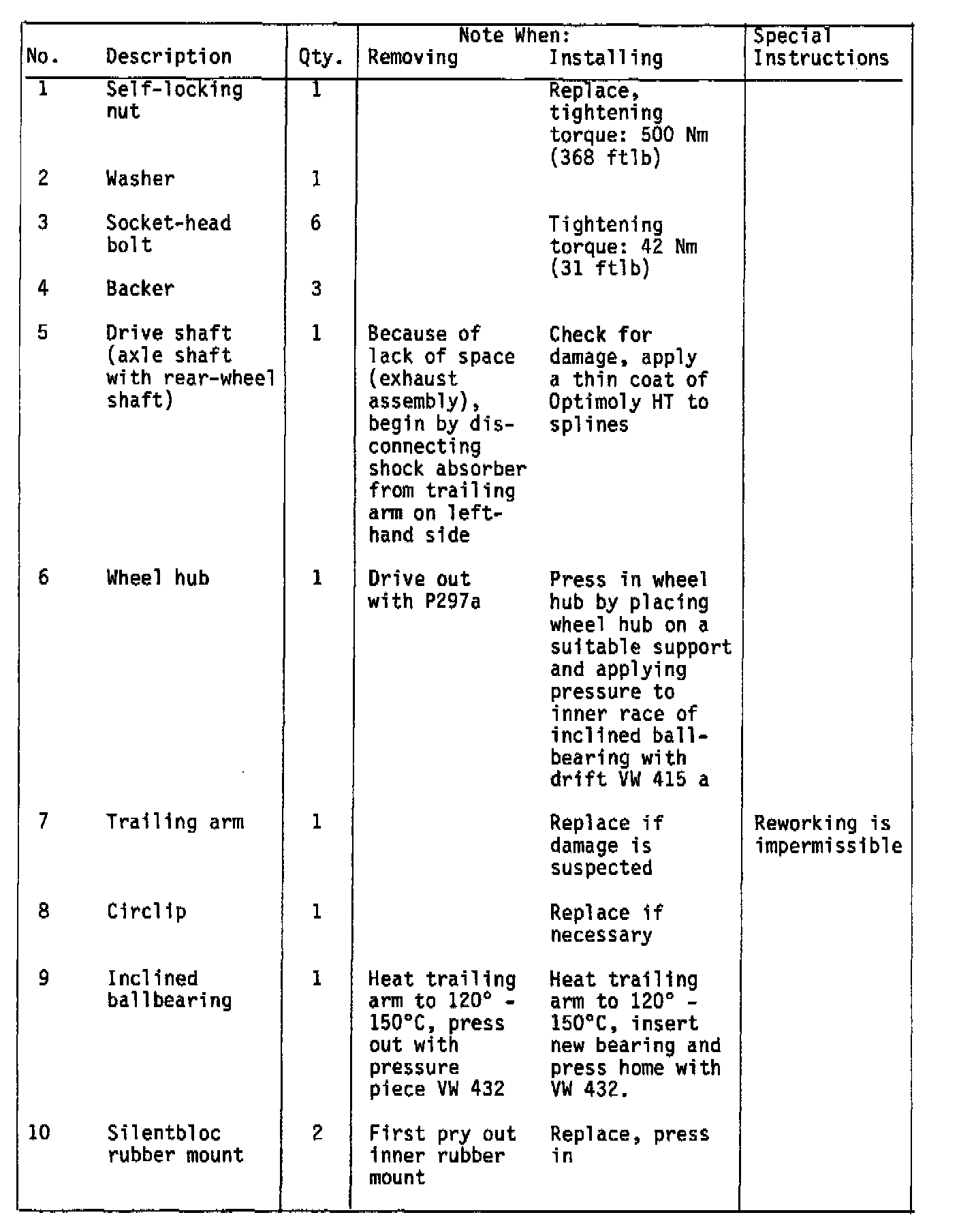

Description 1 Through 10:
