System Specifications

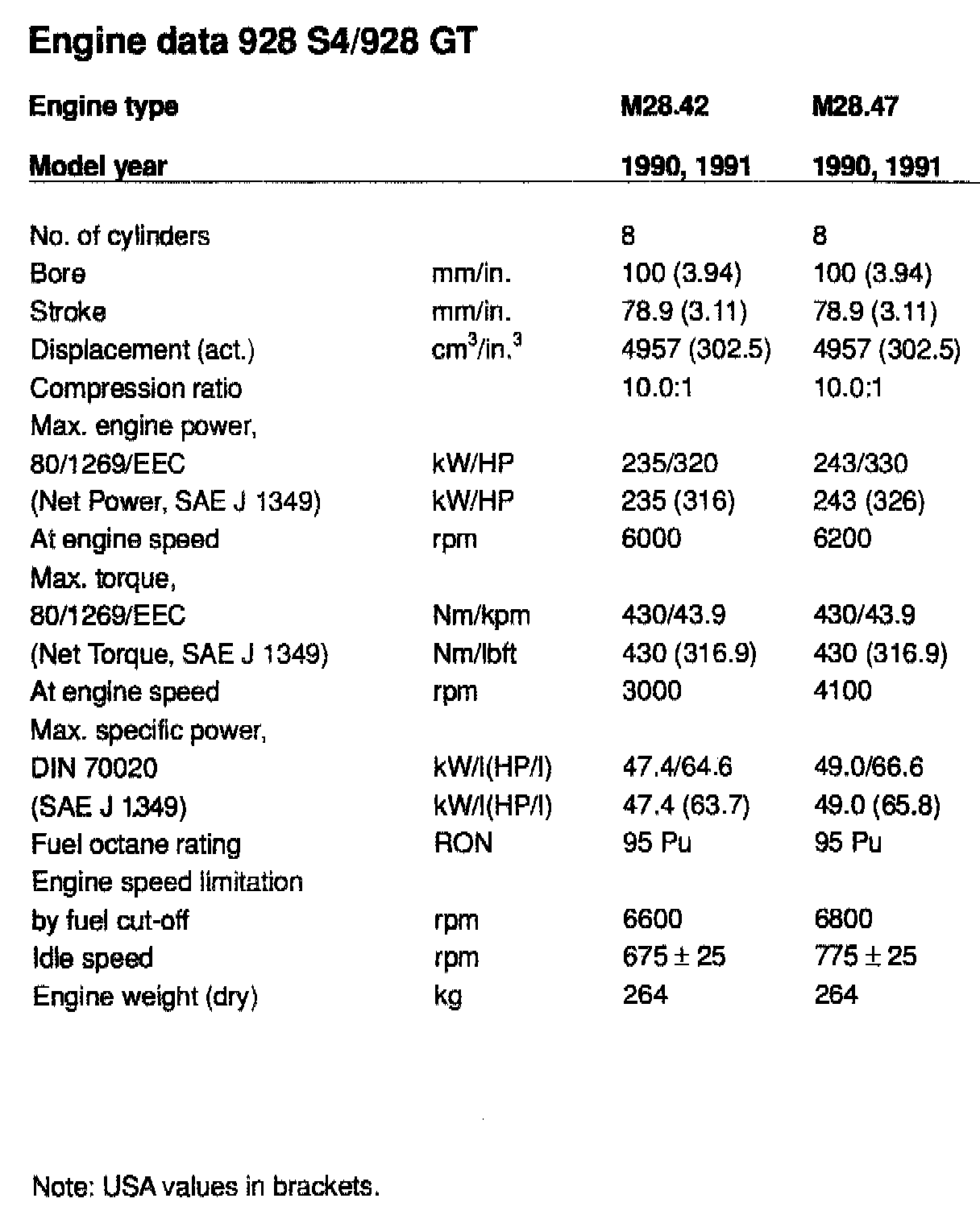

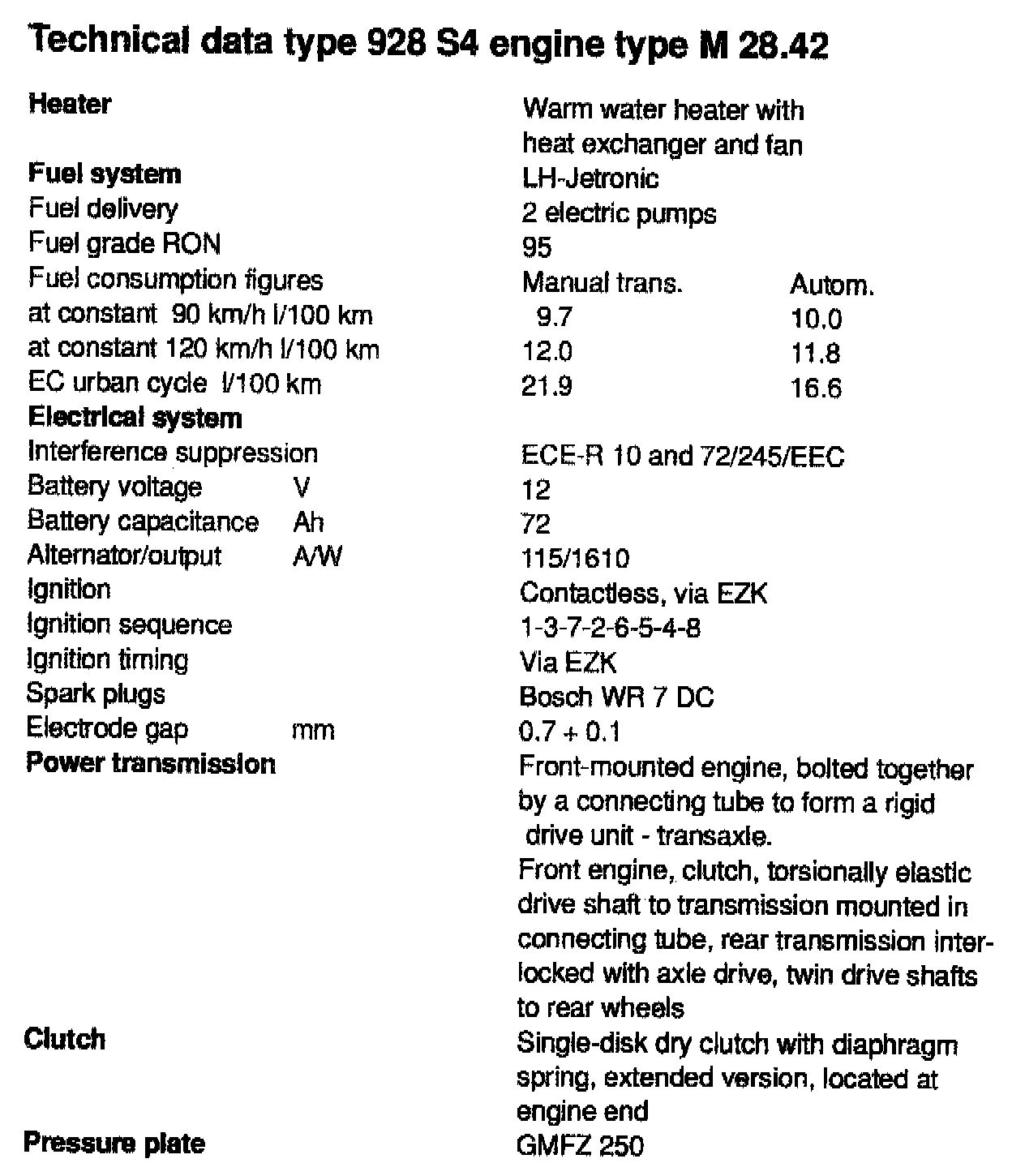

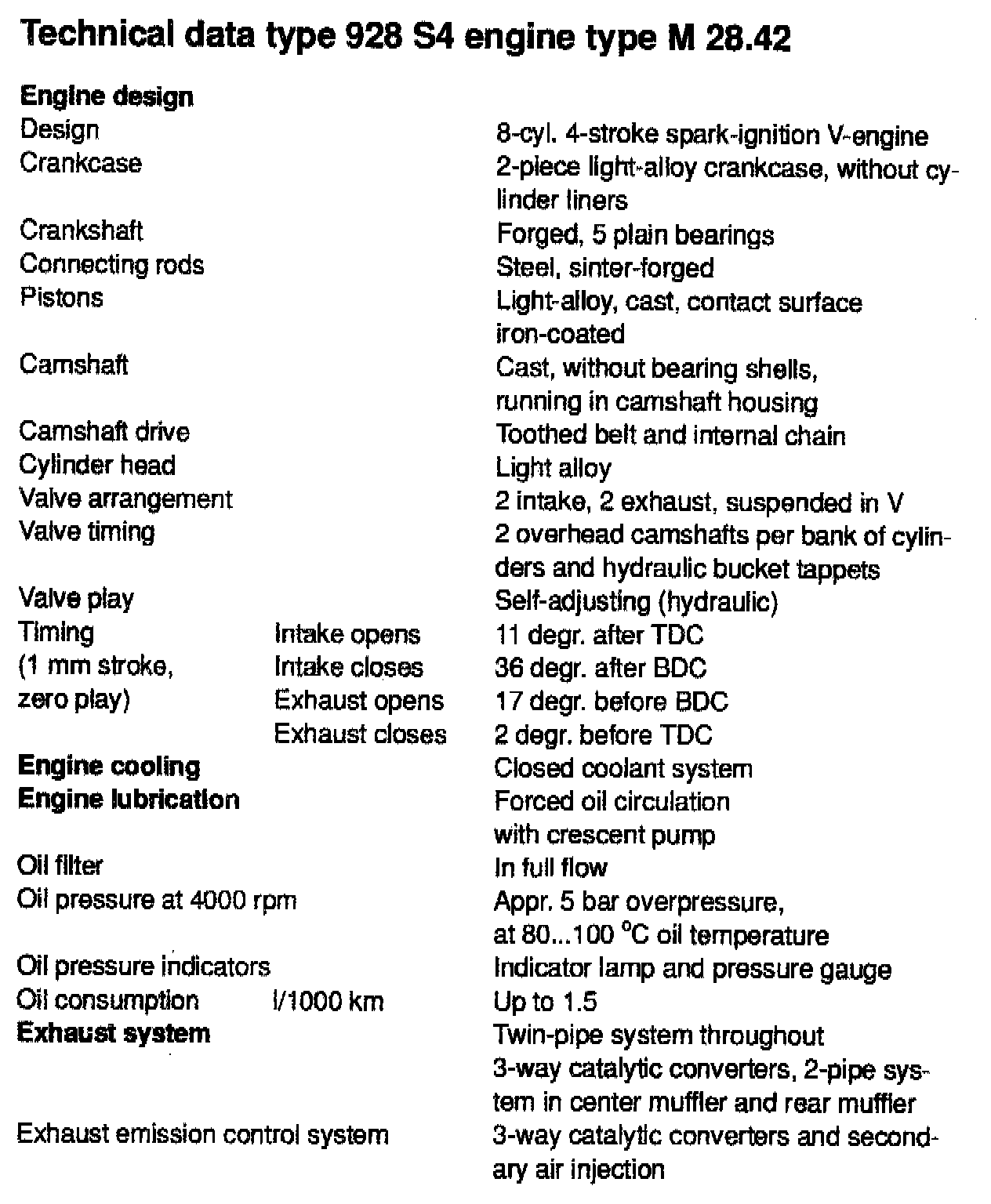

GENERAL SPECIFICATIONS

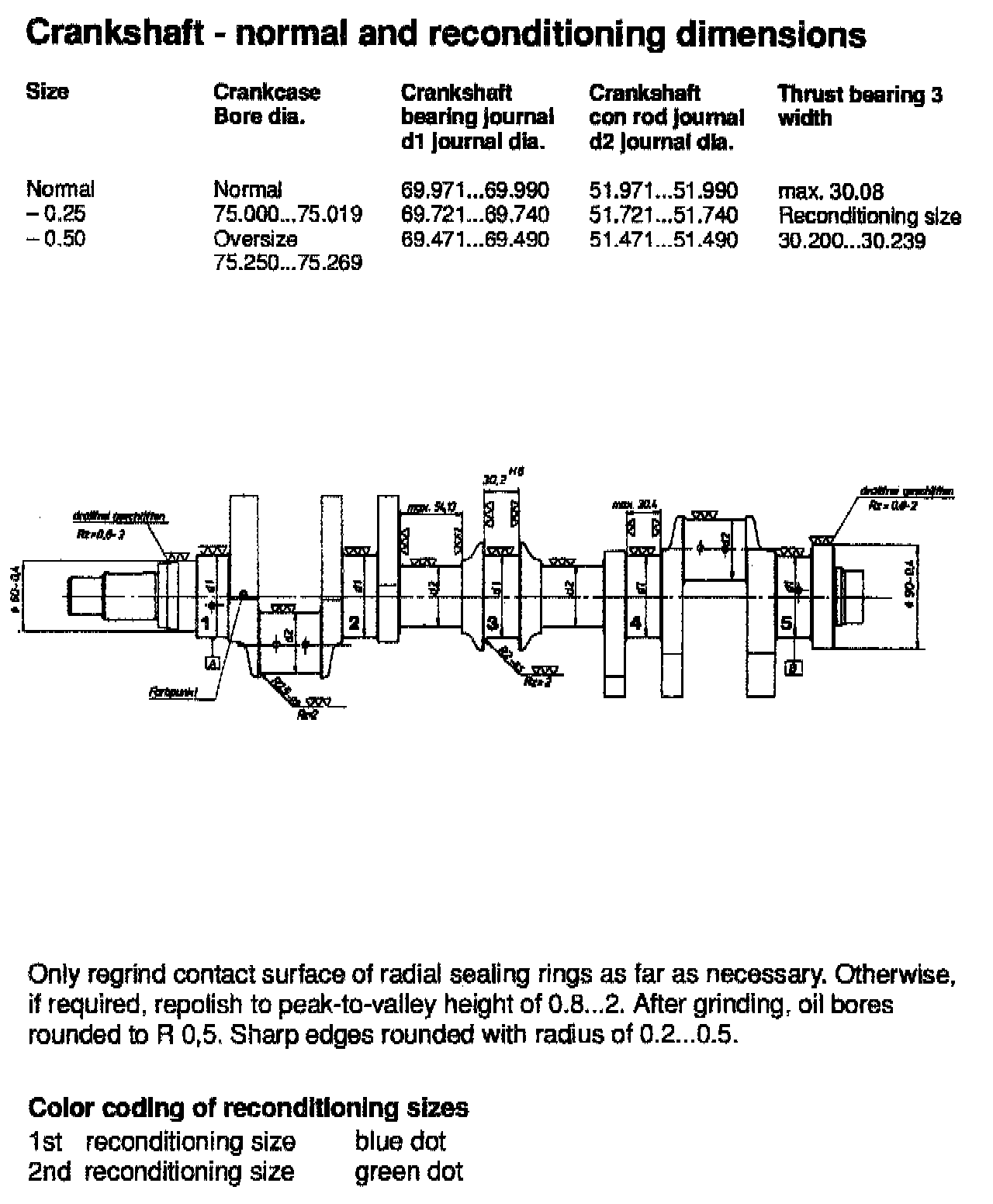

CRANKSHAFT SPECIFICATIONS

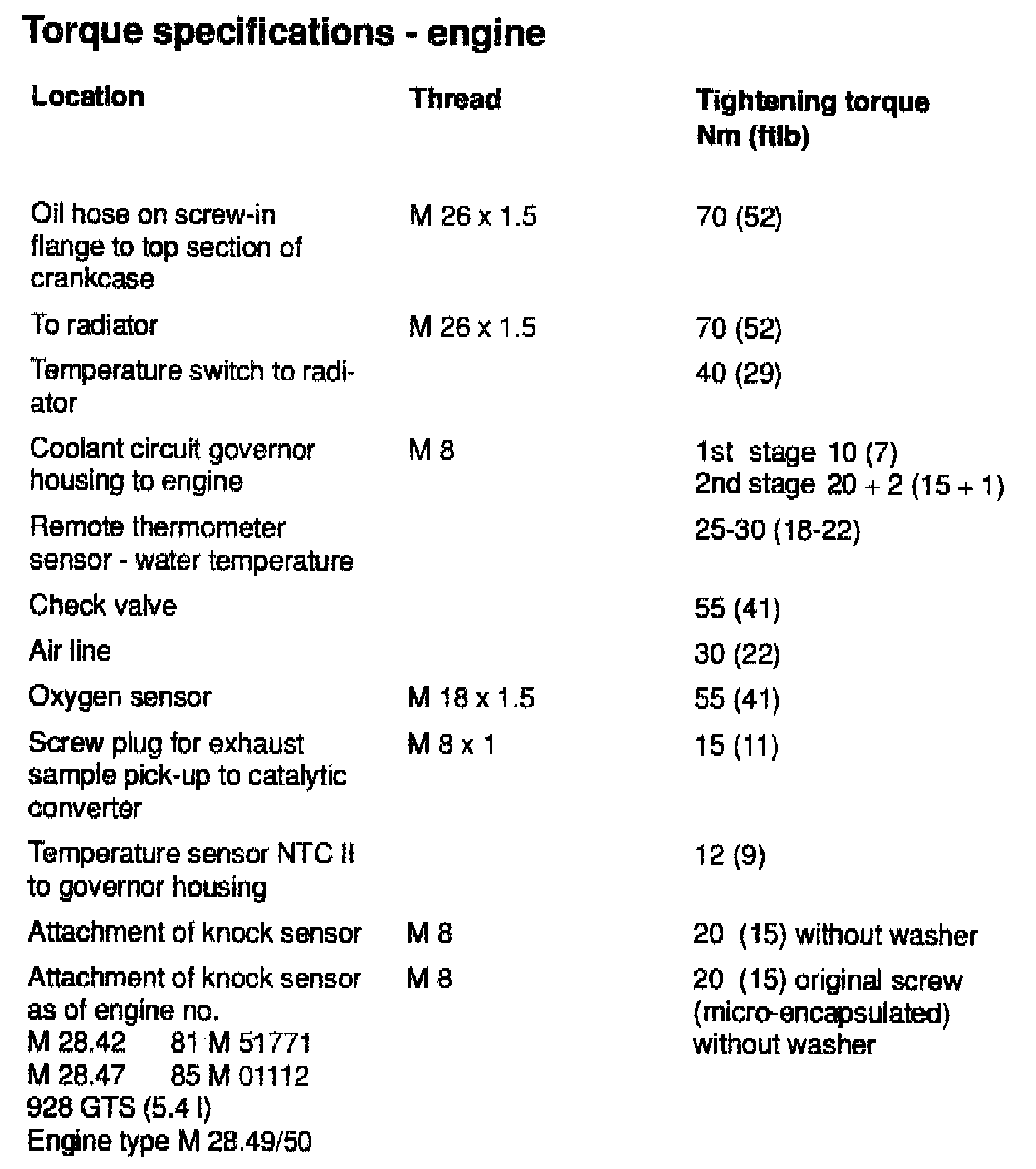

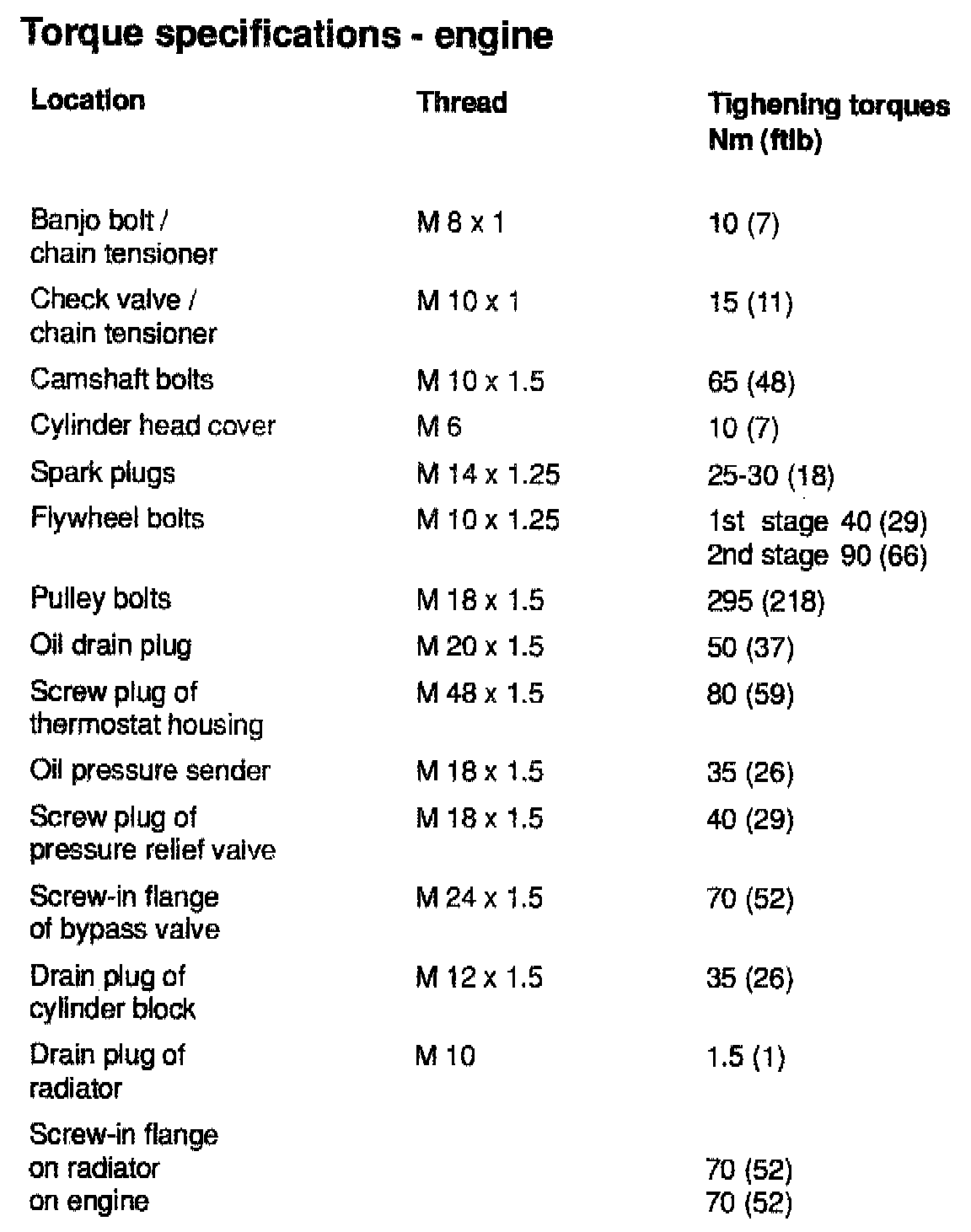

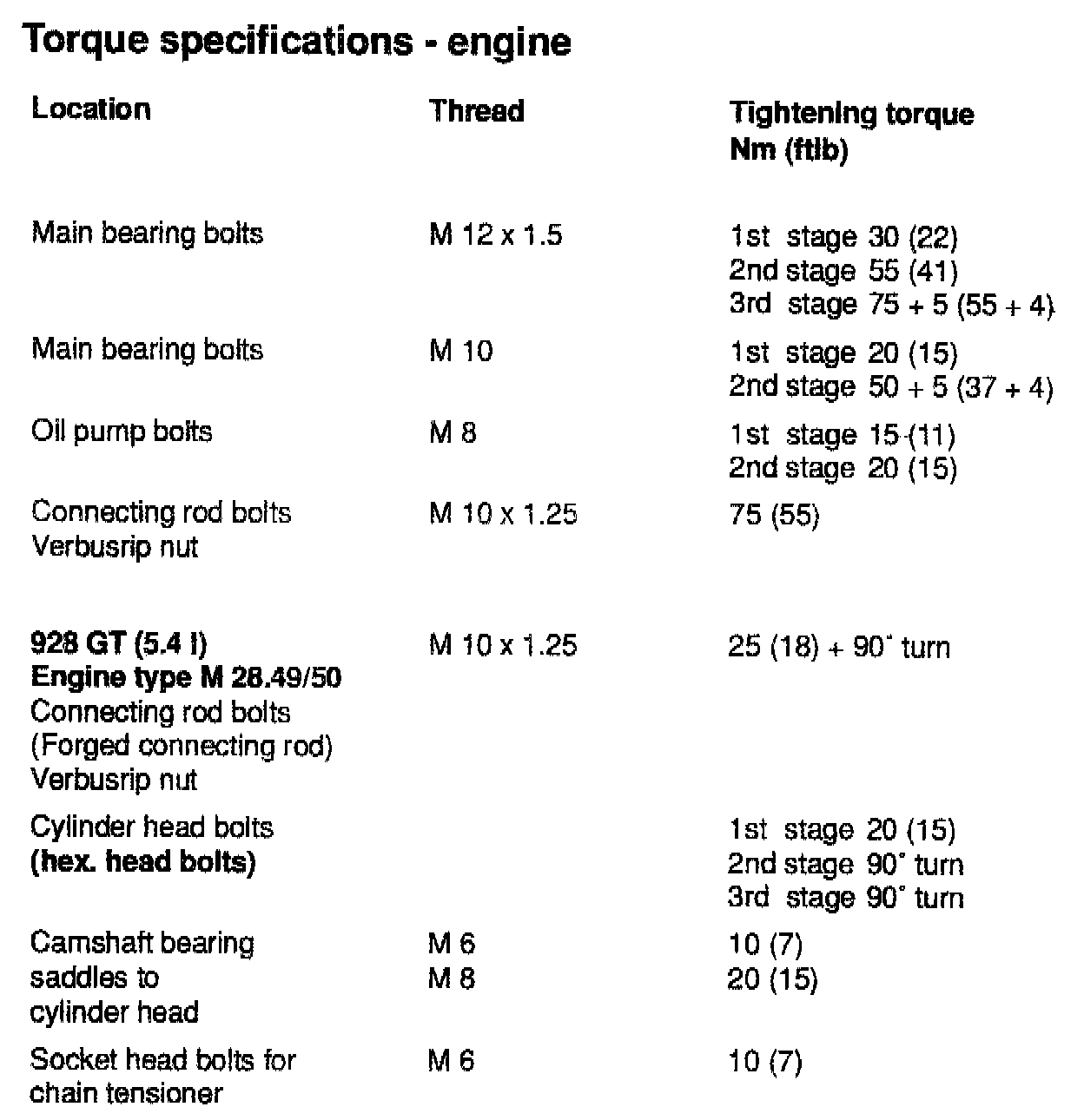

TIGHTENING SPECIFICATIONS

















TOLERANCES AND WEAR LIMITS

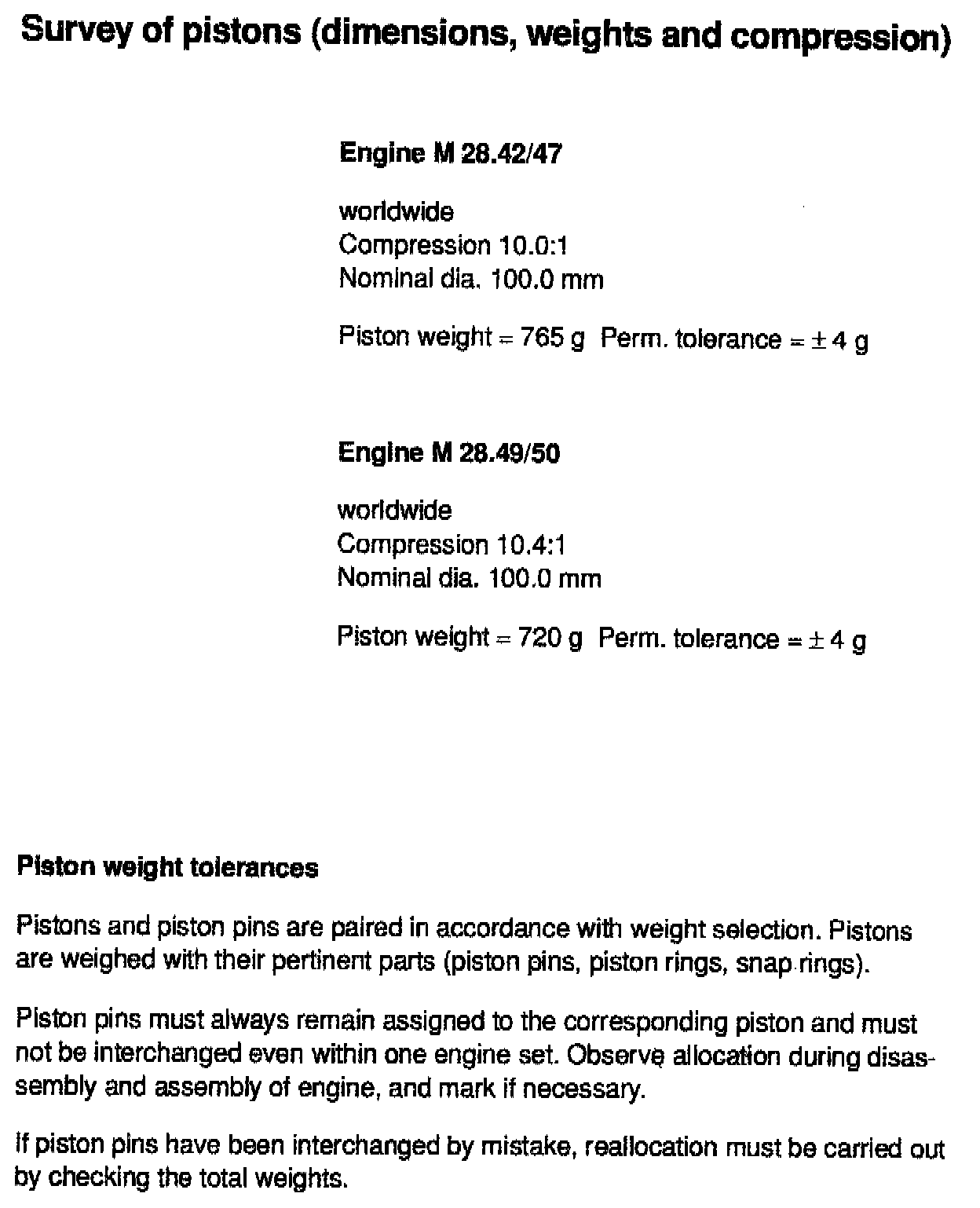

PISTON SPECIFICATIONS

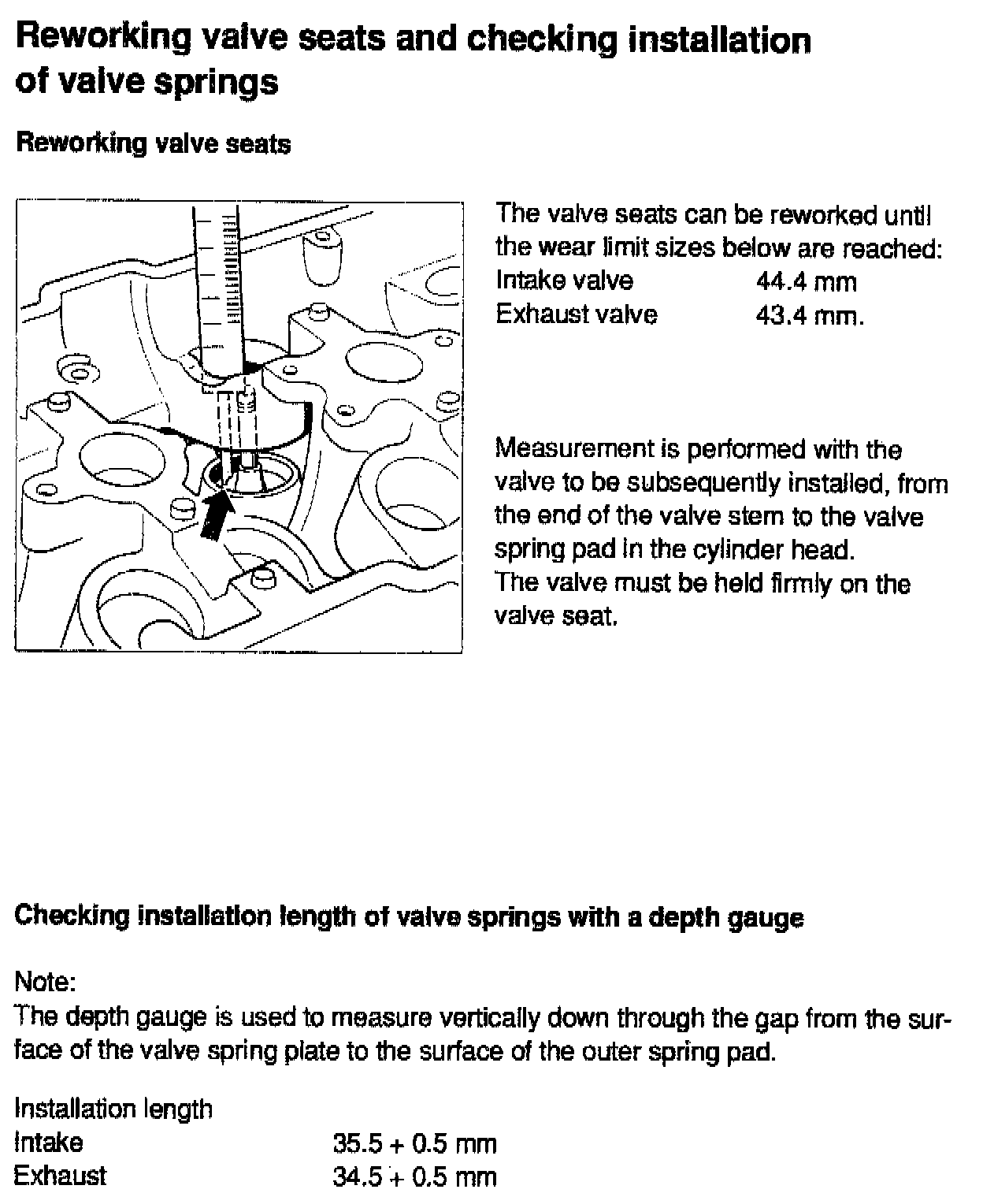

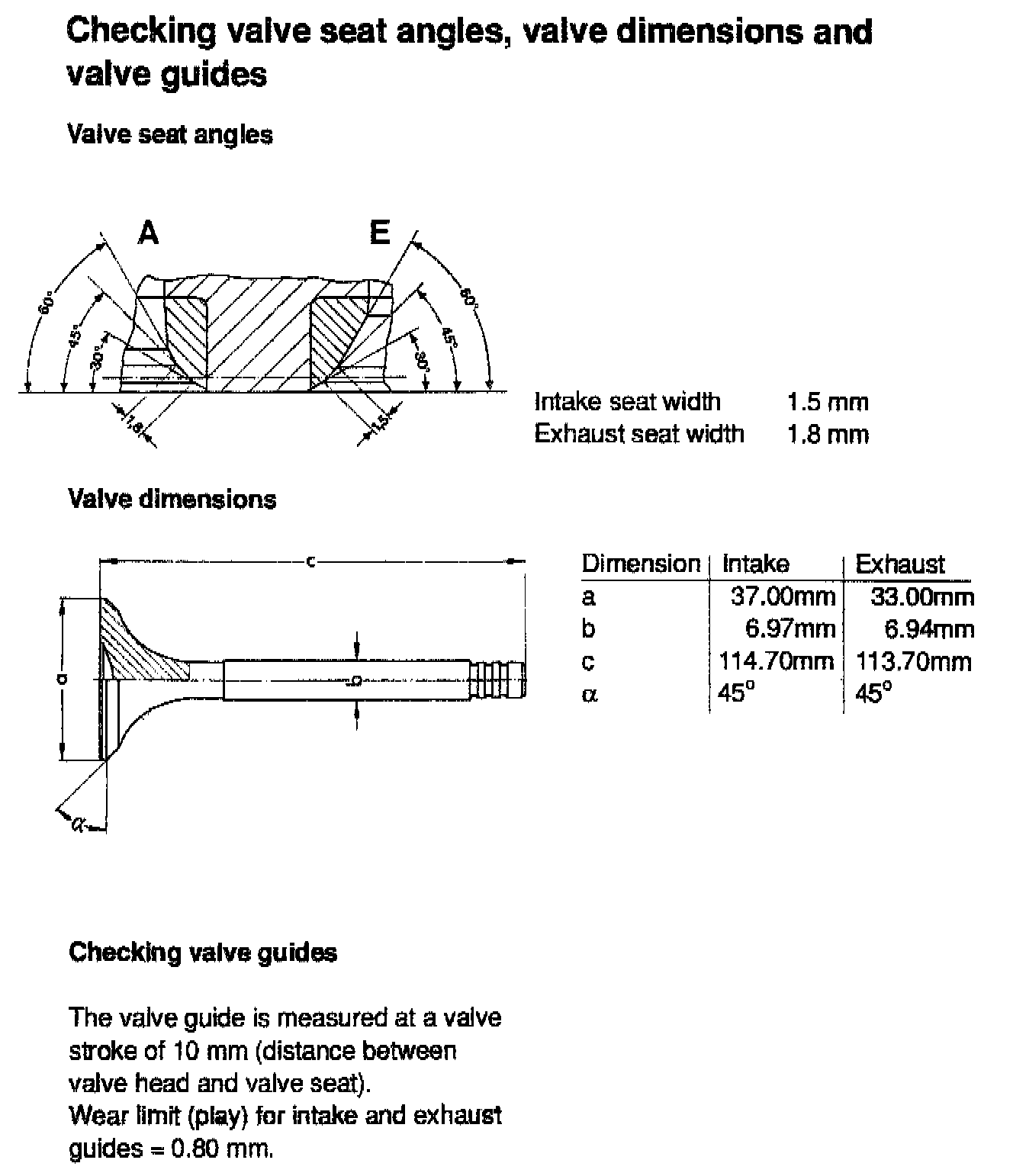

VALVE SPECIFICATIONS
