System Specifications

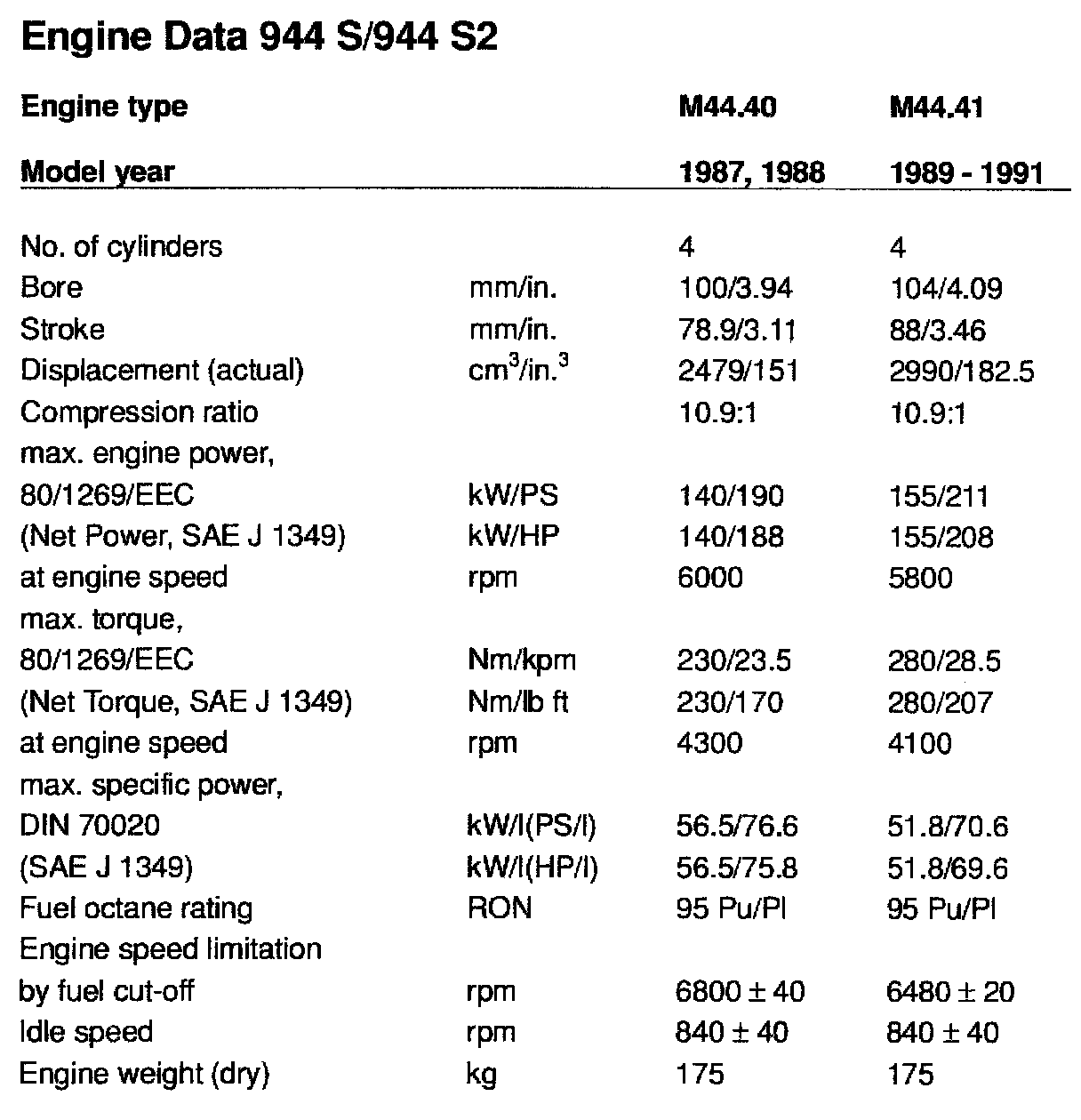

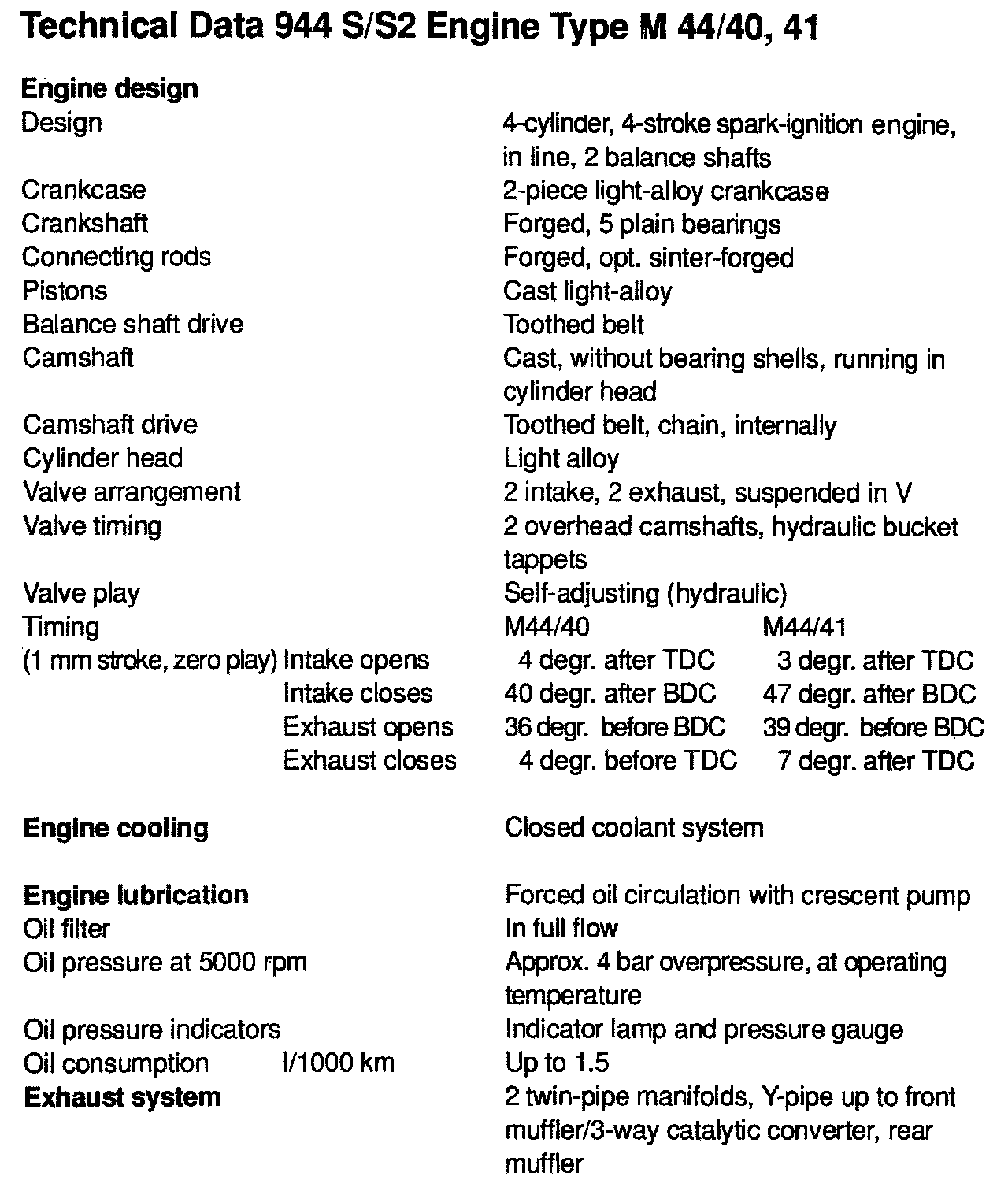

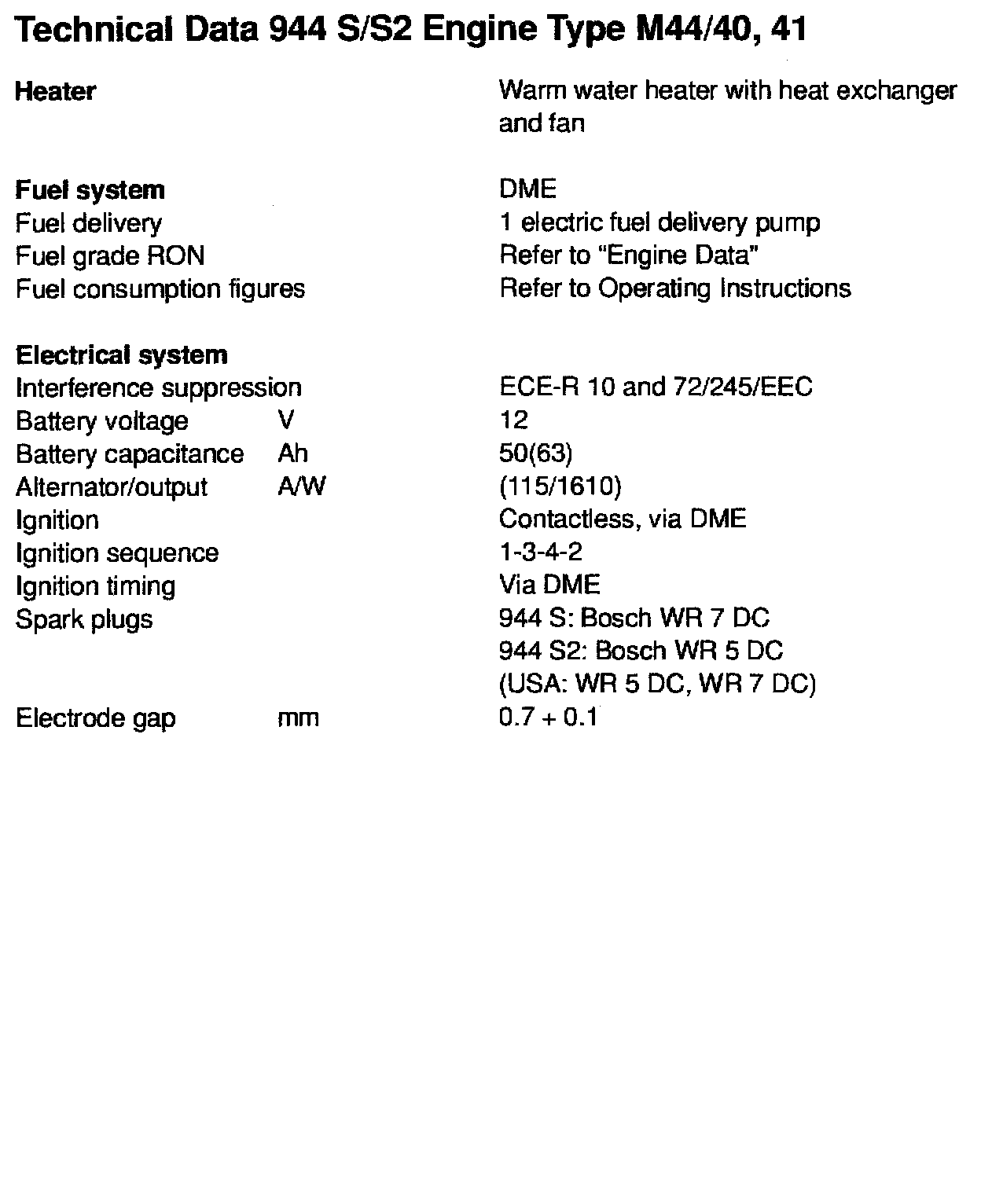

GENERAL SPECIFICATIONS

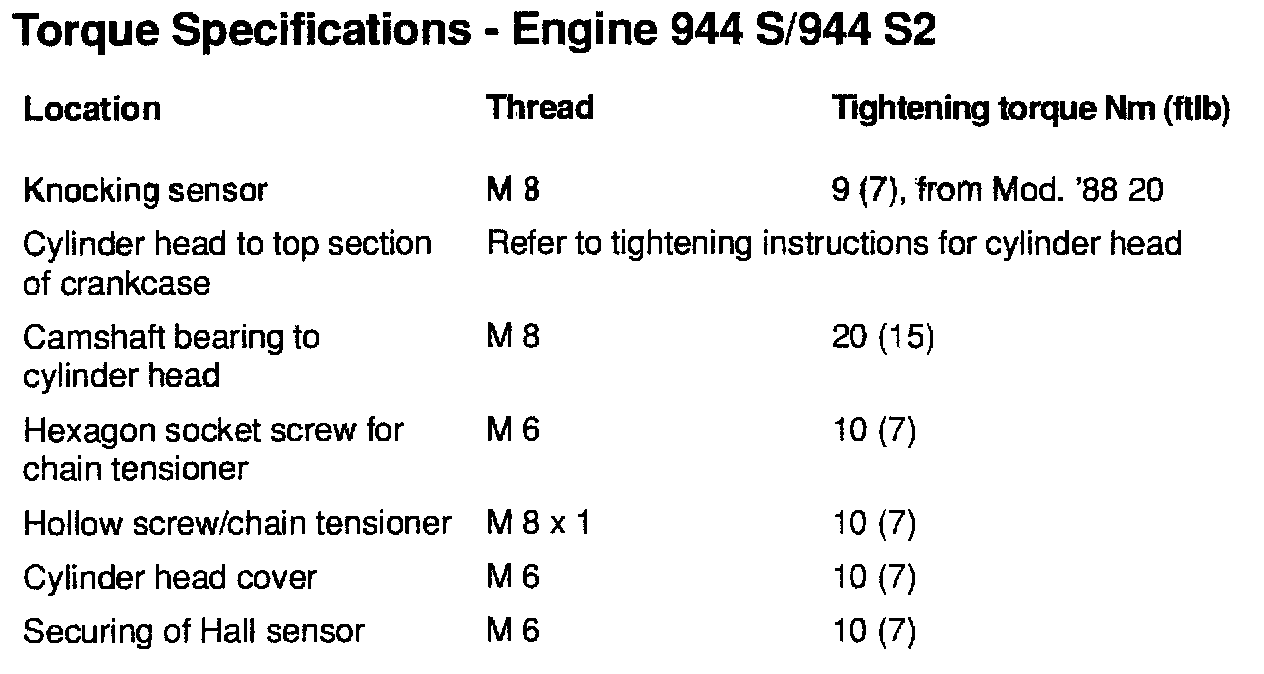

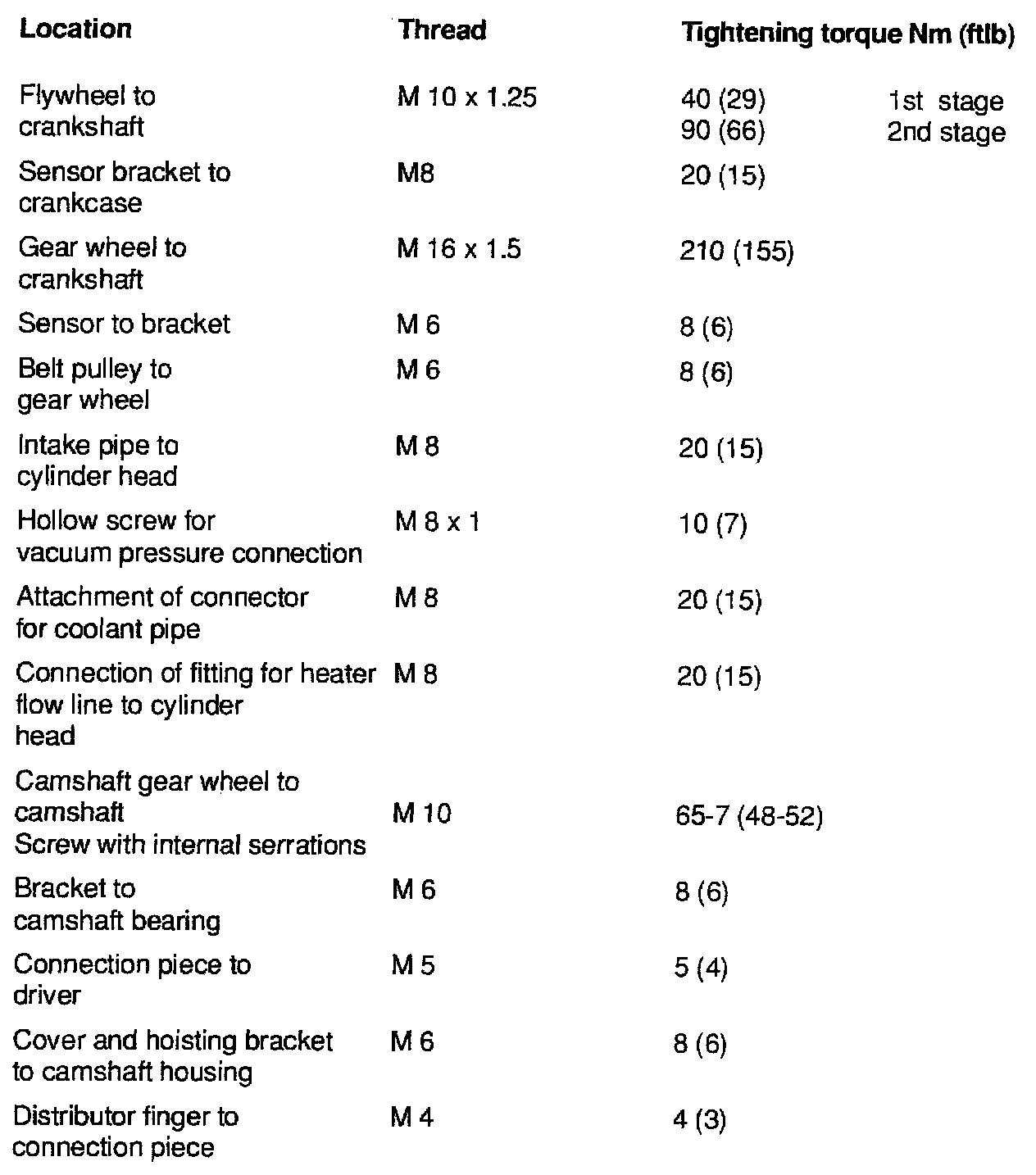

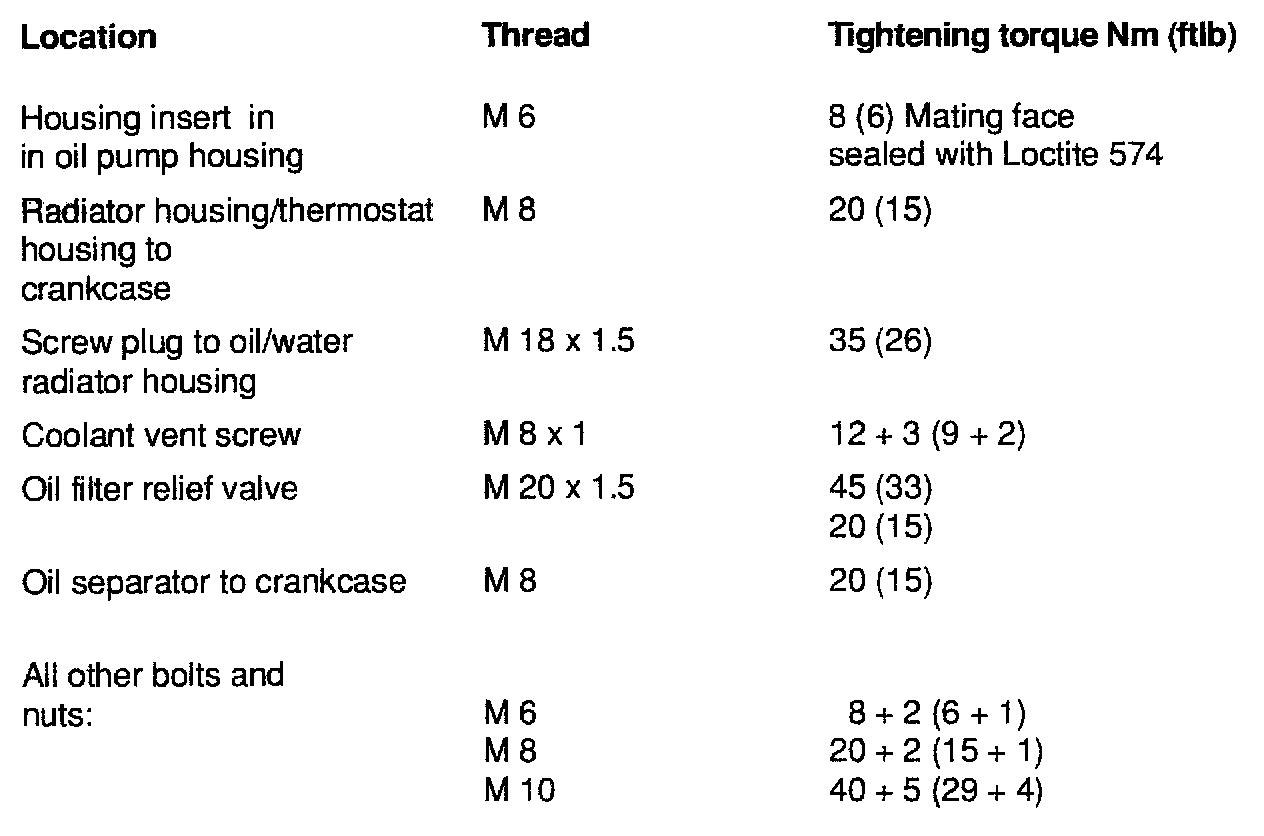

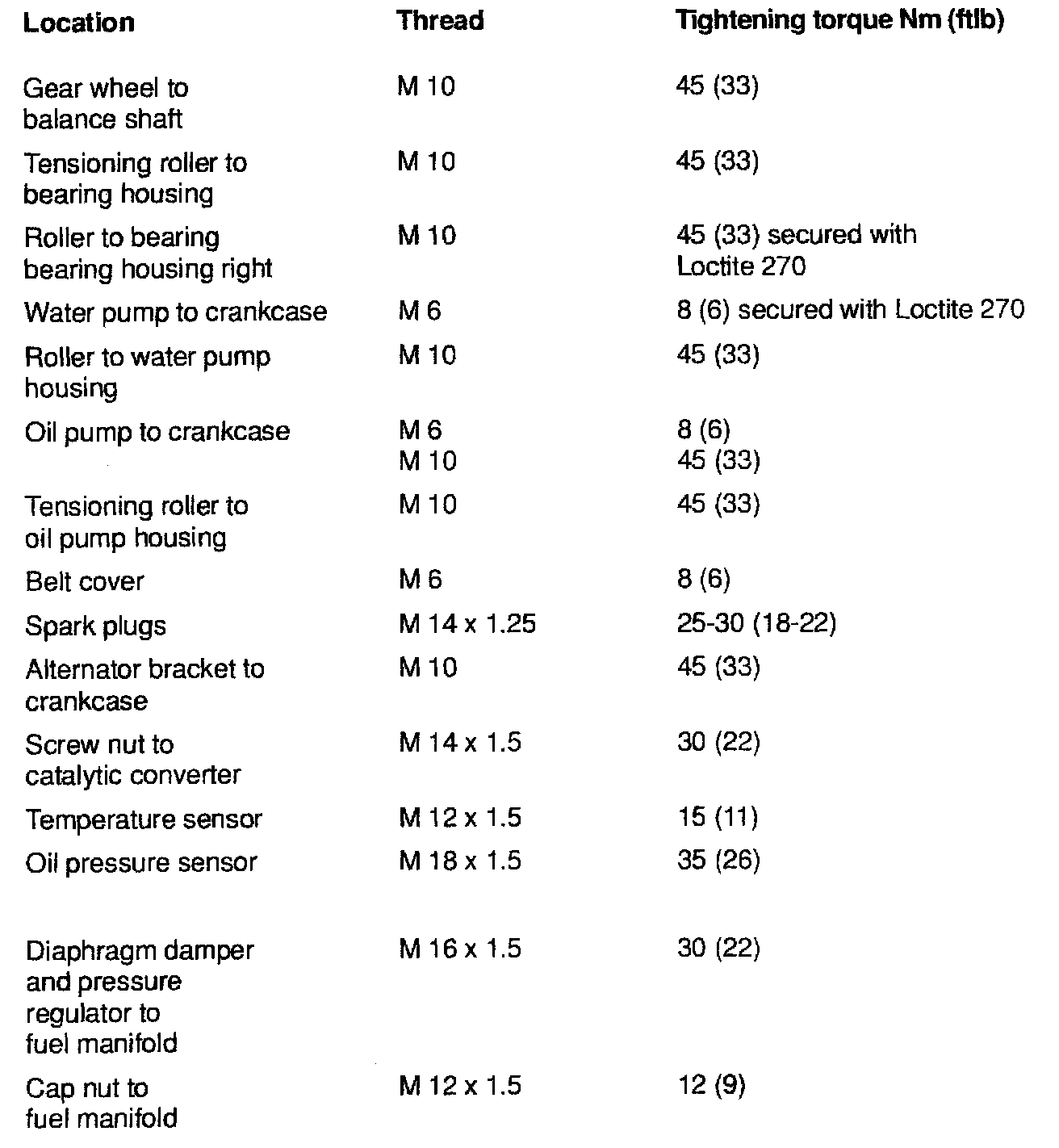

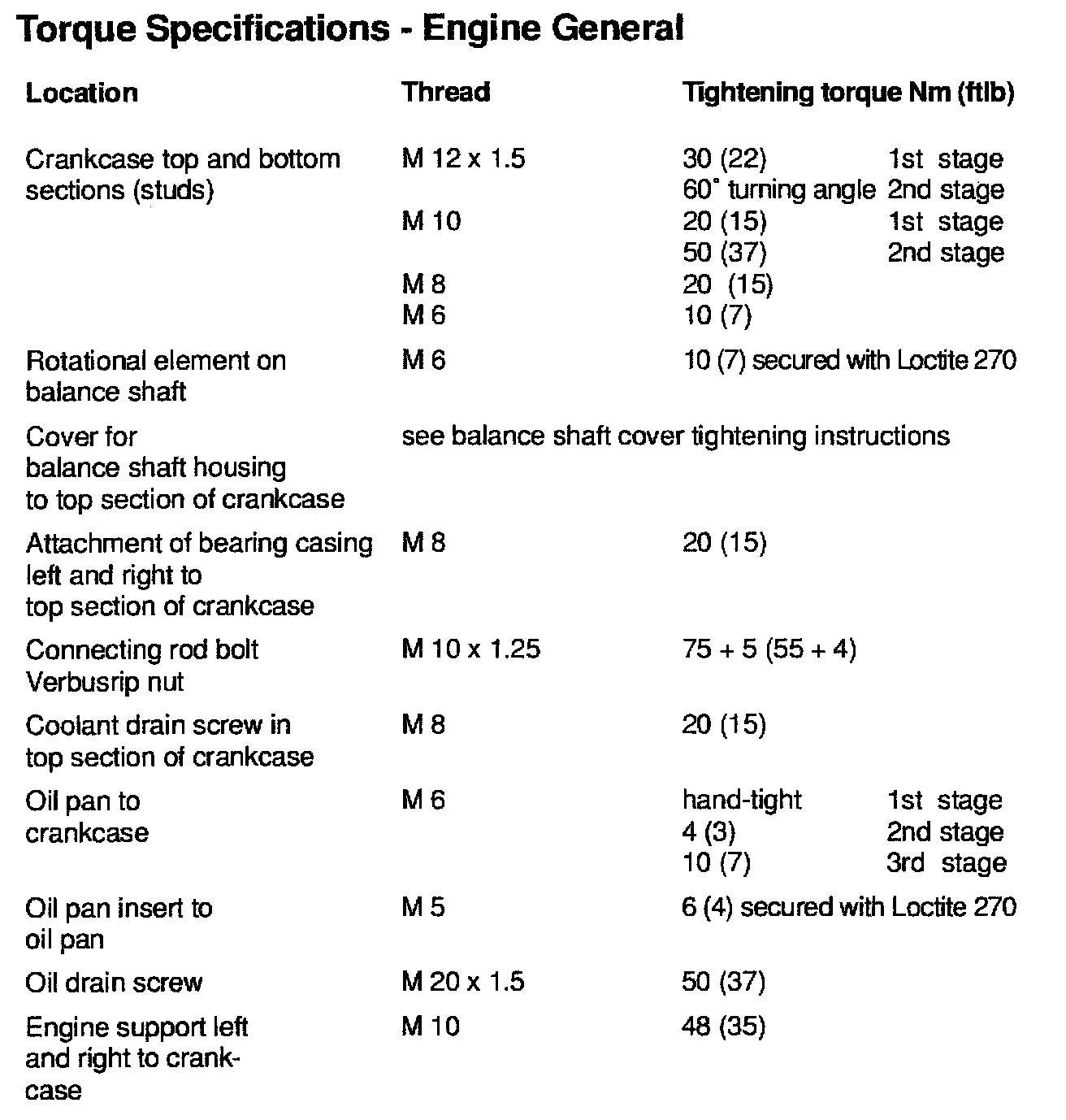

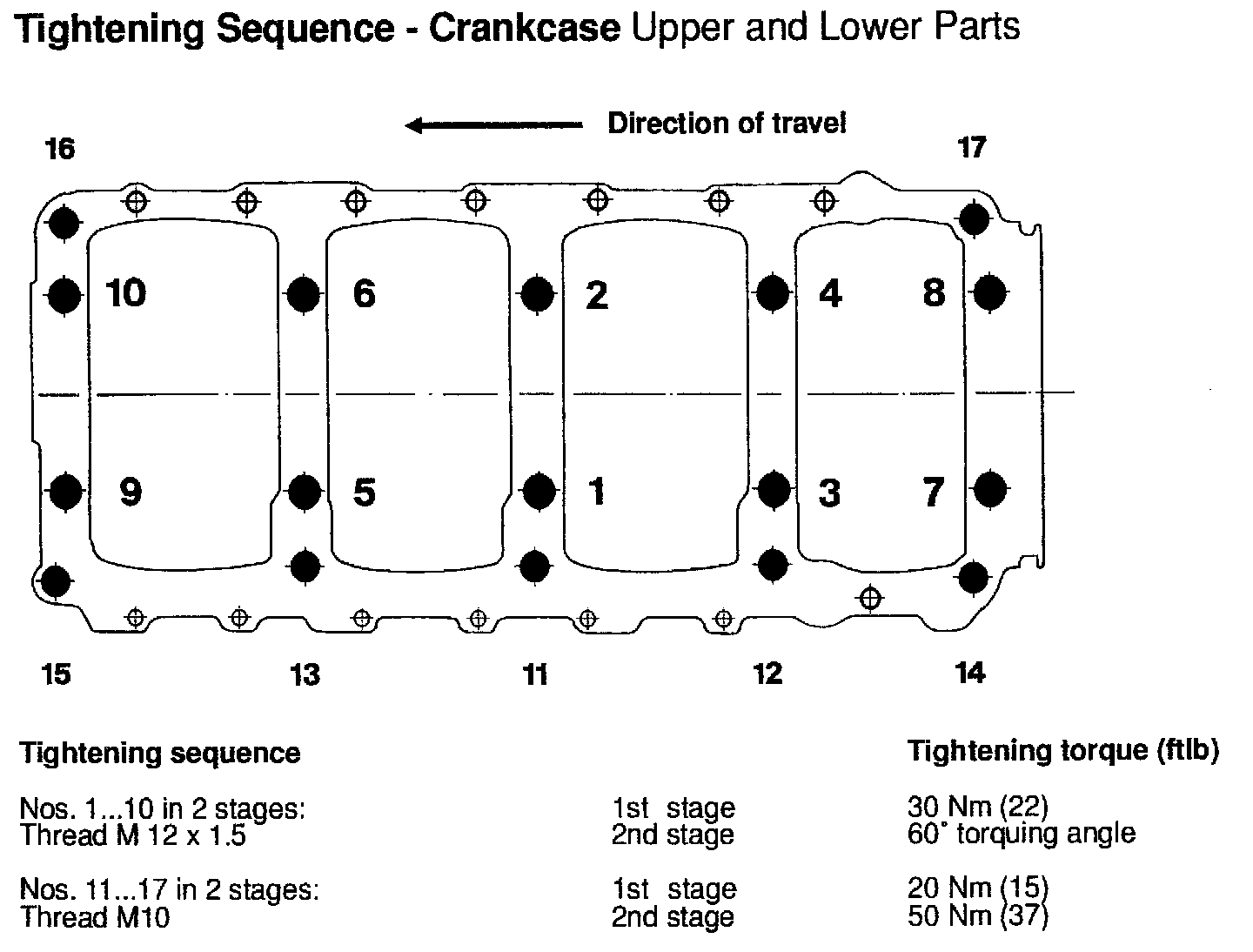

TIGHTENING SPECIFICATIONS

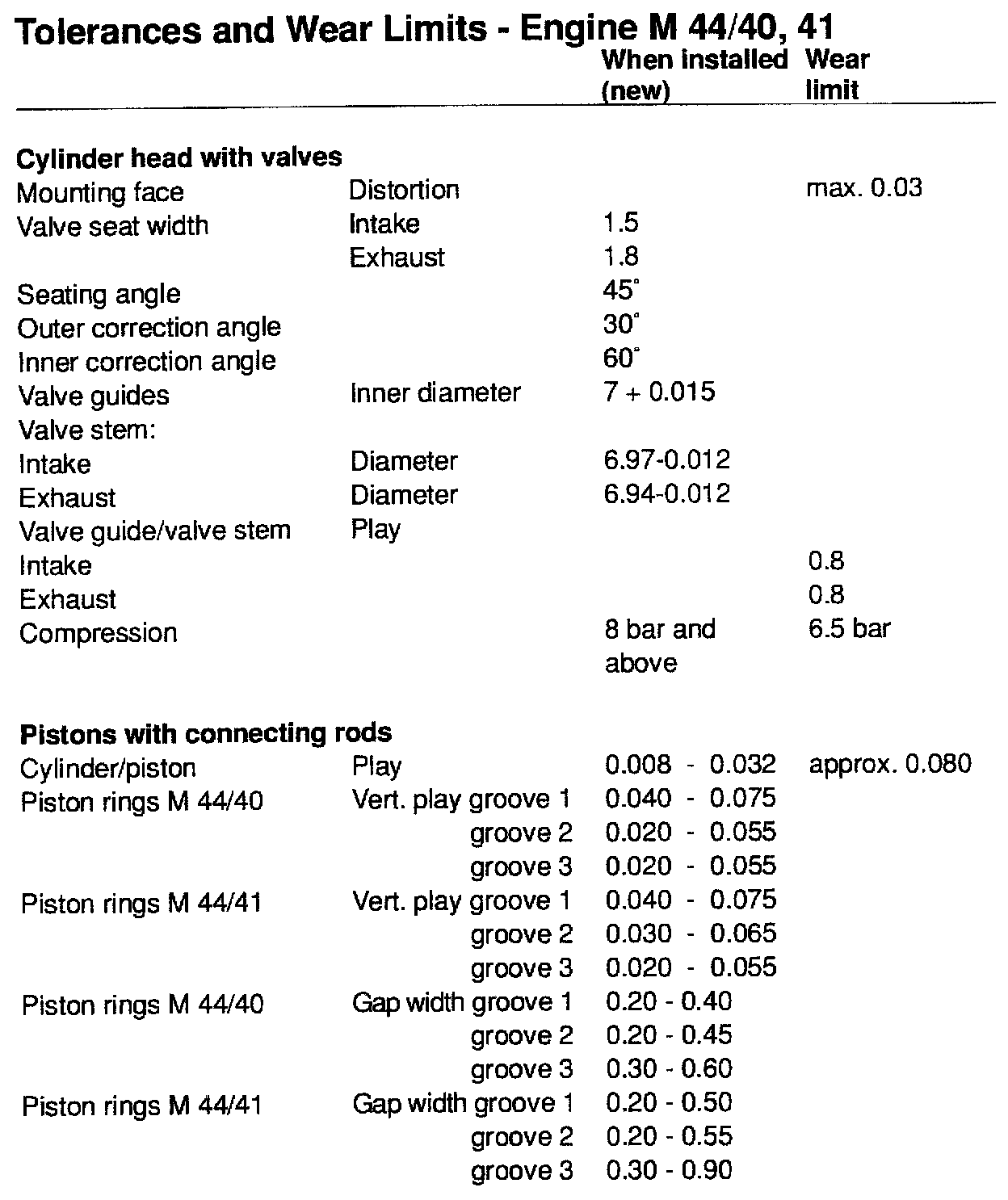

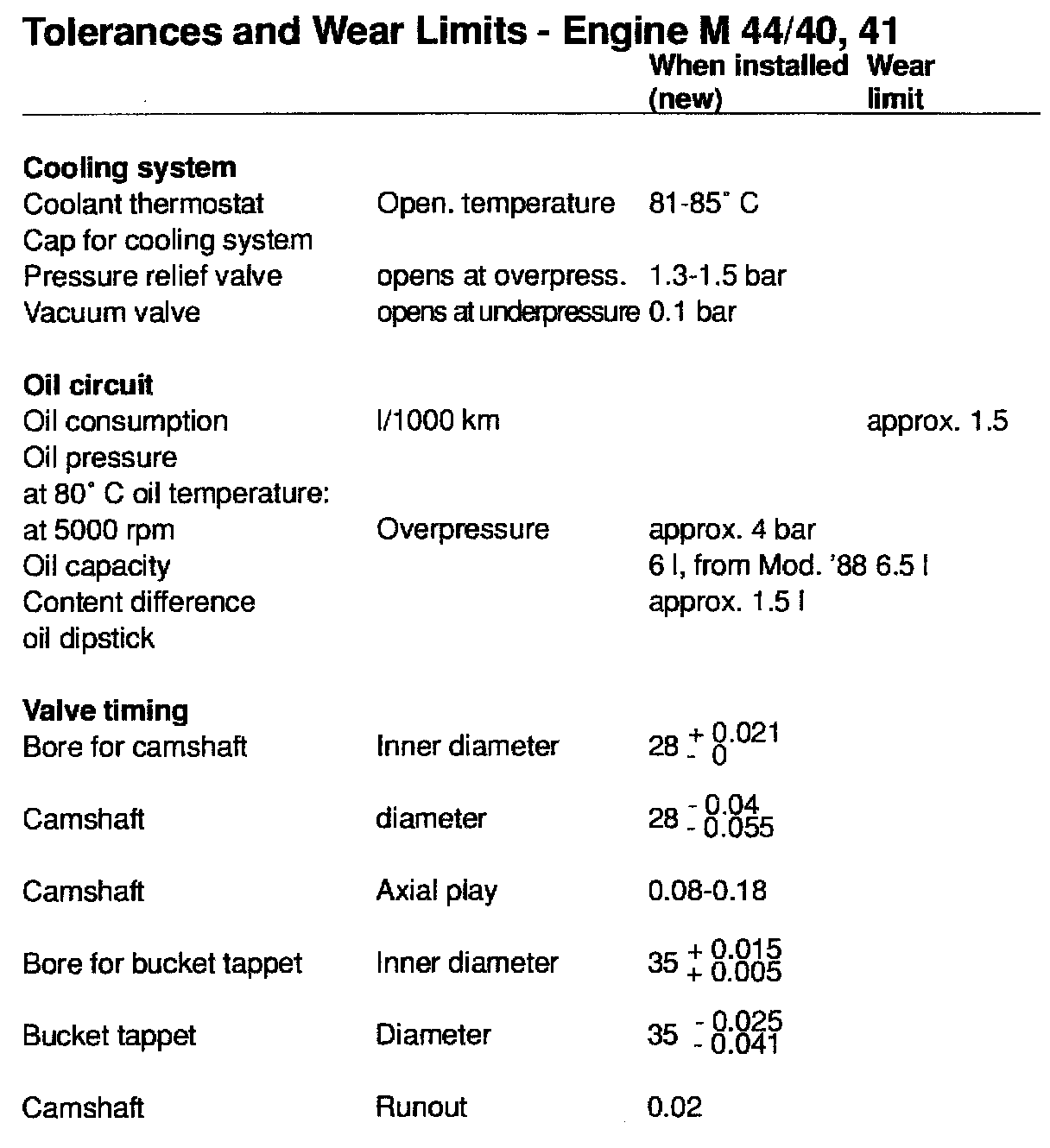

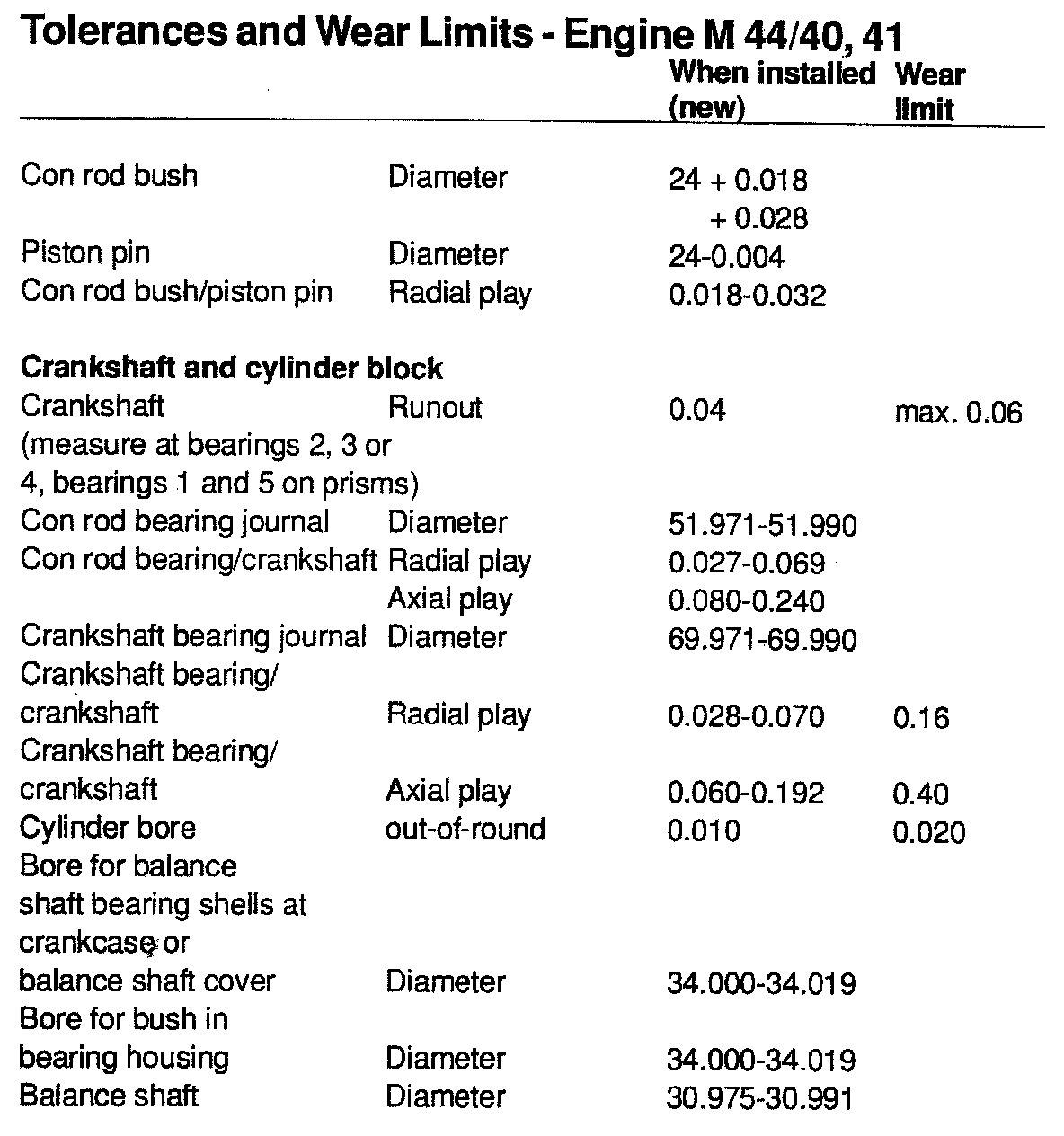

TOLERANCES AND WEAR SPECIFICATIONS

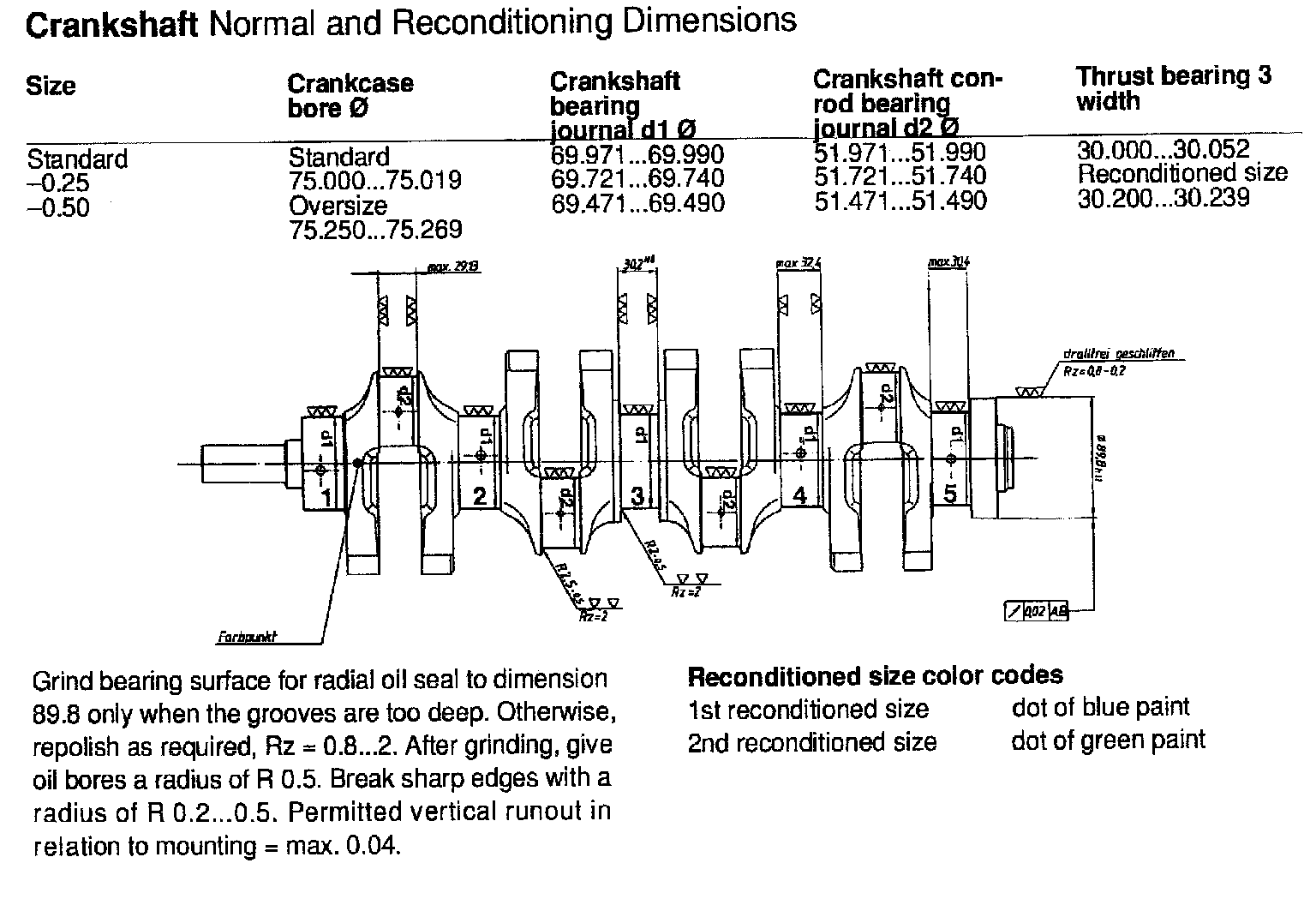

CRANKSHAFT SPECIFICATIONS

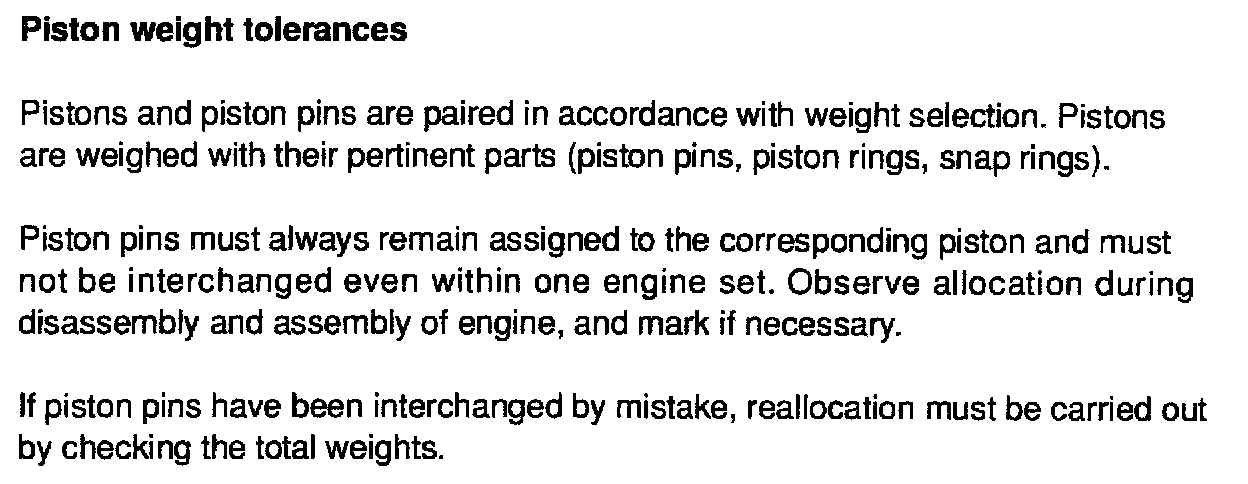

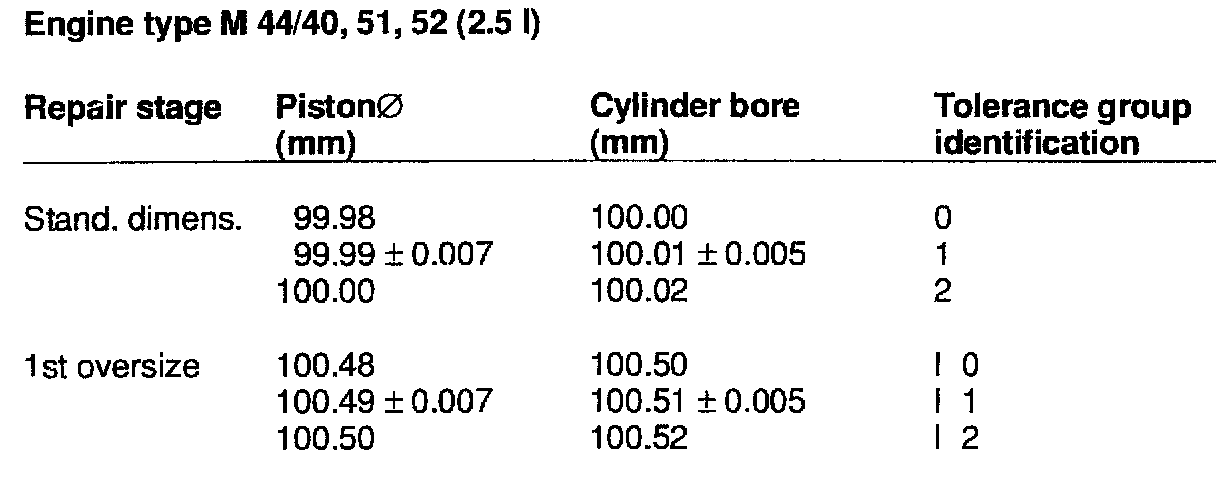

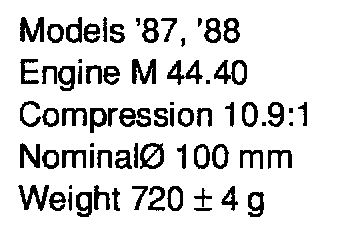

PISTON SPECIFICATIONS

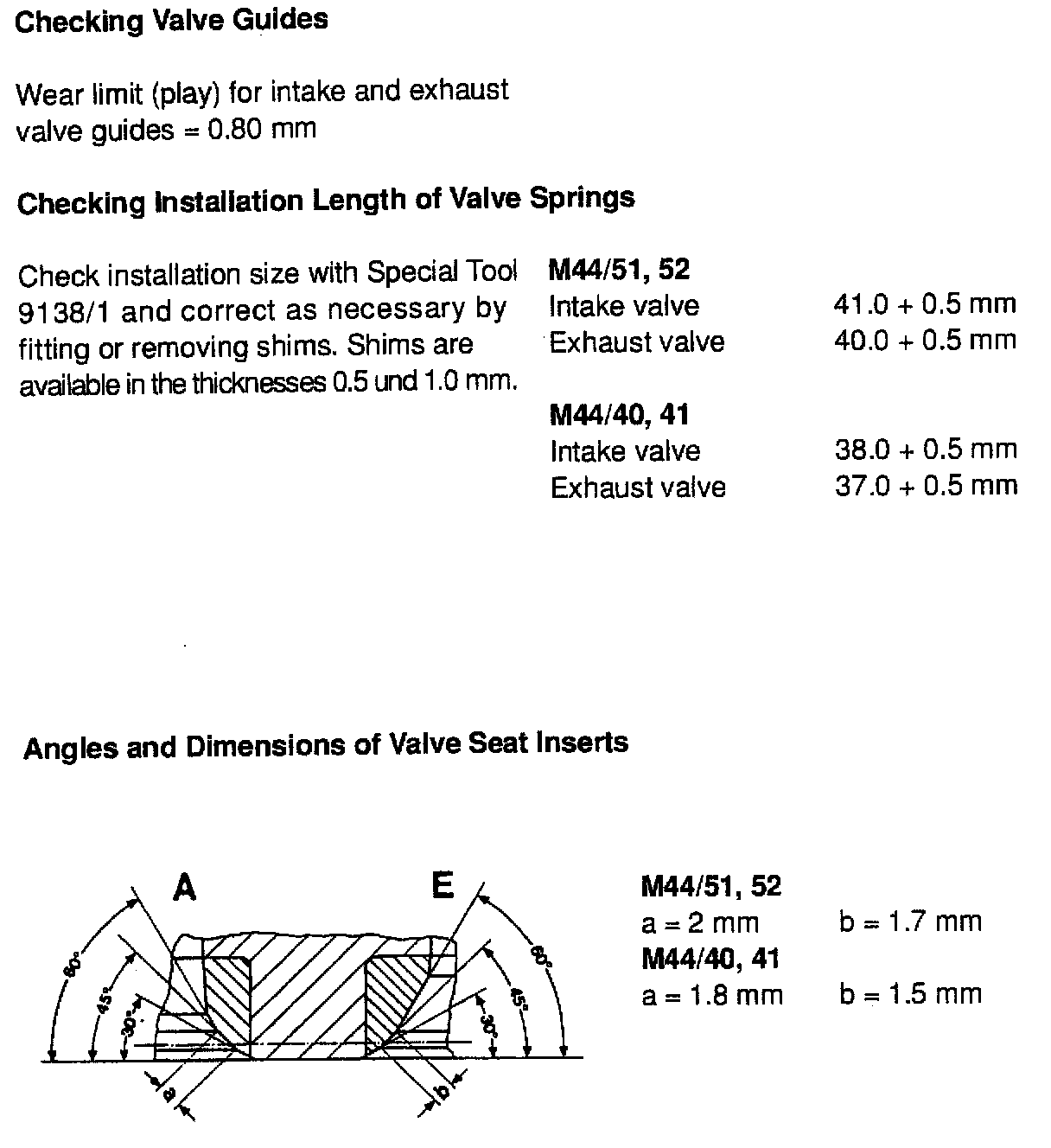

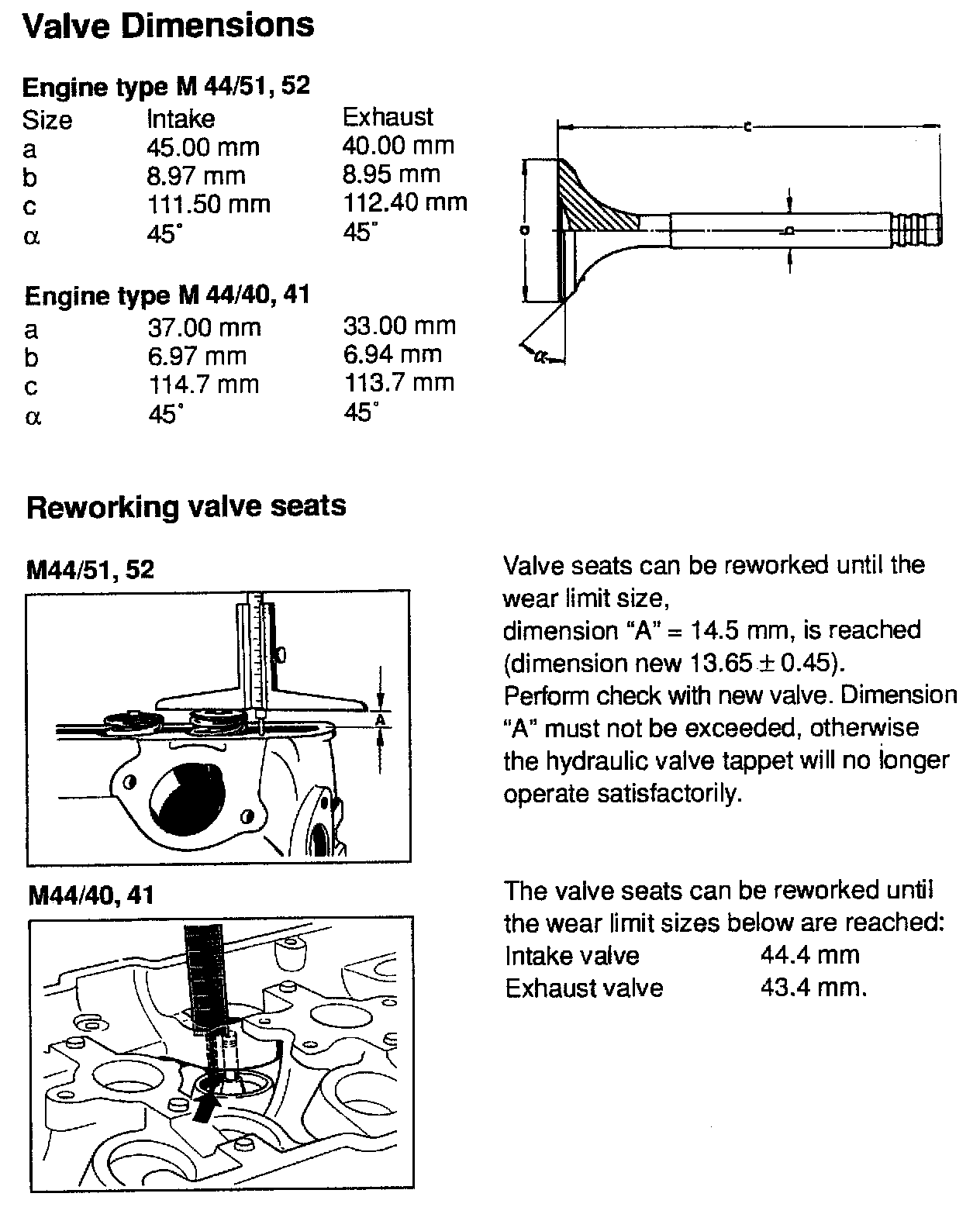

VALVE SPECIFICATIONS
